Brand name: ADT-LINK

Product name: PCIe x1 X16 extension cable

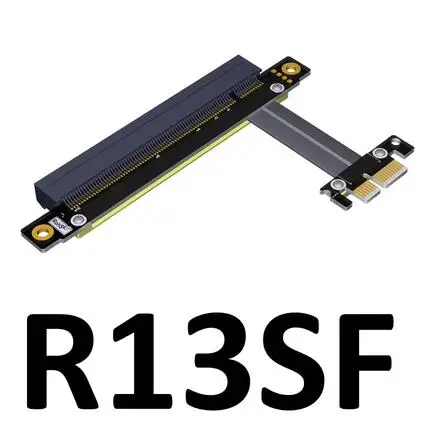

Product model: R13SC，R13SF，R13SL，R13SR

Transfer speed: PCIe 3.0 x1 full speed, 8G/bps (Max.)

Wire length: 3 ~ 100 cm, the length can be customized,

Application: PCIe x1 PCI-E extension cable

Cable length Description:

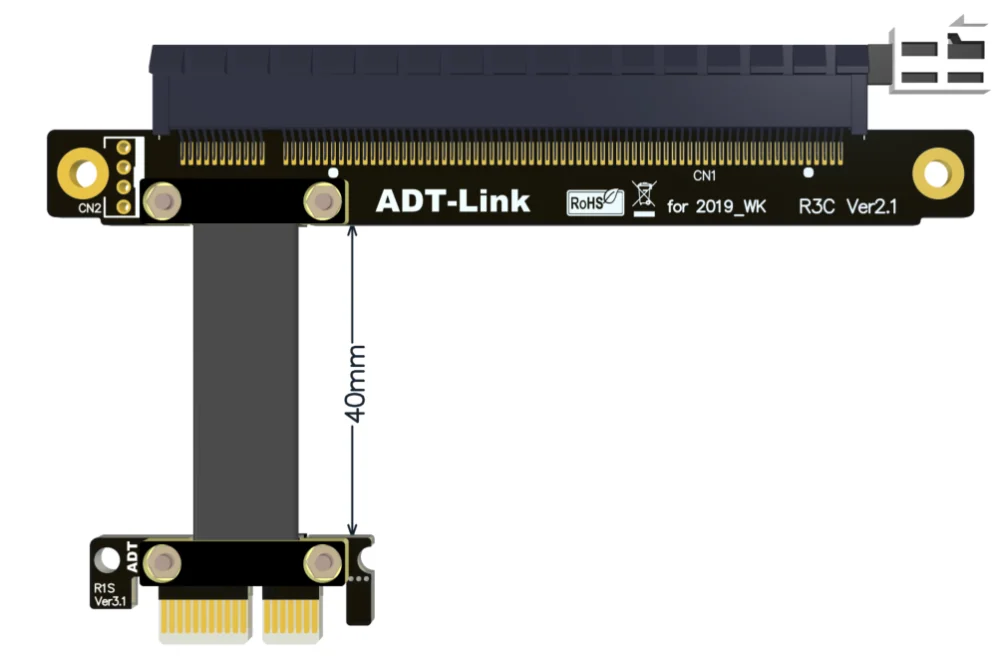

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Product advantage:

1. Wire advantage, using German patented imported wire, using Taiwan imported High quality connector, high frequency support PCI-E 3.0 stable transfer.

2. Cable length advantage, from 5 cm to 1 m, wire length can be customized according to customer needs.

3. The differential signal has no via design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit, and the product is durable.

4. The product uses high-quality materials, PCB workmanship precision, copper thickness is thickened to 1oz, gold finger gold content is sufficient, gold-plated foot has good electrical conductivity, which can reduce the blue screen of the crash caused by the increase of oxidation and rust resistance. The signal transmission is stable at full speed and there is no compatibility problem.

5. The cable used in the product itself is very durable. It is protected by a PCB gasket with a thickness of 3mm at the metal welding point, and is fastened with screws and hex nuts. The product is strong and reliable, resistant to pulling, anti-interference, and will not be broken. The nail problem. The wire can be bent and folded without affecting the use.

6. PCB dwarf and fat design, dwarf will not get stuck to the graphics card, add fat and long design to make the board easier to install, reducing the chance of damage.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Cable thickness? Can it be bent?
The thickness of the wire is 1.4mm, and it can be bent and folded without affecting the use.
