1 pcs x UP Core board Intel computer with X5-Z8350 | Электронные компоненты и принадлежности

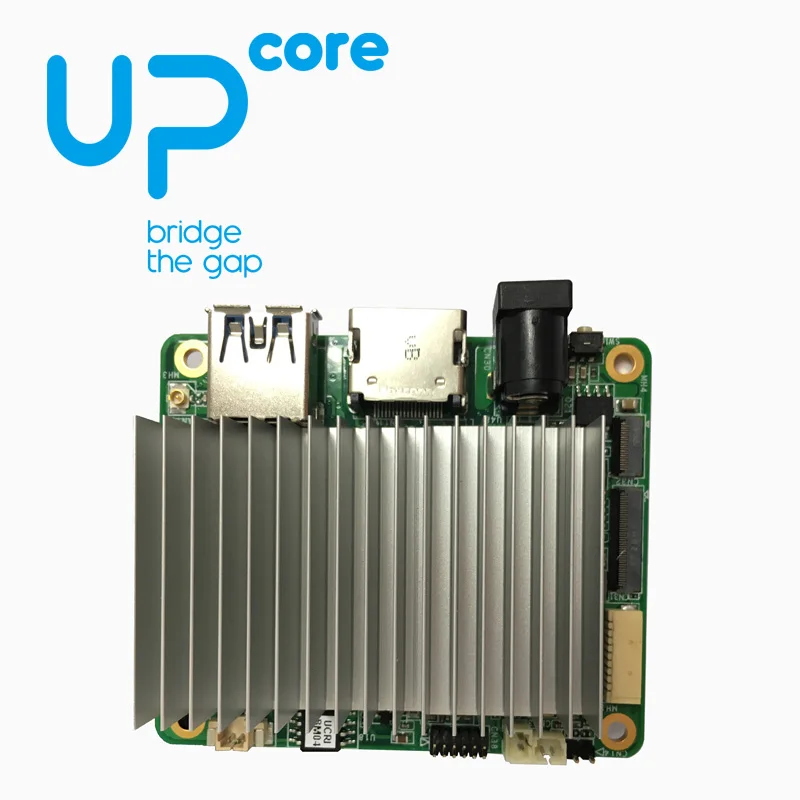

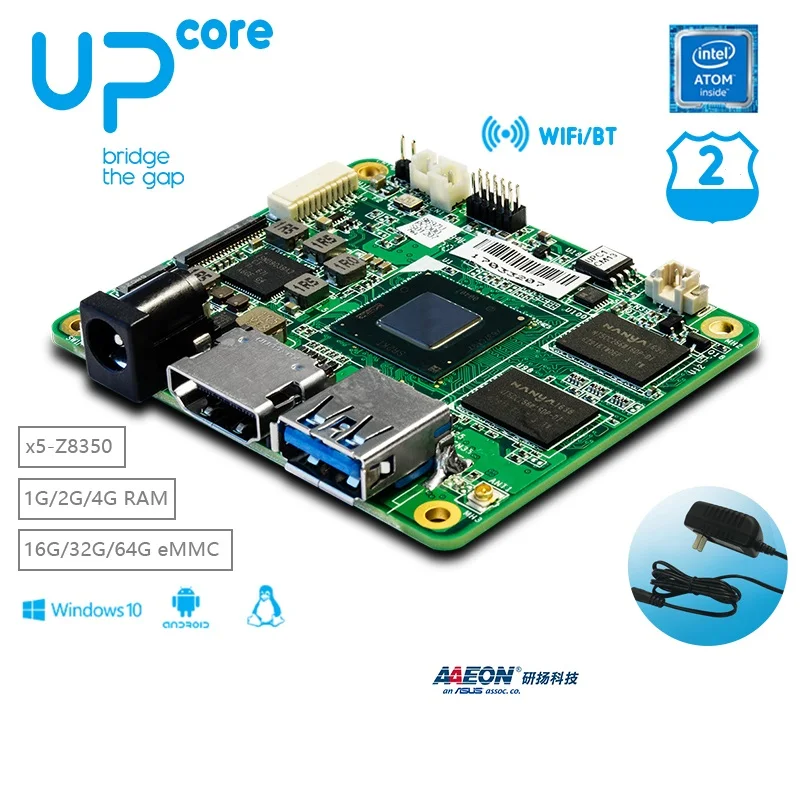

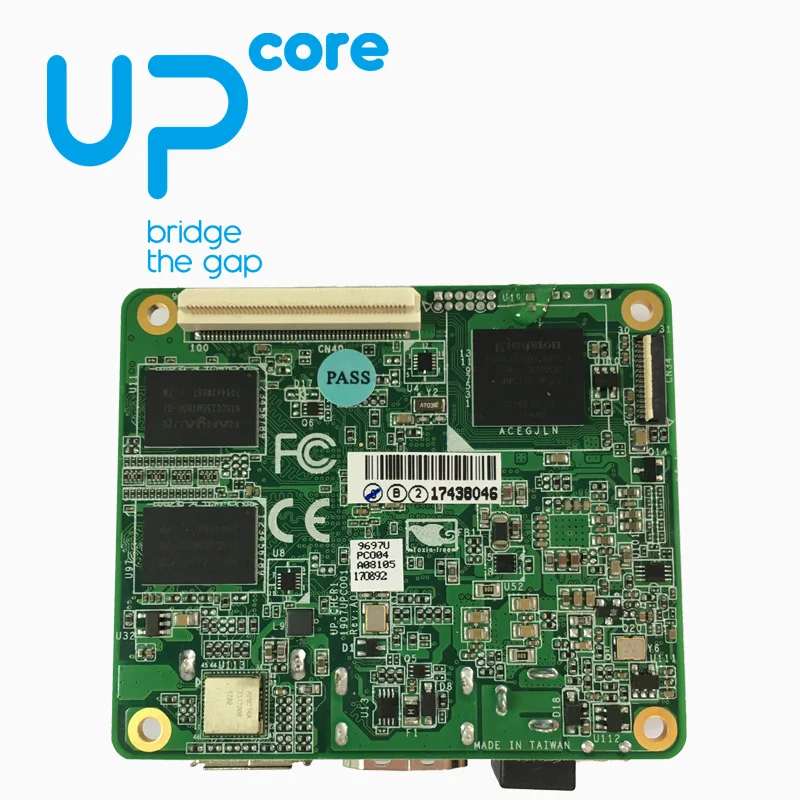

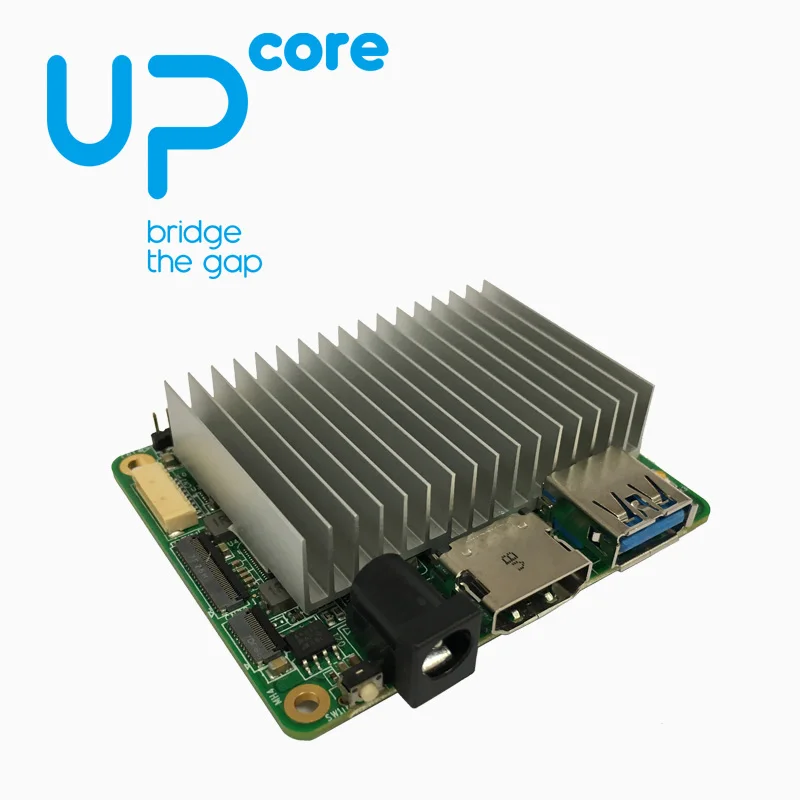

UP Core is a miniature board with the high performance and low power consumption features of the latest tablet technology: the Intel® Atom™ x5 Z8350 Processors (codename Cherry Trail) 64 bits up to 1.92GHz. The internal GPU is the new Intel Gen 8 HD 400 with 12 Execution Units up to 500MHz to deliver extremely high 3D graphic performance.

UP Core is equipped with 1GB/2GB/4GB DDR3L RAM and 16GB/32GB/64GB eMMC. With 100-pin docking connector, UP Core provides the freedom to makers to build up their carrier board. There are more interfaces available, such as 2x port USB2.0 + 1x UART on header, 1x USB 3.0 host, WiFi, Bluetooth 1x DSI/eDP port, 2x Camera (MIPI-CSI), 1x HMDI, RTC.

When it comes to security, UP Core has Intel security features needed for professional IoT applications such Intel AES New Instructions and Intel Identity Protection Technology.

It’s UP to you to choose which operation system is best for your application. The CPU is supported by Android 6.Marshmallow, Microsoft Windows 10 and we support and enable Linux, through our UP Community.

UP Core has a standard industrial PC operating temperature range of 32-140° F / 0-60°C, which makes it flexible for many applications.

Features Intel® Atom™ x5-Z8350 SoC Onboard DDR3L Memory up to 4GB Onboard eMMC Storage up to 64GB DSI/eDP x 1, HDMI x 1 MIPI-CSI x 2 100pin docking connector WiFi+ Bluetooth USB3.0 x 1 Specifications [UP CORE] SPECIFICATIONS PROCESSOR Intel® Atom™ x5-Z8350 Processor SoC GRAPHICS Intel® HD 400 Graphics I/O Full eDP x 1
HDMI x 1
Audio via HDMI and I2C (from docking) CAMERA MIPI-CSI (2 Lane)
MIPI-CSI (4 Lane) USB USB 3.0 Host x 1
USB 2.0 pin header x 2 EXPANSION 100 pin docking connector RTC Yes POWER 5V DC-in @ 4A 5.5/2.1mm jack DIMENSION 56.50 mm × 66 mm MEMORY 2GB / 4GB onboard DDR3L-1600 STORAGE eMMC 16GB / 32GB/ 64GB DISPLAY INTERFACE DSI/eDP x 1 ETHERNET — OS SUPPORT Win 10
Linux (ubilinux, Ubuntu, Yocto)
Android Marshmallow OPERATING TEMPERATURE 32°F ~ 140°F (0°C ~ 60°C) OPERATING HUMIDITY 10% ~ 80% relative humidity, non-condensing CERTIFICATE CE/FCC Class A, RoHS compliant, REACH Ordering Information [UP CORE] PART NUMBER UPC-CHT01-A20-0116-A11 UPC-CHT01-A20-0216-A11 UPC-CHT01-A20-0232-A11 UPC-CHT01-A20-0432-A11 UPC-CHT01-A20-0464-A11 DESCRIPTION UP Core with z8350 CPU, 1GB RAM + 16GB eMMC, passive heatsink, WIFI 802.11 b/g/n + Bluetooth 4.2 on board powered by AMPAK AP6214A UP Core with z8350 CPU, 2GB RAM + 16GB eMMC, passive heatsink, WIFI 802.11 b/g/n + Bluetooth 4.2 on board powered by AMPAK AP6214A UP Core with z8350 CPU, 2GB RAM + 32GB eMMC, passive heatsink, WIFI 802.11 b/g/n + Bluetooth 4.2 on board powered by AMPAK AP6214A UP Core with z8350 CPU,4GB RAM + 32GB eMMC, passive heatsink, WIFI 802.11 b/g/n + Bluetooth 4.2 on board powered by AMPAK AP6214A UP Core with z8350 CPU, 4GB RAM + 64GB eMMC, passive heatsink, WIFI 802.11 b/g/n + Bluetooth 4.2 on board powered by AMPAK AP6214A
