Feature:
1.PIC chip; version V1.5 (supports 9 protocols);
2.Double security protection; ultra-low power consumption; classic dual board;
3.ELM327 WIFI OBD2 scanner car diagnostic adapter supports all OBD-II self-diagnostic systems and compatible communication protocol detection.
4. Through the link with the car, the relevant data of the car such as: engine speed, coolant temperature, fuel system status, vehicle speed, short-term fuel correction, long-term fuel correction, throttle opening, car fault code, etc. can be reflected via Bluetooth It is a very powerful and easy-to-use diagnostic device for mobile devices such as mobile computers.
5.WIFI OBD2 ELM327 scanner car diagnostic adapter supports all OBD-II self-diagnostic systems and compatible communication protocol detection. Its function is to dunk 1. Read general and auto manufacturer-specific diagnostic fault codes and display their definitions (the software contains more than 3000 fault codes) 2. Clear the fault codes and turn off the engine (engine) fault alarm indicator 3. Read the engine's real-time dynamic data flow: engine speed, calculated load value, coolant temperature, fuel system status, vehicle speed, short-term fuel correction, long-term fuel correction, intake manifold pressure, timing advance, intake temperature, air flow, fuel economy Valve opening, oxygen sensor voltage / short-term fuel trim, fuel pressure, etc.

Specification:
Material: automotive grade plastic
Operating temperature: -40 to 85 degrees Celsius
SSID: WiFi_OBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 feet (line of sight)
Antenna: Internal
Power consumption: 0.75 watts (with power switch)
Wifi standard: 802.11a / b / g

The OBD-II protocol is supported as follows:
Supported OBD-II protocol:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Software Features:
The software can do the following:
Read error diagnosis codes-universal and manufacturer-specific, and display their meaning (the database has more than 3,000 universal code definitions)
Clear error code and turn off MIL ("Check Engine" light)
Display current sensor data, including:
Engine speed per minute (RPM)
Calculated load value
Coolant temperature
Fuel system status
Speed
Short-term fuel situation
Long-term fuel situation
Intake manifold pressure
Fuel injection advance time
Intake air temperature
Air velocity
Throttle valve absolute position
Oxygen detection voltage associated with short-term fuel conditions
Fuel system status
Fuel pressure
There are many other data for fuel consumption monitoring ...
Future features of the software:
Data graph display and logging
Frozen frame data
Continuous and discontinuous oxygen detection results

Software support platforms: Windows XP, Windows 7/8 Android, IOS, Symbian, WP7, PC and other systems.

Package Content:

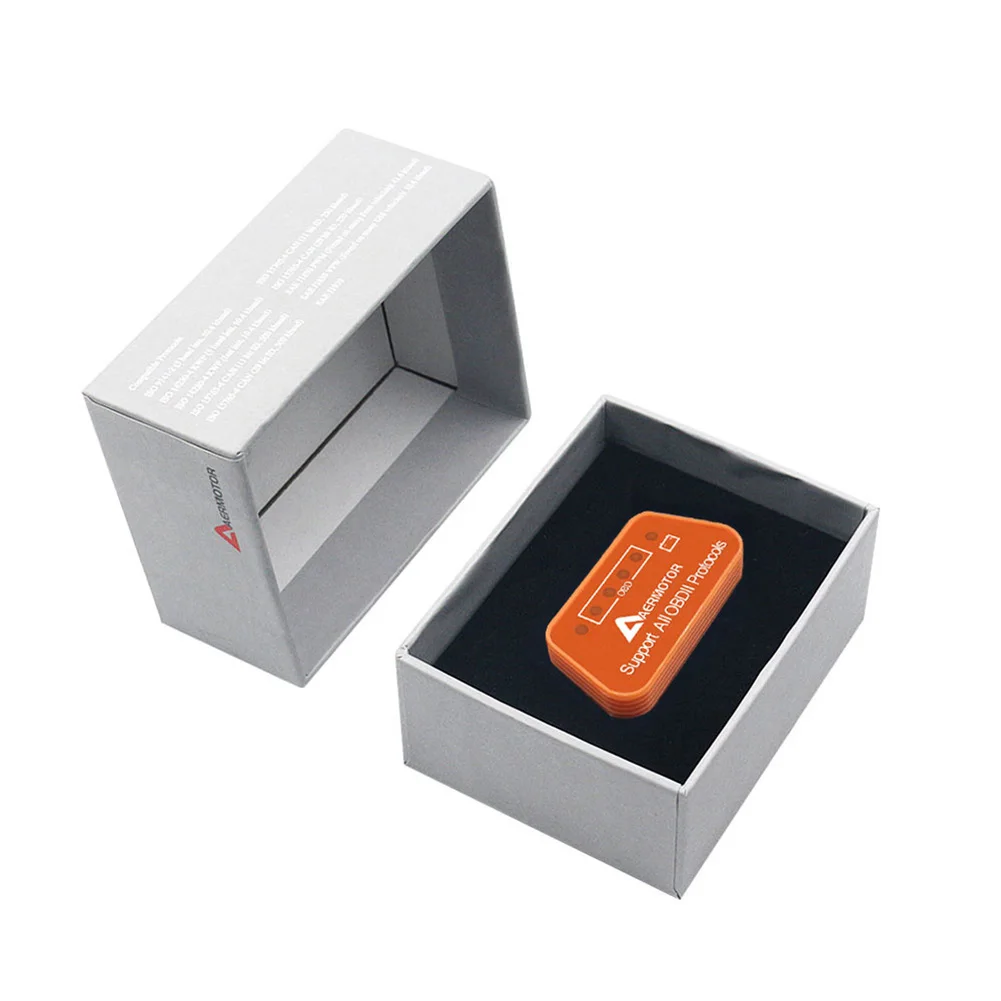

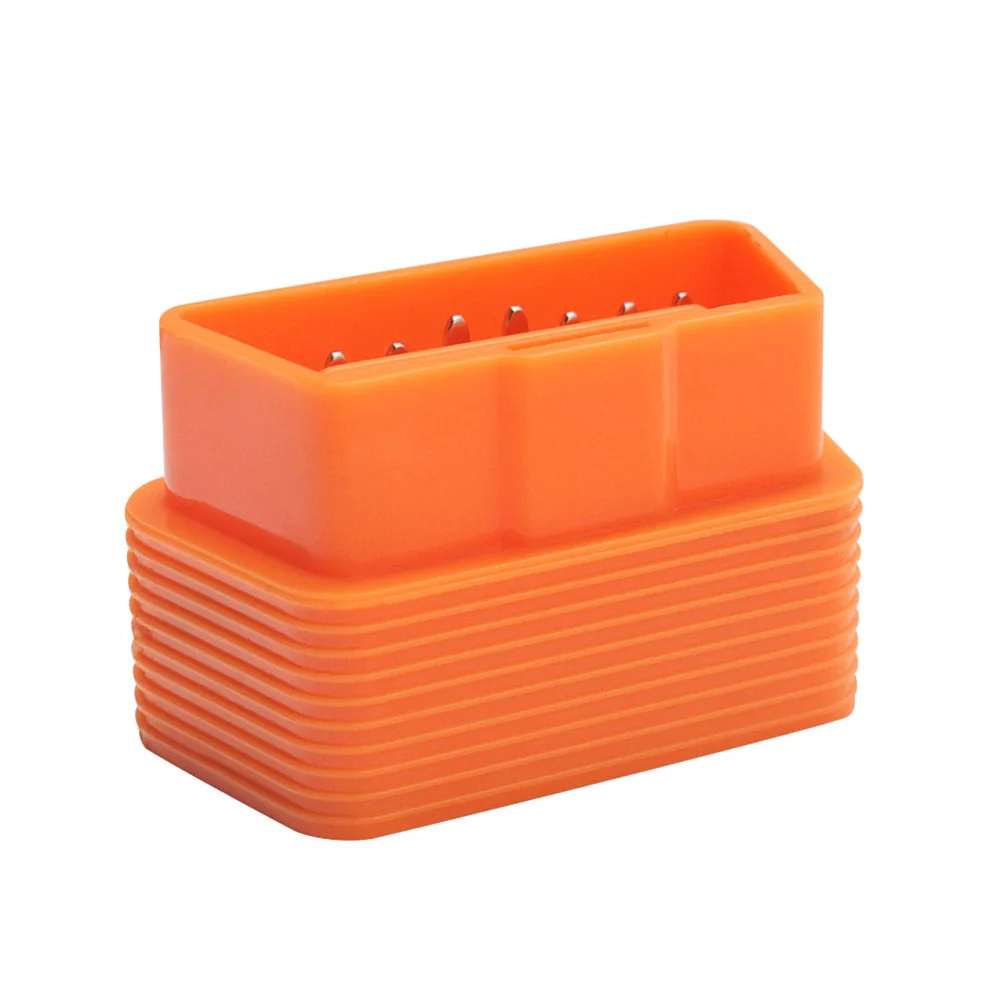

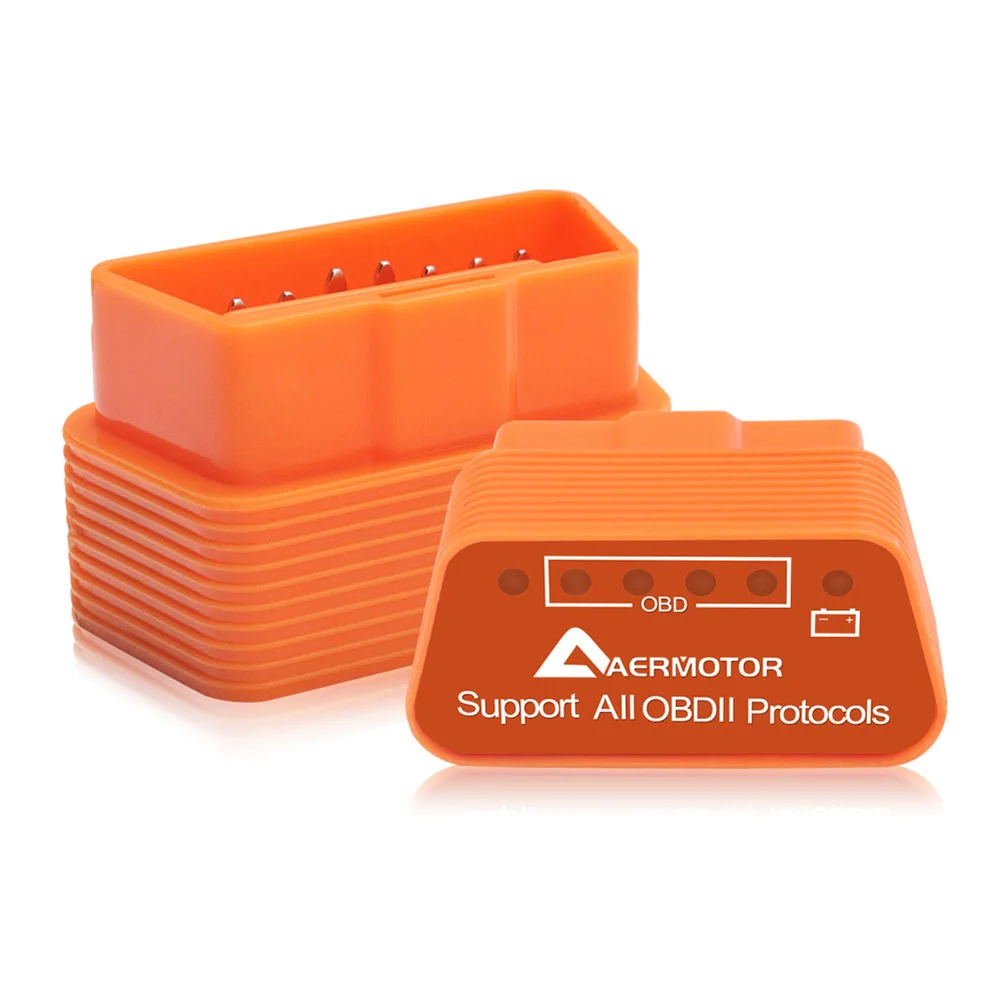

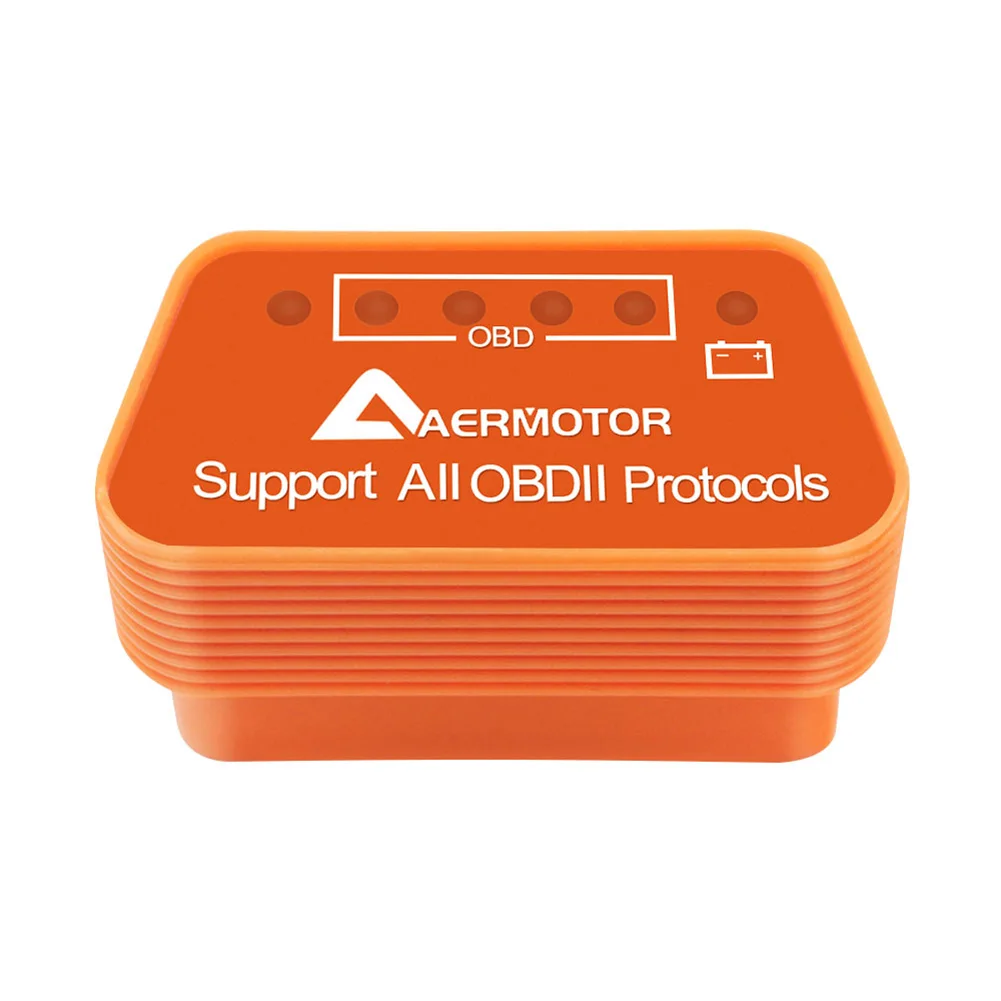

1 * Car fault diagnosis instrument

Note:
1. All pictures have been professionally calibrated, but due to the ambient light and different display device settings, the pictures and items you see may have some deviations.
2. The data is manually measured, there may be some deviations, but it does not affect the use.
