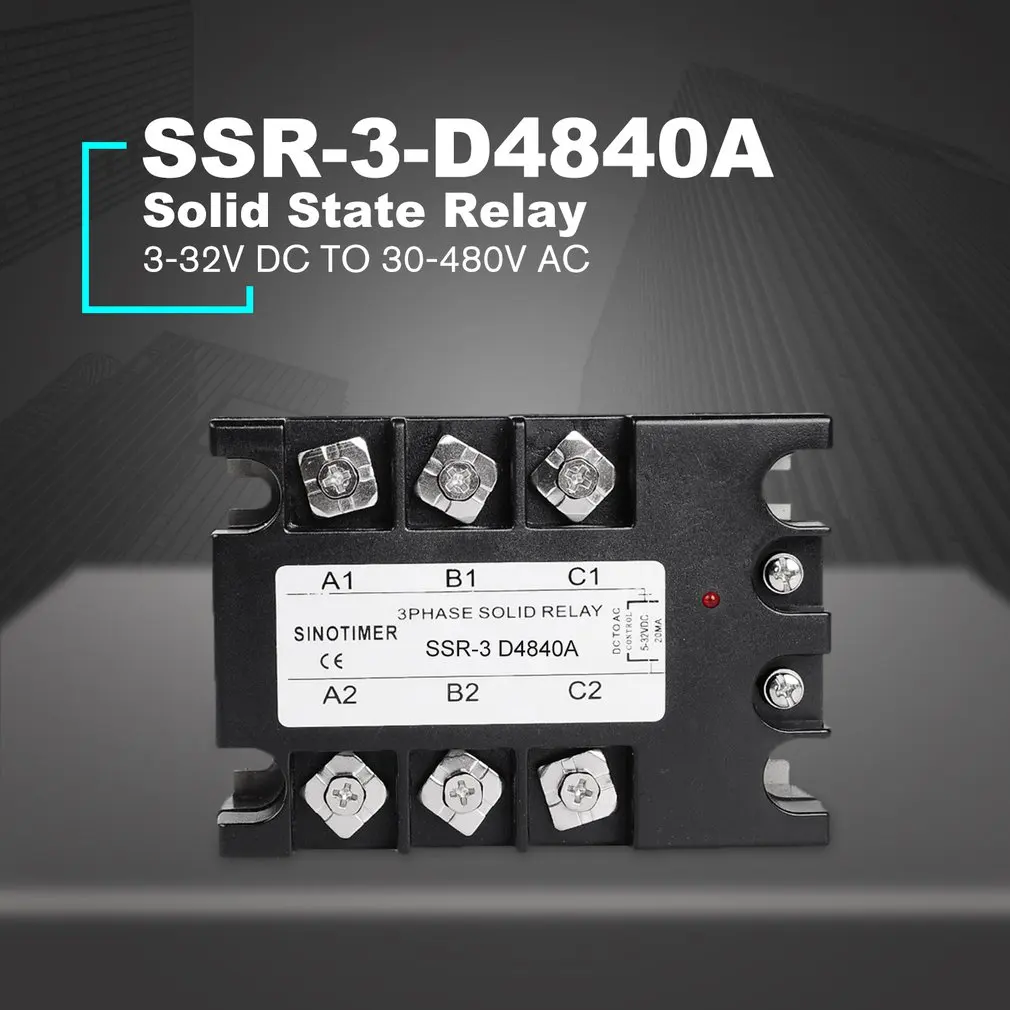

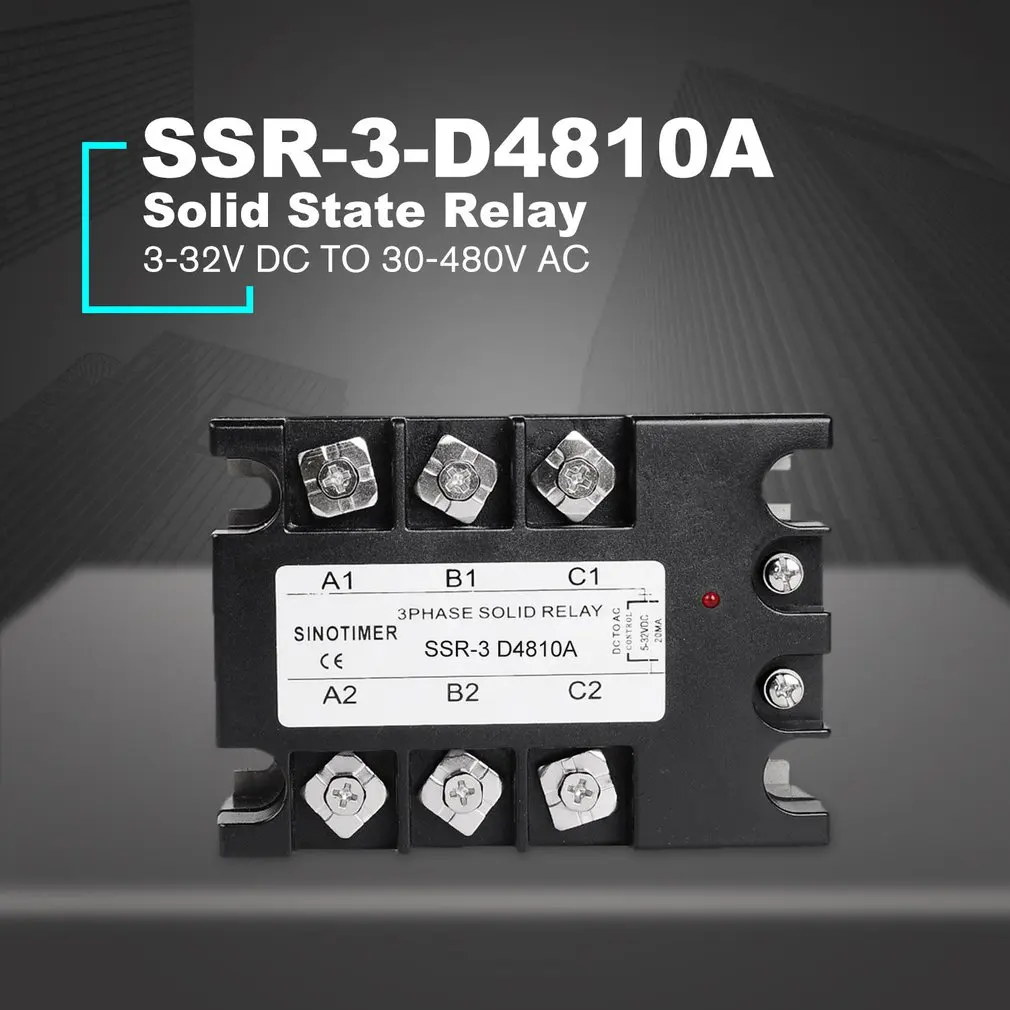

Solid State Relay DC-AC SSR-3D4810A 25A 40A 60A 80A 100A 3-32VDC TO 30-480VAC Load Current Three Phase for Temperature Control

Features:
1.SSR Application: with a switch no spark, no noise,high switching speed,anti-corrosion,moisture-proof,anti-vibration,long life.high reliability,electromagnetic compatibility and other characteristics.

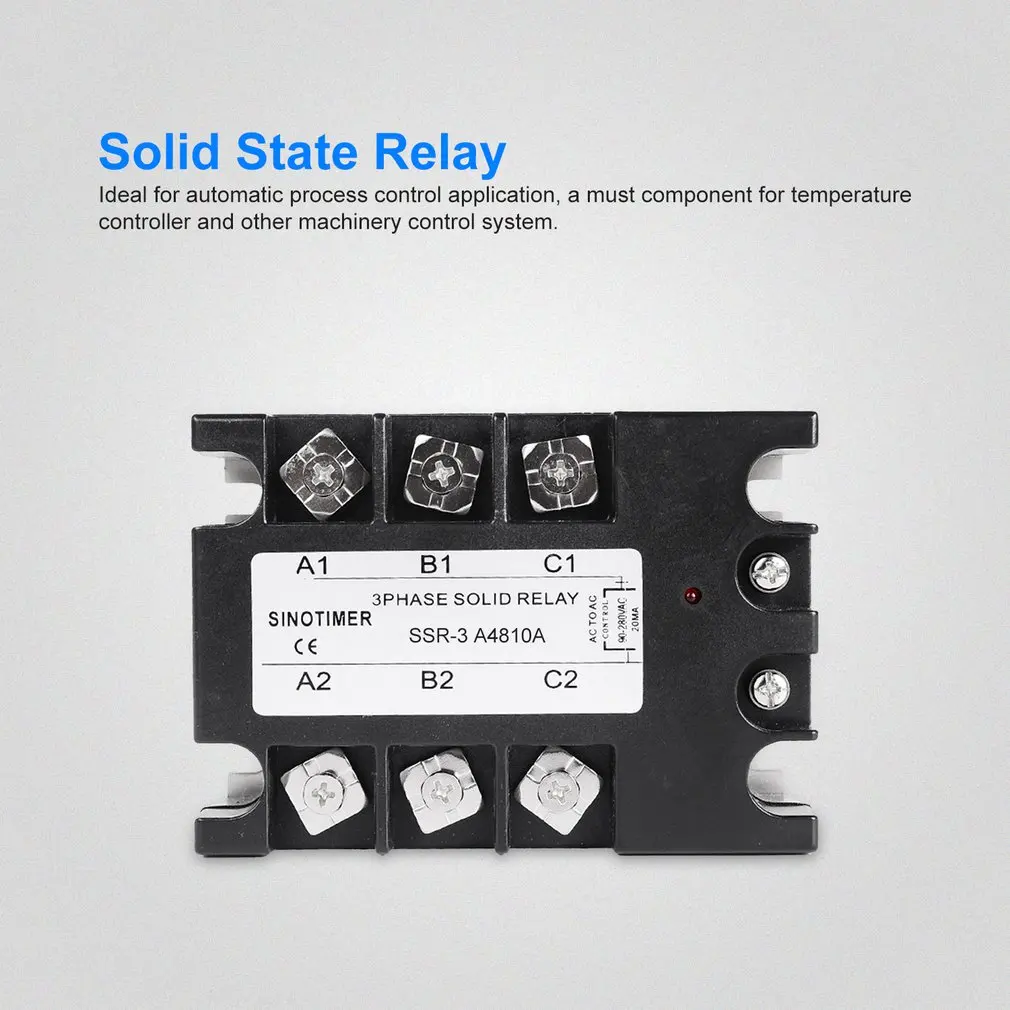

2.Solid state relay ideal for automatic process control application, a must component for temperature controller and other machinery control system.
3.Especially suitable for corrosion, moisture, dust, and other harsh environments, and frequent switching the occasion, AC contactor is updated alternative.

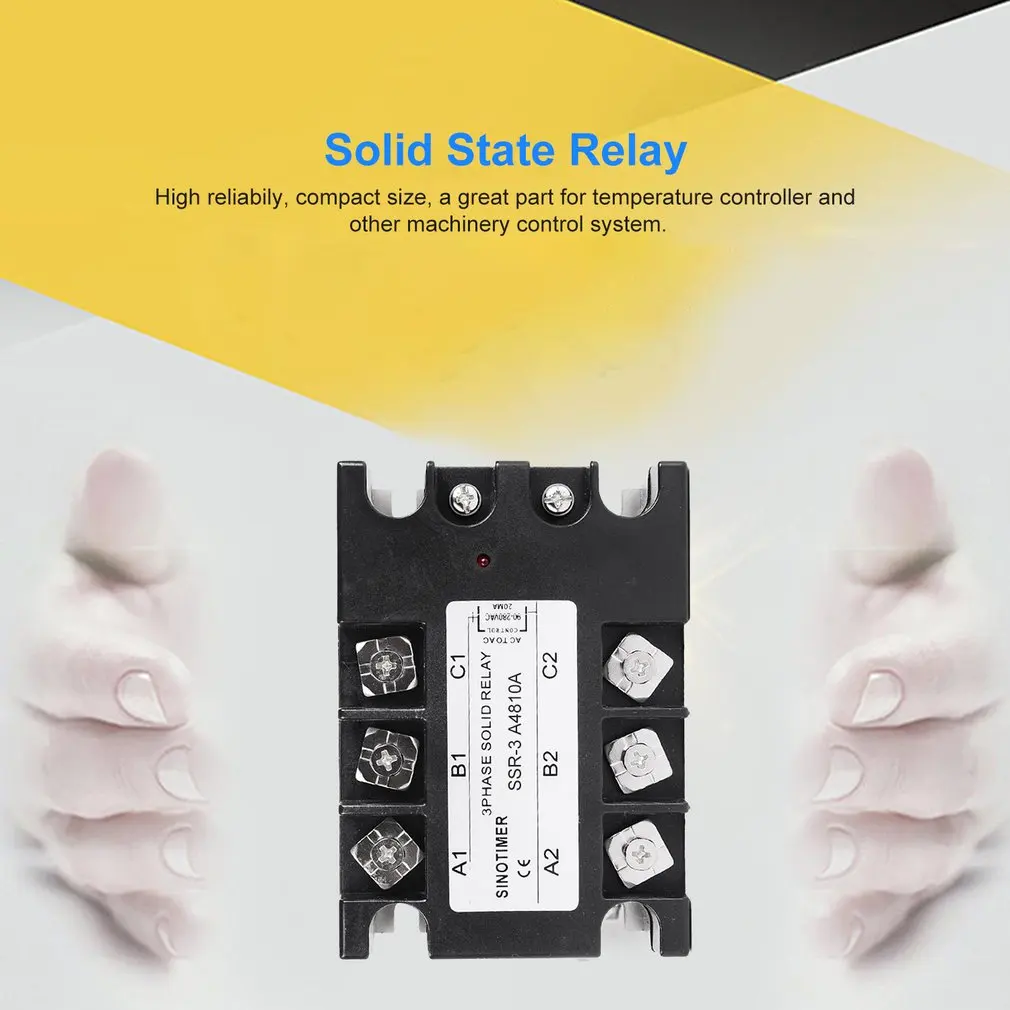

4.High reliabily, compact size, a great part for temperature controller and other machinery control system.
5.Triac output, zero voltage open, zero off.Optical isolation between input circuit and output circuit.Inputs-between the output isolation voltage 4000 V.

Descriptions:
1.SSR series solid state relay with flame-retardant plastic housing, epoxy casting compound, wiring screw terminals with high structural strength, impact strength, vibration resistance, the input drive current small can be convenient and computer terminals and a variety of digital programmable circuit interface.

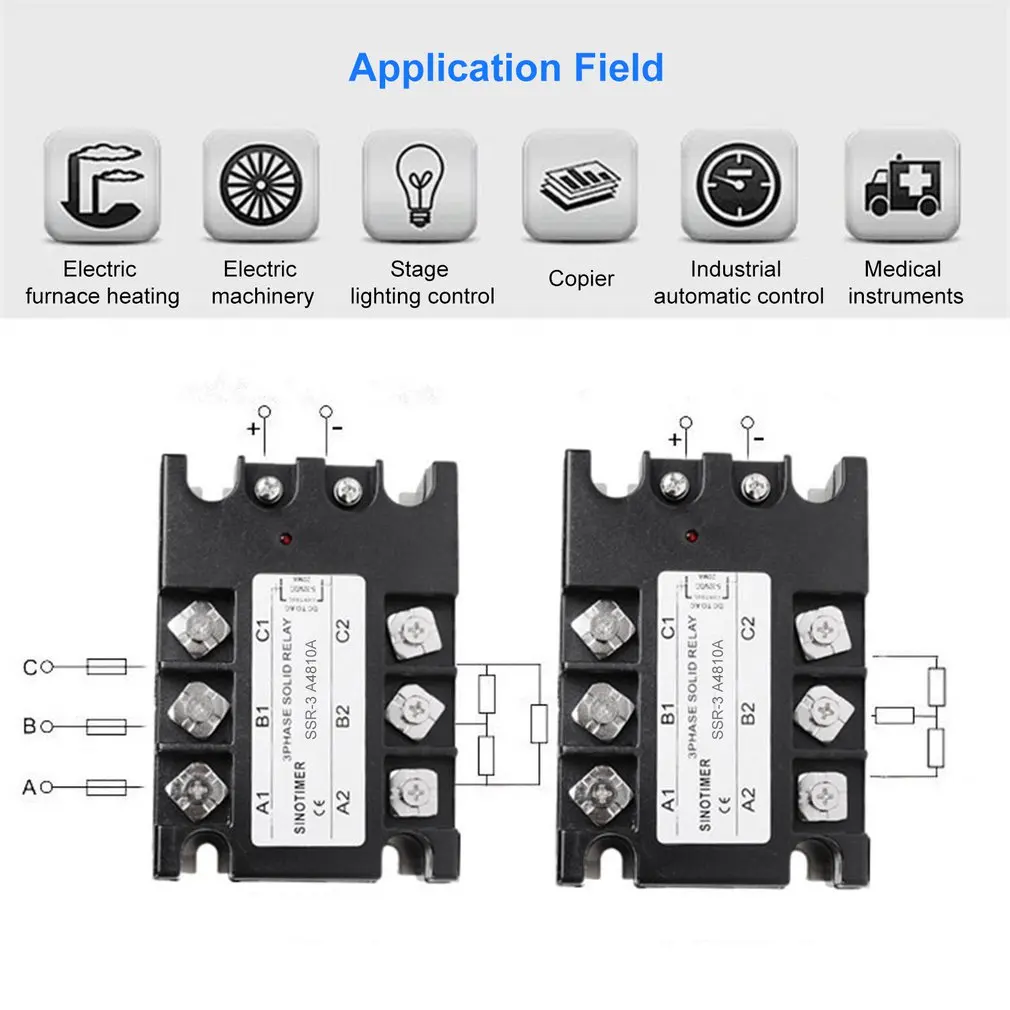

2.Widely used in automation and automation Control of petrochemical plants, food machines, packaging machines, textile machines, machine tools, plastic machines, fitness machines, entertainment possibilities. Especially suitable for corrosion, moisture, dust, and other harsh environments, and frequent switching the occasion, AC contactor is updated alternative.

Specifications:

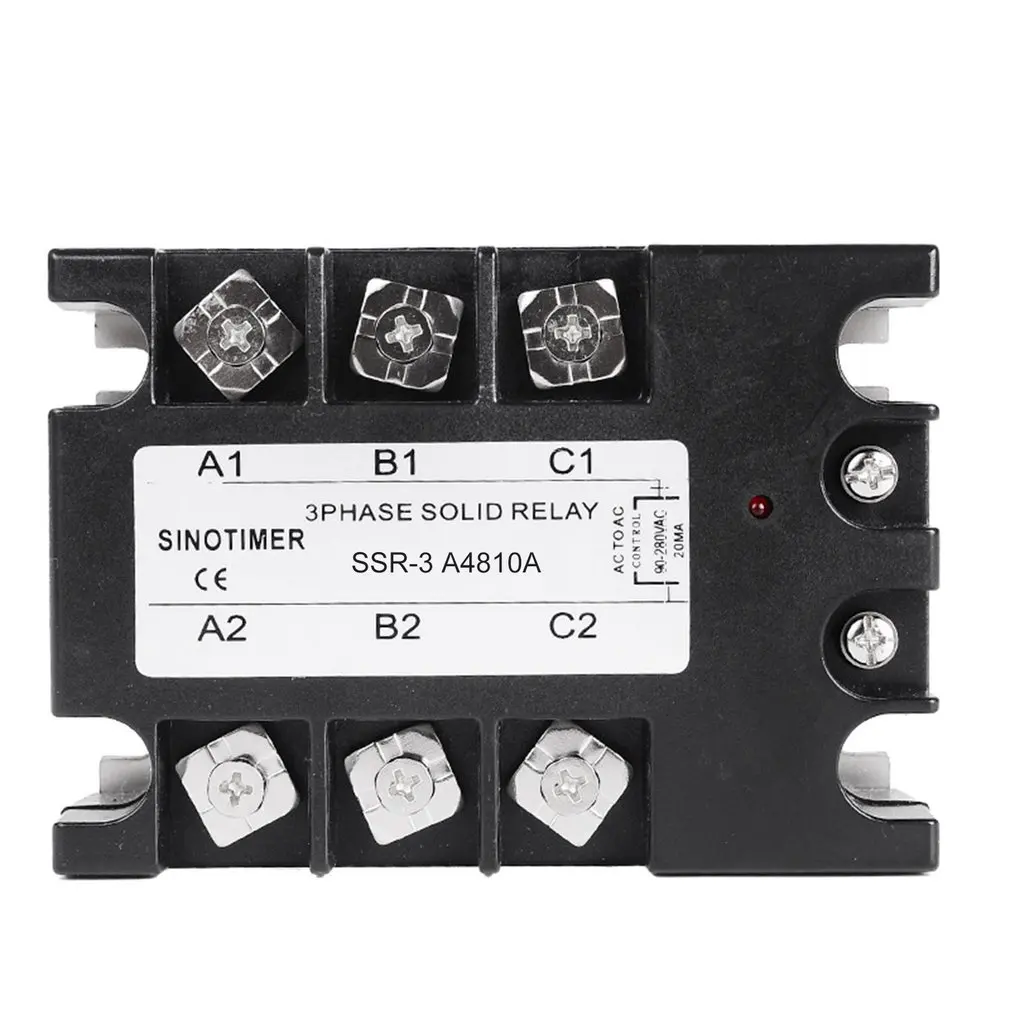

Item name:Solid State Relay
Color:White

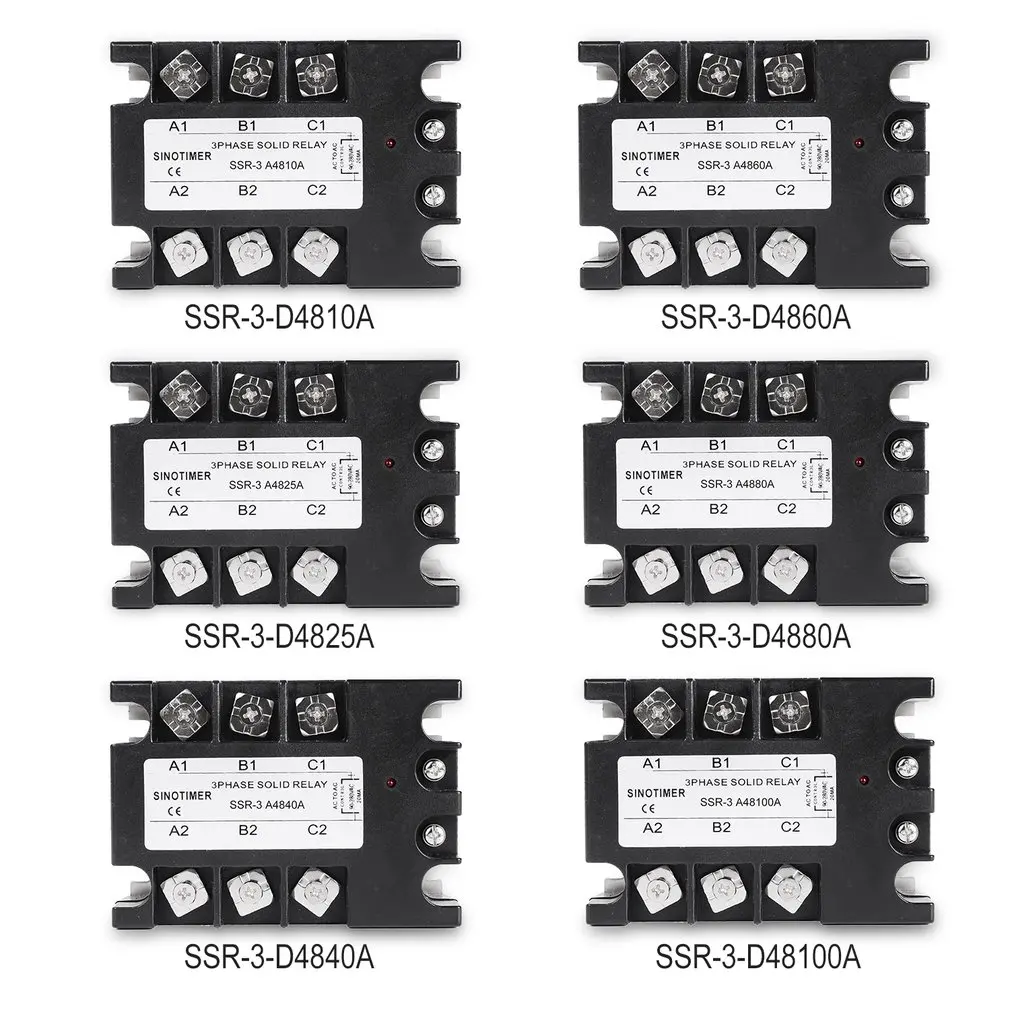

Product model: SSR-3-D4810A, SSR-3-D4825A, SSR-3-D4840A, SSR-3-D4860A, SSR-3-D4880A, SSR-3-D48100A optional
Rated current:10A/25A/40A/60A/80A/100A
Quantity : 1 piece
Materiel: Metal + ABS

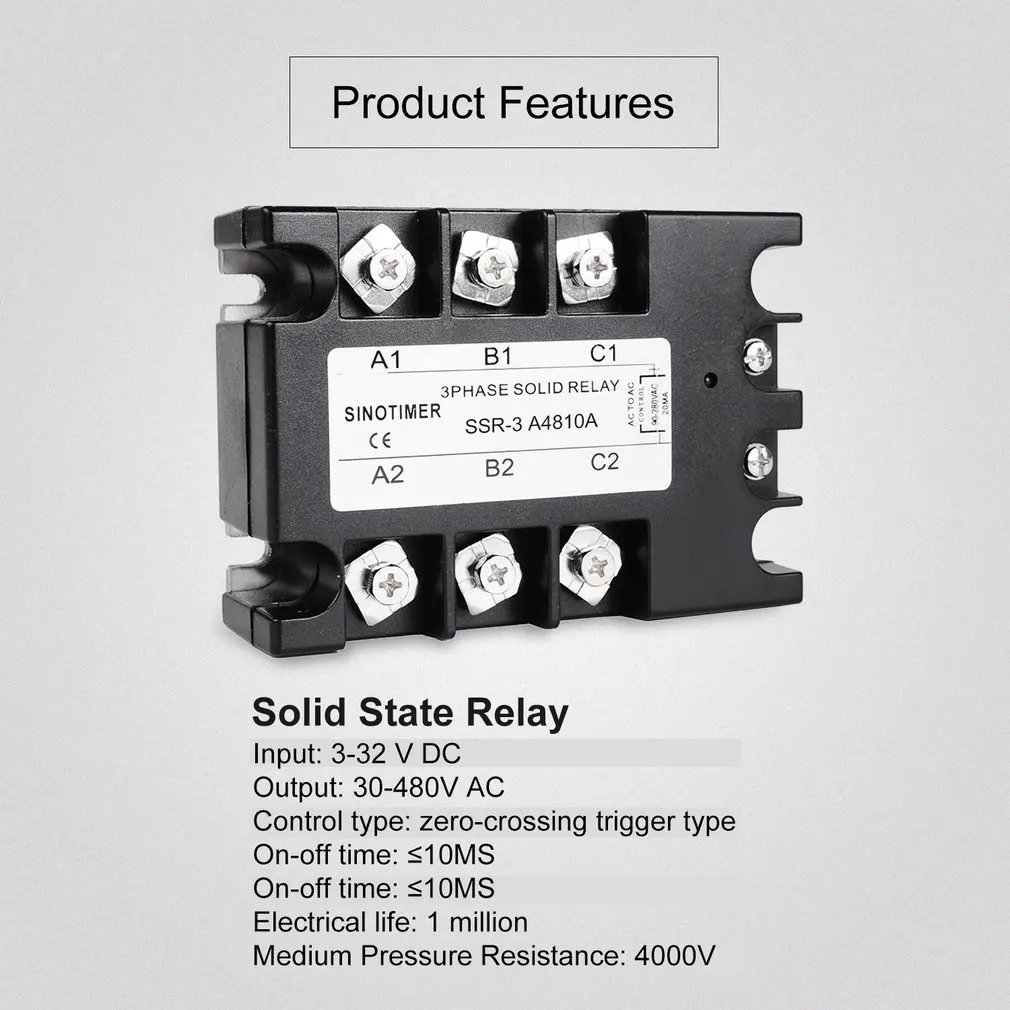

Theory: Solid State Relay
Input: 3-32 V DC
Output: 30-480V AC
Control type: zero-crossing trigger type
On-off time: ≤10MS
Electrical life: ≥ 1 million
Working temperature: - 20 - 85 °
Medium Pressure Resistance: 4000V
Size:75 x 38x 105mm

Package information:
Package size:80 x 50 x 110mm
Package Weight: 320g
General box Package

Package included:
1 x Solid State Relay

Note:

 due to the difference between the measurement, the battery dimension and weight may have little error.
