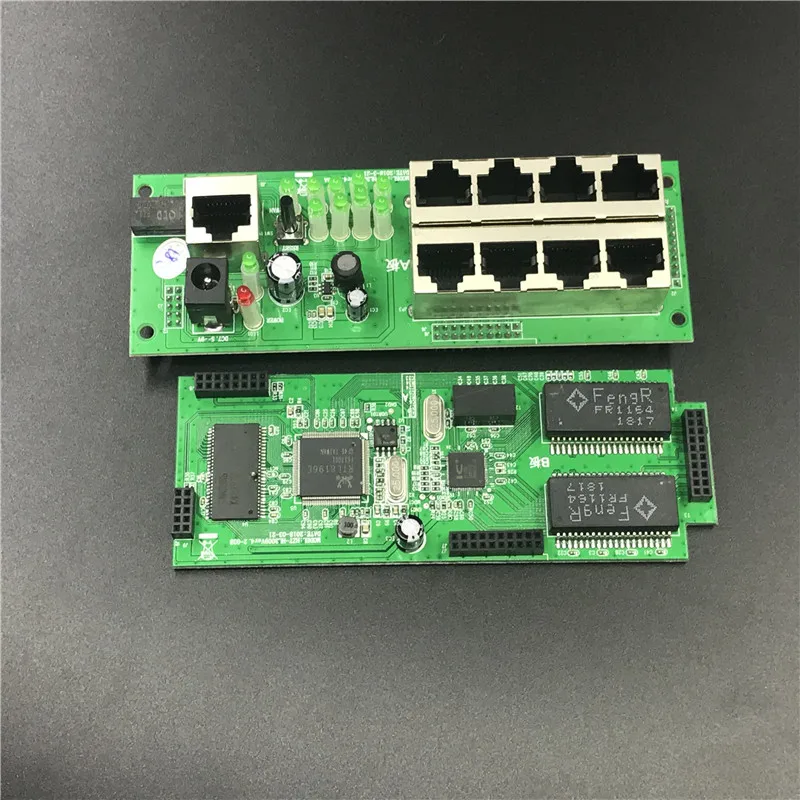

Mini router module Smart metal case with cable distribution box 8 ports OEM modules Module motherboard | Компьютеры и офис

Mini router module Smart metal case with cable distribution box 8 ports OEM modules Module motherboard | Компьютеры и офис

1.1 wan 8 lan
2.10 / 100 M ports lan 8
3, exclusive broadband
4, 1 year warranty

Features

         Complies with IEEE 802.3, IEEE 802.3u standards

         1 10/100Mbps Auto-Negotiation WAN RJ45 port,

         8 10/100Mbps Auto-Negotiation LAN ports,

         supporting Auto-MDI/MDIX

         Shares data and Internet access for Stations, connecting Internet through PPPoE on demand and disconnecting when idle

         Supports TCP/IP, PPPoE, DHCP, ICMP, NAT

         Built-in NAT and DHCP server

         supporting static IP address distributing

         supporting IP address filtering, Domain Name filtering

         Supports connecting/disconnecting Internet on a specified time of day

         Built-in Firewall supporting Domain Name filtering, and MAC address filtering

         Supports Virtual Server, Special Application, and DMZ host

         Supports firmware upgrade,

         Supports Remote and Web management

Application

SOHO broadband routers are widely used in smart home wire distribution box system, the SME Internet use and others.

Specifications:

Standards

 IEEE 802.3; IEEE 802.3u

Ethernet Protocol

 CSMA/CD

Ports

 WAN: 1 10/100 Auto-MDI/MDIX RJ-45 Port

 LAN:8 10/100 Auto-MDI/MDIX RJ-45 Ports

Application Protocols

TCP/IP, PPPoE, DHCP, NAT

Flow Control

IEEE 802.3x for Full duplex

Backpressure for Half duplex

LEDs

Power

WAN: Link/Act

LAN: Link/Act

Power

External, 7.5V~ 1A

Operating Temp.

 0ºC ~ 70ºC

Operating Humidity

 5% ~ 90%RH, Non-Condensing

Safety & Emission

ROSH, CE,FCC

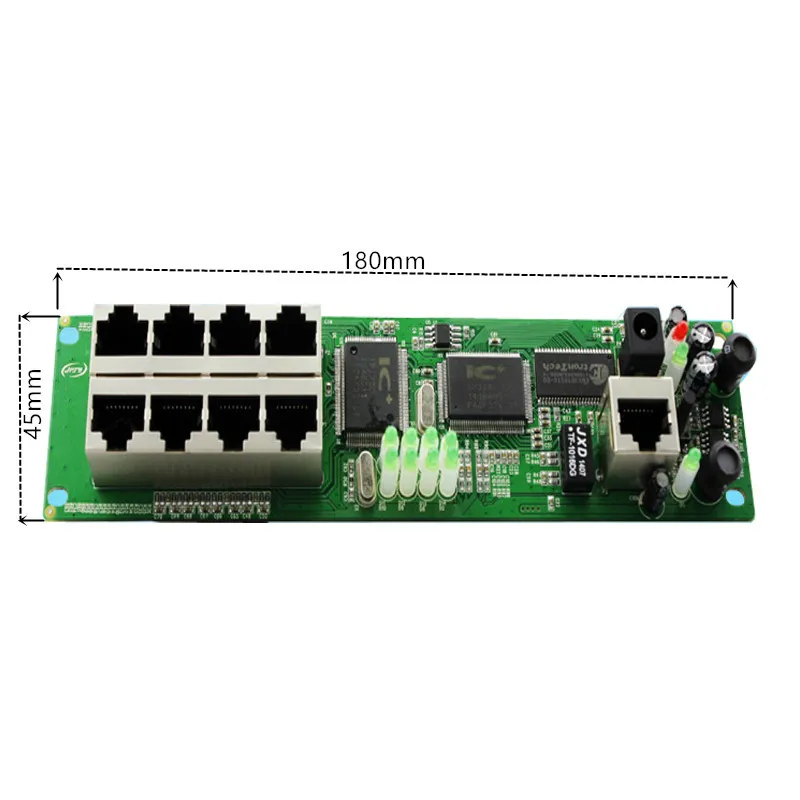

Dimension

180*45*18MM
