Specification:

Brand new

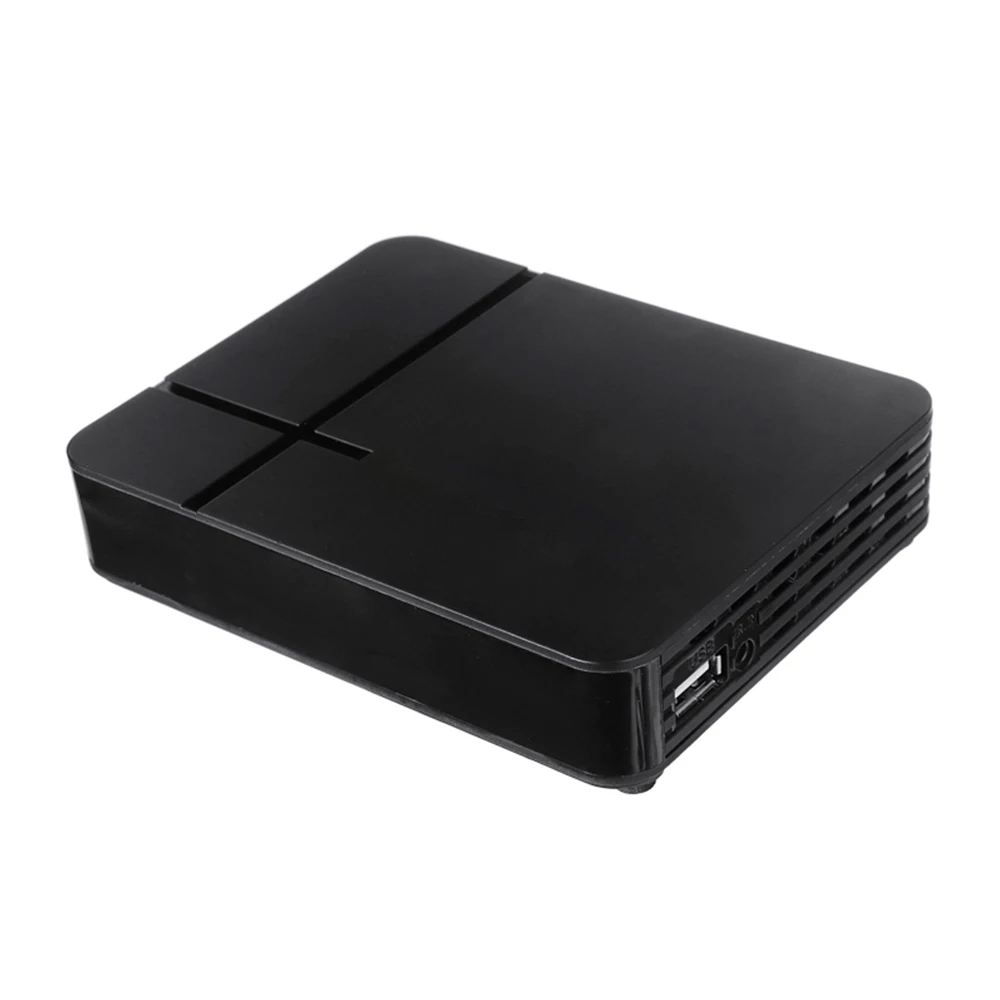

Type: Digital TV Box

Material: ABS

Size: Approx. 105 x 120 x 25mm/4.13" x 4.72" x 0.98"

Flash Memory: 32Mbit

DDR-2 SDRAM: 512Mbit

Standard: ISO/IEC 13818-1

Input Max. Bit Stream Rate: 120Mbps

Maxlinear Silicon Tuner: MXL201

Input Frequency Range: VHF: 174-230MHz, UHF: 470-862MHz

IF Bandwidth: 6, 7 or 8MHz

Input Signal Level: -85dBm to -20dBm

RF Input Connector: D-type Connector(RF IN)

Input Impedance: 75℃

Modulation Mode: OFDM (Orthogonal Frequency Division Multiplexing)

Demodulation: 256QAM, 64QAM, 16QAM and QPSK

Guard Interval: 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128

FEC Code Rates: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6

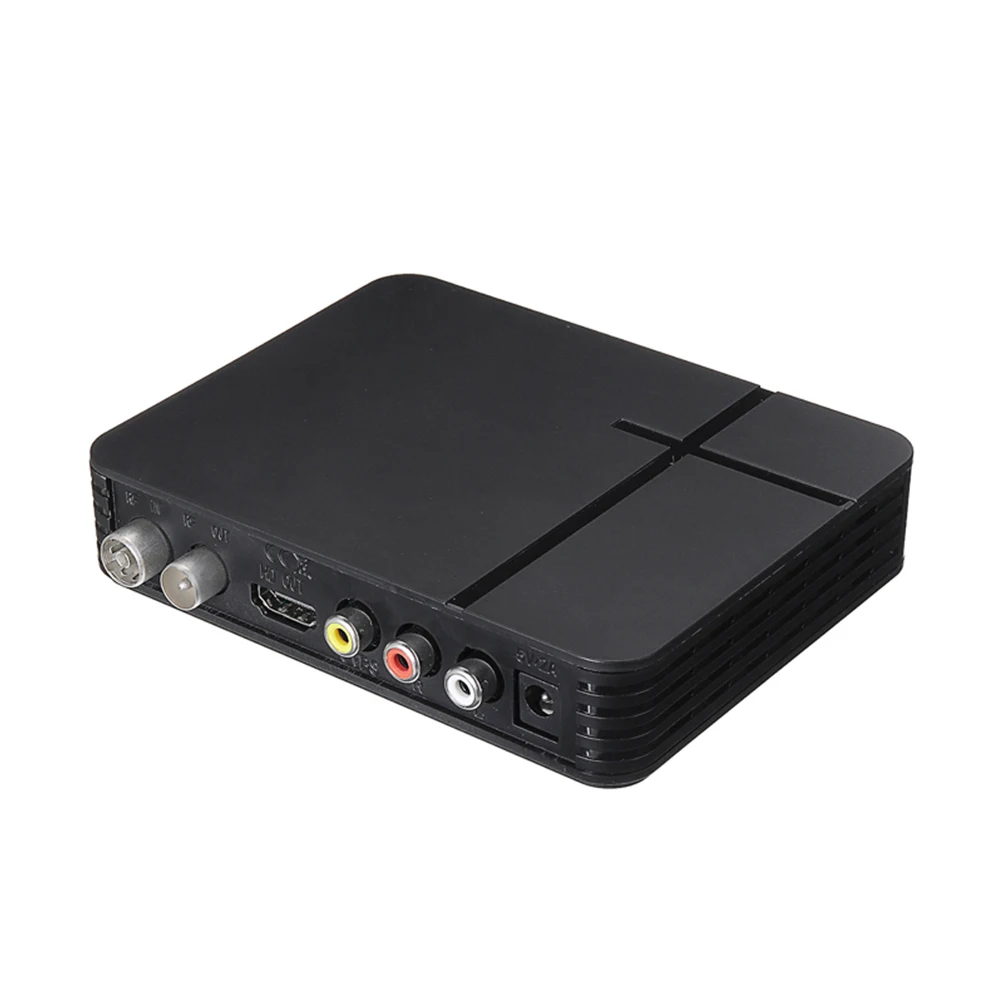

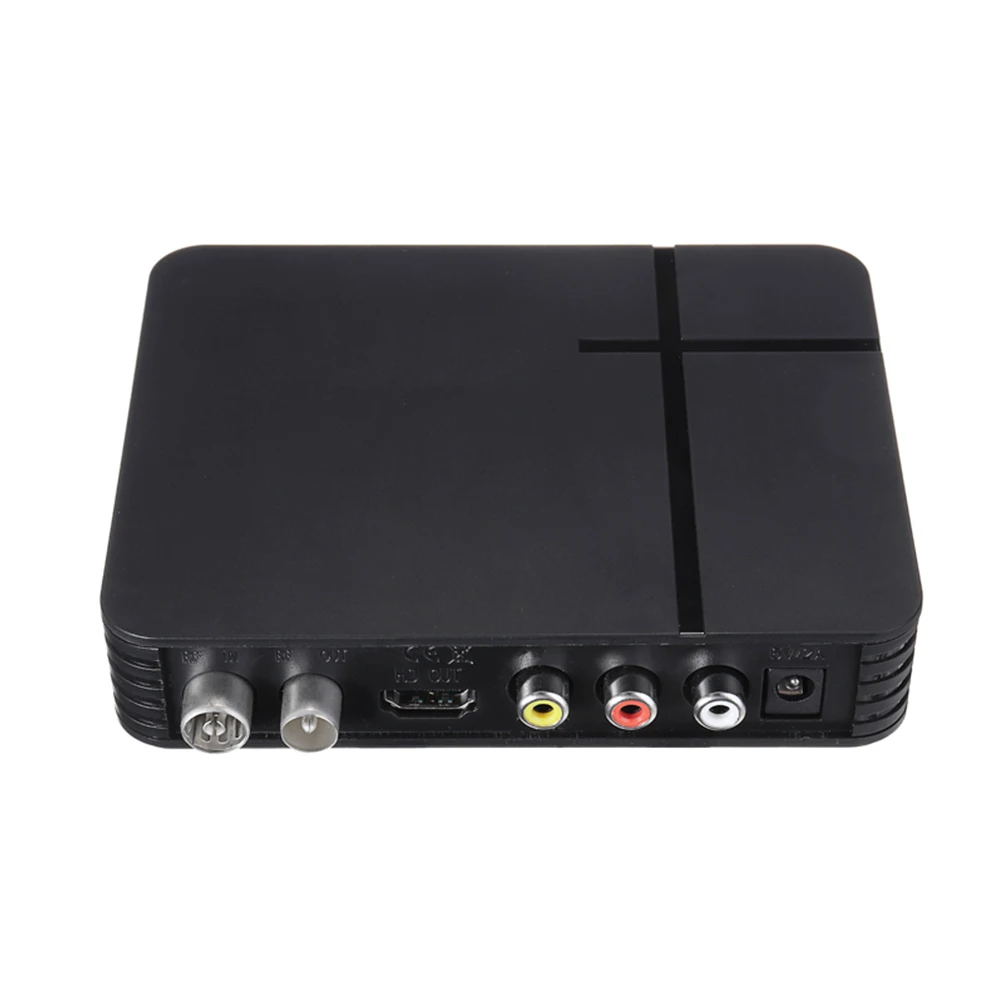

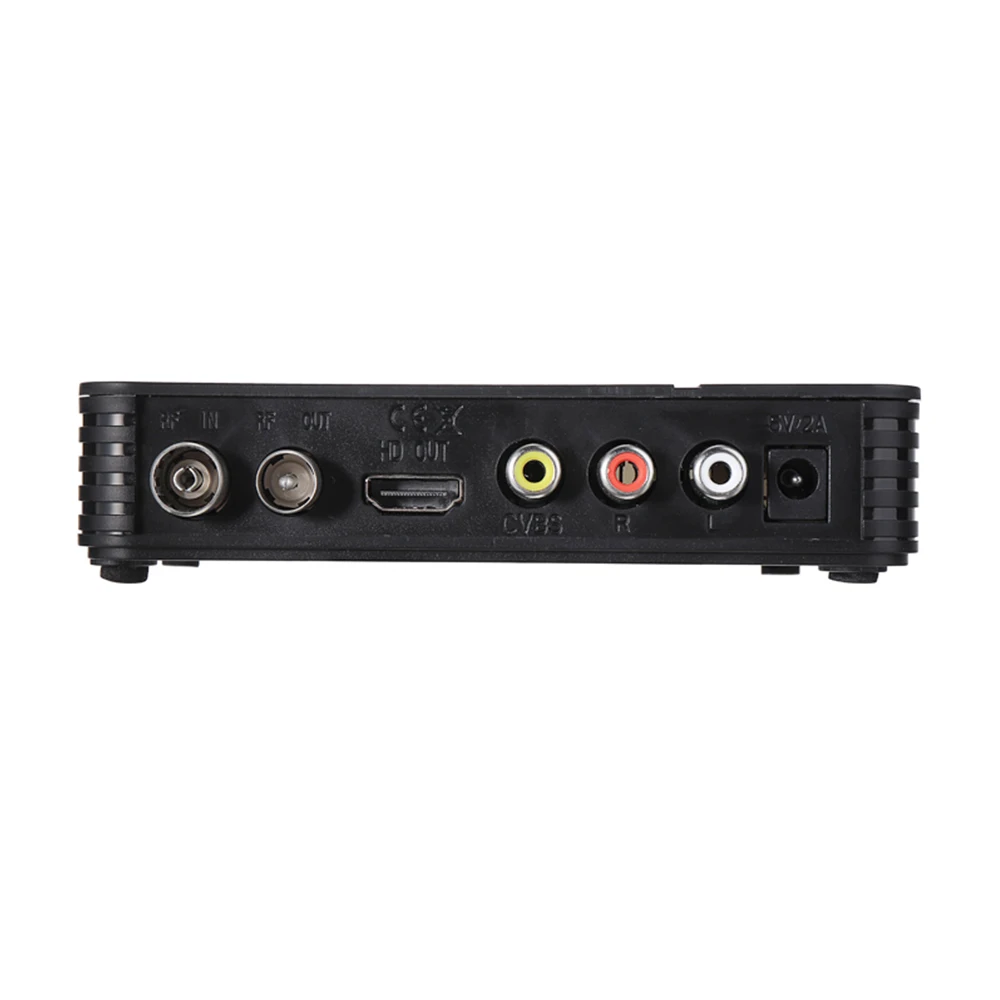

RF Input: 1 x IEC169-2, Female

RF Output: 1 x IEC169-2, Male

Digital Output: 1 x HDMI-compatible

Analog Output: 1 x RCA

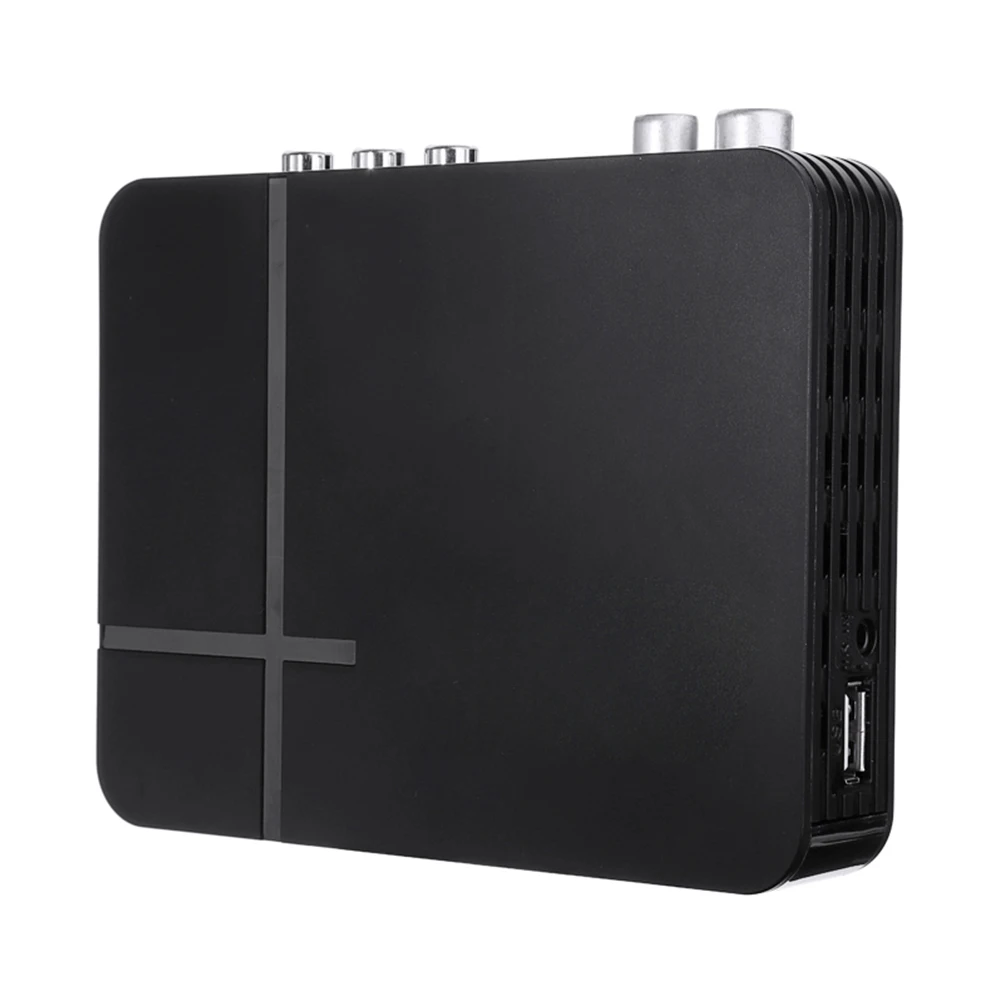

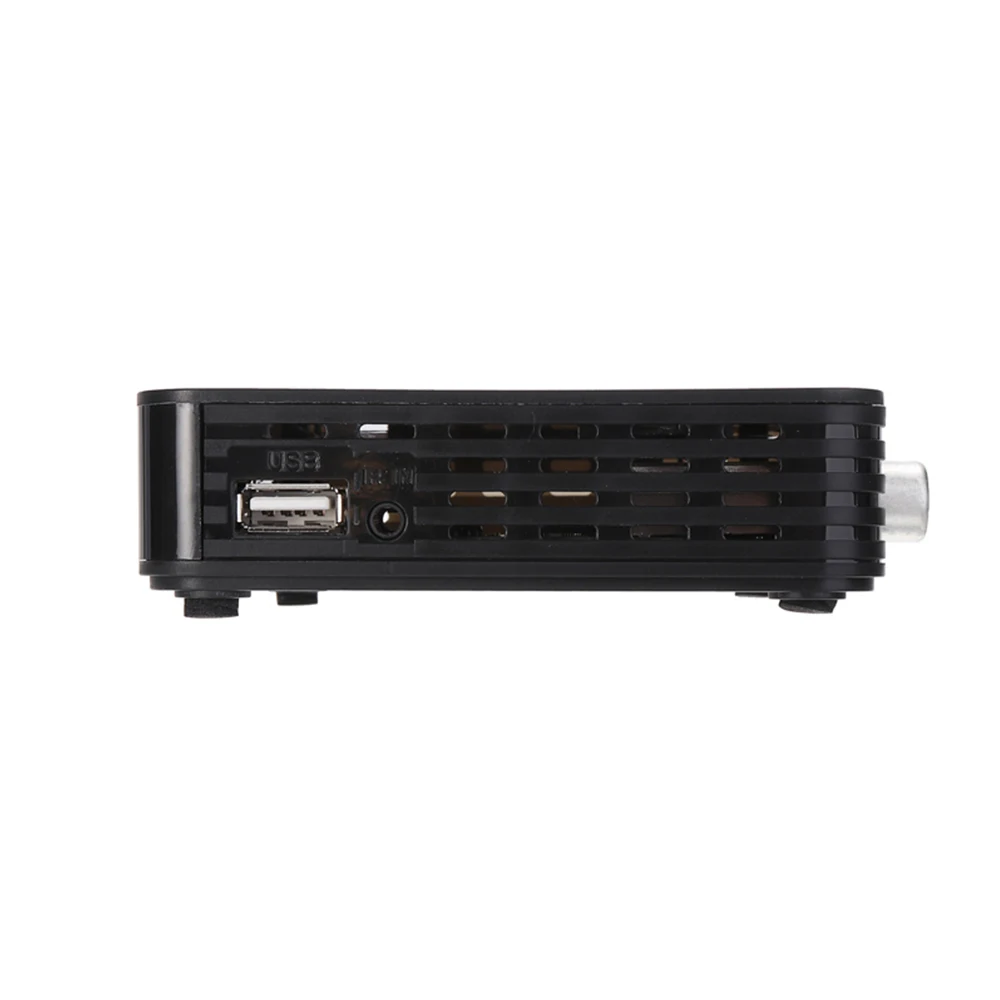

USB: 1 x USB2.0 for Upgrading, Multi-media Play, PVR and Timeshifting

Input Voltage: AC200 to 240V

Power Consumption: Max. 5W

Stand-by Power Consumption: <0.5W

Operating Temperature: 0℃ to 45℃

Features: Portable, HD Display, Video Receiver, Set-top Box

CPU: MSTAR-MSD7T00 (128pinos) 34Kf MIPS - 600MHz

Memory: MSTAR-MSD7T00 implant DDR2 32X16Mbit Frequency1066

Flash: 32 Mbytes

Demodulator Type: MSTAR-MSD7T00 Implant

Tuner: ALTOBEAM ATM 2040

Demodulation:

Terrestrial Receiver DVB-T2/T (EN_302755 V1.3.1/EN 300744)

RF Input Frequency: 48 to 866 MHz

Bandwidth: 6MHz, 7MHz, 8MHz

Constellation: QPSK 16-QAM and QAM-QAM

FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6

Guard Interval: 1/128, 1/32, 1/16, 19/256, 1/8, 19/128, 1/4

FFT Mode: 2K/8K/32K

Entry Level: -83 to -5dBm

Software Features:

Fully comply with DVB-T / T2 and H.264, MPEG-4, MPEG-2 standard

The maximum speed of traffic flow at least 50 Mbit/sec.

It supports 3D interface.

Supports Sleep timer.

Supports teletext / subtitle / muti-language.

EPG function powerful and highly effective.

Auto, 16: 9 pillar box, 16: 9 G Pan Scan, 4: 3 Letter Box, 4: 3 Pan Scan G, 4: 3, 16: 9 widescreen

USB 2.0 for PVR, Timeshift, software update and playback media files.

Video output resolution: 480i/576i/480p/576p/720p/1080i/1080p

Video decoder: Compatible with: MPEG-4 part10 / MPEG-2 ISO/IEC 13818

MPEG-4 Simple / Main / Advanced Profile - LEVEL3 (10 Mbps)

MPEG-2 main profile # Main level (15 Mbps)

H.264 MP # L3 (10 Mbps). H.264 HP L4.1 (25 Mbps).

MediaCodec: AVI, MPG , DAT, VOB, Div, MOV, MKV, JPEG, TS etc

Audio: WMA, MP3, AAC (WMA, m4a.)

Photo Codec: JPEG, BMP, PNG

Feature:

K2 DVB-T/T2 TV receiver 3D digital video terrestrial MPEG4 PVR HD 1080P set-topTV box.

Powerful DVB-T2 receiver that you can enjoy at home full HD1080P TV show.

Full compliance with DVB-T / T2 and H.264, MPEG-4, MPEG-2 standard.

The maximum speed of traffic flow is at least 50 Mbit/s.

Supports 3D interface and sleep timer.

Supports teletext / subtitles / multilingual.

Powerful and efficient 7-day EPG feature.

USB 2.0 for PVR, TIMESHIFT, software upgrades and media file playback.

Automatic / manual channel servo function.

PAL/NTSC automatic conversion.

Can store up to 1000 channels of television and radio programs.

Supports logical channel number (LCN).

Various channel editing functions(favorites, move, lock, skip, delete, rename, find, sort).

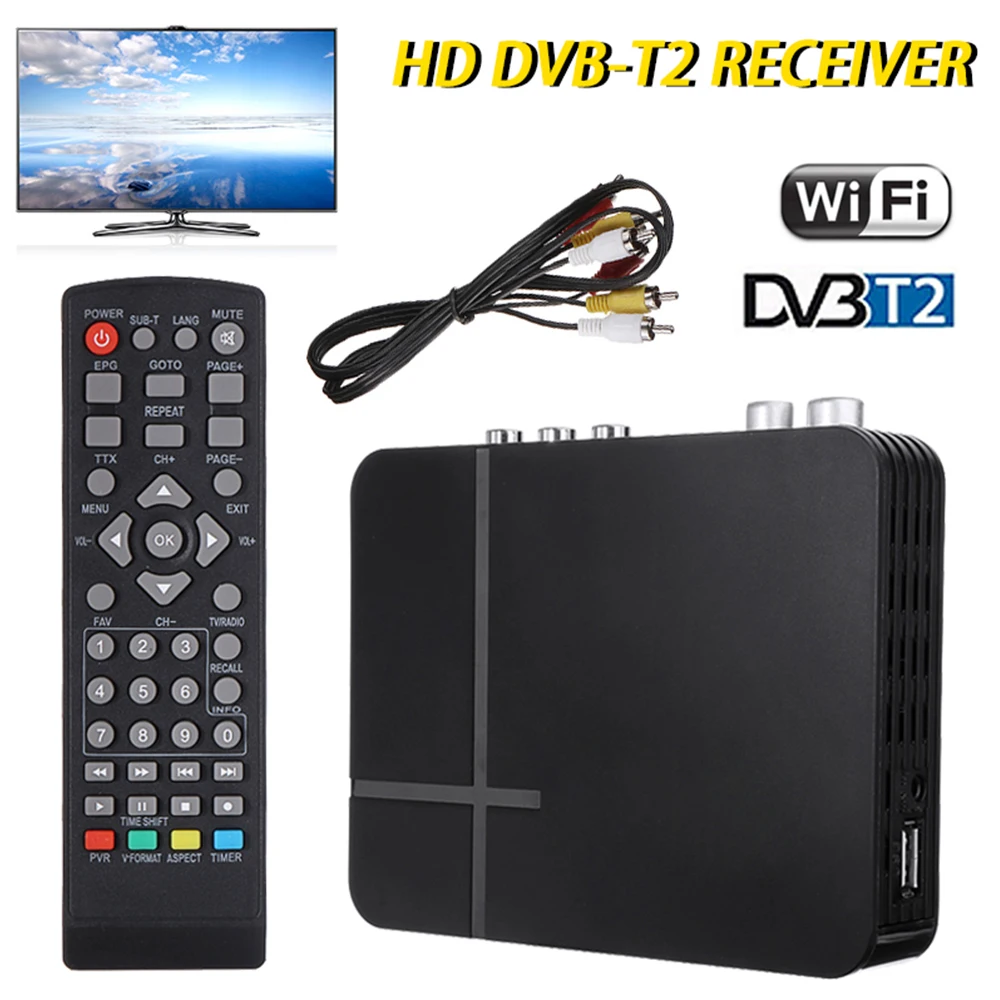

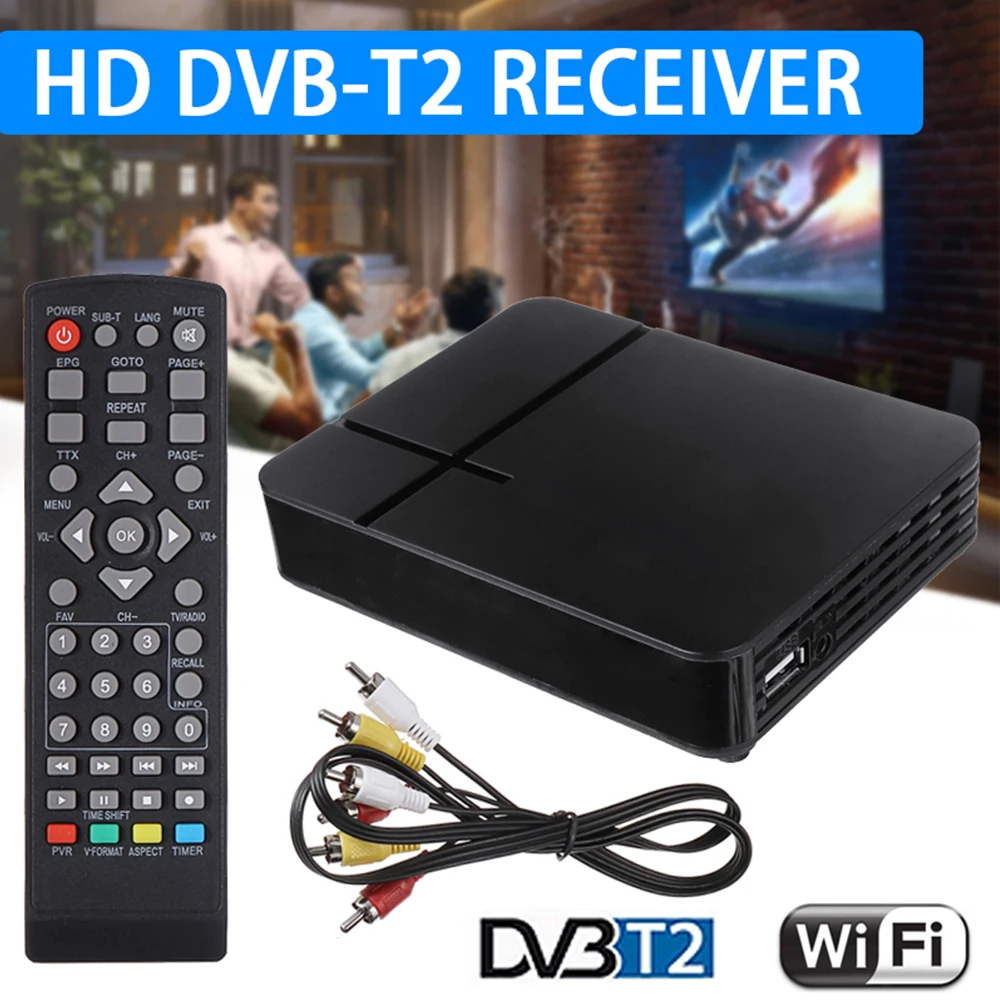

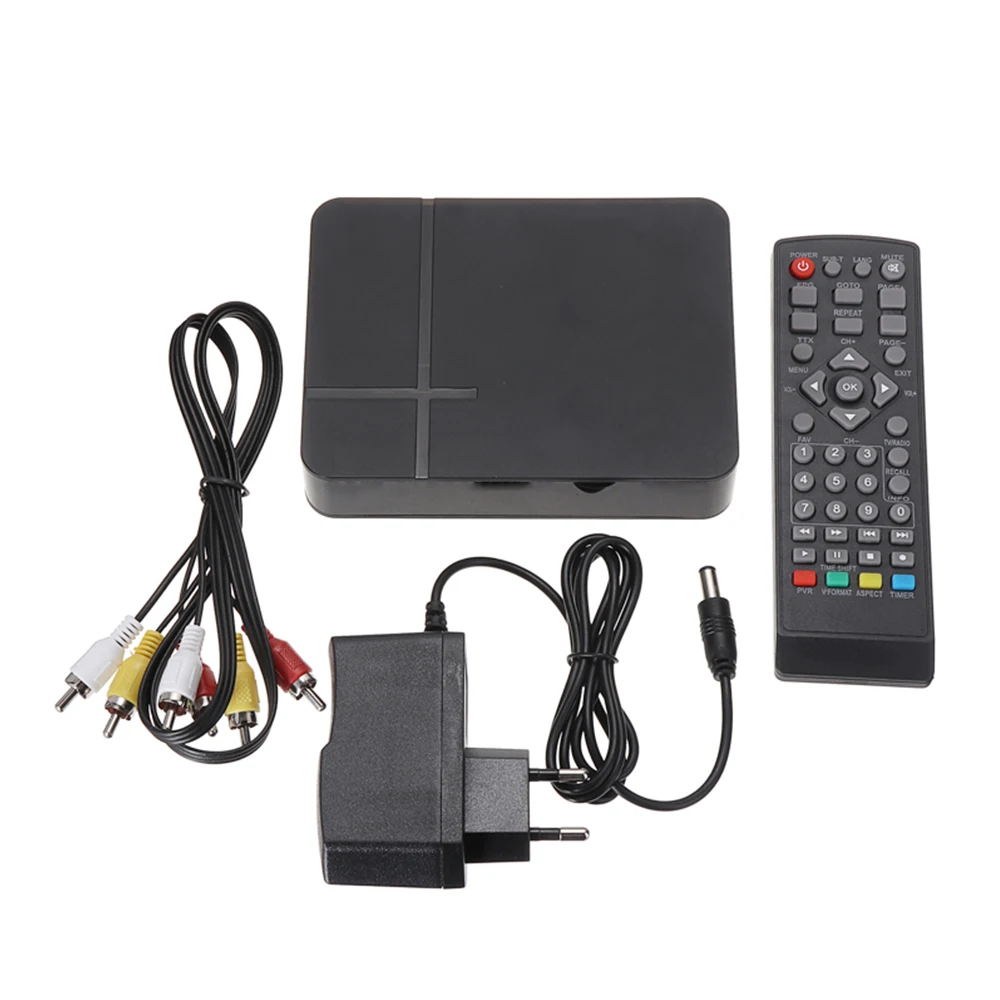

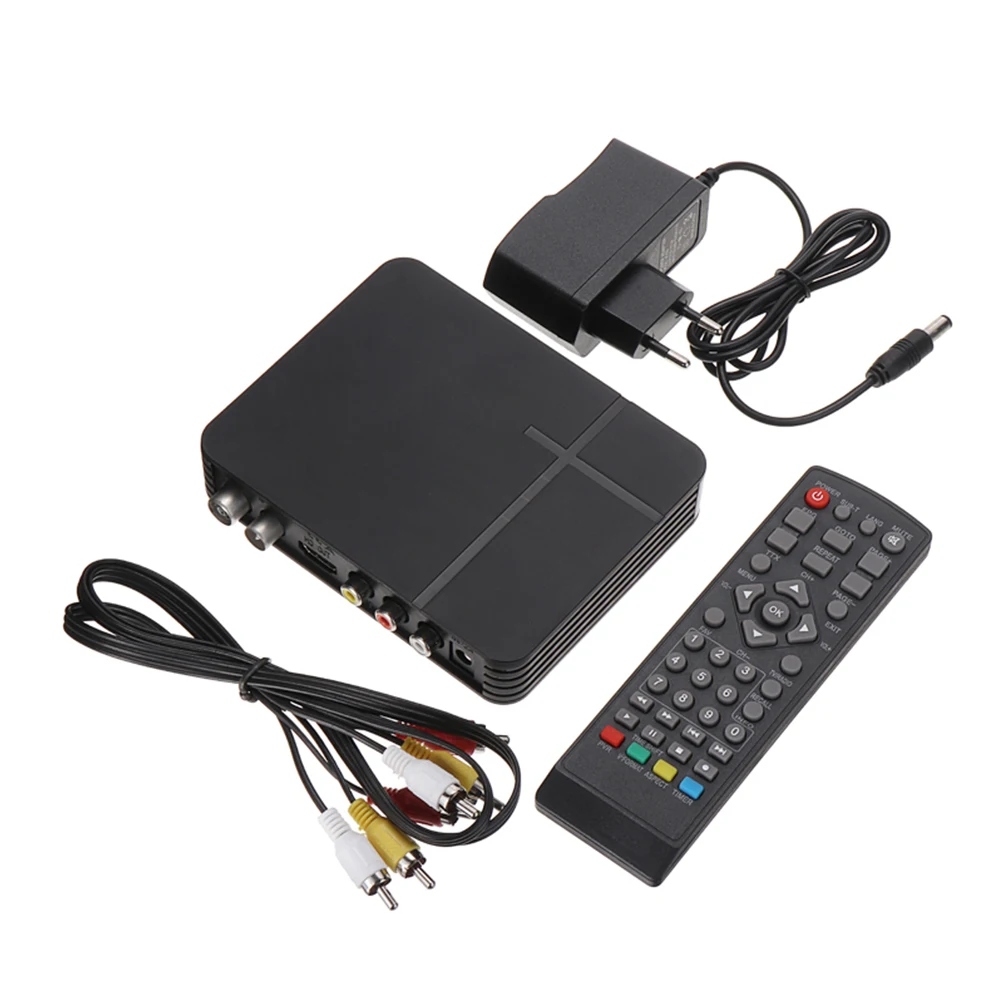

Package Included:

1 x Digital TV Box

1 x Power Adapter

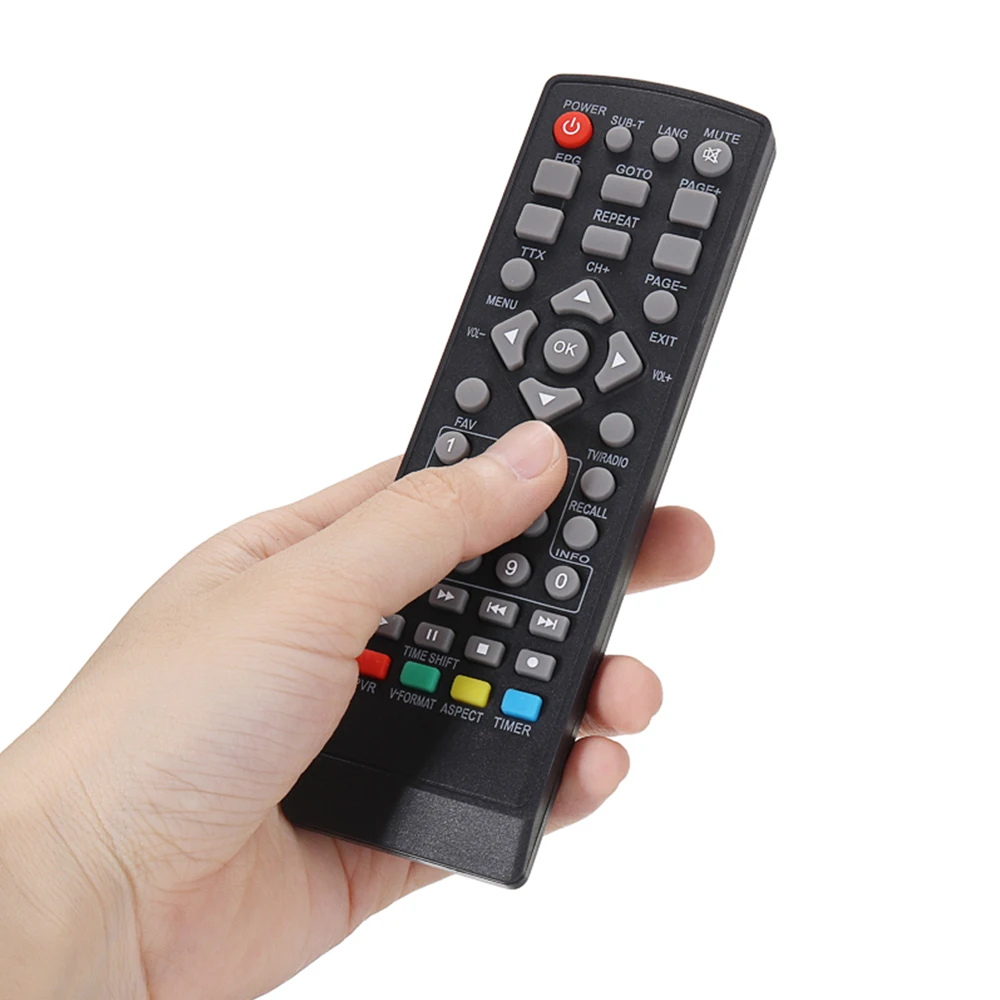

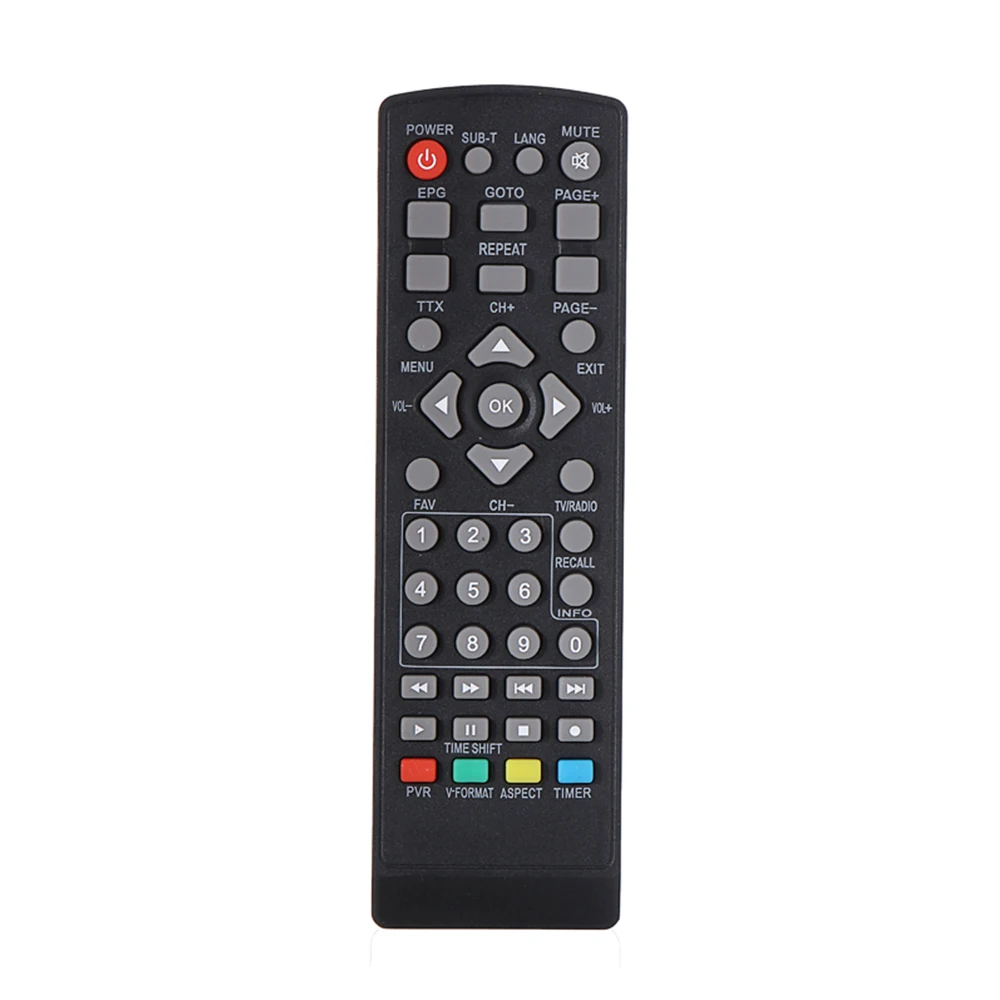

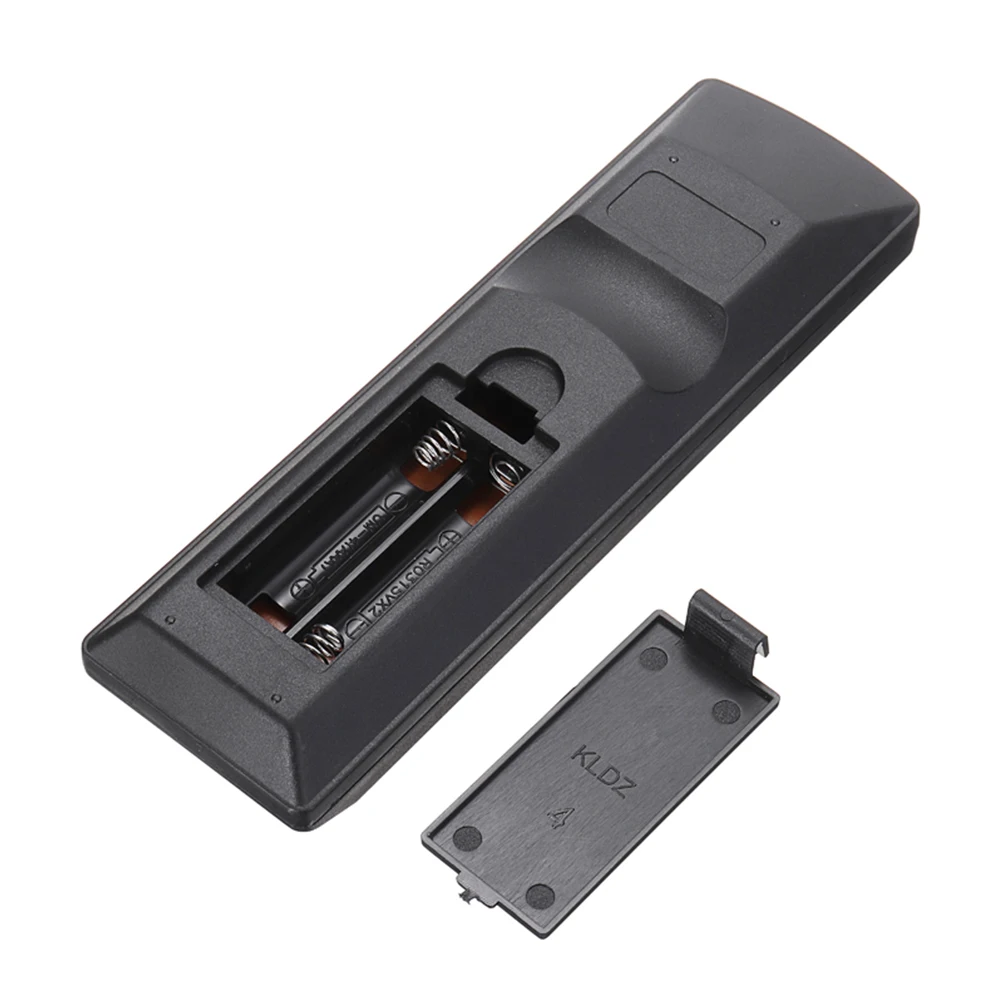

1 x Remote Control

1 x AV Cable

1 x User Manual

Note:

This product does not support for Dobly or AC-3, if you want to watch the channels of this format, it will be no sound.

Please allow minor deviation due to manual measurement.

Due to the difference between different monitors, the picture may not reflect the actual color of the item.
