Good News: We got newest Diagbox V9.68

Top Reasons to Get DIAGBOX V9.68:

1. V9.68 release on 04/2020, Support all compatible cars Untill 2020

2. V9.68 work for Citroen/Peogeot/DS Automobiles/Opel Multi-Brands

3. V9.68 pre-activated version, install directly,

no need to wait seller to activate for you,save time and money .

But must run V9.68 on VM (Virtual Machine), VM installation is easy and fast.

We provide VM installation video and V9.68 installation video !

4. V9.68 Full function version:

Diagnose, Resets, Adaptations,Telecoding of Modules....

Excellent Live test by experts of automotive repair over the world , they confirm the good feature of the release .

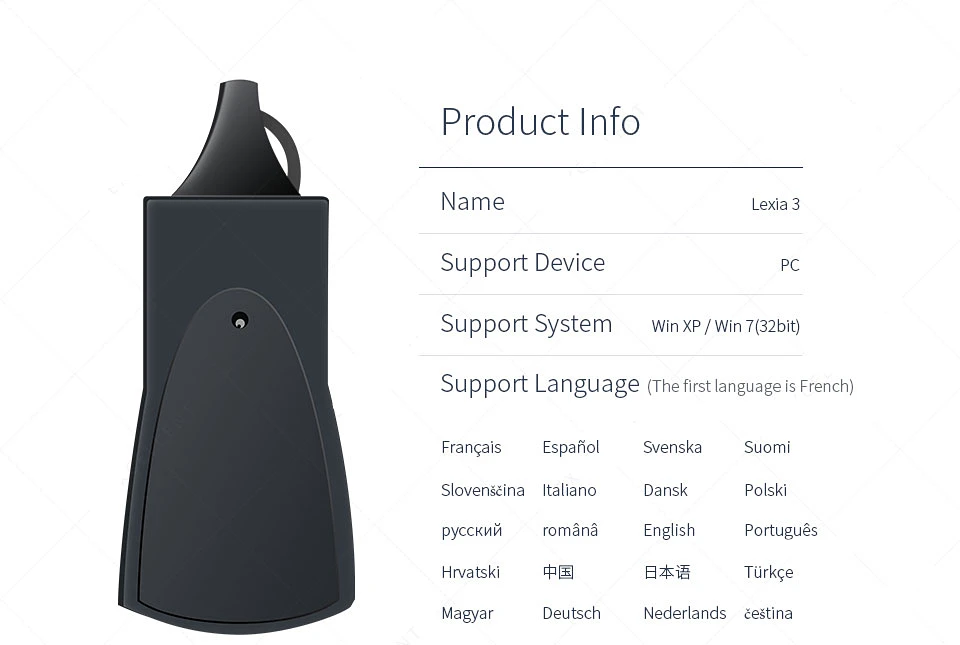

5.V9.68 Support win7 / win8 / win10 ( 32bit ONLY, NOT on 64bit)

6. V9.68 FULL in 24 languages, BUT on the Virtual Machine loaded in English.

If you would like to change the language from English to any of rest 23 Diagbox 9.68 supported languages, simply follow instructions in Diagbox change language PDF.

7. V9.68 can work with any version of lexia3 / lexia XS

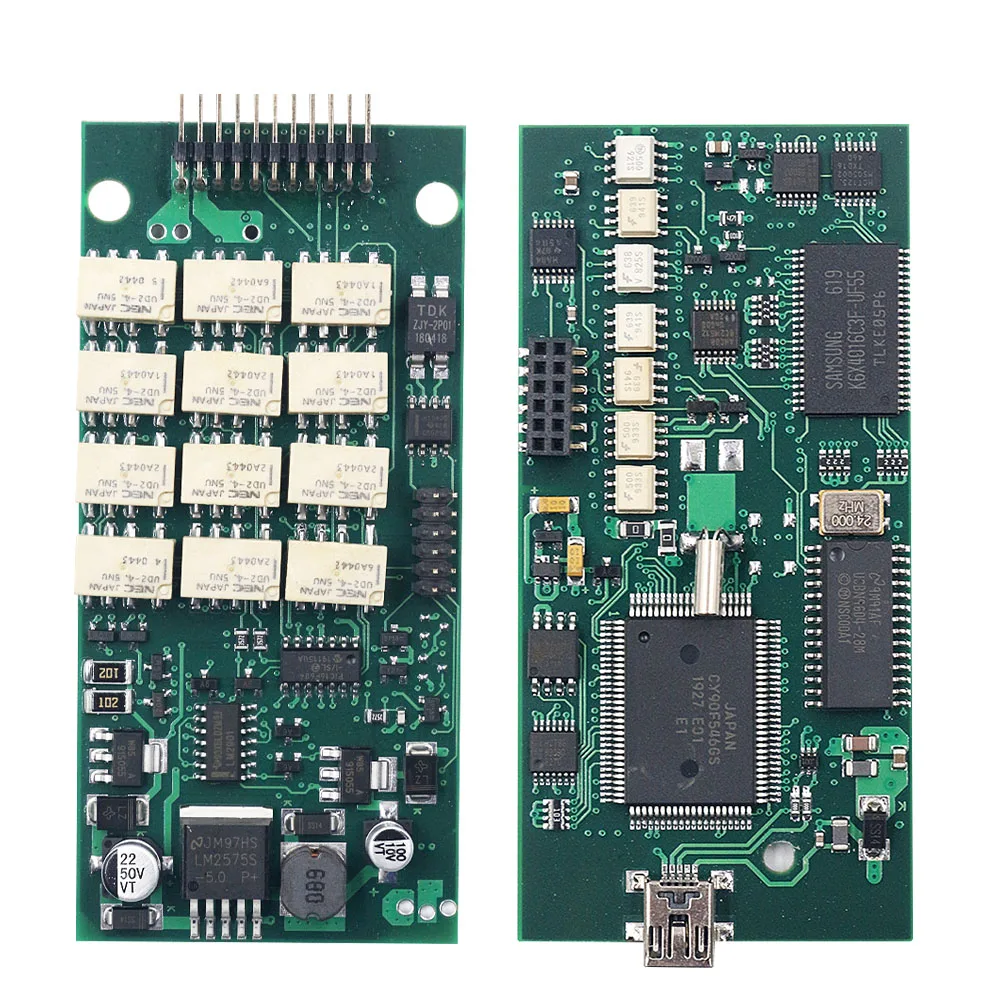

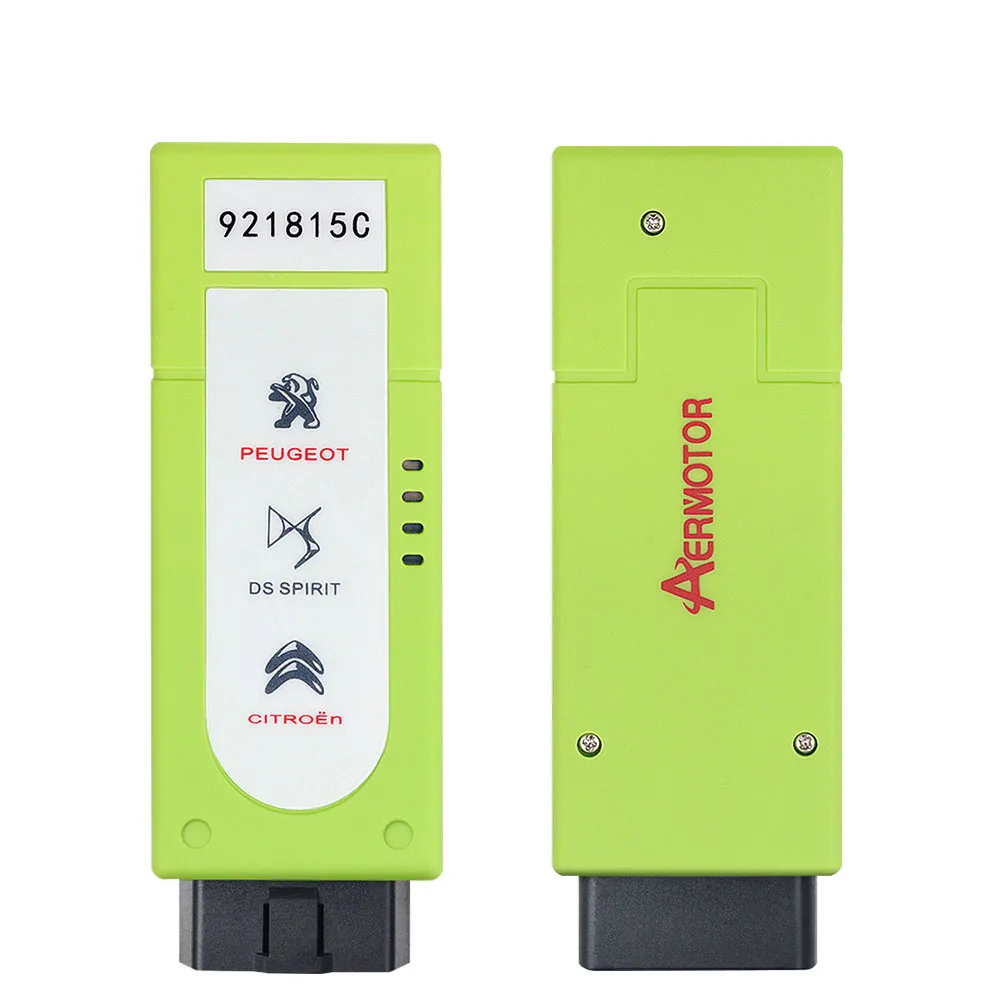

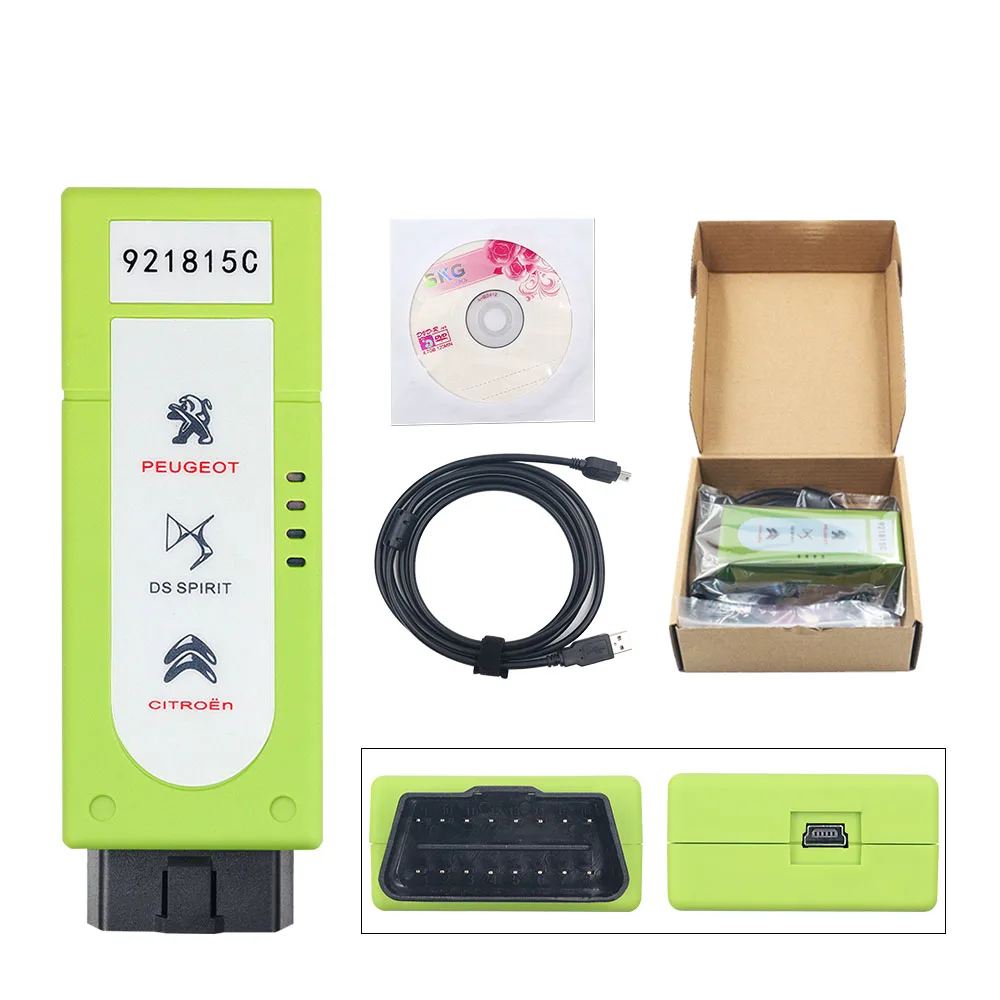

----- Newest AER-Lexia3 Full Chips 12PCS Japan NEC RELAY + 7PCS OPTOCOUPLERS:

( Newest Design with only one cable , making car connection easier)

What Difference Between New AER-LEXIA-3 Full Chips And Classic LEXIA-3 :

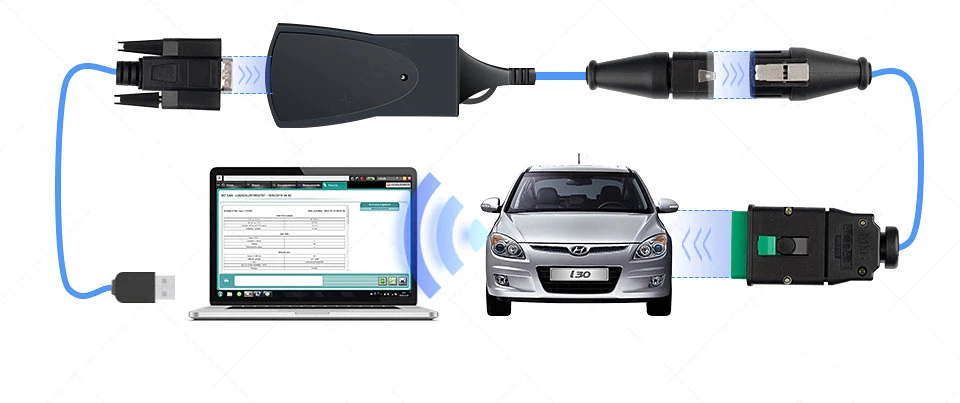

1. AER-LEXIA-3 new design, only need one cable to connect device and car, very convienient !

Classic Leixa-3 includes several cables to connect device and car

2. AER-LEXIA-3 motherboard has no golden edge , Classic Leixa-3 has golden edge.

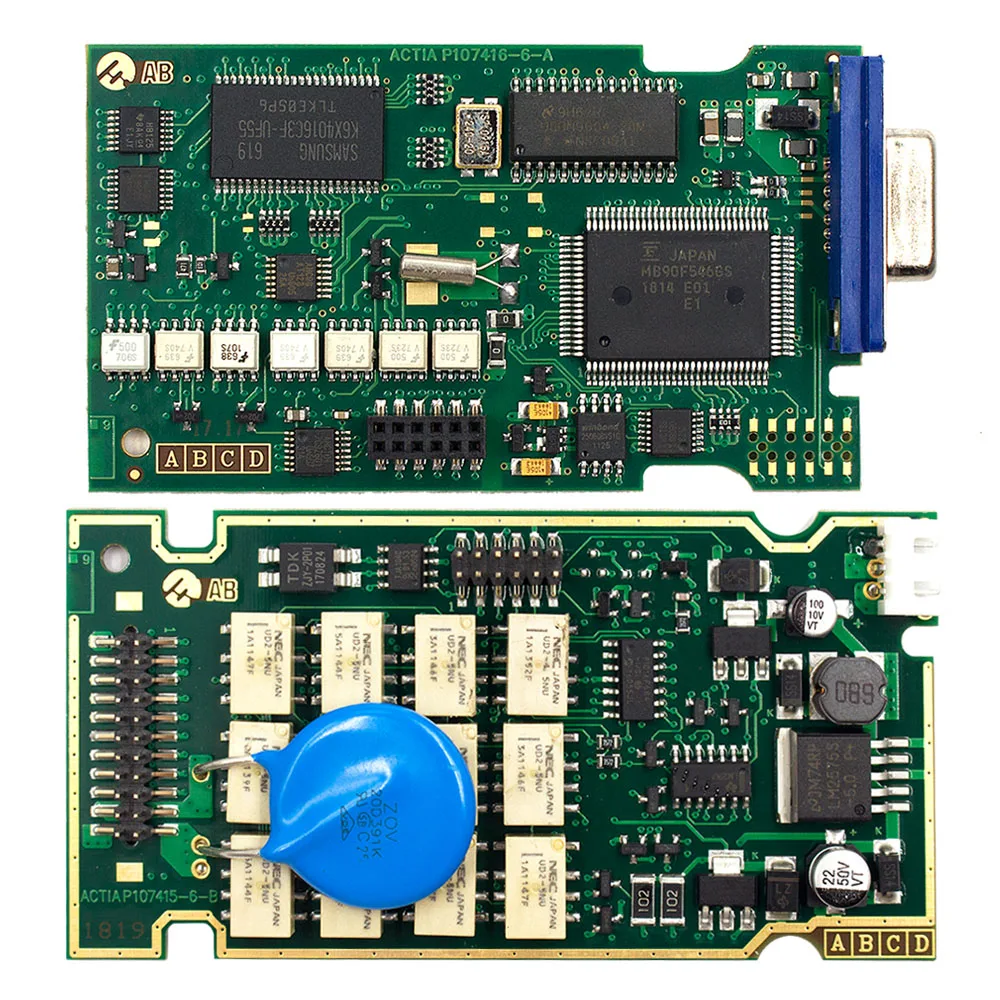

3. AER-LEXIA-3 full chips and Classic Leixa-3 full chips both include 12PCS Japan NEC RELAY + 7PCS OPTOCOUPLERS , same good quality !

4. Both Versions use same softwares, functions are same too !

Top Reasons to Get Lexia3 Full Chip Version:

1. Newest software version Diagbox V7.83

Note:

Our Diagbox Support Update to Latest Version V7.83.if u want to update to newest Diagbox,please feel free to contact me and we will send u link to download Latest diagbox Version.

(please Disconnect internet when install software,otherwise device damaged and broken)

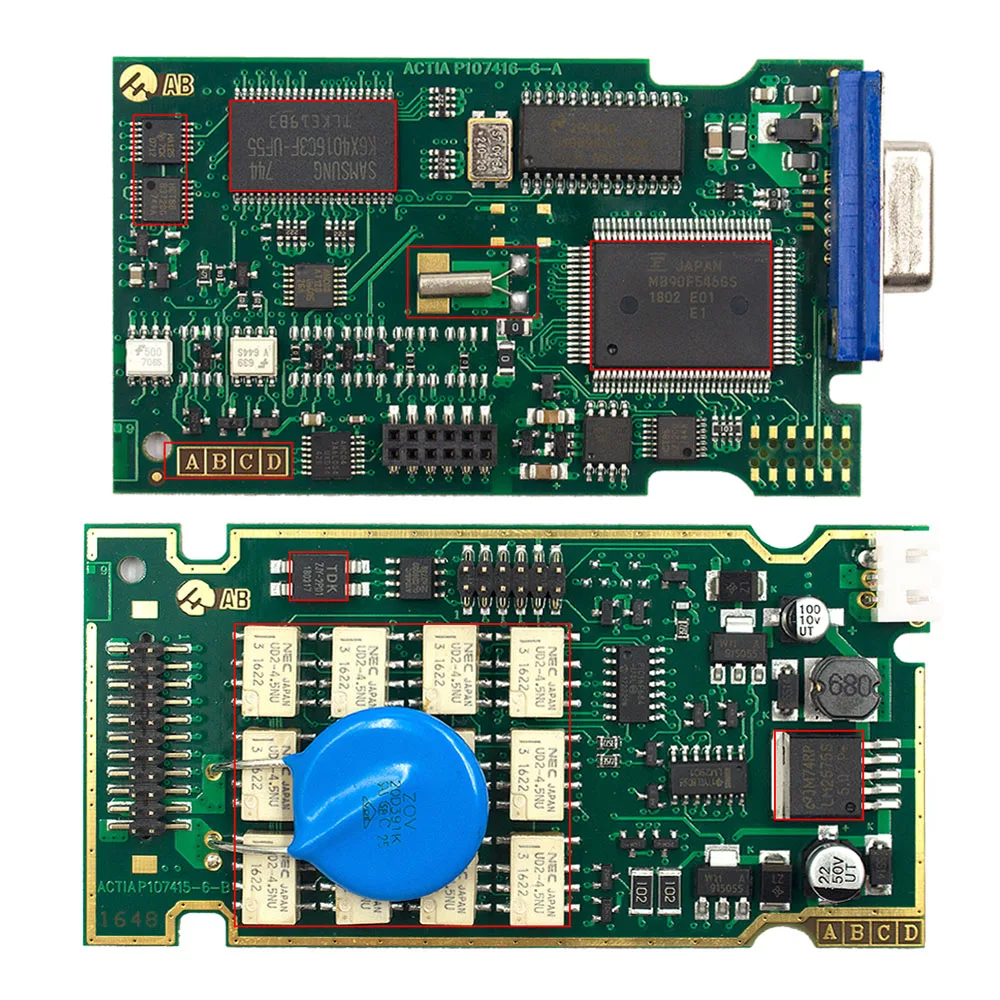

2. Full Chip with Golden Edge NEC Relay, A+ Quality, More Stable

Firmware Serial Reference Number: 921815C

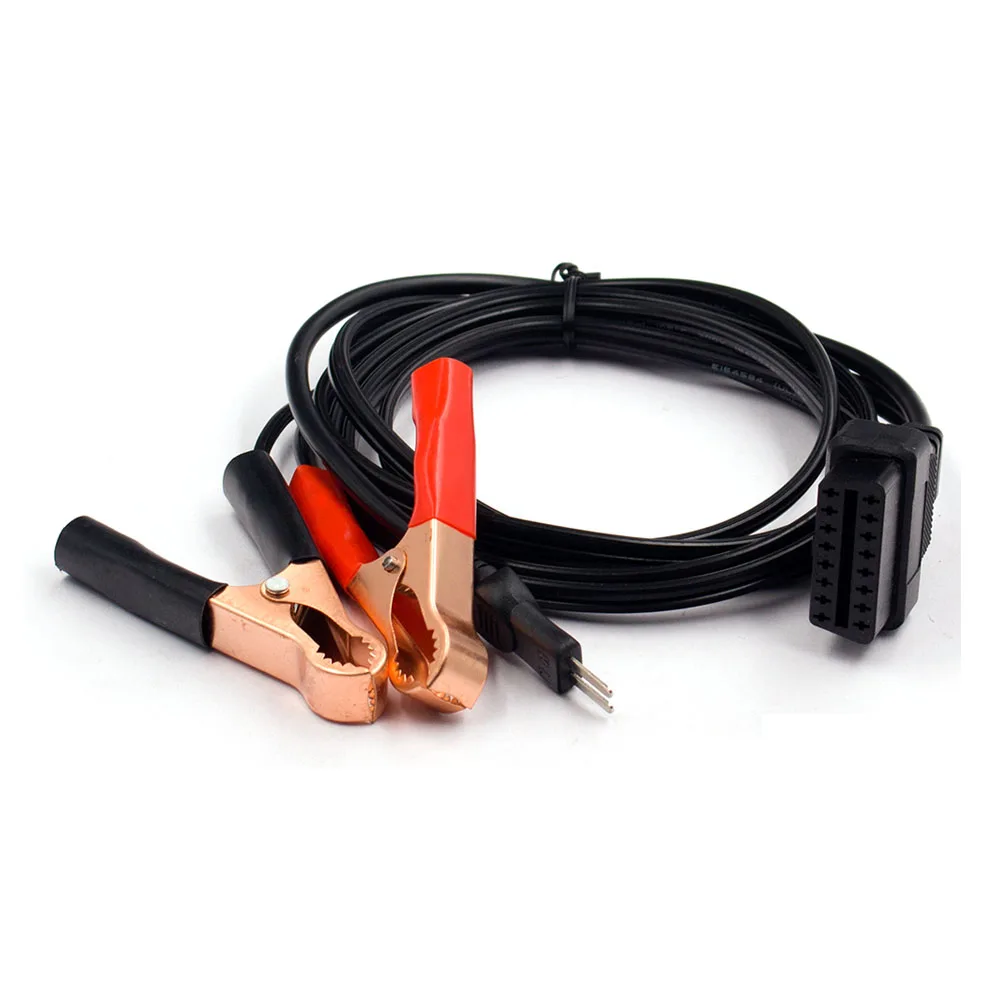

3.Q: What is the Clip Cable Function?

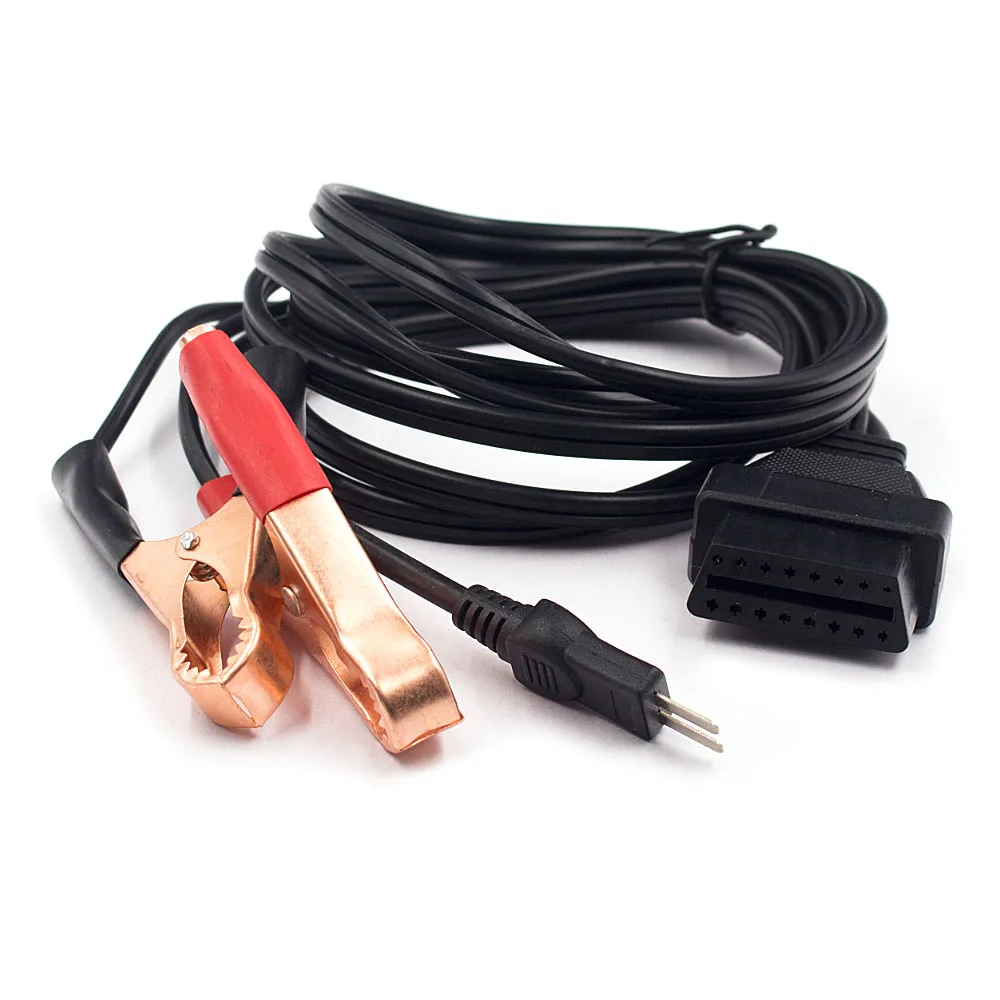

4. LEXIA3 Full Chips Version With Power Function:

For programming, diagbox support basic programming, but some programming like car alarm system need account username and password, we don't supply& haven't username and password, only for citroen and  for eugeot center repairshop has username and password, please note it.

5. Support Multi-Languages:

Lexia 3 PP2000 Software supported language(Pls contact me to get PP2000 link):

English, Chinese, German, French, Japanese, Russian, Arabia, Spanish, Turkish, Danish, Iranian, Greek, Israel, Hungary, Indonesian, Italian, Dutch, Norwegian, Polish, Portuguese, Finnish, Slovenian, Swedish, Czech, Croatia, Thai.

Lexia3 Diagbox Software supported language:

English, German, French, Japanese, Russian, Spanish, Portuguese, Swedish, Turkish, Dutch, Polish, Italian, Hungary, Greek, Czech.

Installation tips and tech supports:

1.PP2000and lexia softare only be installed inWin XP system 32 bit,

Diagboxsoftware only be installed inwin 7 system 32 bit.

2. PlsDO NOTinstall lexia and pp2000 software together with Diagbox software in one pc.

Diagbox software has included pp2000 and lexia software, Diagbox need be installed in one laptop individually.

3. When installing software,pls close your anti-virus software and firewall.

otherwise anti-virus software and firewall will destroy software and your pc system .

4. If u have problem in install software,please fell free to contact me,

our technician will help u to install software online via Teamviewer for tech supports.

Update attention:

please cut the file "C:AWRoot\bin\fi\APPDIAG.SYS" out before update, and then click update package! after complete updateplease paste the cutted file back into the previous folder which can avoid activating problem.

Diagbox upgrade password

V7.02 - 7.76: Scary01

V7.76-7.82: Maitresox01

V7.82-7.83: Very Simple!

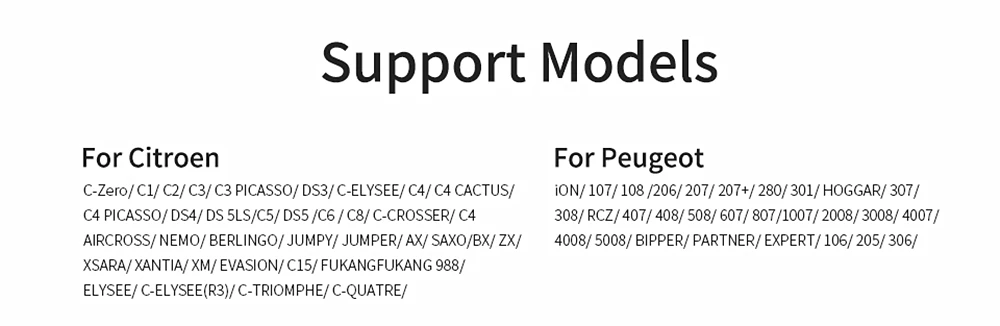

Car Coverage

1.P2000,Lexia 3 is compatible with most for P-eugeot cars from 1995.

2.PP2000,Lexia-3 is performed via OBD-II connector (which is located near steering wheel) or via manufacturer-specificconnector (only older cars, pre-2001).

- For Ci-troen

C-Zero/ C1/ C2/ C3/ C3 PICASSO/ DS3/ C-ELYSEE/ C4/ C4 CACTUS/ C4 PICASSO/ DS4/ DS 5LS/

C5/ DS5 /C6 / C8/ C-CROSSER/ C4 AIRCROSS/ NEMO/ BERLINGO/ JUMPY/ JUMPER/ AX/ SAXO/

BX/ ZX/ XSARA/ XANTIA/ XM/ EVASION/ C15/ FUKANGFUKANG 988/ ELYSEE/ C-ELYSEE(R3)/ C-

TRIOMPHE/ C-QUATRE

- For P-eugeot

iON/ 107/ 108 /206 207/ 207+/ 280/ 301/ HOGGAR/ 307/ 308/ RCZ/ 407/ 408/ 508/ 607/ 807/

1007/ 2008/ 3008/ 4007/ 4008/ 5008/ BIPPER/ PARTNER/ EXPERT/ 106/ 205/ 306/ 309/ 405/

406/ 605/ 806

Software Supports Year

PP2000:  1998-2006
Diagbox:  2006-2016

Description:

Dealer Lexia ,lexia 3  PP2000 diagnostic Tool for comprehensive for Citroen and for Peugeot cars diagnostic. You can do allas a authorized dealer does.Lexia ,lexia 3  PP2000 diagnostics software allows you to perform complete diagnostics of allfrom 1995 untill present models. Diagnostics Lexia ,lexia 3  PP2000 is performed via OBD2 connector (which is located near steering wheel) or via manufacturer-specific connector (only older cars, pre-2001).

1. lexia 3 PP2000 is compatible with for Citroen cars including: C1,C2,C3,C4,C6,C8,for C-CROSSER,for NEMO,for BERLINGO,for JUMPY,for JUMPER,for AX,for SAXO,for BX and so on. But please pay attention, according to our customer'sexperience, this item can not works good at C5 new models.

2. lexia 3  PP2000 is compatible with most for Peugeot cars from 1995,but it can not work good with for Peugeot 307 after2004 year.If you have the two types of cars, please pay attention, please check with us first before purchase.

3.Lexia 3  PP2000 is performed via OBD-II connector (which is located near steering wheel) or via manufacturer-specific connector (only older cars, pre-2001).

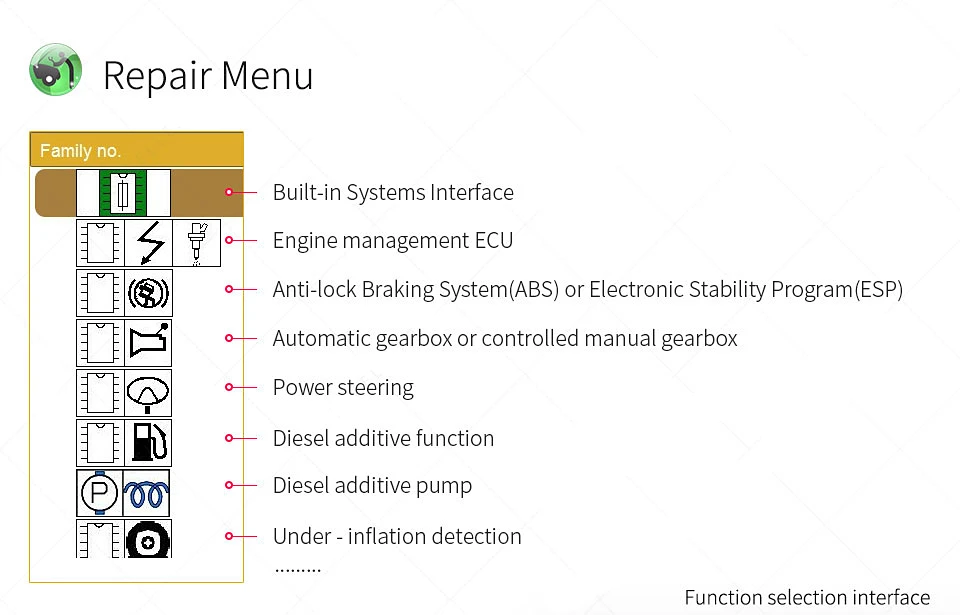

Lexia 3 PP2000 Supported Functions:

Unlike other universal car scanner tools which only read fault codes; this software performs nearly ALL the functions like the original dealer diagnostic tool. Our diagnostic interface contains K-Line multiplexor, CAN-BUS interfaces and SAE J1850 bus (both PWM and VPW).

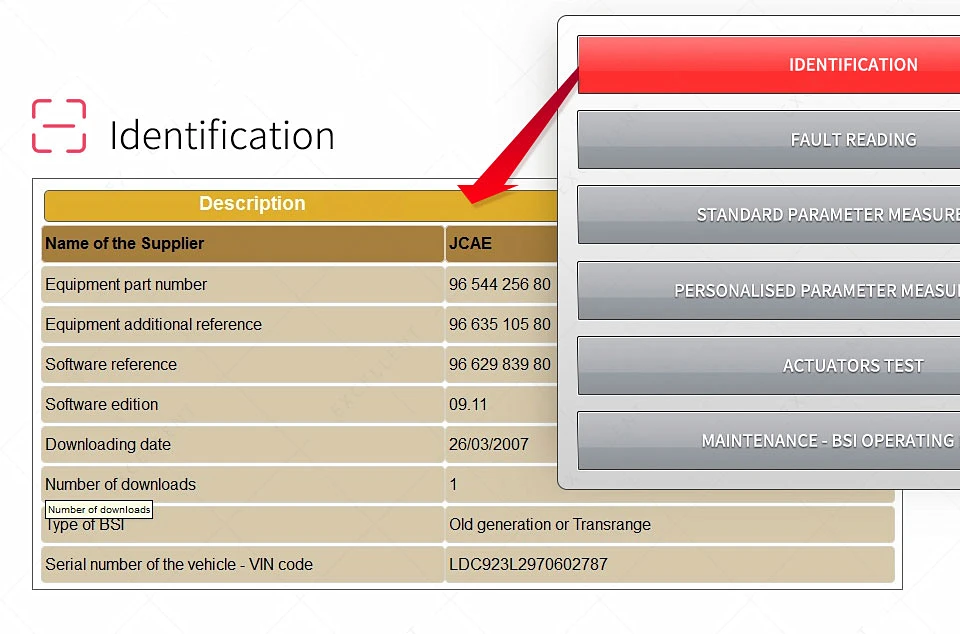

1. Read Identification

Displays complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc.

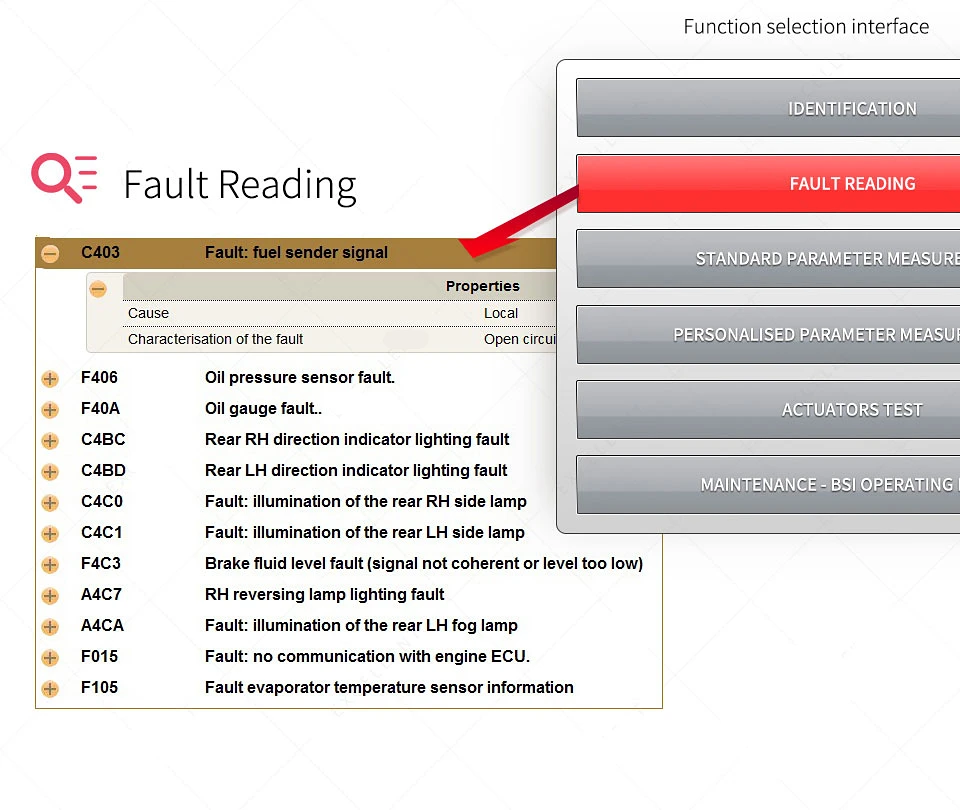

2. Read Fault Codes

Displays all stored and pending fault codes with complete description (e.g. "Rail pressure - too low pressure").Program supports report printing or copy to clipboard.

3. Clear Fault Codes

This function clears all stored fault codes and other diagnostic information.

4. Auto-Scan (Complete Car Scan/Test)

Detects all ECUs (electronic control units) installed in car and reads all diagnostic fault codes.

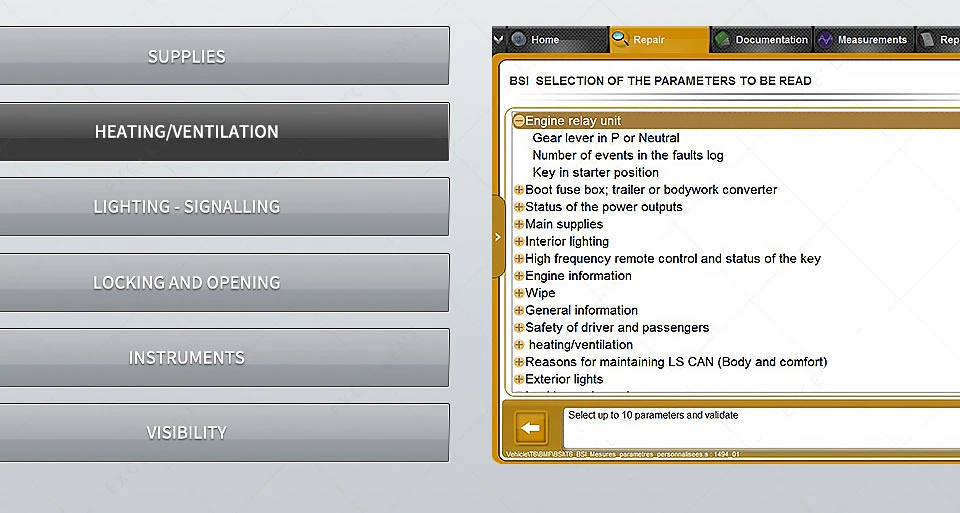

5. Measured Values

Program displays live Data like Engine Speed, Battery voltage, Oxygen Sensor, Coolant Temperature, etc. Values can be displayed in graph, 9 values at once, or full listing (all measured values). Logging to file is also supported, which allows offline analysis.

6. Actuator Test

Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc.)

7. Programming Functions/Adaptation

This feature is of great importance in all vehicles because systems like Engine control units, Immobilizers, Airbags, Alarms, Body Control Units, and some others, require you to perform reset or programming procedures after car repair is done, or even configuration after replacing broken Control Unit.

8. Control Unit

Hardware and software requirements

Software requires at least Intel Celeron/Pentium III 400 MHz, 128 MB RAM, 50MB free HDD

space and USB 1.1 port (USB 2.0 recommended) and Microsoft Windows 98 SR2/2000/XP with

the latest service pack installed.

If customer requires, we can prepare ready to work PC.

Product Pictures:

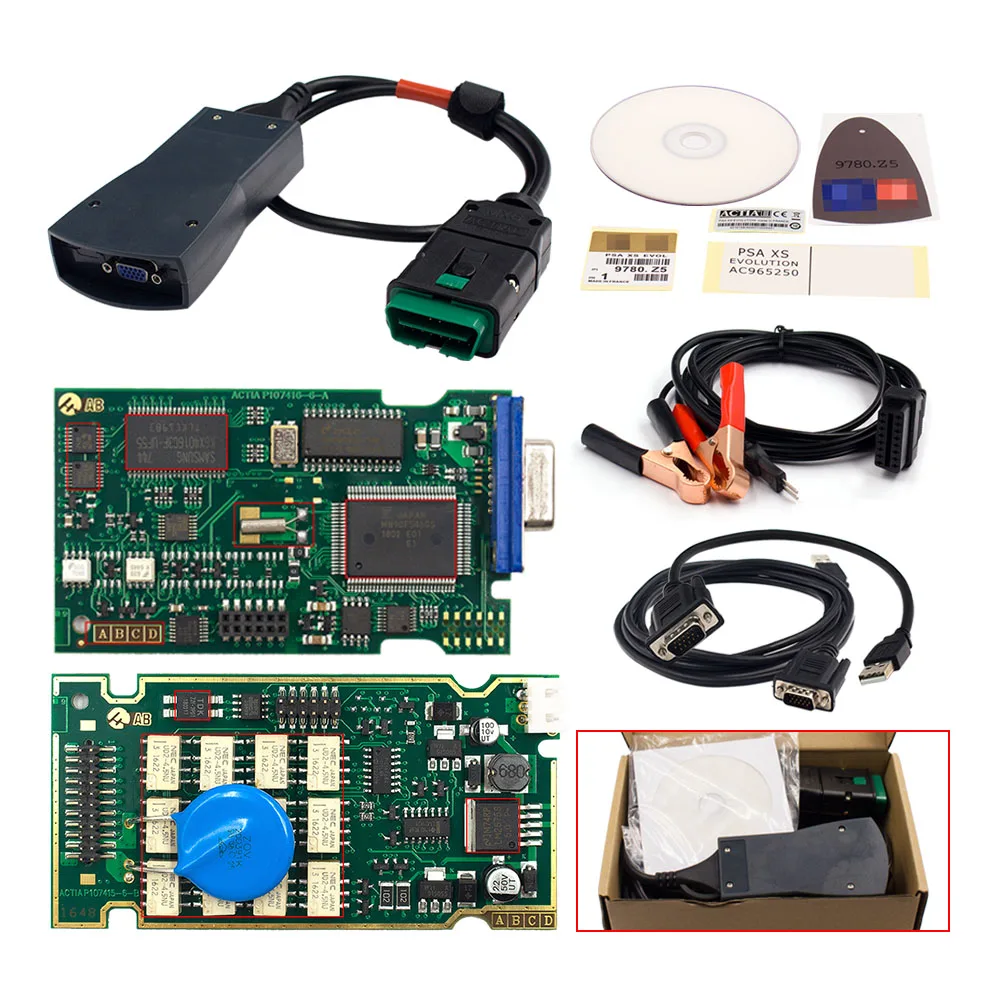

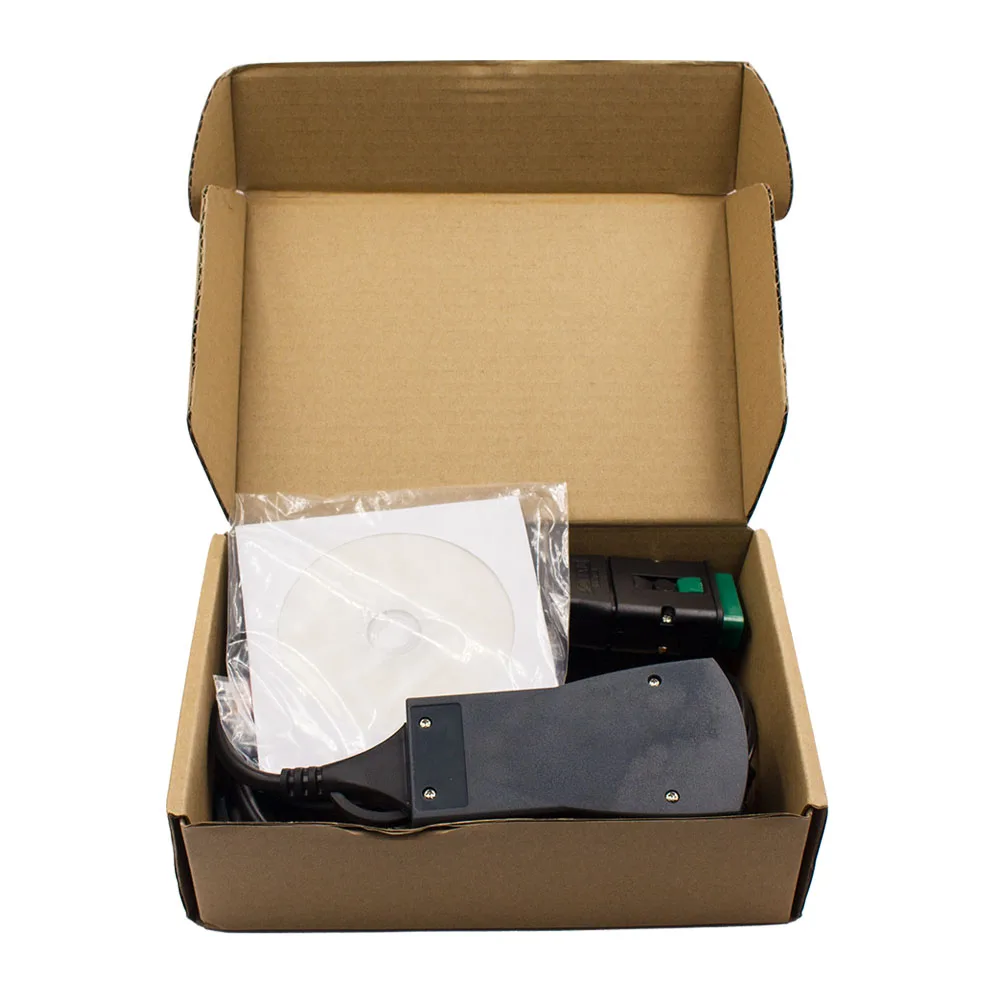

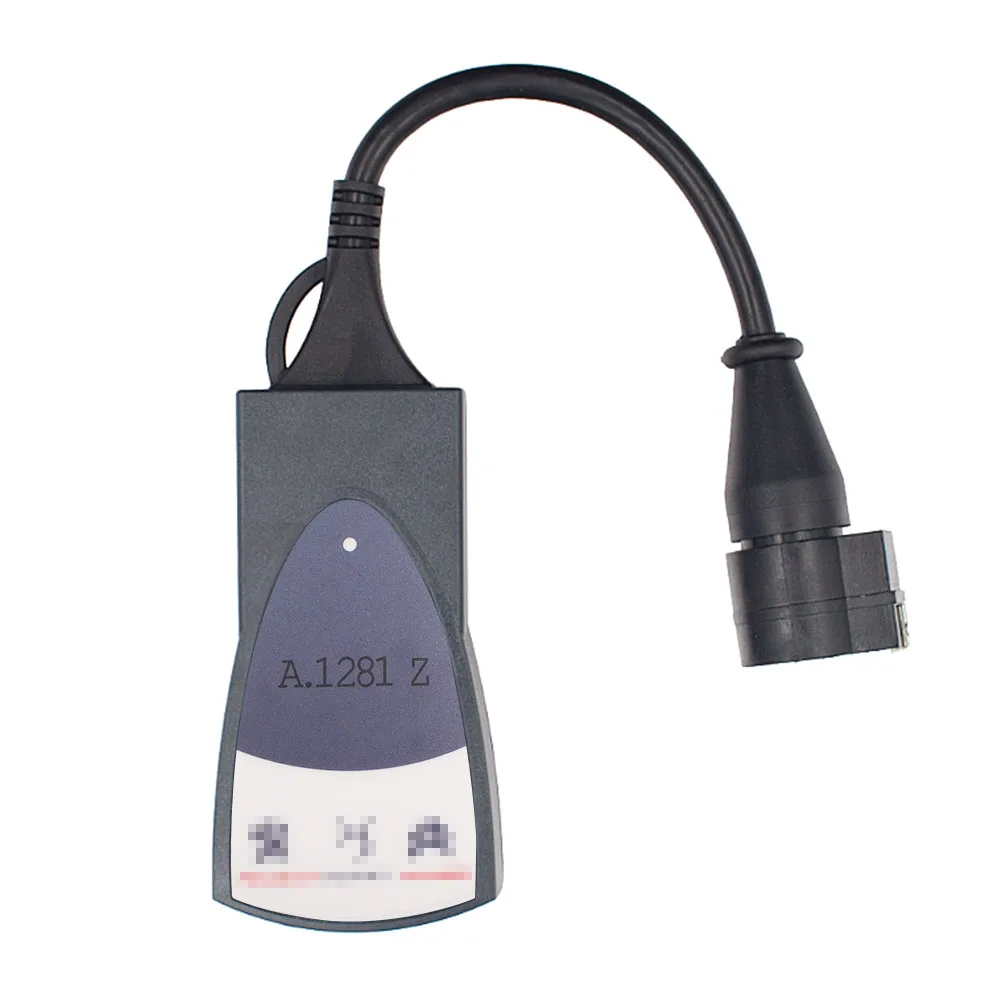

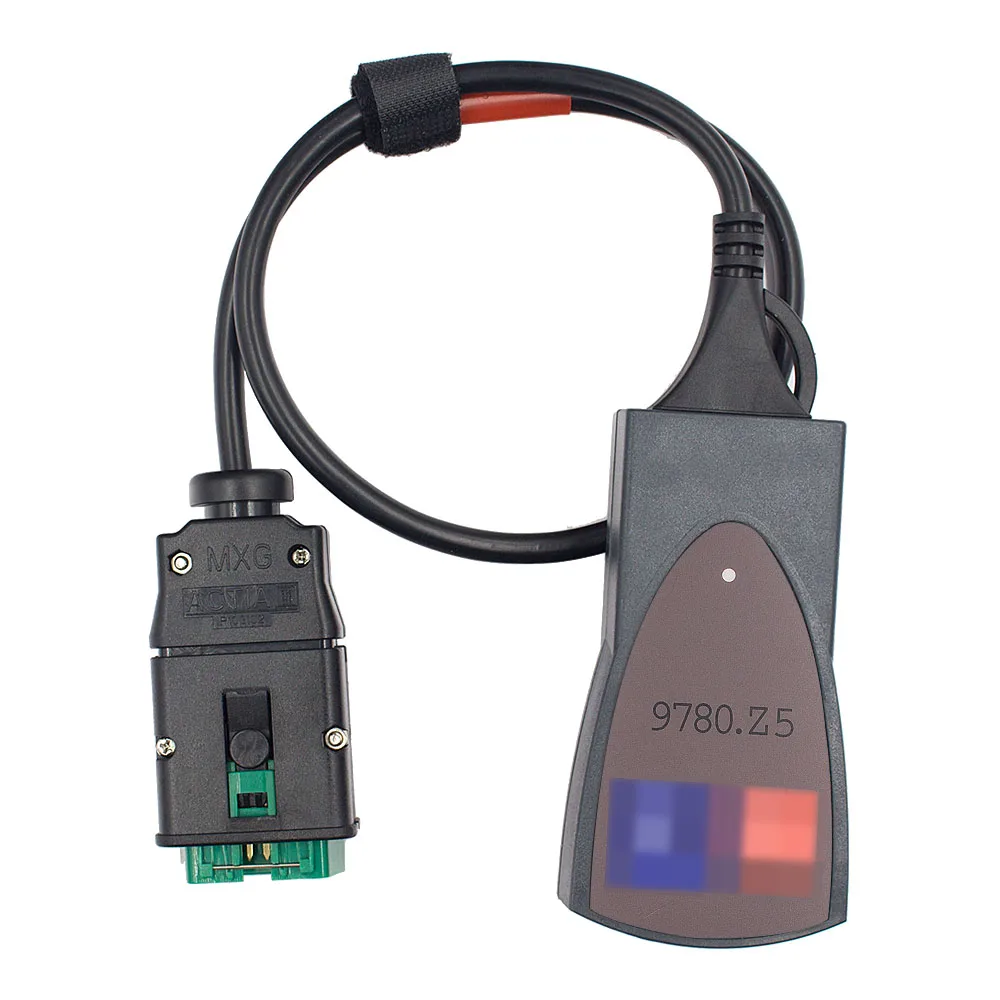

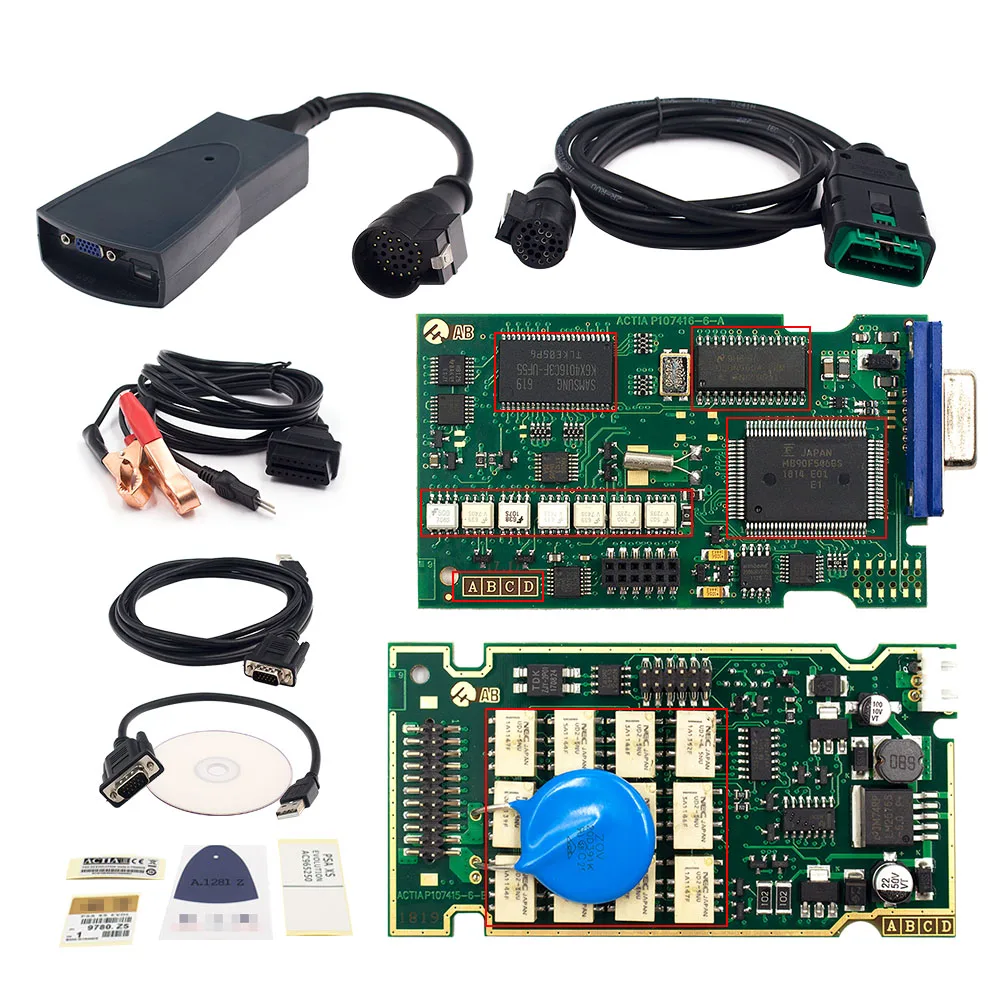

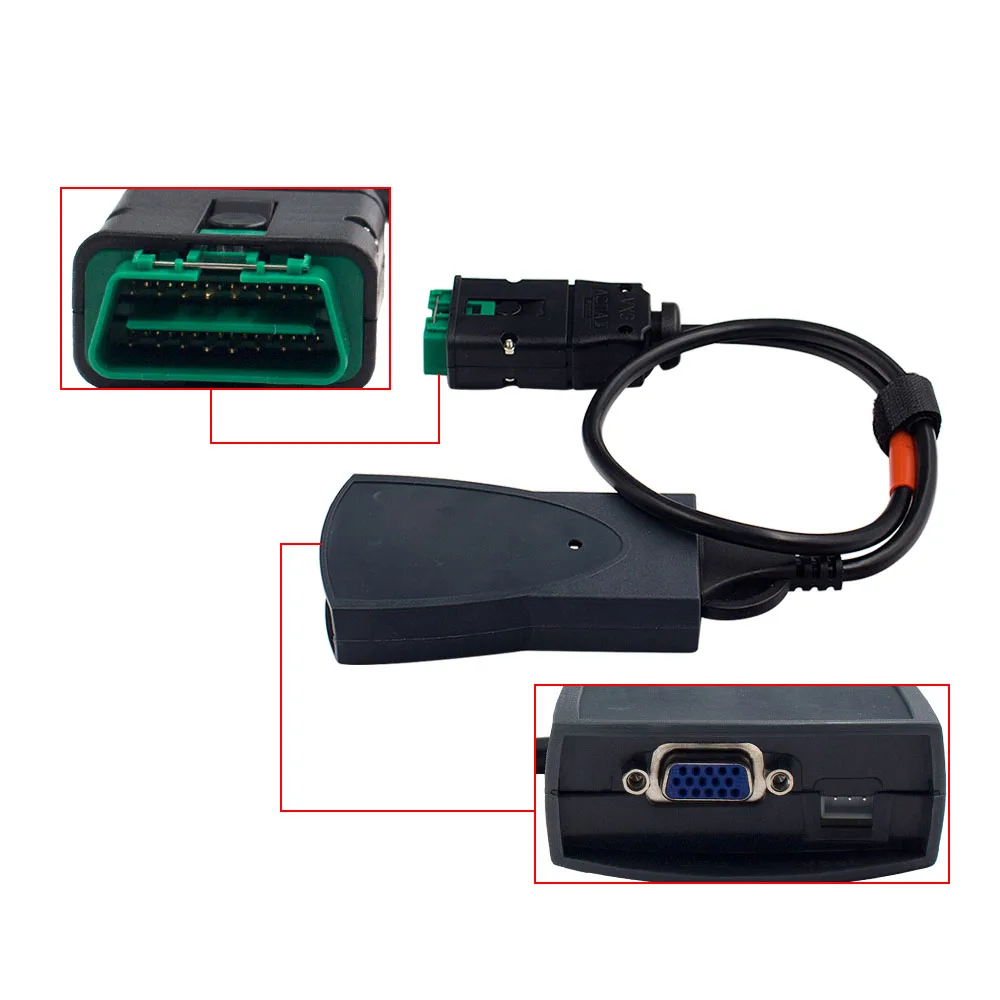

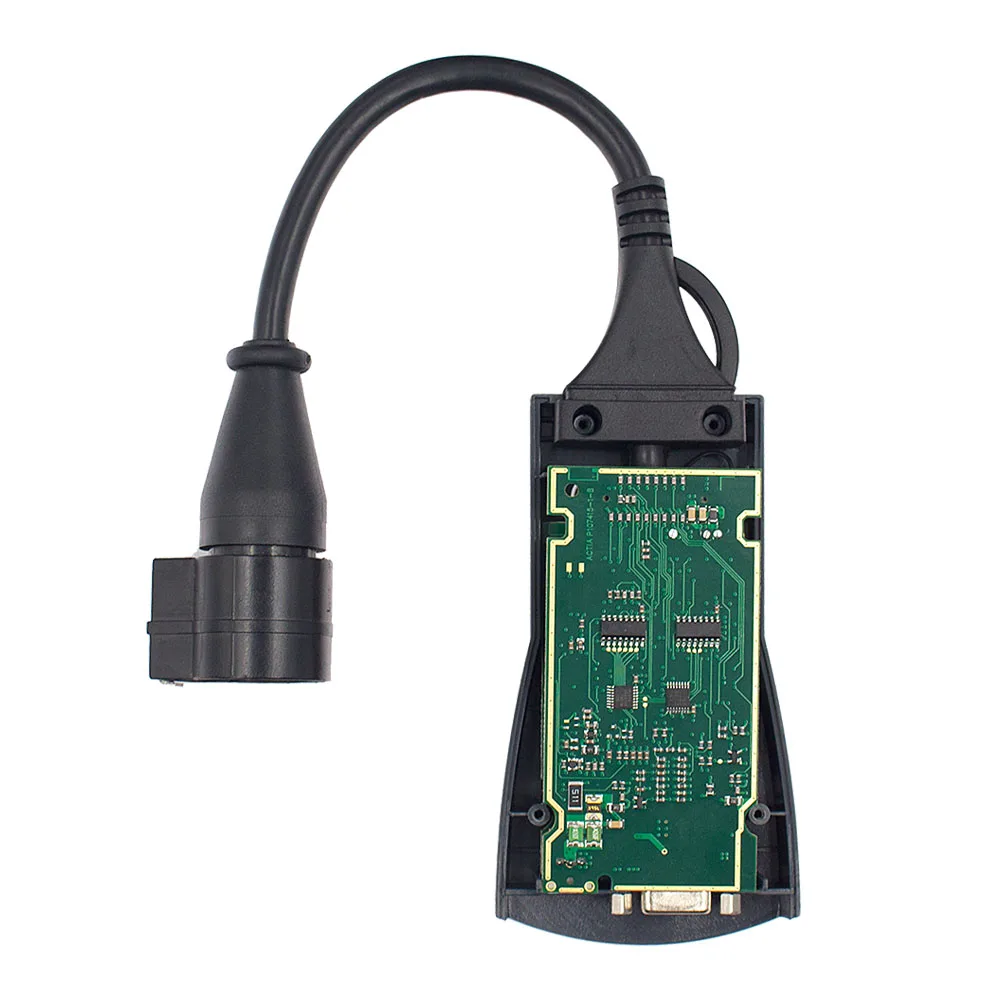

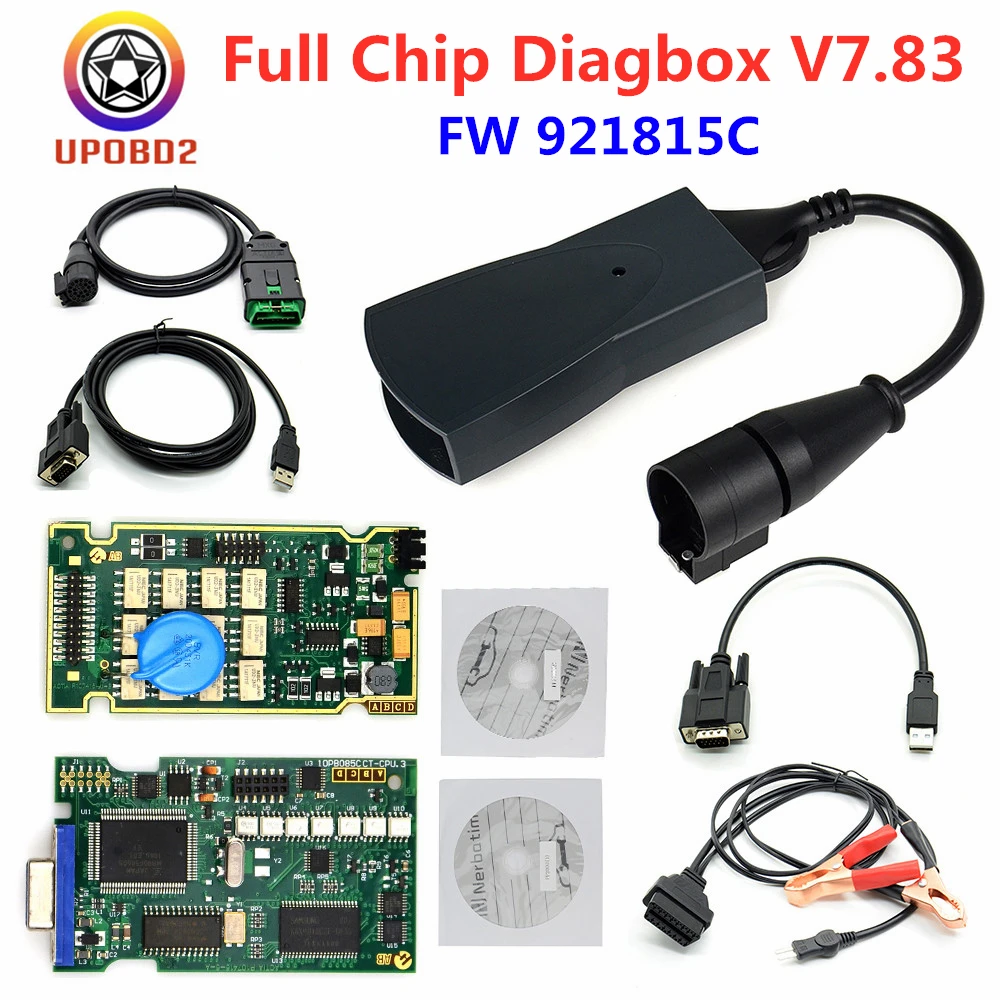

---------- Lexia3 Full Chip Version:

---------- Lexia3 Lite Version:
