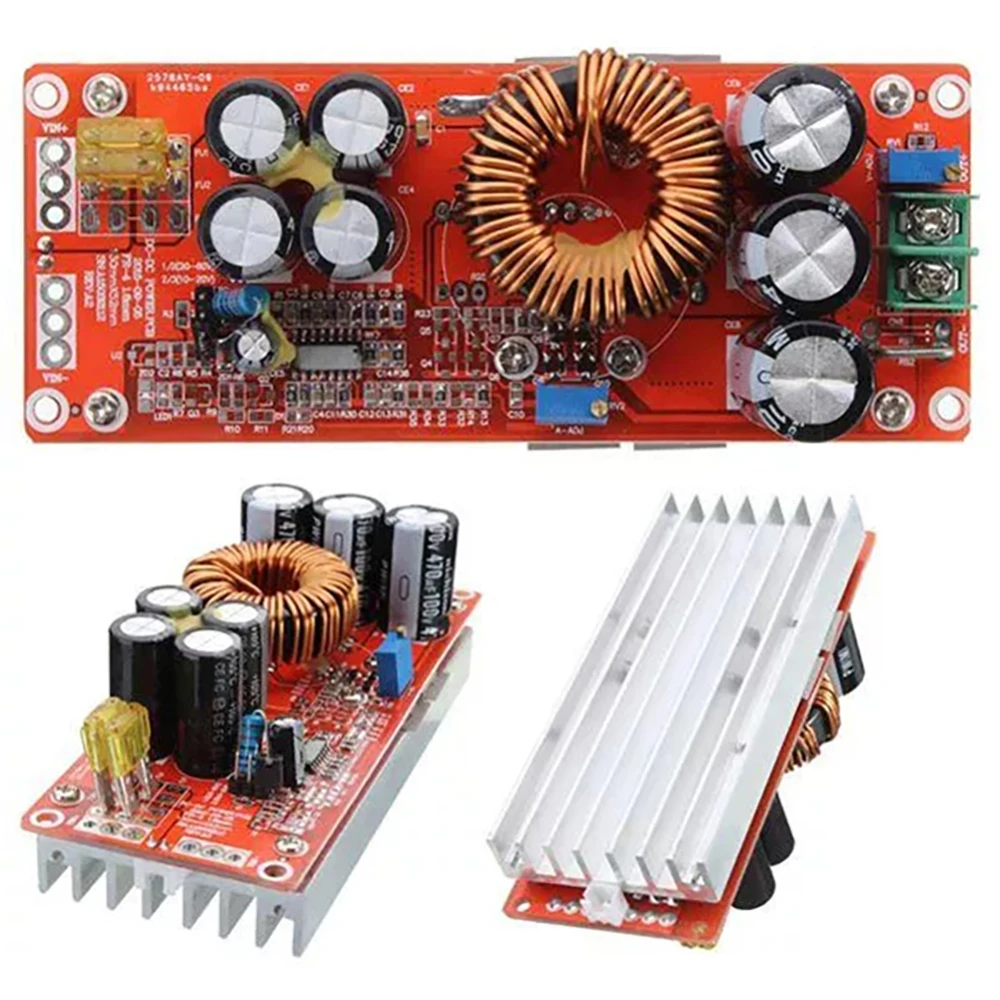

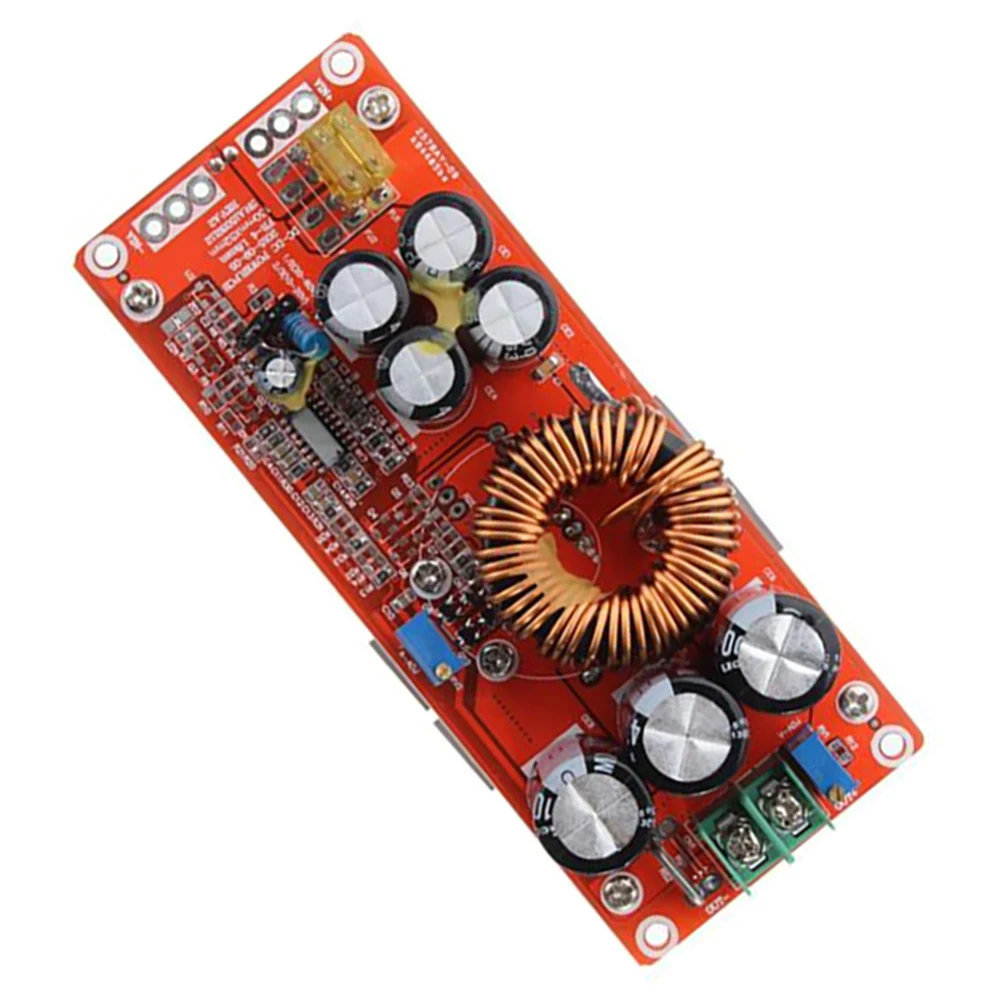

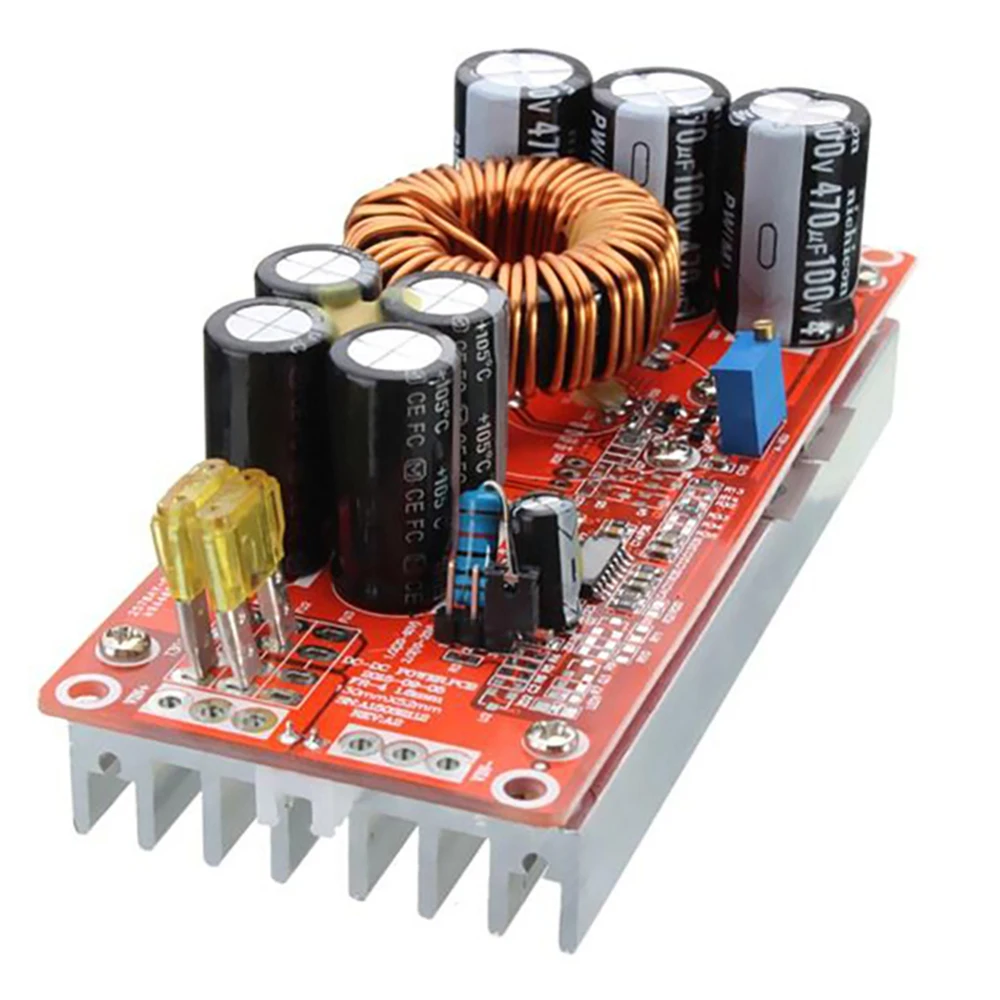

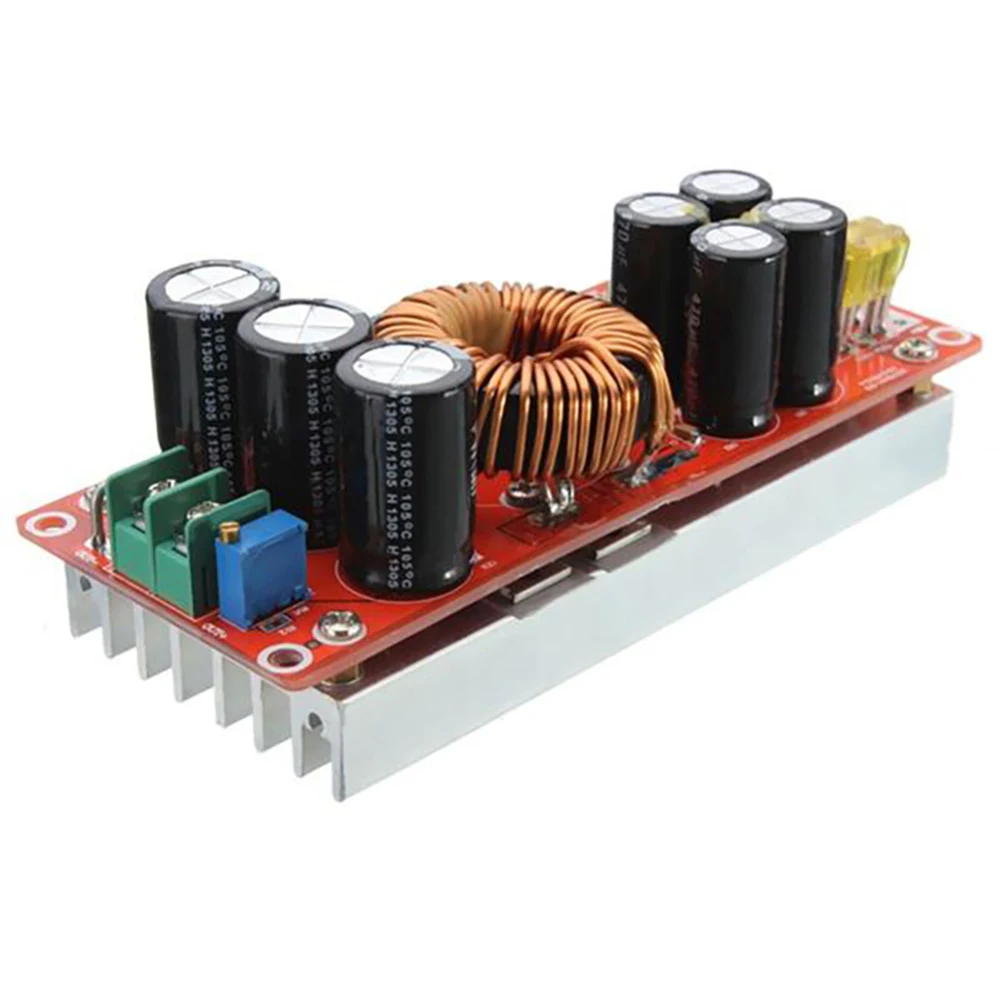

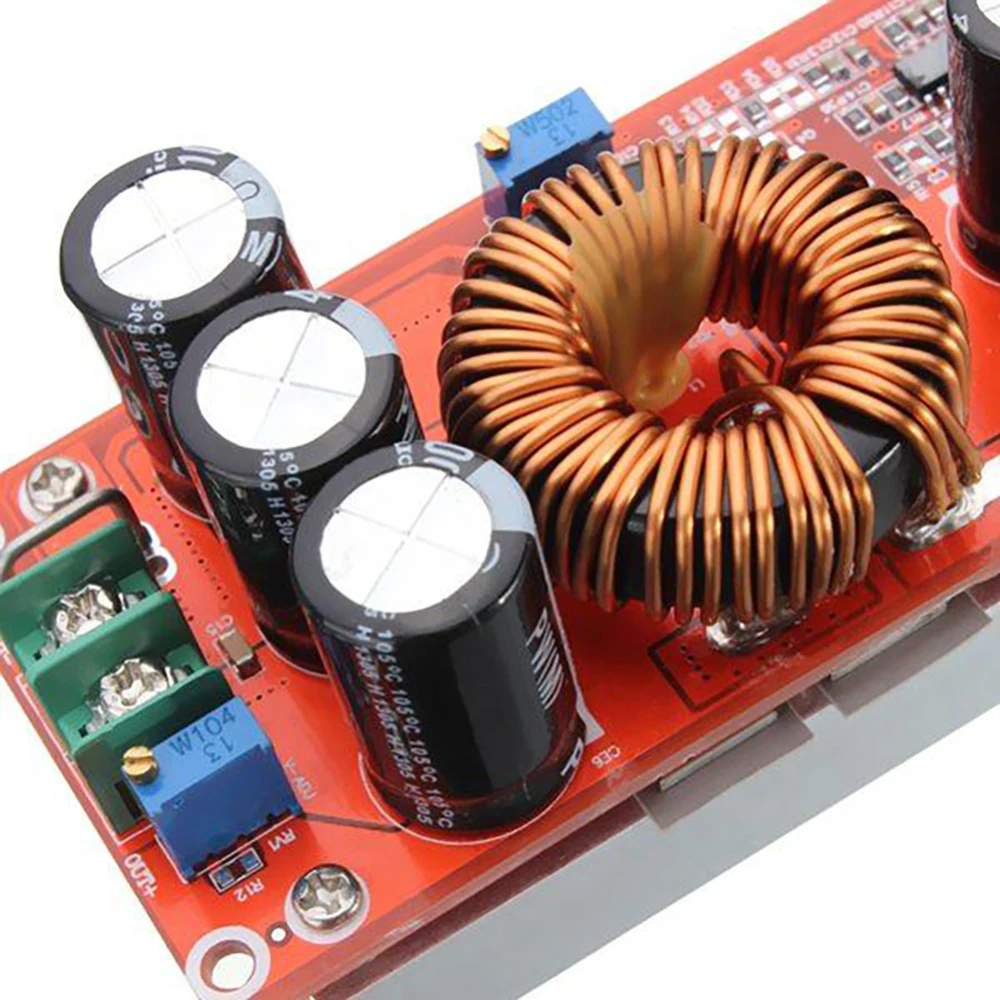

DC 20A 1200W Boost Constant Current Module Variable Voltage Power Supply IN 12-83V Top Quality Step Up | Электроника

RM358784393691386

Features:
- Over current protection: there is a certain range of error in the input over 30A, automatically reducing the output voltage.
- Short circuit protection: there is (input 40A fuse) double short circuit protection, use more secure.

Specifications:
- Input voltage: 10-60V
- Input current: 20A
- Constant current range: 0.3-20A
- Output power: = input voltage  x 10A
- Working temperature: -40~+85 degrees
- Working frequency: 150KHz
- Module name: 1200W boost constant current module
- Module properties: non isolated boost module (BOOST)
- Quiescent operating current: 15mA
- Output voltage: 12-83V continuous adjustable
- Output current: MAX 12A over 20A, please strengthen the
cooling (with input and output differential pressure, the greater
the pressure difference between the output current is small)
- Conversion efficiency: ≤95% (efficiency and input, output voltage,
current, pressure difference)
- Installation: 4pcs 3mm column

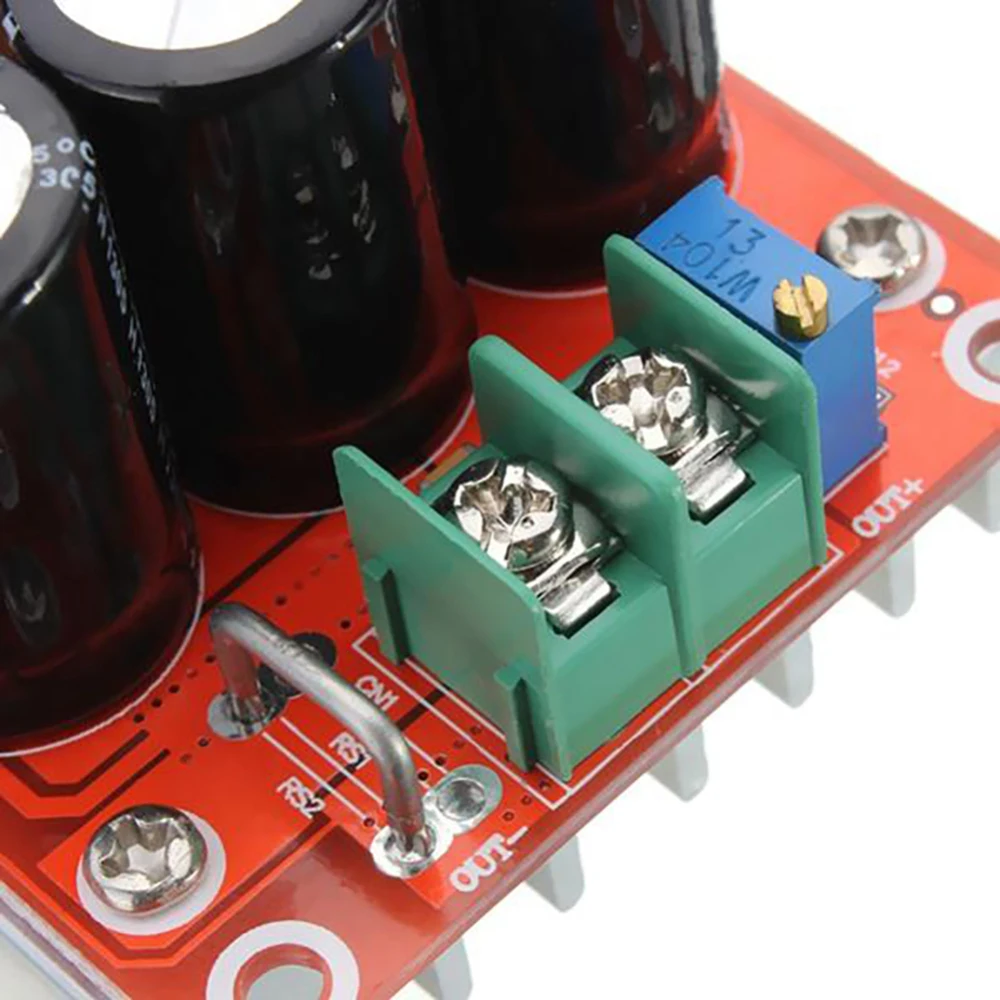

- Connection mode: welding output (please use big current and pure copper wire)
- Module size: 130mmx52mmx46mm(LxWxH)

- Package content:
-  1 x Boost Constant Current Module

Notes:
1. Manual measuring, please allow 1 ~ 3mm error,thank you.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the picture.
