Hantek1832C/Hantek1833C Digital Handheld LCR Meter Bridge Resistance Inductance Capacitance High Precision Measurement | Инструменты

Hantek1832C/Hantek1833C digital handheld LCR Meter Digital Bridge Resistance Inductance Capacitance

High Precision Measurement

Description

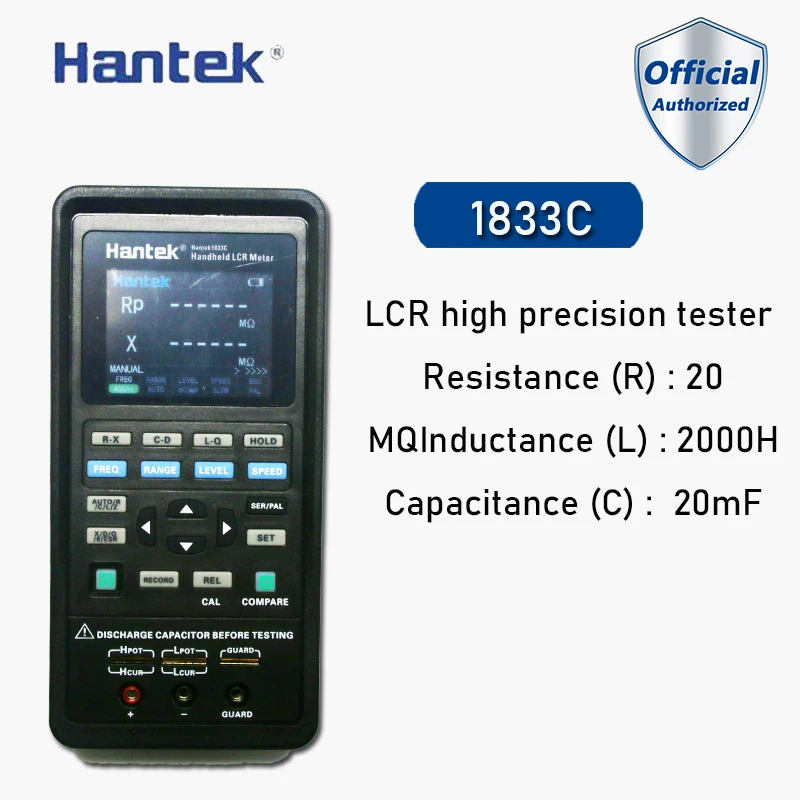

Hantek1832C/Hantek1833C handheld LCR Meter is a portable handheld measuring instrument to measure the parameters of the component

such as inductance, capacitance, resistance and so on. small volume, powered by 5V lithium battery, it can meet the requirements of desktop

LCR application, and can also be applied to flow measurement and handheld measurement.

Features

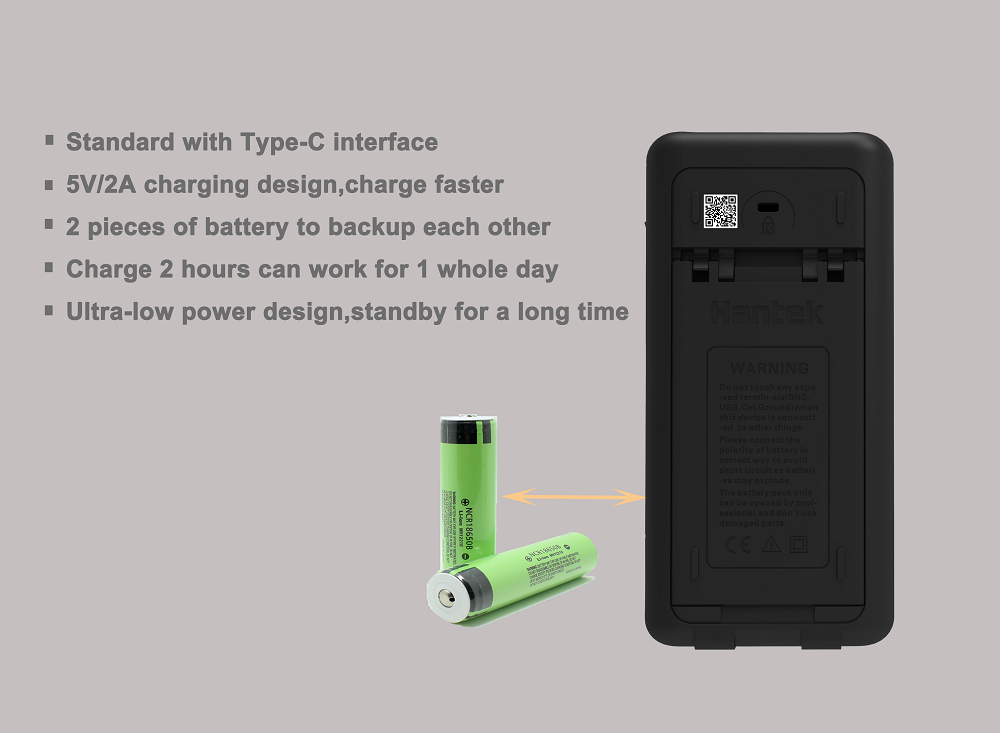

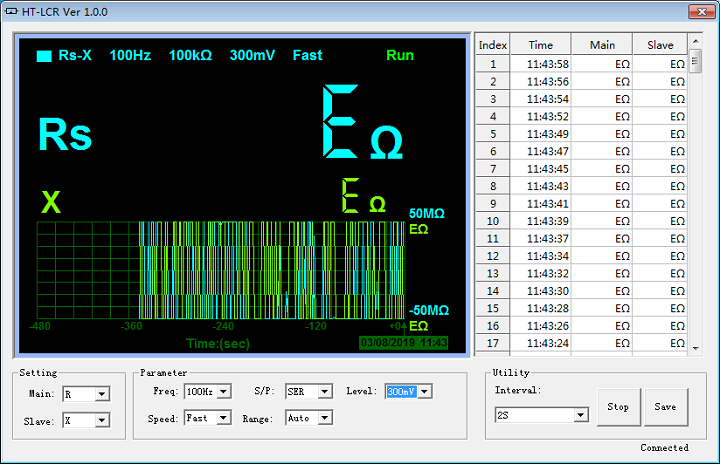

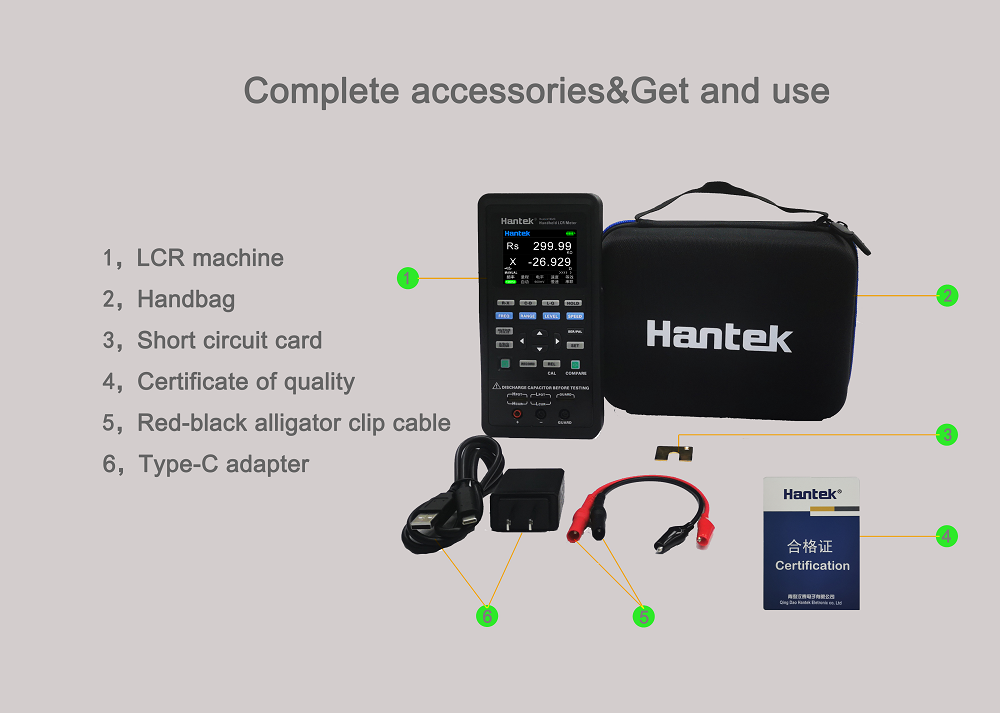

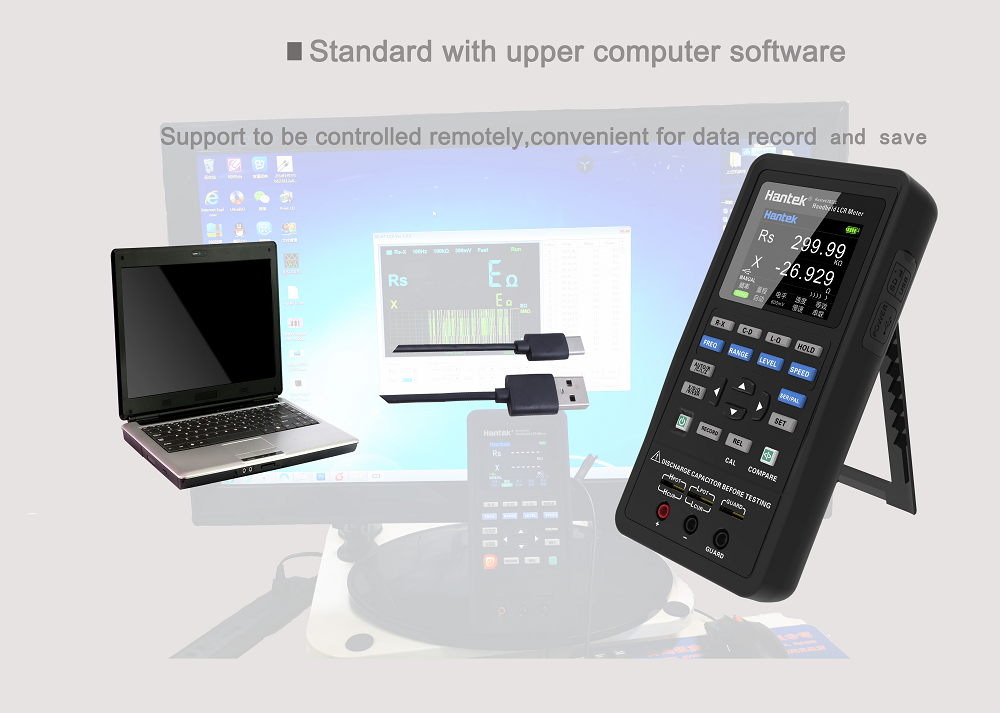

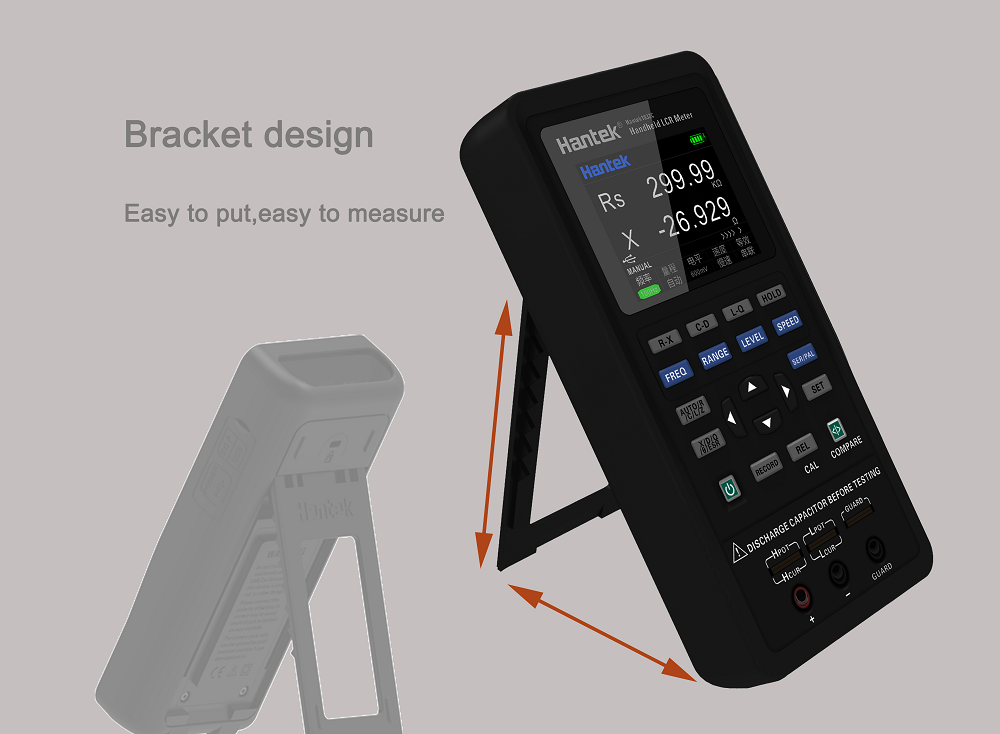

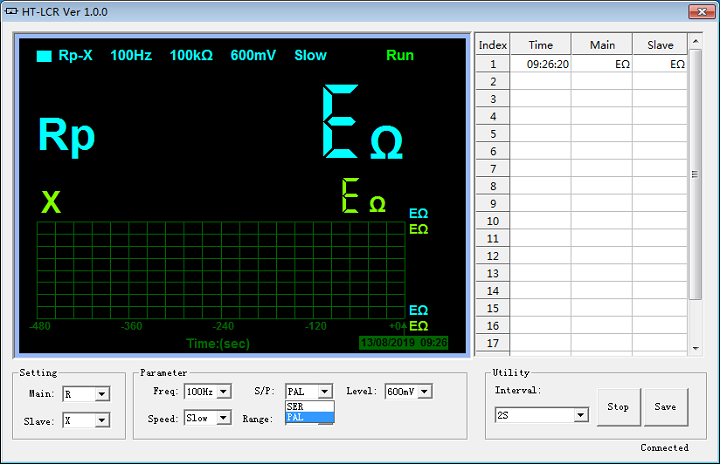

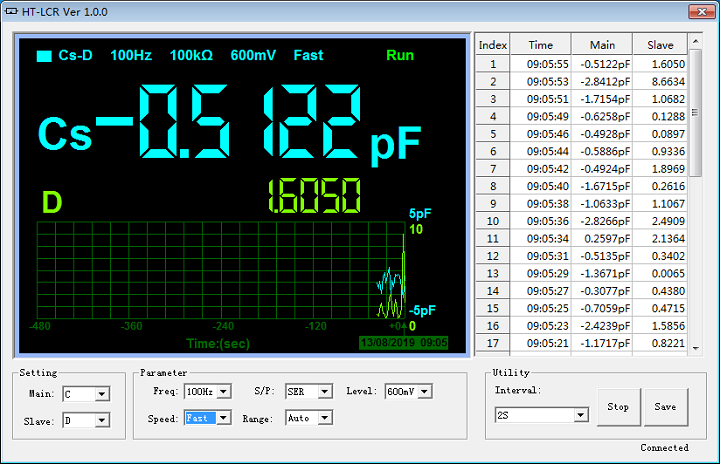

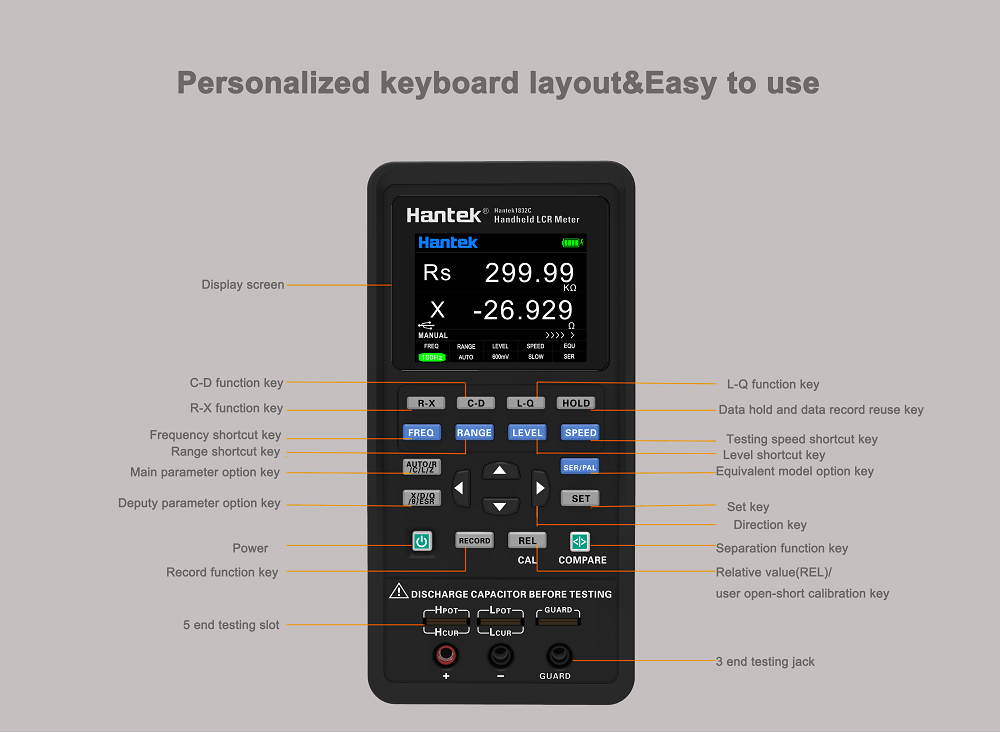

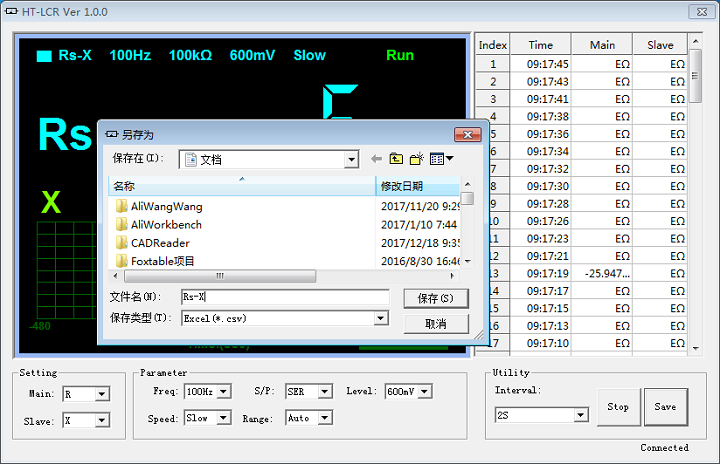

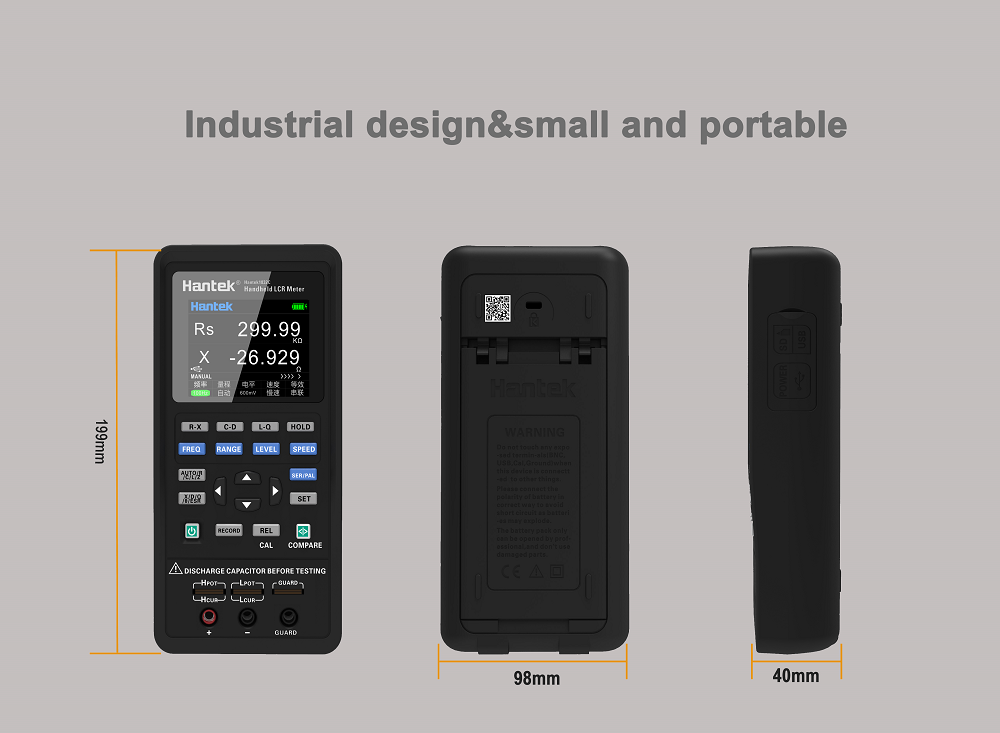

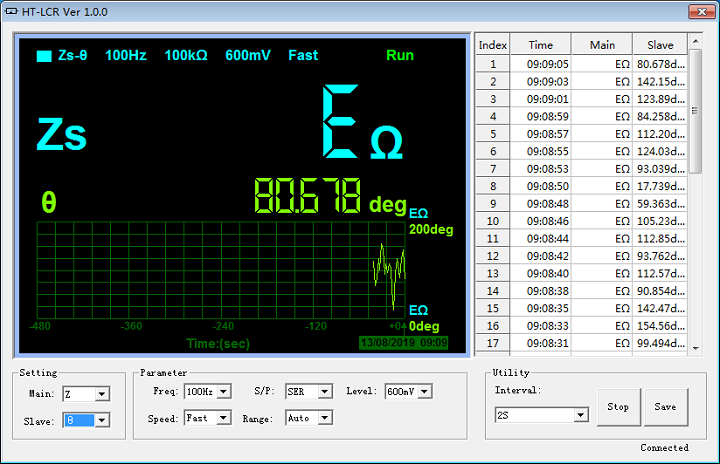

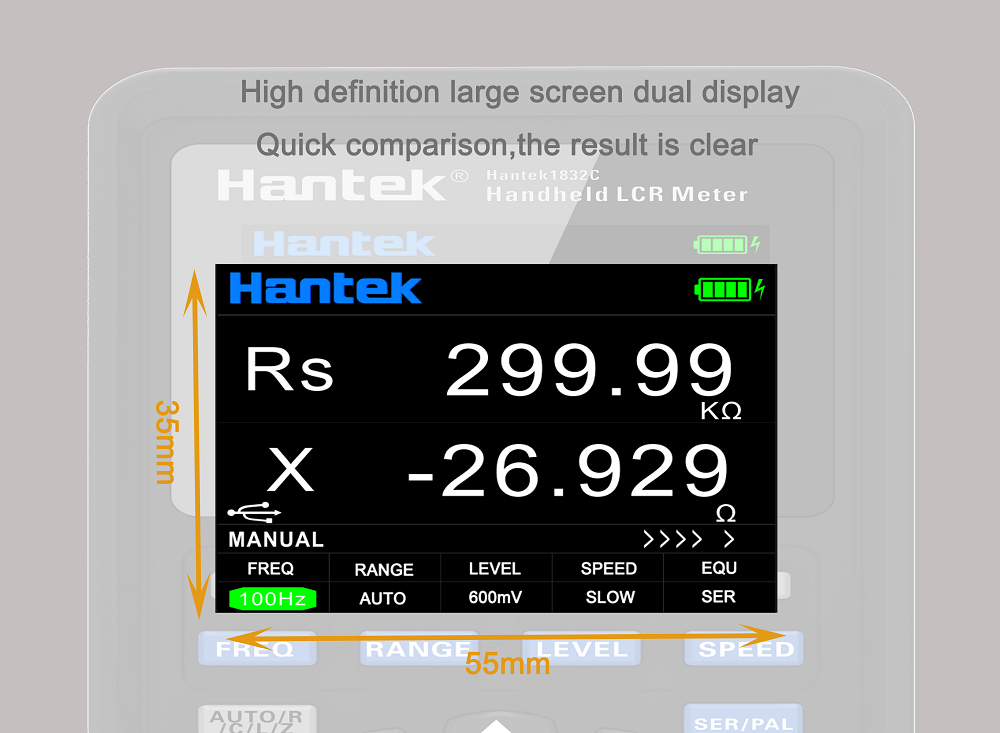

1.100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz 10 typical test frequency (Hantek1832C) 7 typical test frequency 2.2.8 inch TFT LCD, Switch between Chinese and English 3.HD display, dual display of measurement data, the result is clear 4.Support data record analysis 5.Support PC upper computer, easy to control and measure remotely 6.Test lead: 3 terminal/5 terminal switch 7.Measuring speed: high speed/intermediate speed/low speed switch 8.Range: support manual/auto switch, easy to do quick measurement 9.LCR adopted rechargeable design, Large capacity lithium battery, super standby 10.Double shock protection sleeve, all-round protection, shakeproof, fall-arrest, protect the machine from damage, longer use time, more comfortable measurement 11.Bracket design, easy to put and measure   Package Including 1xLCR machine 1xHandbag 1xShort circuit card 1xCertificate of quality 1xRed-black alligator clip cable 1xType-C adapter Model Hantek1832C Hantek1833C Test frequency

100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz,

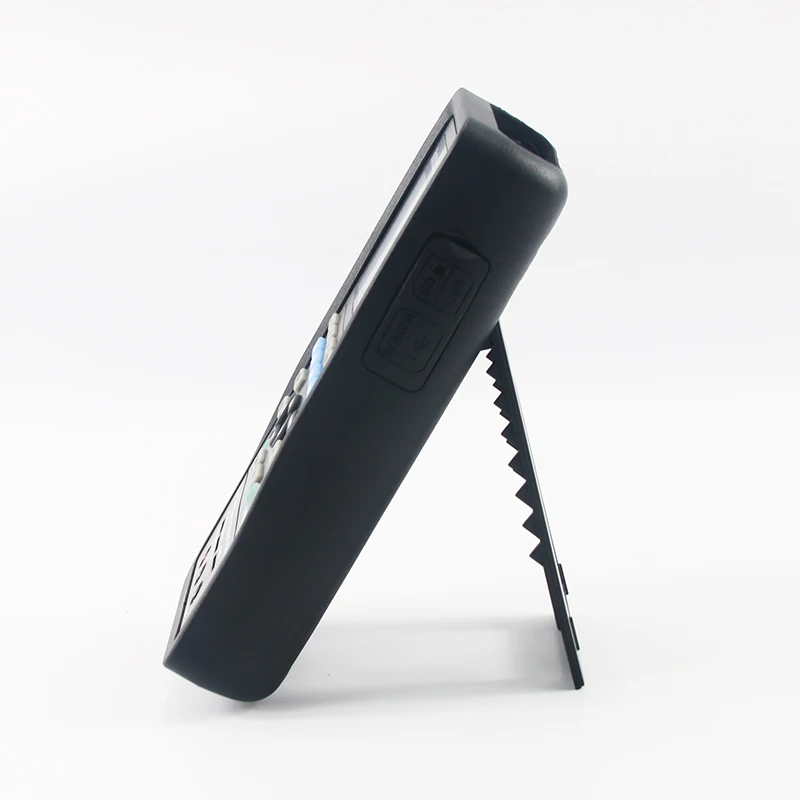

40kHz

100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz,

40kHz, 50kHz, 75kHz, 100kHz

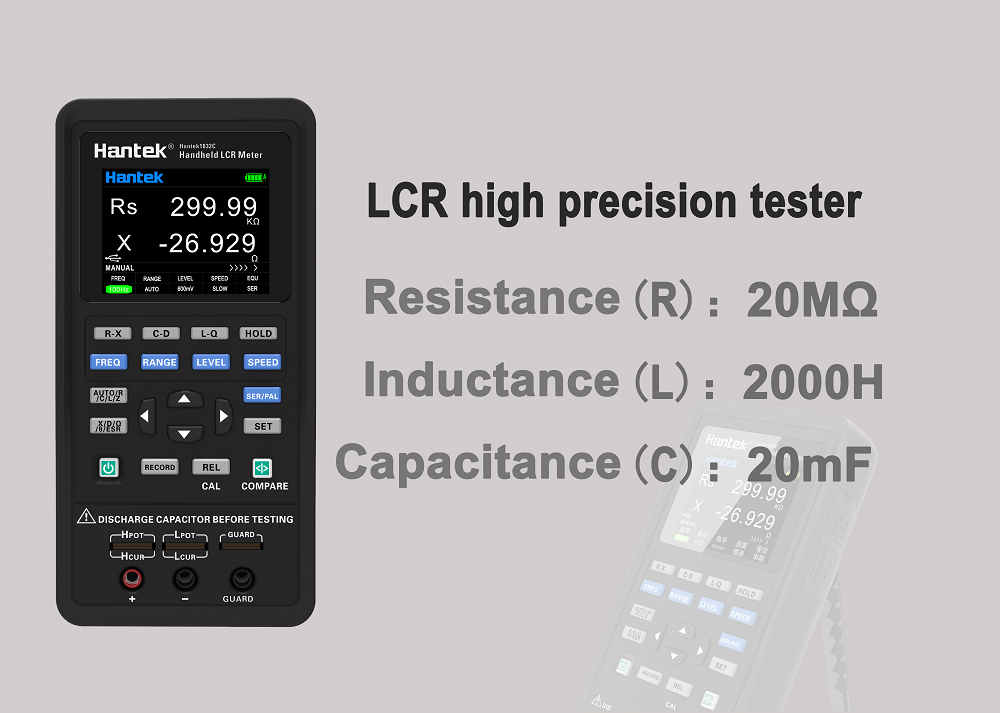

Accuracy 0.30% Equivalent Circuit series, parallel Test level 0.6Vrms 0.6Vrms, 0.3Vrms Measurement way manual, auto Display screen 2.8 inch TFT LCD Measurement parameters principle parameter: L/C/R/Z   deputy parameter: X/D/Q/θ/ESR Principle parameter L/C/R/Z Deputy parameter X/D/Q/θ/ESR Inductance Measurement range (L) 0-2000H Capacitance Measurement range (C) 0-20mF Resistance  Measurement range (R) 0-20MΩ Measurement speed high speed(4 times/s), intermediate speed(twice/s), low speed(once/s) Reset function open circuit calibration, short-circuit calibration Test terminal configuration 3 termianl, 5 terminal General feature standard with 1.Type-C data cable; 2.power adapte; 3.short circuit card; 4.red and black rubber plug; 5.large capacity lithium battery Capacitance C and dissipationD 100Hz/120Hz Range Display range Accuracy Ce  Accuracy De  Recommended equivalent mode 20mF  4.000mF~20.000mF  8.00%+5 digits 0.08 series 4mF  400.0μF~3.9999mF  2.00%+3 digits 0.02 series 400μF  40.00μF~399.99μF  0.60%+2 digits  0.006 series 40μF  4.000μF~39.999μF  0.40%+2 digits 0.004 series 4μF  400.0nF~3.9999μF  0.40%+2 digits 0.004 ----  400nF  40.00nF~399.99nF  0.4%+2 digits 0.004 parallel 40nF  4.000nF~39.999nF  0.5%+3 digits 0.005 parallel 4nF  0pF~3.999nF  1.5%+5 digits  ------  parallel 1KHz Range Display range Accuracy Ce  Accuracy De  Recommended equivalent mode 1000uF  400.0uF~999.9uF  3.00%+5 digits 0.03 series 400μF  40.00μF~399.99μF  1.50%+3 digits 0.015 series 40μF  4.000μF~39.999μF  0.60%+2 digits  0.006 series 4μF  400.0nF~3.9999μF  0.40%+2 digits 0.004 ----  400nF  40.00nF~399.99nF  0.4%+2 digits 0.004 parallel 40nF  4.000nF~39.999nF  0.6%+3 digits 0.006 parallel 4nF  400.0pF~3.9999nF  0.6%+3 digits 0.006 parallel 400pF 0.0pF~399.9pF 3%+5 digits ------  parallel 10KHz Range Display range Accuracy Ce  Accuracy De  Recommended equivalent mode 100μF  40.00μF~100.00μF  4.00%+5 digits  0.04 series 40μF  4.000μF~39.999μF  2.0%+3 digits 0.02 series 4μF  400.0nF~3.9999μF  0.60%+2 digits 0.006 series 400nF  40.00nF~399.99nF  0.4%+2 digits 0.004 series 40nF  4.000nF~39.999nF  0.4%+2 digits 0.004 ------  4nF  400.0pF~3.9999nF  0.4%+2 digits 0.004 parallel 400pF 40.00pF~399.99pF 0.6%+3 digits 0.006 parallel 40pF 0.00pF~39.99pF 2.5%+5 digits ------  parallel 40KHz Range Display range Accuracy Ce  Accuracy De  Recommended equivalent mode 100μF  40.00μF~100.00μF  6.00%+5 digits 0.06 series 40μF  4.000μF~39.999μF  4.0%+3 digits  0.04 series 4μF  400.0nF~3.9999μF  1.0%+2 digits  0.01 series 400nF  40.00nF~399.99nF  0.6%+2 digits 0.006 series 40nF  4.000nF~39.999nF  0.6%+2 digits  0.006 ------  4nF  400.0pF~3.9999nF  0.6%+2 digits  0.006 parallel 400pF 40.00pF~399.99pF 1%+3 digits 0.01 parallel 40pF 0.000pF~39.999pF 3%+5 digits ------  parallel 100KHz Range Display range Accuracy Ce  Accuracy De  Recommended equivalent mode 10μF  4.000μF~10.000μF  8.0%+20 digits 0.08 series 4μF  400.0nF~3.9999μF  5.0%+10 digits  0.05 series 400nF  40.00nF~399.99nF  1.5%+5 digits 0.015 series 40nF  4.000nF~39.999nF  1%+2 digits 0.01 series 4nF  400.0pF~3.999nF  1%+2 digits 0.01 ------   400pF 40.00pF~399.99pF 1.5%+2 digits 0.015 parallel 40pF 4.000pF~39.999pF 2%+5 digits 0.02 parallel 4pF 0.000pF~3.999pF 5%+10 digits ------  parallel Inductance L and quality factor 100Hz/120Hz Range Display range Accuracy Le  Accuracy De* Recommended equivalent mode 1000H  400.0H~999.9H  2.00%+3 digits 0.02 parallel 400H  40.000H~399.99H  0.60%+2 digits 0.006 parallel 40H  4.000H~39.999H  0.40%+2 digits 0.004 parallel 4H  400.0mH~3.9999H  0.40%+2 digits  0.004 ----  400mH  40.00mH~399.99mH  0.4%+2 digits 0.004 series 40mH  4.000mH~39.999mH  0.6%+3 digits 0.006 series 4mH  0uH~3.999mH  3.0%+5 digits ------  series  1kHz Range Display range Accuracy Le  Accuracy De* Recommended equivalent mode 1H  400.0mH~999.9mH  1.50%+3 digits 0.015 parallel 400mH  40.00mH~399.99mH  0.4%+2 digits 0.004 parallel 40mH  4.000mH~39.999mH  0.4%+2 digits 0.004 ------  4mH  400.0uH~3.9999mH  0.4%+2 digits 0.004 series 400uH 40.00uH~399.99uH 0.8%+3 digits 0.008 series 40uH 0.00uH~39.99uH 3.0%+5 digits ------ series 10kHz Range Display range Accuracy Le  Accuracy De* Recommended equivalent mode 100H  40.00H~100.00H  2.0%+3 digits  0.02 parallel 40H  4.000H~39.999H  0.60%+2 digits 0.006 parallel 4H  400.0mH~3.9999H  0.40%+2 digits  0.004 parallel 400mH  40.00mH~399.99mH  0.4%+2 digits 0.004 ------  40mH  4.000mH~39.999mH  0.4%+2 digits 0.004 series 4mH  400.0uH~3.9999mH  1%+3 digits 0.01 series 400uH 0.0uH~399.9uH 3.0%+5 digits ------ series 40kHz Range Display range Accuracy Le  Accuracy De* Recommended equivalent mode 1H  400.0mH~999.9mH  2.0%+4 digits 0.02 parallel 400mH  40.00mH~399.99mH  0.8%+2 digits 0.008 parallel 40mH  4.000mH~39.999mH  0.8%+2 digits 0.008 ------  4mH  400.0uH~3.9999mH  0.8%+2 digits 0.008 series 400uH 40.00uH~399.99uH 1.5%+3 digits 0.015 series 40uH 0.000uH~39.999uH 4.0%+5 digits ------ series 100kHz Range Display range Accuracy Le  Accuracy De Recommended equivalent mode 100mH  40.00mH~399.99mH  2.5%+2 digits 0.025 parallel 40mH  4.000mH~39.999mH  1.5%+2 digits 0.015 parallel 4mH  400.0uH~3.9999mH  1.0%+2 digits 0.01 ------  400uH 40.00uH~399.99uH 1.0%+2 digits 0.01 series 40uH 4.000uH~39.999uH 1.5%+5 digits 0.015 series 4uH 0.000uH~3.999uH 4%+10 digits ------ series  Impedance Z and phase angle 100Hz, 120Hz, 1kHz, 10kHz Range Display range Accuracy Ze Accuracy Recommended equivalent mode 20MΩ 4.000MΩ~20.000MΩ 3.0%+10 digits 3.4° parallel 4MΩ 400.0kΩ~3.9999MΩ 1.2%+3 digits 0.7° parallel 400kΩ 40.00kΩ~399.99kΩ 0.3%+3 digits 0.2° parallel 40kΩ 4.000kΩ~39.999kΩ 0.25%+2 digits 0.1° ------ 4kΩ 400.0Ω~3.9999kΩ 0.25%+2 digits 0.1° series 400Ω 40.00Ω~399.99Ω 0.25%+2 digits 0.1° series 40Ω 4.000Ω~39.999Ω 0.5%+3 digits 0.3° series 4Ω 0.4000Ω~3.9999Ω 2.0%+3 digits 1.1° series 0.4Ω 0.0000Ω~0.3999Ω 4.0%+3 digits ------ series 40kHz Range Display range Accuracy Ze Accuracy Recommended equivalent mode 20MΩ 4.000MΩ~20.000MΩ 7.0%+41 digits 4.0° parallel 4MΩ 400.0kΩ~3.9999MΩ 2.5%+3 digits 1.4° parallel 400kΩ 40.00kΩ~399.99kΩ 1.0%+4 digits 0.6° parallel 40kΩ 4.000kΩ~39.999kΩ 1.0%+4 digits 0.6° ------ 4kΩ 400.0Ω~3.9999kΩ 0.5%+3 digits 0.3° series 400Ω 40.00Ω~399.99Ω 0.5%+3 digits 0.3° series 40Ω 4.000Ω~39.999Ω 0.7%+4 digits 0.4° series 4Ω 0.4000Ω~3.9999Ω 2.0%+6 digits 1.1° series 0.4Ω 0.0000Ω~0.3999Ω 5.0%+10 digits ------ series 100kHz Range Display range Accuracy Ze Accuracy Recommended equivalent mode 20MΩ 4.000MΩ~20.000MΩ 9.0%+20 digits 5.2° parallel 4MΩ 400.0kΩ~3.9999MΩ 4.0%+10 digits 2.3° parallel 400kΩ 40.00kΩ~399.99kΩ 1.5%+4 digits 0.9° parallel 40kΩ 4.000kΩ~39.999kΩ 1.0%+2 digits 0.6° parallel 4kΩ 400.0Ω~3.9999kΩ 0.7%+2 digits 0.4° ------ 400Ω 40.00Ω~399.99Ω 0.7%+2 digits 0.4° series 40Ω 4.000Ω~39.999Ω 1.0%+5 digits 0.6° series 4Ω 0.4000Ω~3.9999Ω 3.0%+10 digits 1.7° series 0.4Ω 0.0000Ω~0.3999Ω 7%+20 digits ------ series
