Note: Any Free Shipping Promotion is Valid to the 48 contiguous states. for Alaska, Hawaii, Puerto Rico, Guam,Virgin Islands and Samoa, extra shipping fee will be charged.

Application:
for Chevy-V8 Small Block, Big Block& V6 with A/T& M/T with 153 or 168 Tooth Ring Gear

OEM(s) Replaced: for Chevrolet, for General Motors, for Hitachi

Color: Red
Material: Aluminum
Interchange Part Number: 18493
Hatachi: S13-65C, S13-65S1, S13-65S1BX
Type: 3HP
Tooth Flywheel: 153 168
Number of Teeth: 9
Voltage: 12
Power: 1.4kW / 2.68HP
Rotation: CW
Gear OD: 0.988in / 25.1mm
Version: High Torque Version/3-Clocking Positions
Mtg Ear 1 Hole: 10mm Unthreaded
Mtg Ear 2 Hole: 10mm Unthreaded
Mtg Ear 3 Hole: 10mm Unthreaded
Mtg Ear 4 Hole: 10mm Unthreaded

Condition: 100 % Brand New and tested
Warranty: 2 Years

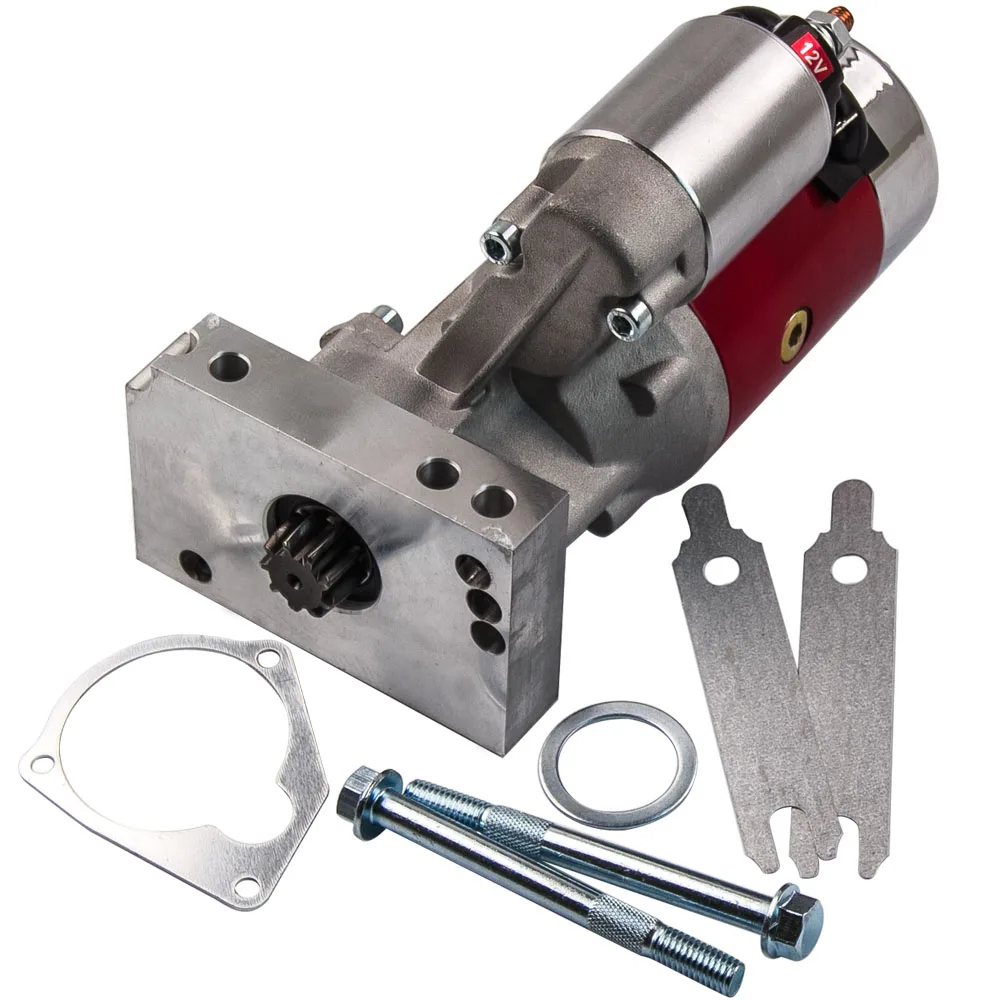

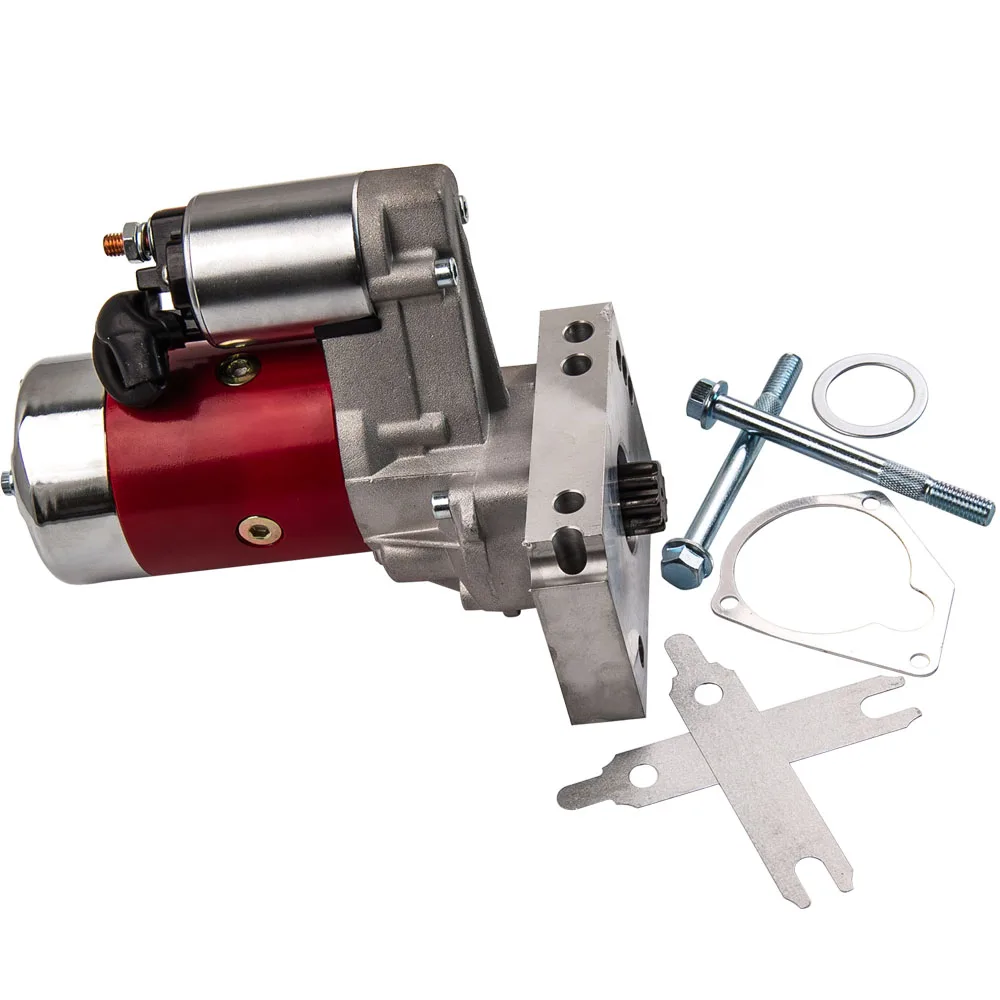

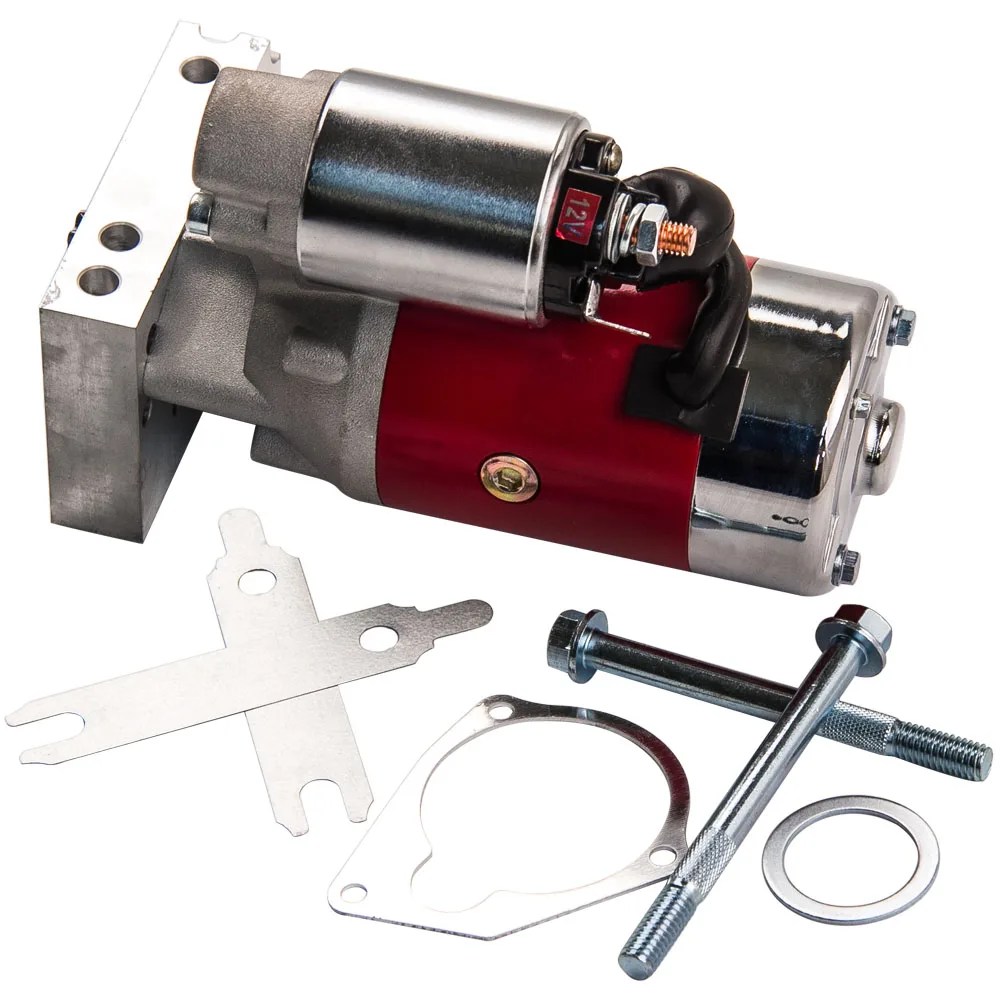

Package Includes: You will get exactly as shown as the picture above

Installation Note:

To use this type of starter you must verify that it has three bolt holes on the starter pad. You will use two of the three holes to mount this starter but they must be straight across from each other to accept this starter. This starter cannot be installed if the two holes are staggered.

PS: Check your block for starter bolt pattern used, 454 blocks many times had a staggered bolt starter.

Feature:

Notice
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
