1 piece good quality High pressure hydraulic two-position three-way ball valve KHB3K-M14 * 1.5 |

1 piece good quality High pressure hydraulic two-position three-way ball valve KHB3K-M14 * 1.5 |

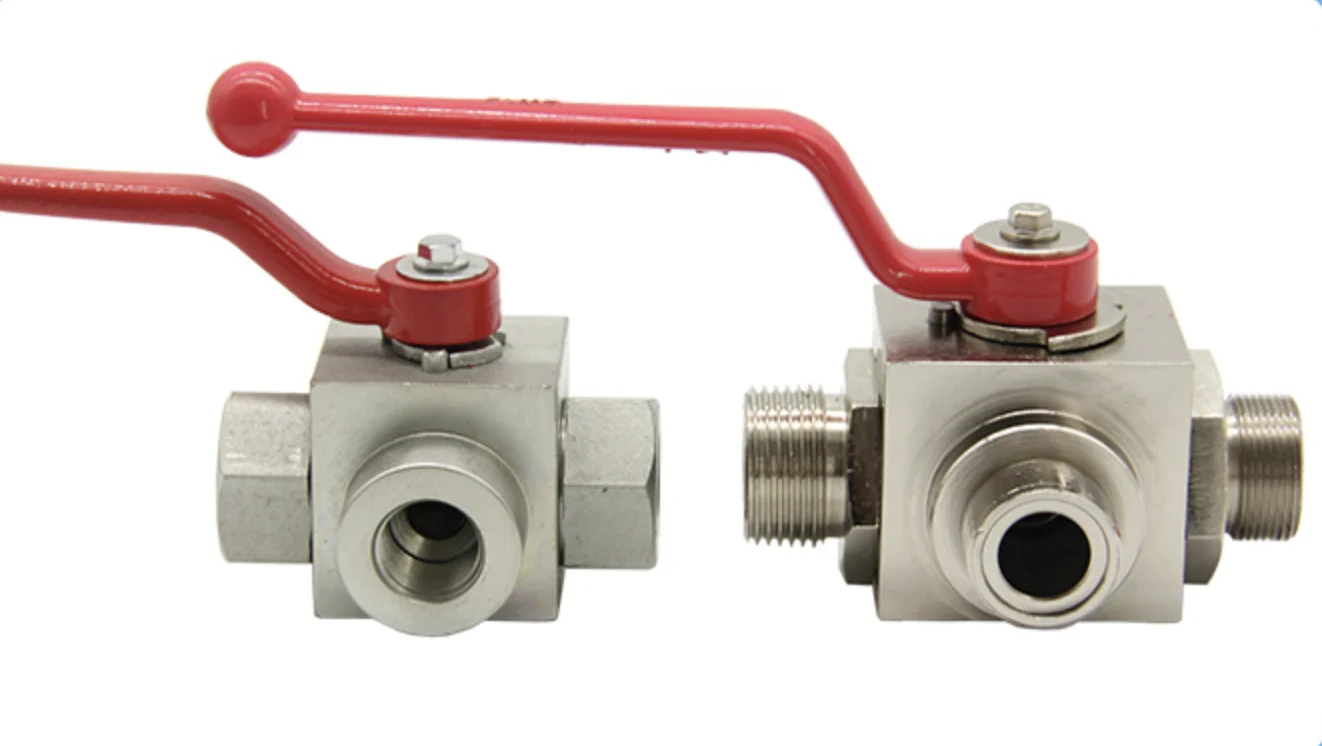

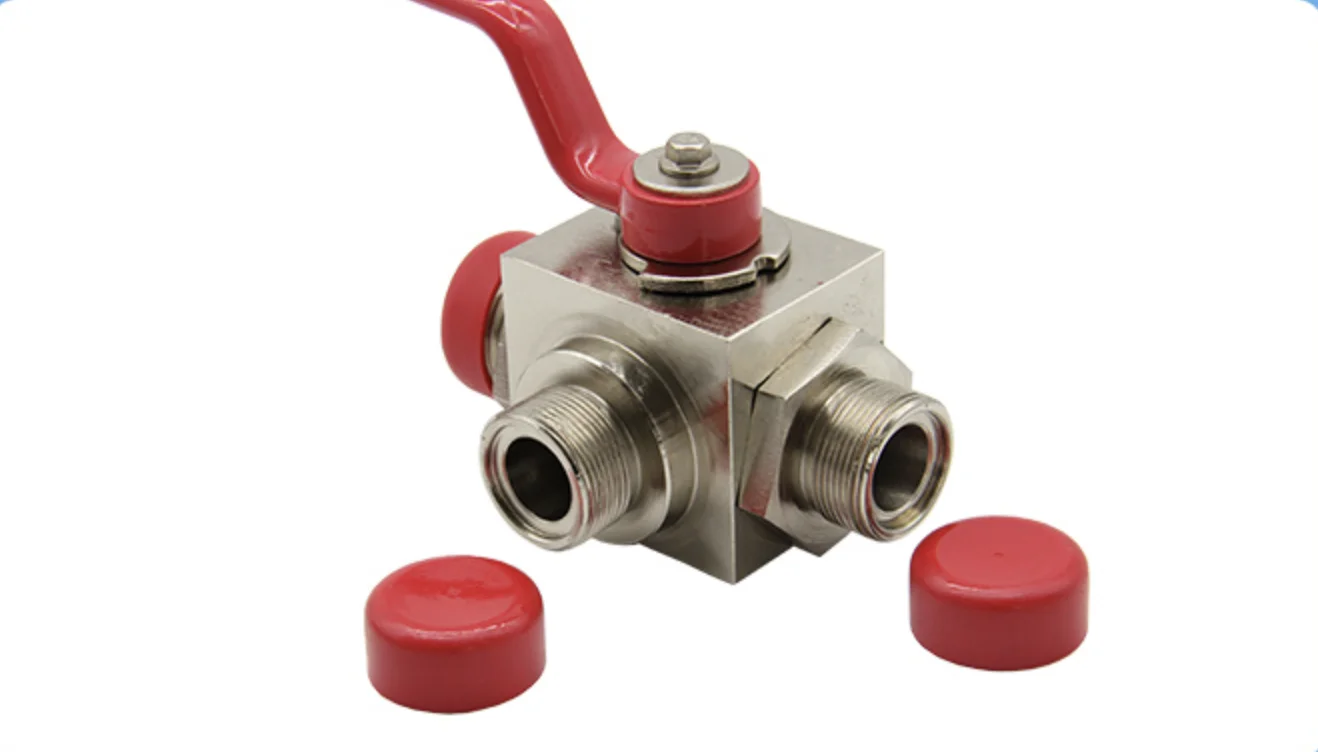

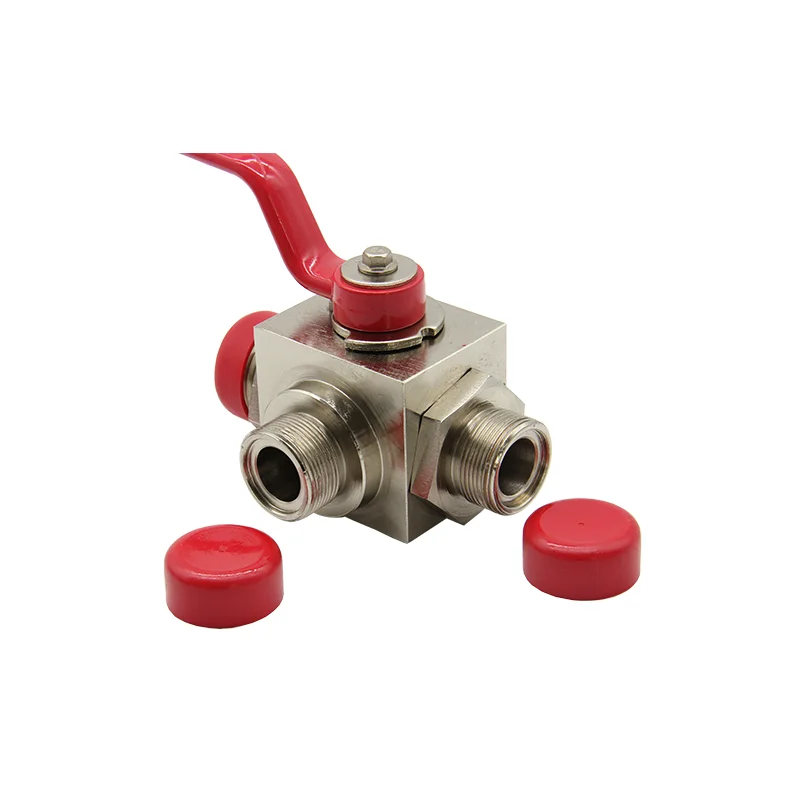

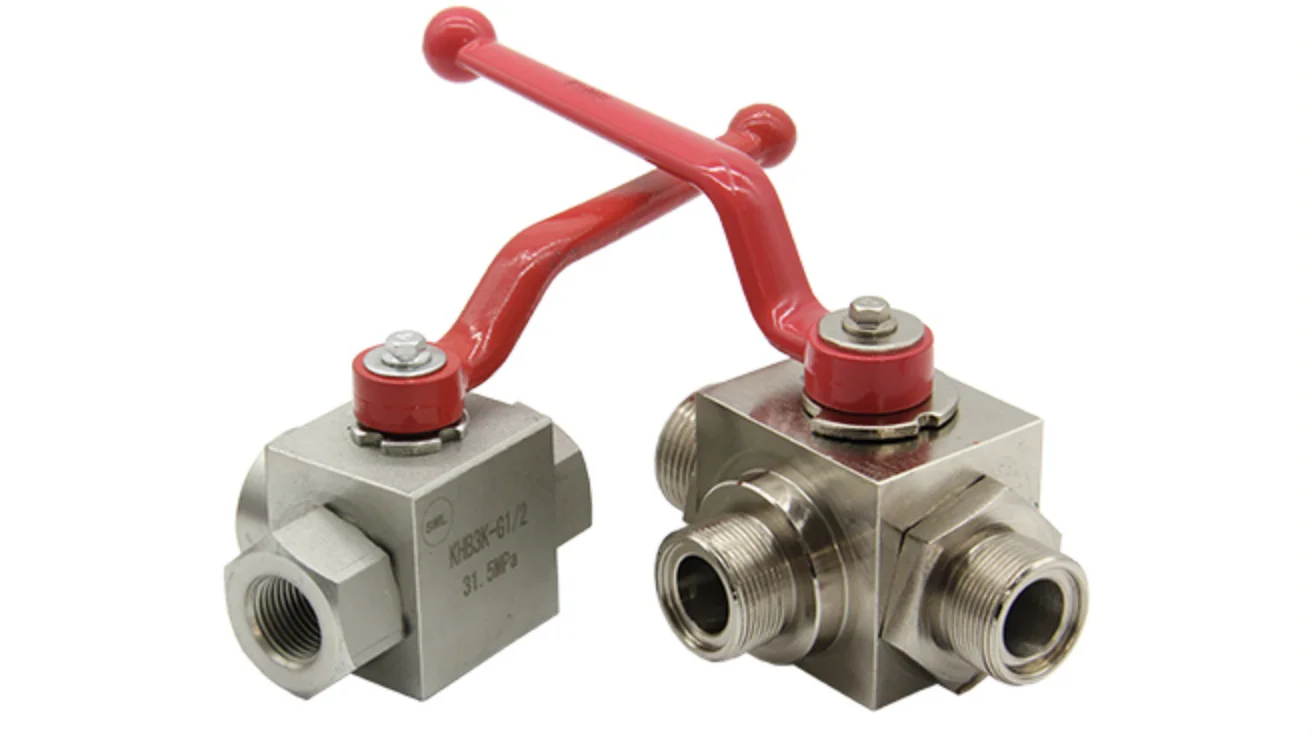

1 piece High pressure hydraulic two-position three-way ball valve KHB3K-M14 * 1.5

Advantages of high pressure ball valve: 1. The fluid resistance is small, and the full-diameter ball valve has almost no fluid resistance. 2. Simple structure, small size and light weight. 3. Tight and reliable. It has two sealing surfaces. At present, the sealing surface materials of ball valves are widely used in various plastics, which have good sealing performance and can achieve complete sealing. It has also been widely used in vacuum systems. 4.Easy operation, fast opening and closing, only need to rotate 90 ° from fully open to fully closed, which is convenient for long-distance control. . 5. Easy maintenance, simple structure of ball valve, seal ring is usually movable, and it is more convenient to disassemble and replace. 6. When fully open or fully closed, the sealing surfaces of the ball and the valve seat are isolated from the medium. When the medium passes through, it will not cause the erosion of the valve door sealing surface. 7. Wide range of application, from small diameter to several millimeters, large to several meters, from high vacuum to high pressure can be applied.

Working principle of high pressure ball valve: High pressure ball valve has the action of rotating 90 degrees, the plug body is a sphere, and there is a circular through hole or channel through its axis. The ball valve is mainly used to cut, distribute and change the flow direction of the medium in the pipeline. It only needs to be rotated by 90 degrees and can be closed tightly with a small torque. Ball valves are most suitable for use as on-off and shut-off valves, but recent developments have designed ball valves to make them throttle and control flow, such as V-type ball valves. The main feature of the high pressure ball valve is its tight structure Min, reliable sealing, simple structure, easy maintenance, dense The cover and the sphere are often in a closed state, which is not easy to be washed by the medium Corrosion, easy operation and maintenance, suitable for water and solvent Agents, acids and natural gas, etc. It is also suitable for mediators with harsh working conditions. Quality, such as oxygen, hydrogen peroxide, methane and ethylene, are widely used in various industries. The ball valve body can be integrated or combined.
