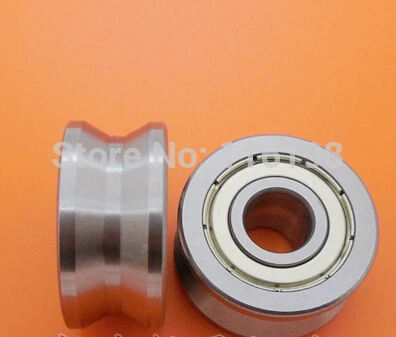

Радиальный шарикоподшипник LV20/10 в с глубоким желобом 10x30x14 мм Направляющие

Free shipping LV20/10 V groove deep groove ball bearing 10x30x14mm Traces walking guide rail bearings ABEC3

Material: high quality chrome steel Precise: ABEC3   V-shaped groove guide rollers 1. LV series bearings can be used in the cylindrical guide or V-rail 120 degrees. LFR series of rollers with different, LV series bearing on the size of adaptable rail, rail larger diameter size range for each size can fit. It can be widely used in heavy rail, mobile devices, straightening machinery. 2. bearings double row angular contact ball bearing design and thickening of the internal structure of the outer ring, the bearing has a higher carrying capacity. 3. Bearing with high-quality bearing steel, processed by heat treatment, precision grind, and are filled with long-life, high-quality multi-purpose grease. Bearing dust metal dust cover. Division can also provide micro-bearings with concentric or eccentric shaft. 4. The bearing outer ring has a V-shaped bottom undercut as the requirement does not allow undercuts can be ordered without the undercut bearing, can also be customized to other V-shaped angle of bearings.   Application of the LV series bearing guide rail system has the following characteristics: 1. resistance, long life and wide application V-shaped guide bearing surface LV series after fine grinding, surface roughness of Ra0.32. The V-groove bearing inner ring plane parallel installation is good. Work, smooth and cylindrical guide bearing force between the friction resistance.   2. Installation is simple and convenient After the eccentric shaft bearing arrangement and concentric shaft, making installation very easy to adjust the amount of eccentric eccentric bearing can get the fitting preload.                           PN.
Φdw
mm
Bore
mm
O.D.
mm
Width
mm
Width
mm            A
Angle Chamfer r/min
mm
Load
Weight   HRBN Φdw D D B C A α R/min Cw(KN) Cow(KN) Kg LV 20/7 ZZ 10 7 22 11 11 14.5 120 0.3 3.78 2.05 17 LV 20/8 ZZ 10 8 30 14 14 18.1 120 0.3 5.13 2.67 49 LV20/10ZZ 10 10 30 14 14 18.1 120 0.3 5.13 2.67 48 LV 202-38 ZZ 10 15 38 17 17 22.25 120 0.5 8.47 5.37 87 LV 202-40 ZZ 10 15 40 18 18 22 120 0.5 8.47 5.37 110 LV 201 ZZ 20 12 41 20 20 28 120 0.3 8.47 5.37 130 LV 201-14.2RS 14 12 39.9 20.1 18 24 100 0.5 8.9 5 107 LV 202-41 ZZ 20 15 41 20 20 28 120 0.5 8.47 5.37 116 LV 203 ZZ 20 17 58 25 25 35 120 0.5 14.66 9.1 325 LV 204-57 ZZ 20 20 57 22 22 34.5 120 0.6 14.66 9.1 290 LV 204-58 ZZ 30 20 58 25 25 41 120 0.6 14.66 9.1 310

Because of the most models are not in shop, please contact me for more price lists.
