Albright 48В 100А DC88-360T вилочный погрузчик реле вперед назад контактор для

Albright 48В 100А DC88-360T вилочный погрузчик реле вперед назад контактор для

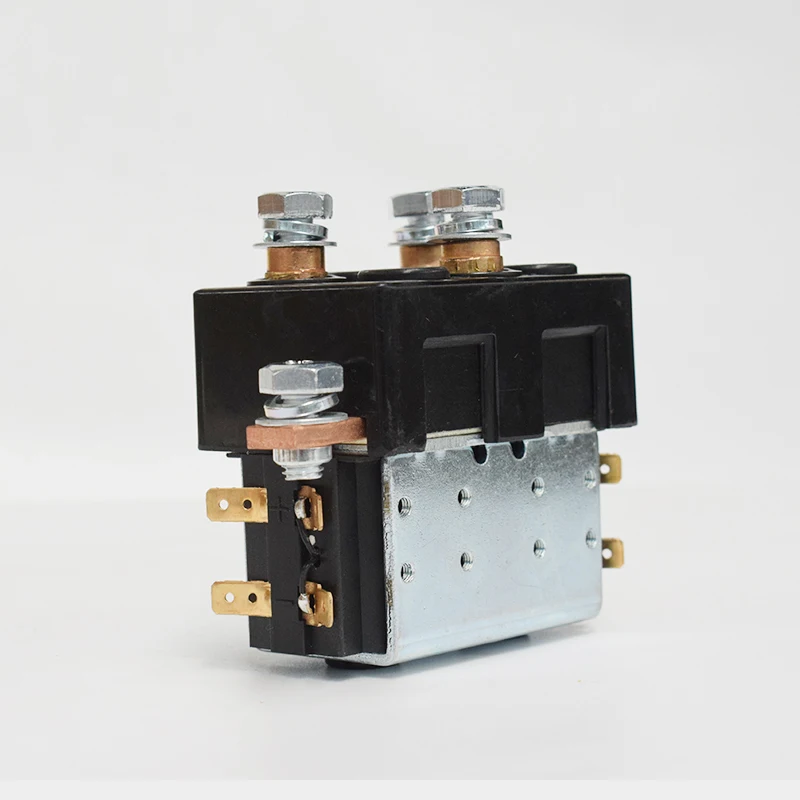

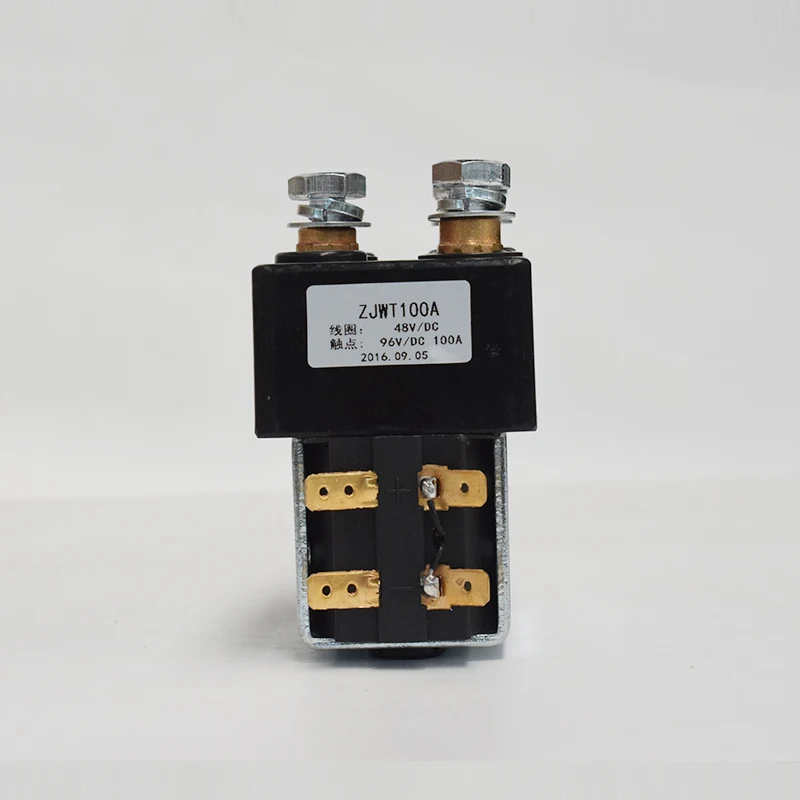

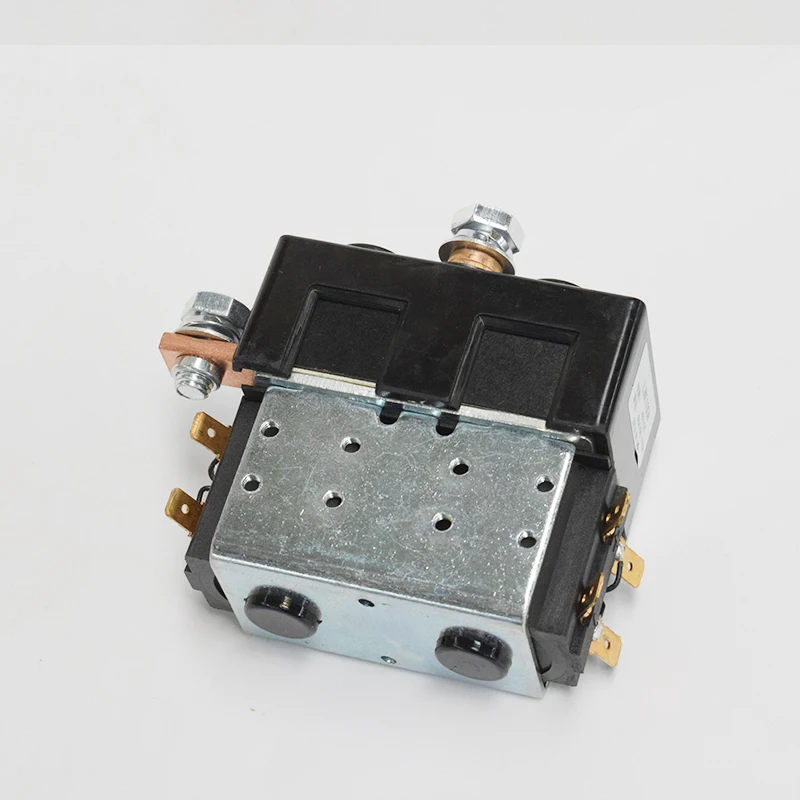

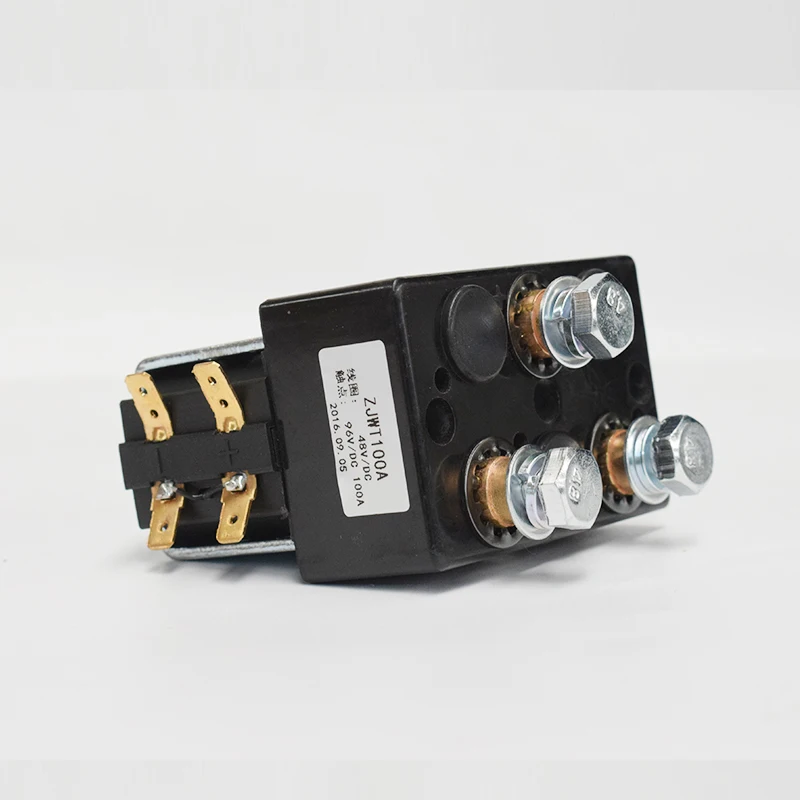

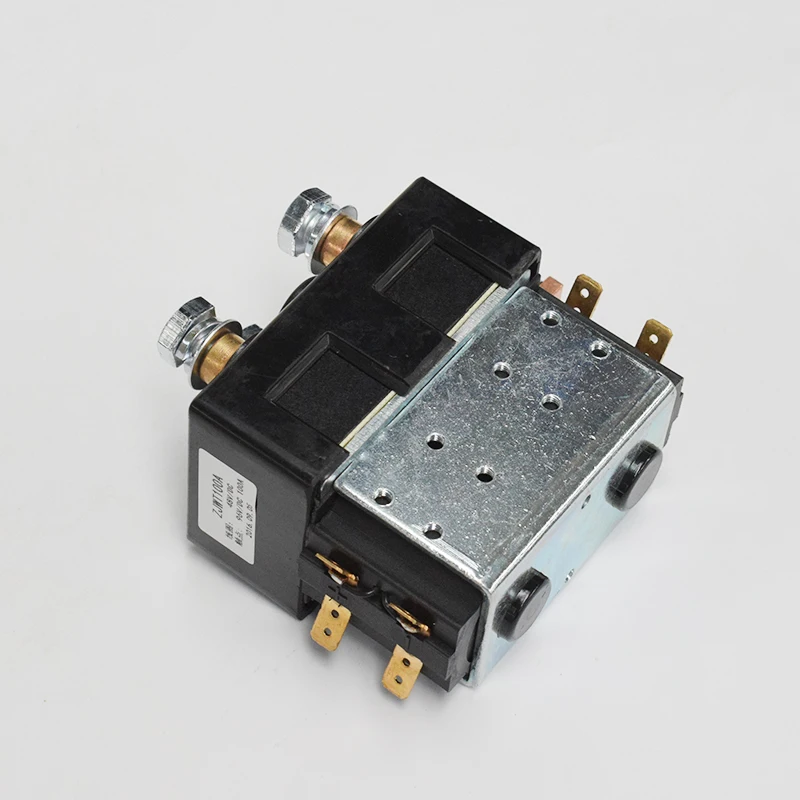

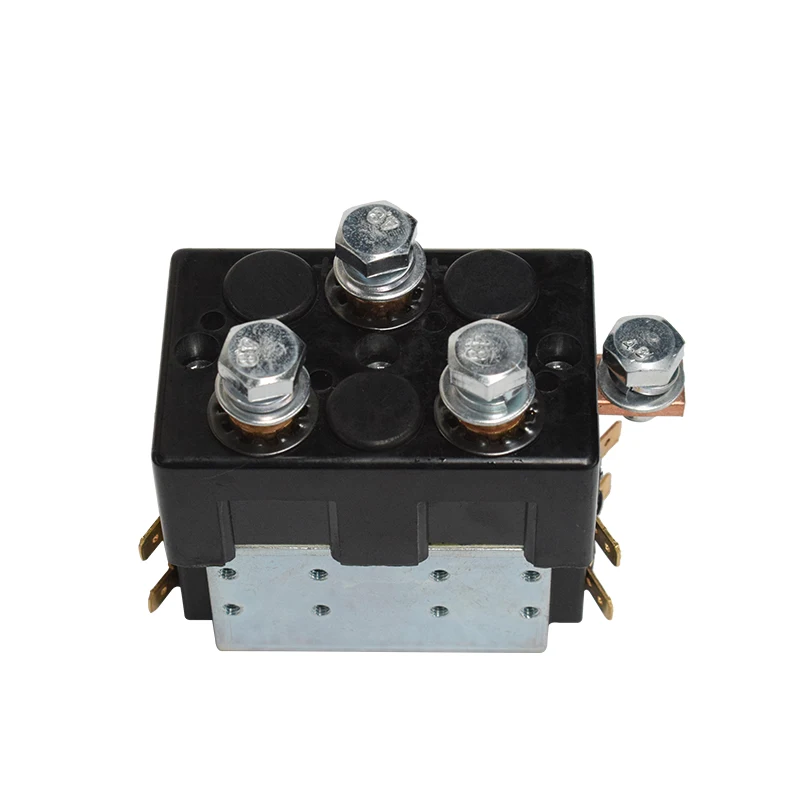

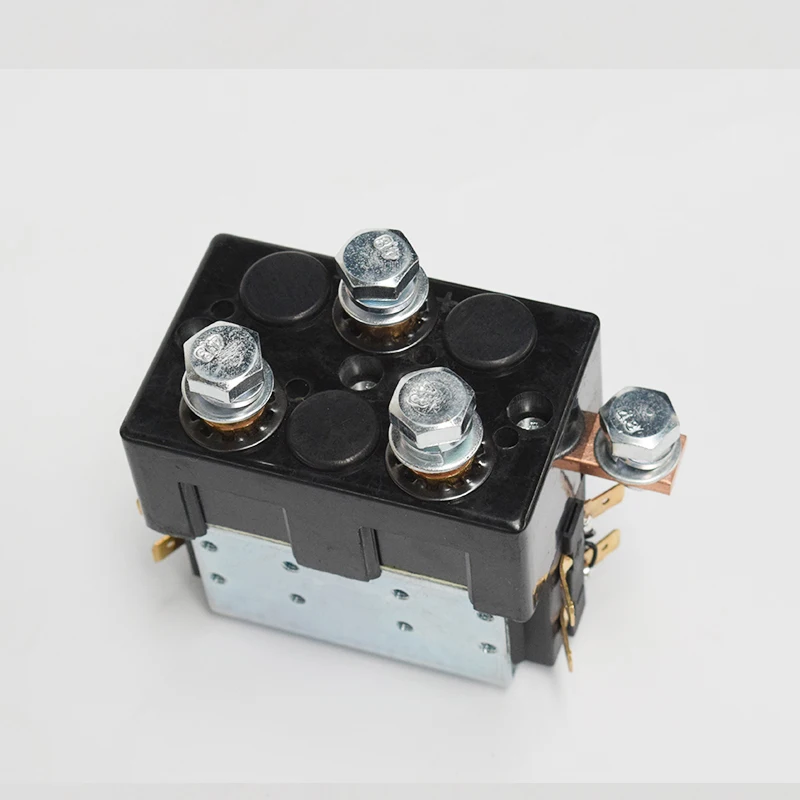

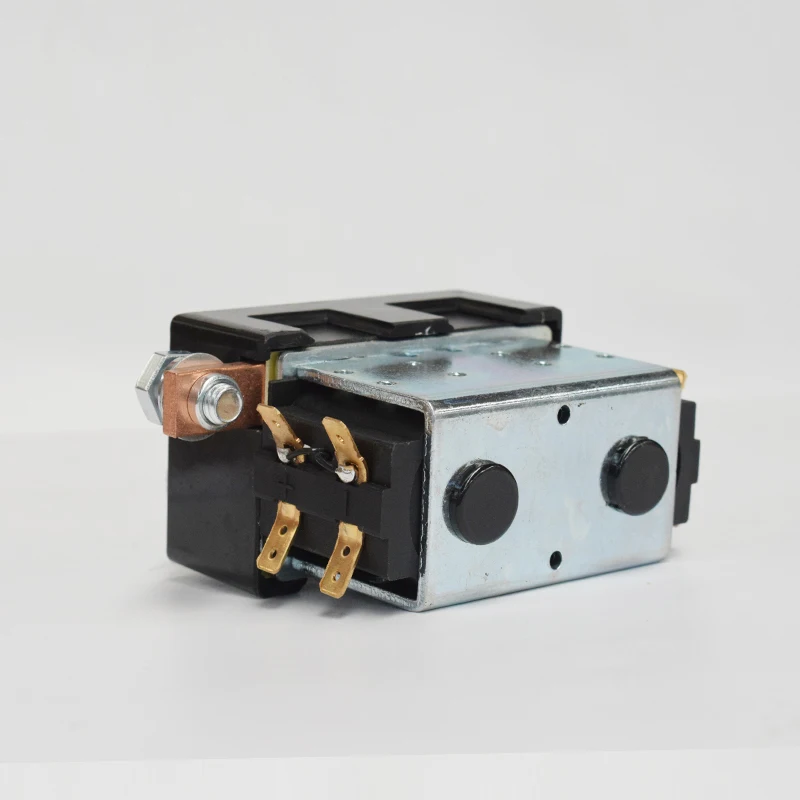

48V 100A Contactor DC88

The DC88 motor reversing type of contactor has been designed for direct current loads, particularly motors as used on electric vehicles such as industrial trucks. The DC88 is a monoblock construction, resulting in a compact design which is compatible with modern electronic control systems. Developed for both interrupted and uninterrupted loads, the DC88 is suitable for switching Resistive, Capacitive and Inductive loads. Coil rated voltage (DC V) 6V, 12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, 84V Contact circuit rated load current (A) 150A Contact pressure drop of main contact point 80mV under 100A load At (20 + 5) centigrade, the cooling action voltage (V) 70% At (20 + 5) C, the cooling release voltage (V) is 30%, 5% The allowable fluctuation range of coil voltage is + 20%. Power up time 5 ms The power release time is 20 milliseconds. The contact breaks off the maximum bounce time of 3 milliseconds. Insulation resistance 20M Omega Anti electric strength 50Hz/60Hz 1000VAC 1minute Maximum contact capacity of main contacts (power on 5ms) 800A/5ms at 48V DC Coil power consumption (W) 8-13 Electrical life 20000 times Mechanical life 1 million times Work specification is continuous or interrupted. Contact form two sets of transformations (two sets of SPDT) Contact material AgCdO (12) Auxiliary contact rated load (optional) 2A/48VDC, 5A/24VDC

company information

Our company specializes in various kinds of electric pallet truck parts and forklift parts for both domestic and international markets. Now, our company is the Curtis agent and distributor of Britain Albright Contactor. In addition, we have established strategic cooperation relations with France REALS Company and Belgium TVH Company which are the professional suppliers of forklift parts in the world. Our product category covers forklift control system, running system, drive system, hydraulic system, etc. Controllers, contactors, sensors, PU wheels and other parts are supplied by our Huanke Company. Meanwhile, we have set up purchase and development department to supply different brands of superior pallet truck parts and forklift parts, such as, TCM, TOYOTA, NICHIYU, NISSAN, MITSUBISHI, LINDE, HYSTER, DAEWOO, TAILIFT, HELI, HANGCHA, JAC, BAOLI etc.

Packing and Shipping

Normally we use the standard exporting packaging , we also can according to clients' request . For samll quantity,the item will be sent in 3 days, sending by China post it takes 15-35days arrive, sending by fast express(DHL,TNT,UPS,EMS,Fedex,etc) takes 5-14days

Notice

1. If you are in Brazil, Argentina, India, please provide your CNPJ / CPF / VAT number if send via DHL/Fedex/UPS/TNT, or we will change the shipping way to EMS without informing. 2. If you are in Russia, please provide your full name. 3. Via DHL/Fedex/UPS/TNT, there will be extra charge if your address is the remote one, we wil contact u for extra payment if your address is remote 4.Customers should pay the Custom tax if sending goods by express. If the parcel is failed delivered since the wrong or lacking necessary shipping information, or you do not do the customs clearance, we will not bear any responsibility.
