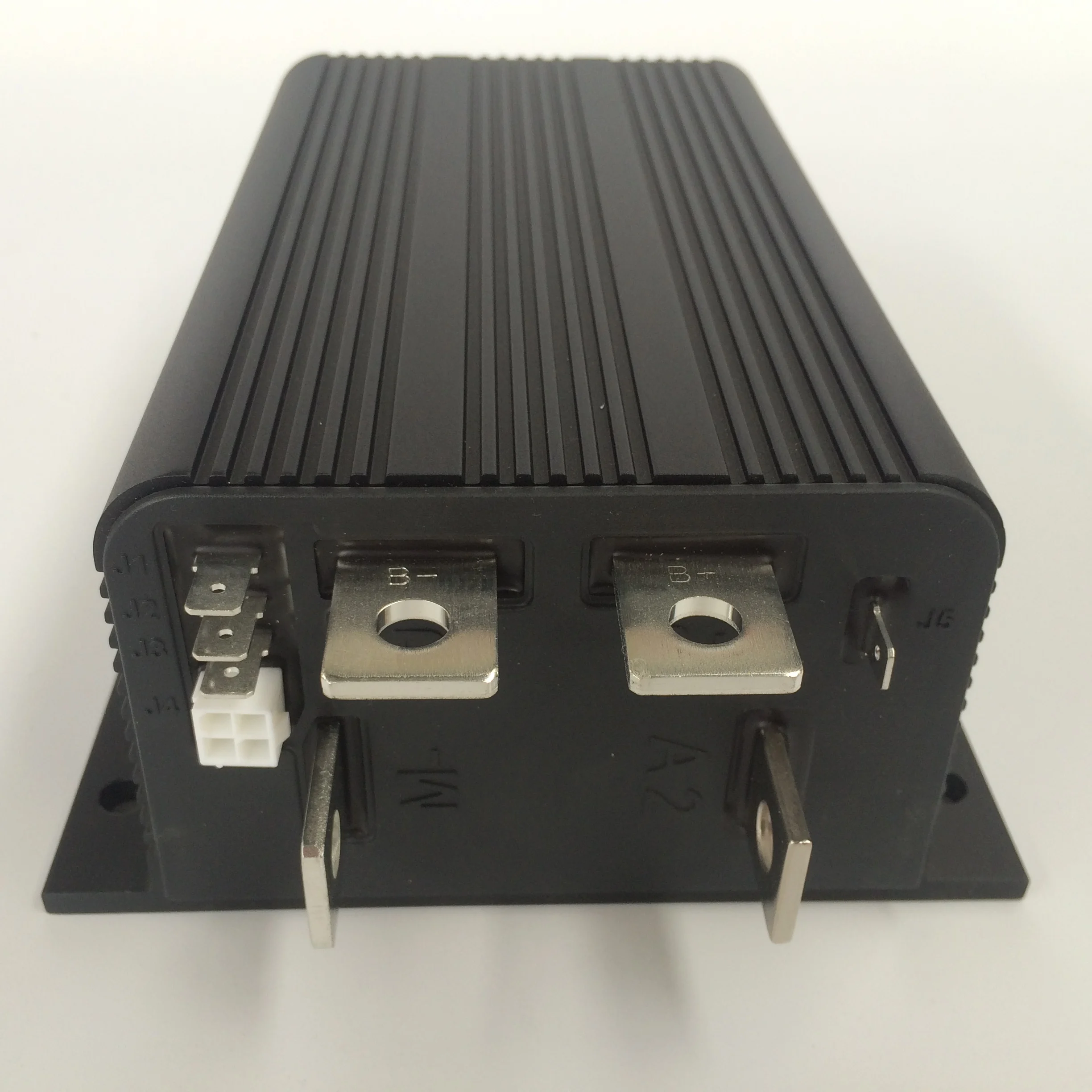

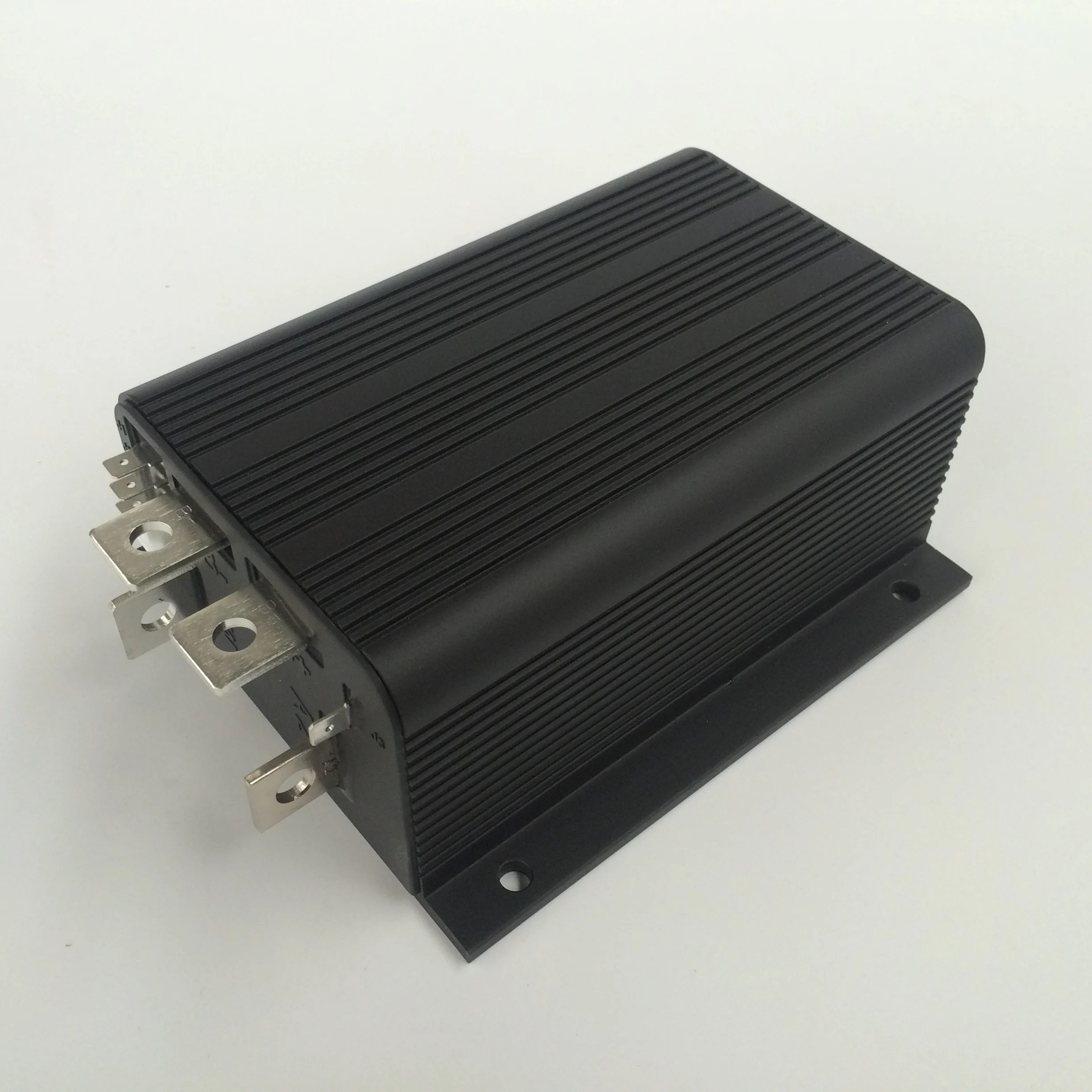

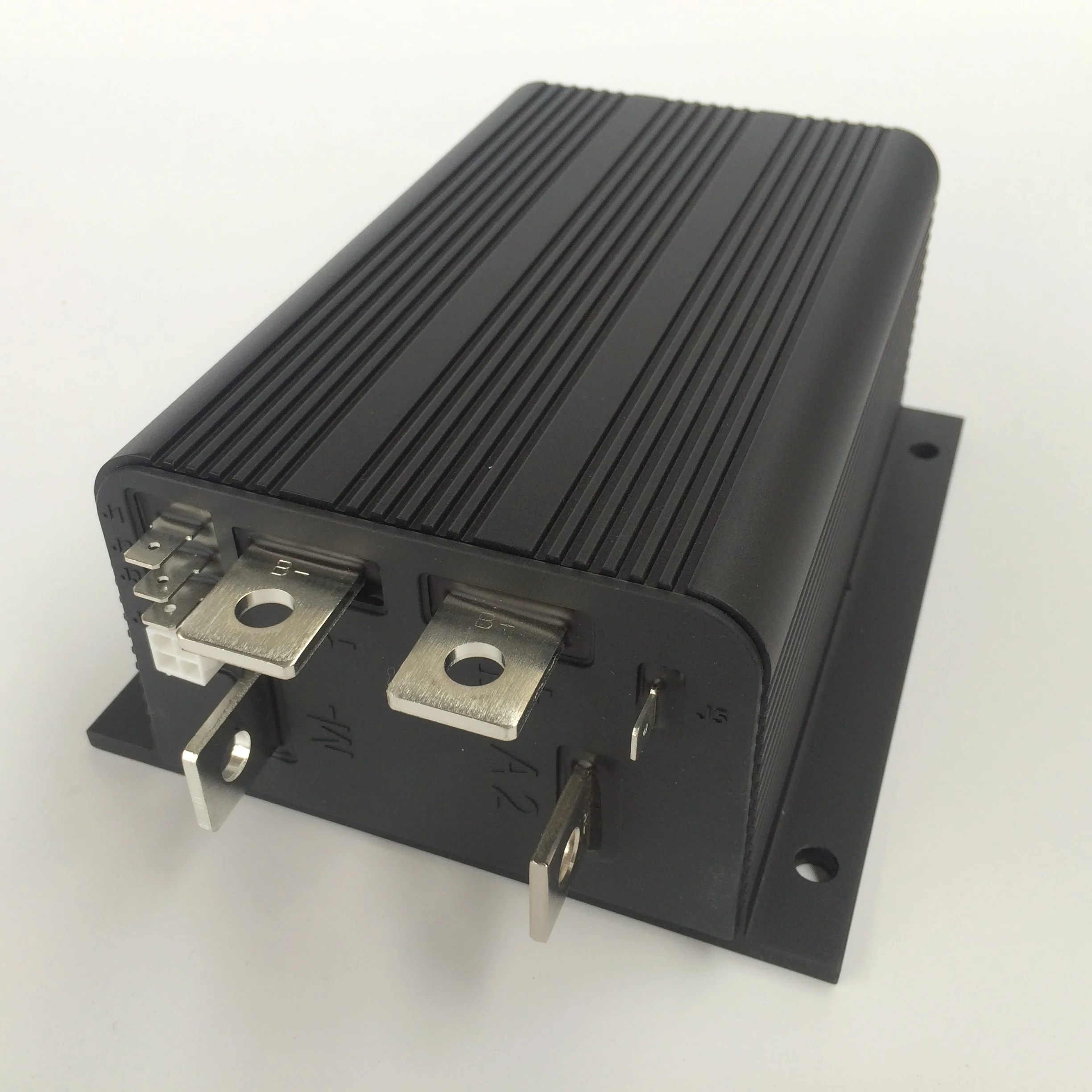

Оригинальный Curtis PMC 24V / 36V 275A контроллер скорости двигателя постоянного тока

Оригинальный Curtis PMC 24V / 36V 275A контроллер скорости двигателя постоянного тока

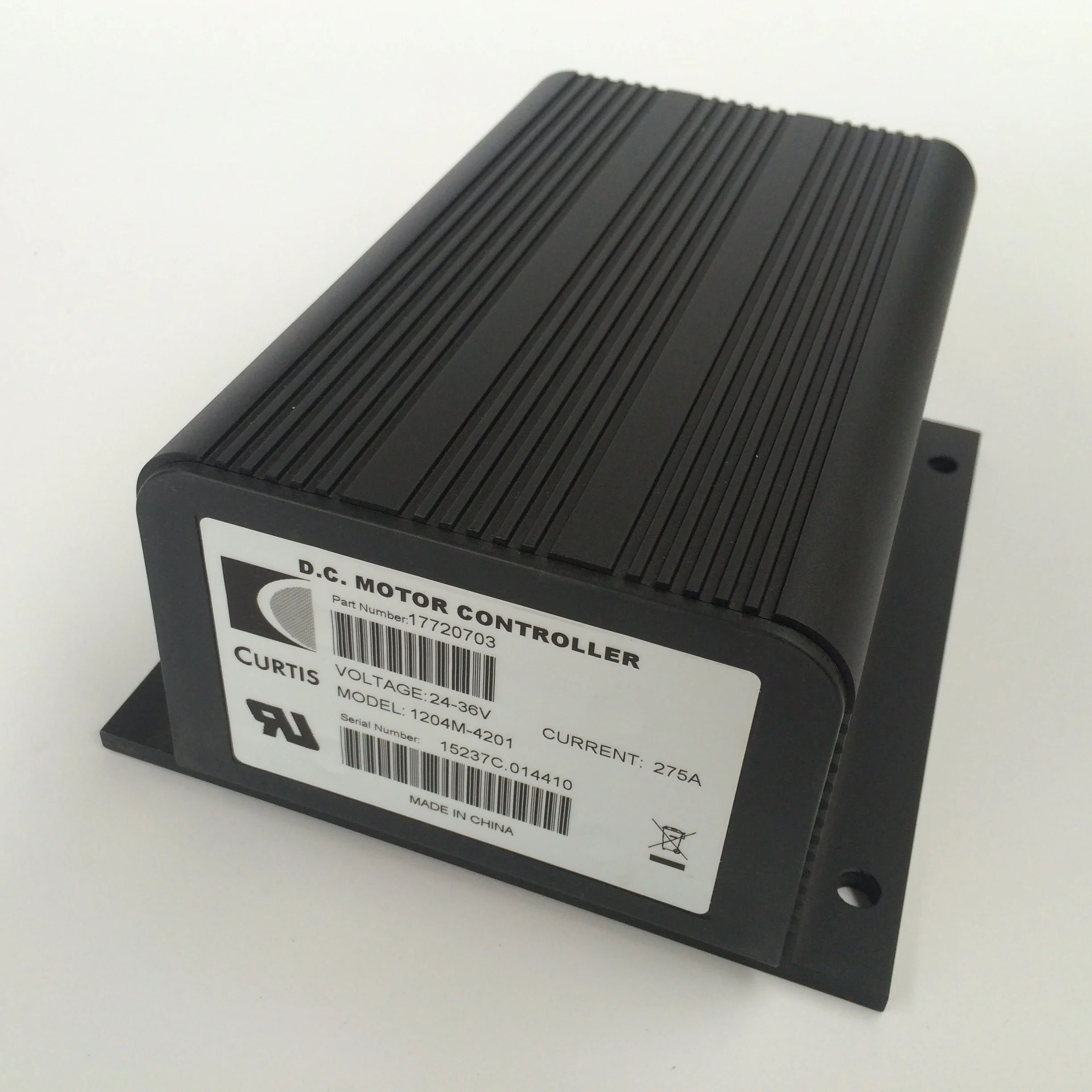

Original Curtis 24V / 36V 275A DC Motor Speed Controller

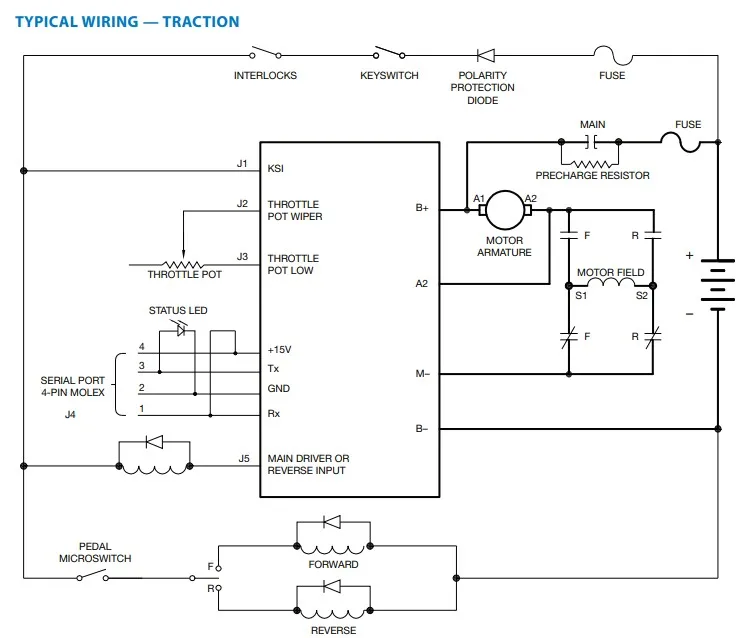

Curtis Models 1204M/1205M/1209M/1221M provide fully programmable control of DC series motors performing on-vehicle traction or pump duties. These microprocessor-based MOSFET controllers add flexibility and versatility to the time-proven Curtis series motor controller family. Primarily designed for battery-powered vehicle applications using either electric or hydrostatic traction. These include industrial trucks, personnel carriers, mobile elevating work platforms, and golf and utility vehicles. Controllable Power ▶ Pulse Width Modulation (PWM) control with programmable speed, acceleration rate, and current limit. ▶ Short duration boost capability (5 sec, 110% of 2 min current rating). Allows clearing of obstacles, climbing ramps. ▶ High efficiency, silent operation. Costs, heat-sinking requirements, motor and battery losses reduced. Low-end torque, range, and battery life maximized. Programmable and Flexible ▶ Fully programmable via Curtis hand-held tools or Curtis PC programming software model kits 1314K. ▶ Supports multiple throttle types and high pedal disable (HPD) options. ▶ LED output for easy system troubleshooting via flash codes. ▶ Fully programmable analog throttle input for precise speed control with a variety of signal sources. ▶ Programmable under voltage cutback caters for different battery types. ▶ Programmable, variable, or fixed plug braking modes. ▶ Plug braking diode internal to controller. ▶ Models available without A2 busbar for applications such as pump control that do not require plug braking. 1204M 1221M 1209M Robust Safety and Reliability ▶ Redundant hardware and software watchdog timers. ▶ MOSFET short-circuit protection functions. ▶ Programmable High Pedal Disable function prevents controller operation if throttle is applied before key is turned on. ▶ Contactor fault detection: controller shuts down safely if the main contactor opens. ▶ Contactor protection functions minimize high current arcing to prevent contact pitting and thus prevent contactor weld failures. ▶ PWM frequency shifts from 15.6kHz to 1kHz in high temperature of controller, providing audible warning of thermal cutback. ▶ Under voltage cutback and shutdown functions protect against low battery voltage, including low voltage caused by external loads. ▶ Electrical isolation to heat sink: 500VAC(≤48V); 1000VAC (›48V). Compliance ▶ EMC: Designed to the requirements of EN12895. ▶ Package environmental rating: IP54. ▶ Certified to UL 583 (*See note in model chart section). ▶ Regulatory compliance of the complete vehicle system with the controller installed is the responsibility of the vehicle OEM

Packing and Shipping

Normally we use the standard exporting packaging , we also can according to clients' request . For samll quantity,the item will be sent in 3 days, sending by China post it takes 15-35days arrive, sending by fast express(DHL,TNT,UPS,EMS,Fedex,etc) takes 5-14days

company information

We are a professional supplier of forklift spare parts in China. Our company specializes in various kinds of electric pallet truck parts and forklift parts for both domestic and international markets. Now, our company is the Curtis agent and distributor of Britain Albright Contactor. In addition, we have established strategic cooperation relations with France REALS Company and Belgium TVH Company which are the professional suppliers of forklift parts in the world. Our product category covers forklift control system, running system, drive system, hydraulic system, etc. Controllers, contactors, sensors, PU wheels and other parts are supplied by our Huanke Company. Meanwhile, we have set up purchase and development department to supply different brands of superior pallet truck parts and forklift parts, such as, TCM, TOYOTA, NICHIYU, NISSAN, MITSUBISHI, LINDE, HYSTER, DAEWOO, TAILIFT, HELI, HANGCHA, JAC, BAOLI etc.

Our service

We will reply you within 24 hours.pls feel free to contact us at anytime We provide Perfect after-sale service ,If you have any feedback about the goods, pls contact with us in time, we will offer the solution for you

Notice

1. If you are in Brazil, Argentina, India, please provide your CNPJ / CPF / VAT number if send via DHL/Fedex/UPS/TNT, or we will change the shipping way to EMS without informing. 2. If you are in Russia, please provide your full name. 3. Via DHL/Fedex/UPS/TNT, there will be extra charge if your address is the remote one, we wil contact u for extra payment if your address is remote 4.Customers should pay the Custom tax if sending goods by express. If the parcel is failed delivered since the wrong or lacking necessary shipping information, or you do not do the customs clearance, we will not bear any responsibility.
