Brand name: ADT-LINK

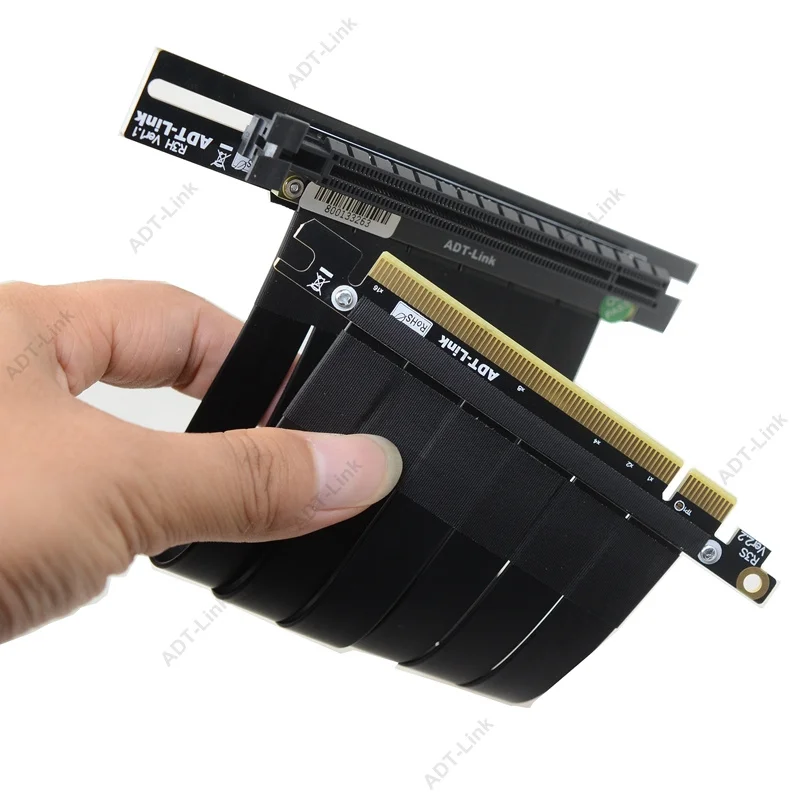

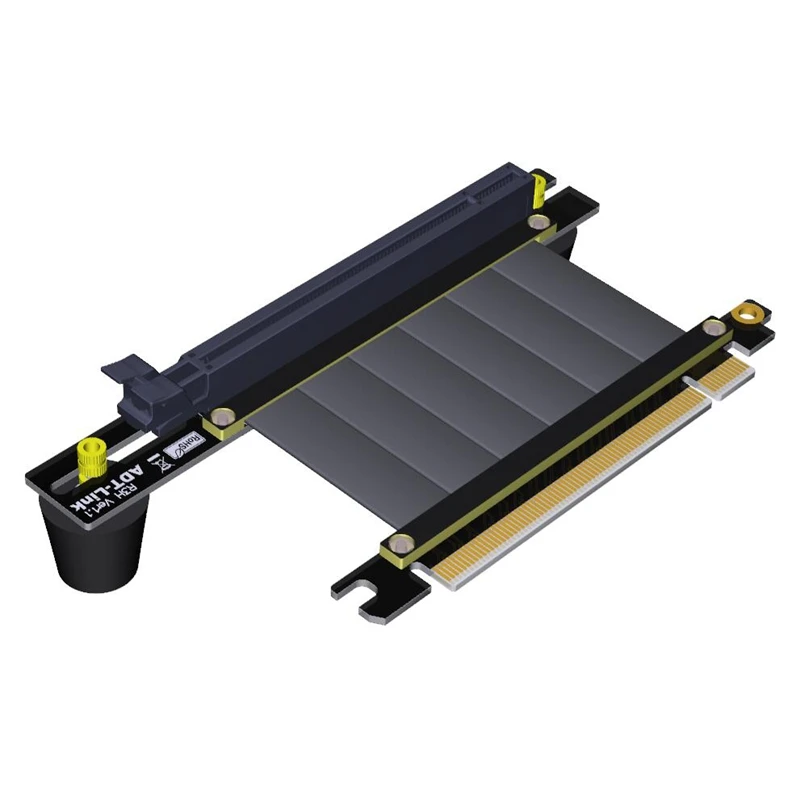

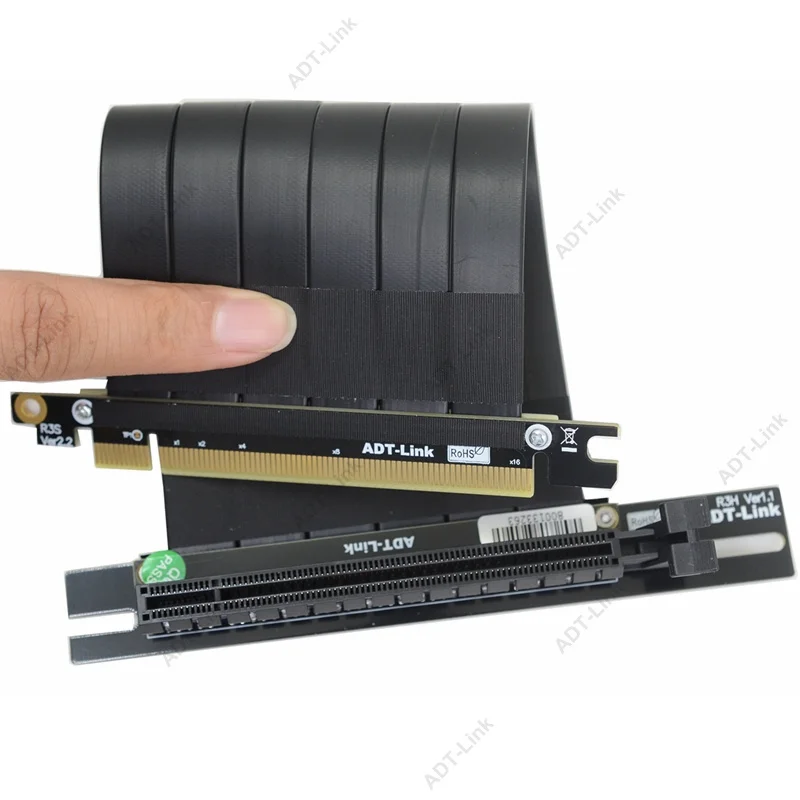

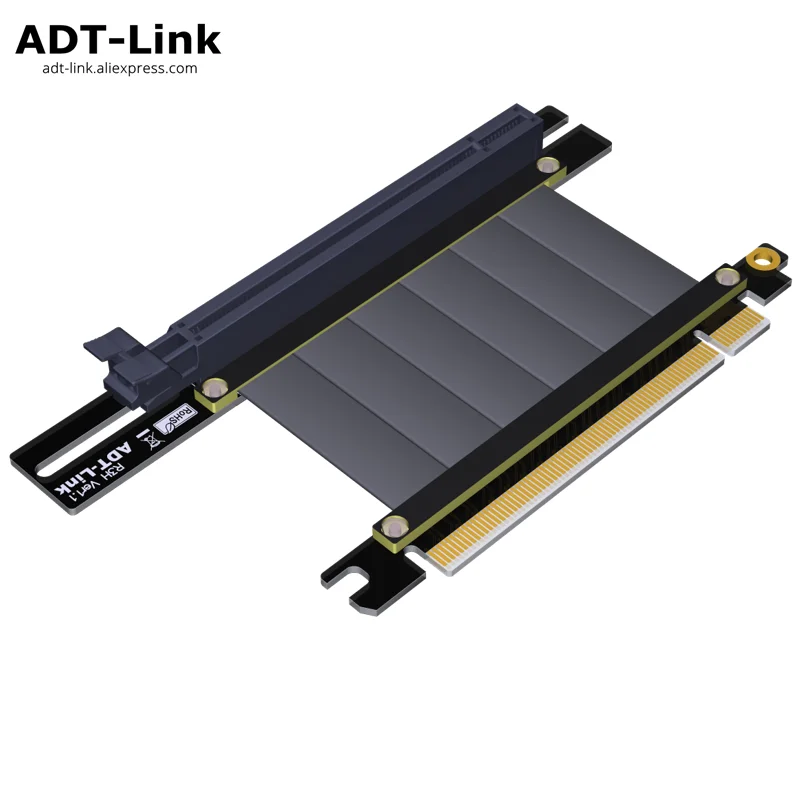

Product name: PCIe x16 to x16 extension cable

Product model: R33SF , R33SL , R33SQ , R33SQ-LG , R33SM , R33SP , R33ST ,R33SH

Transfer speed: PCIe3.0 x16 full speed, 128G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized,

Application: PCIe x16 graphics video card to PCIe x16 slot extension cable for ATX PC-Case

Suitable graphics card: GTX1080ti, RTX2080ti, Titan XP, radeon580, VEGA64 GTX1080ti High-end graphics CARDS, fireprow7100, VEGA64, prowx5100, quadroK1200 RTX2070 professional graphics card, support for all the PCIe CARDS after 2015 years

For AMD：

RX VEGA RX 580 RX 570 RX 560 RX 550 RX 470D RX 460 R7 350 R7 240

For  Dota2 , Counter-strike,Global offensive ,Playerunknowns Battleground ,Monster Hunter world,Tom Clancy's Rainbow six Siege,Team fortress 2 , warframe ,Rocket League ,Path of exile , Grand Theft auto

Cable length Description:

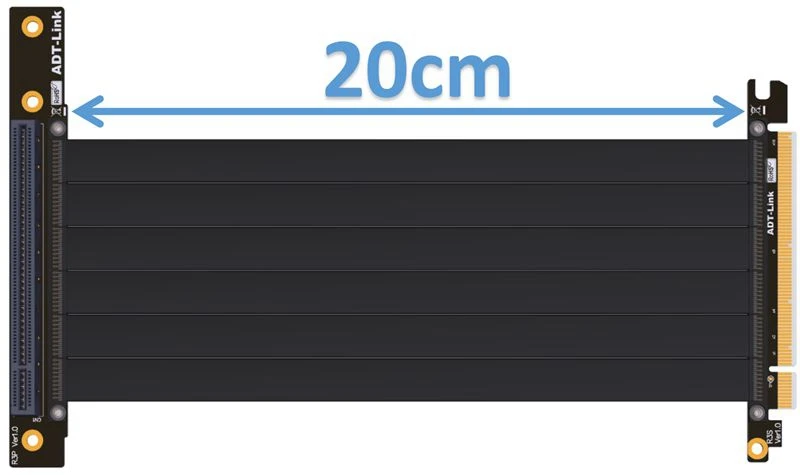

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 20cm blue arrow in the figure below.

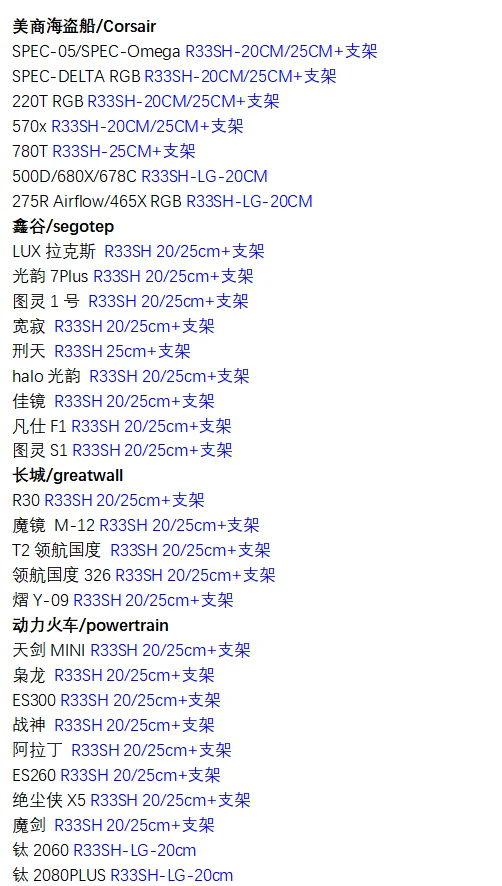

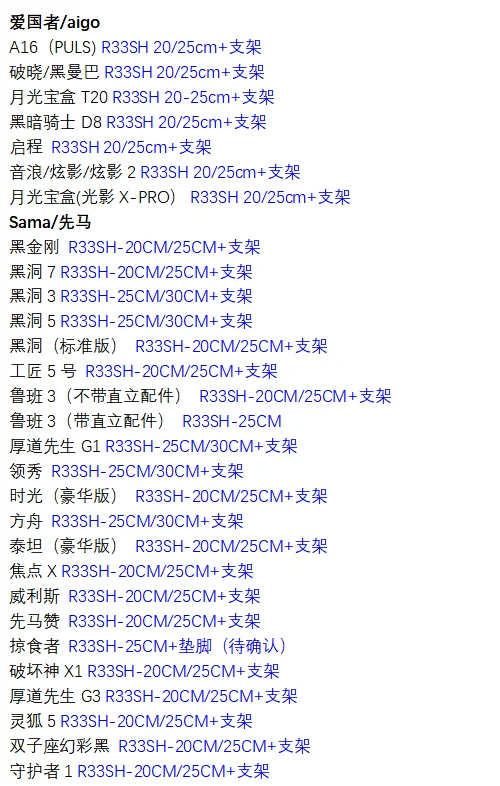

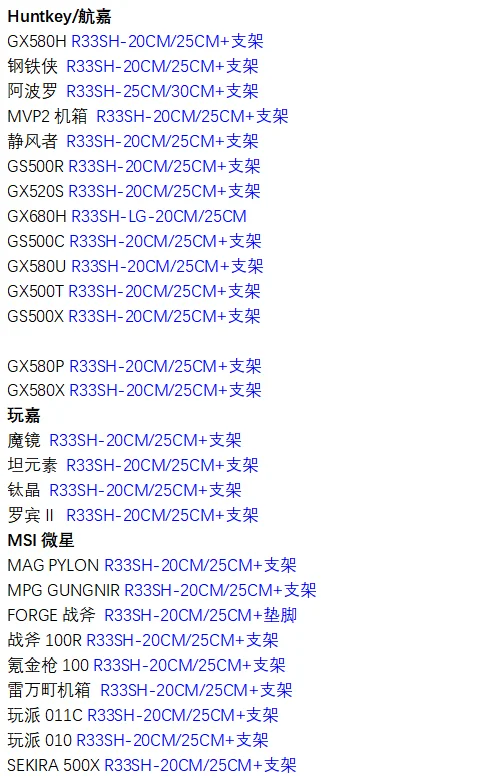

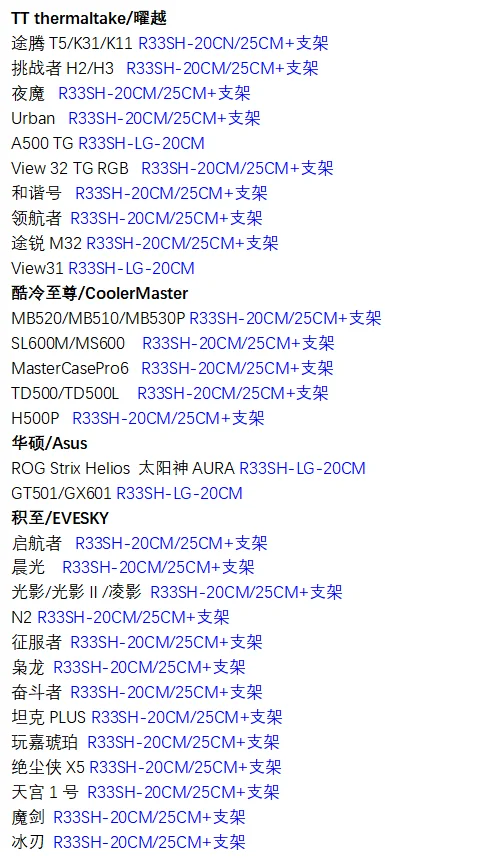

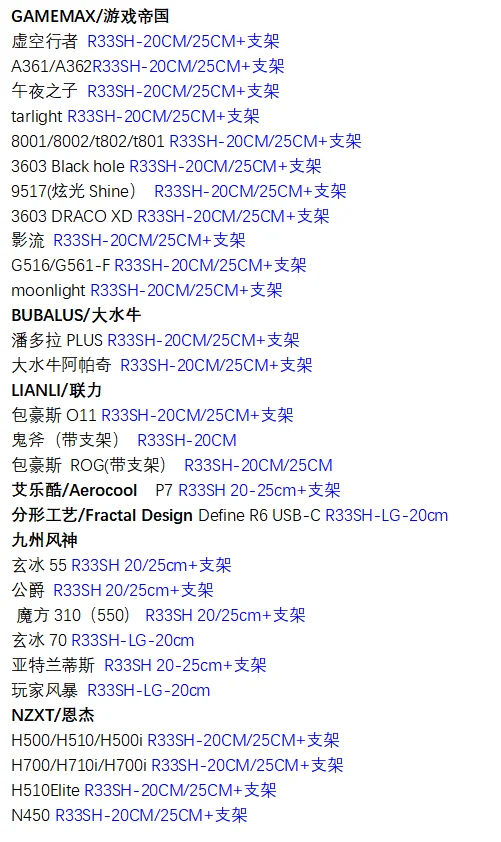

Compatibility list:

Note 1: TT graphics card extension cable is usually 20cm, but if your chassis is special, the graphics card is farther away from the motherboard, it is recommended to select more than 25cm in length.


Note 2: The video card extension cable of the PK-217 ADT is usually 12cm, but if you want the video card to be flipped, the length is 32cm.


Note 3: The video card extension cable of the PK-518 ADT does not support the fixed base of the graphics card. Please use the extension cord after removing it.


Note 4: Only support the vertical graphics card bracket accessories

Q&A:

Is there any EMI shielding for Cable?

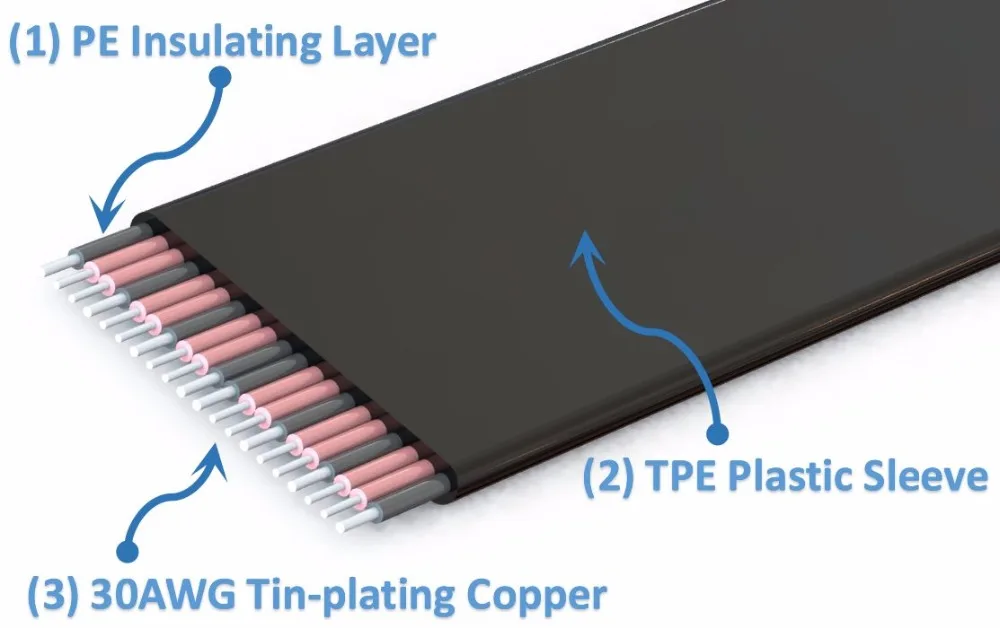

1,The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

​

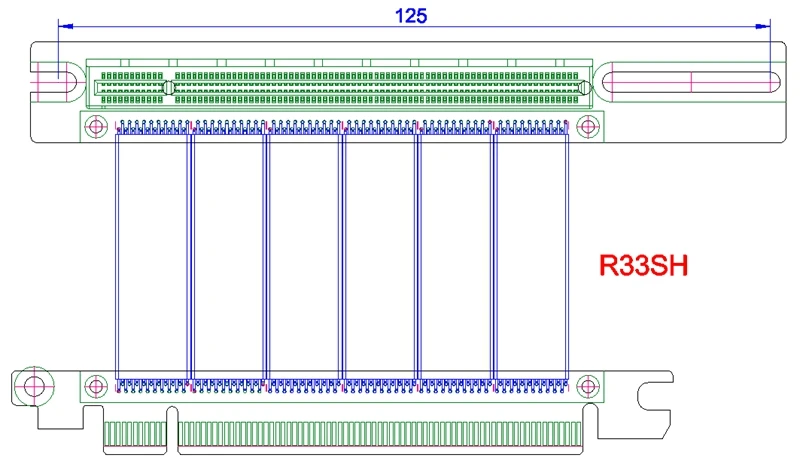

2 ,PCB Hole Mount size for Cable?

The hole spacing of the screw is from 9.6cm to 13cm

Product advantage:

1. Wire advantage, using German patented imported wire, using Taiwan imported High quality connector, high frequency support PCIe 3.0 stable transfer.

2. Cable length advantage, from 5 cm to 1 m, wire length can be customized according to customer needs.

3. The differential signal has no via design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit, and the product is durable.

4. The product uses high-quality materials, PCB workmanship precision, copper thickness is thickened to 1oz, gold finger gold content is sufficient, gold-plated foot has good electrical conductivity, which can reduce the blue screen of the crash caused by the increase of oxidation and rust resistance. The signal transmission is stable at full speed and there is no compatibility problem.

5. The cable used in the product itself is very durable. It is protected by a PCB gasket with a thickness of 3mm at the metal welding point, and is fastened with screws and hex nuts. The product is strong and reliable, resistant to pulling, anti-interference, and will not be broken. The nail problem. The wire can be bent and folded without affecting the use.

6. PCB dwarf and fat design, dwarf will not get stuck to the graphics card, add fat and long design to make the board easier to install, reducing the chance of damage.
