Выдающийся металлический неметаллический лазерный гравировальный станок 1325 с

Выдающийся металлический неметаллический лазерный гравировальный станок 1325 с

> Machine features:

1. Excellent Path Quality: Smaller laser dot and high work efficiency, high quality.
2. High Cutting Speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable Running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High Efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low Maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7. Easy Operations: fiber line transmission, no adjustment of optical path. 8.It includes fiber laser cutting head and CO2 laser cutting head,it is good choice if your work materials have metal and nonmetal.

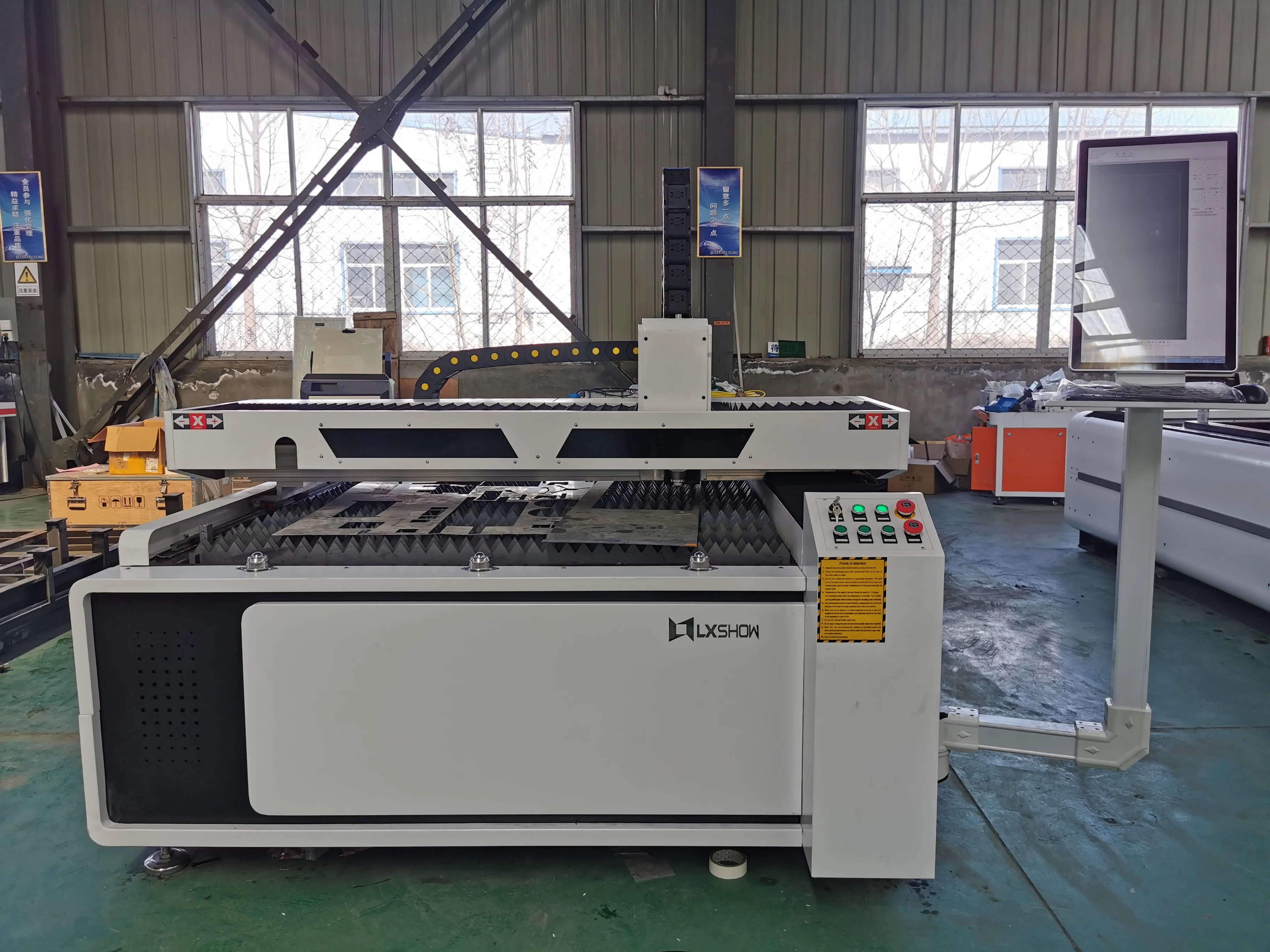

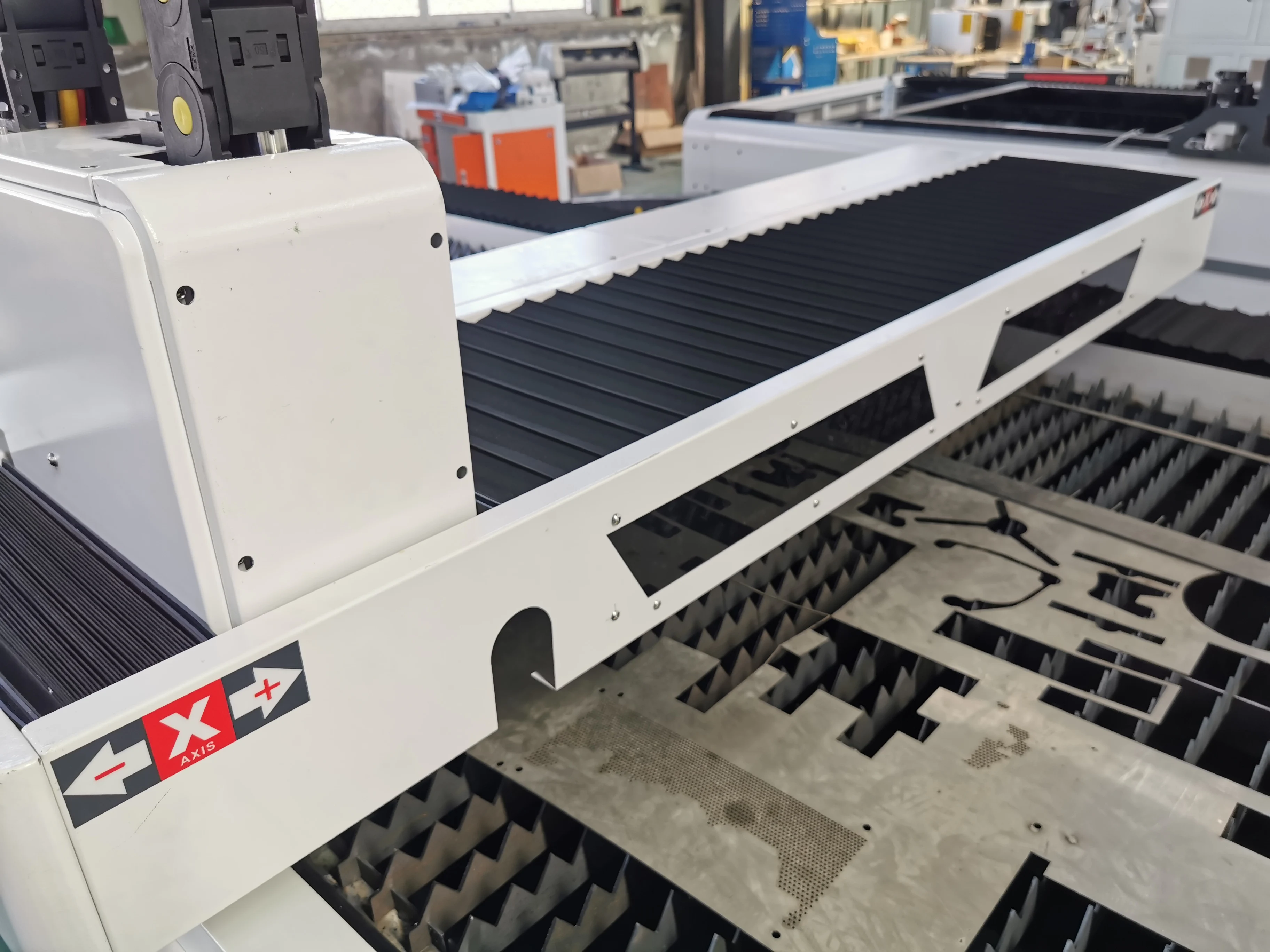

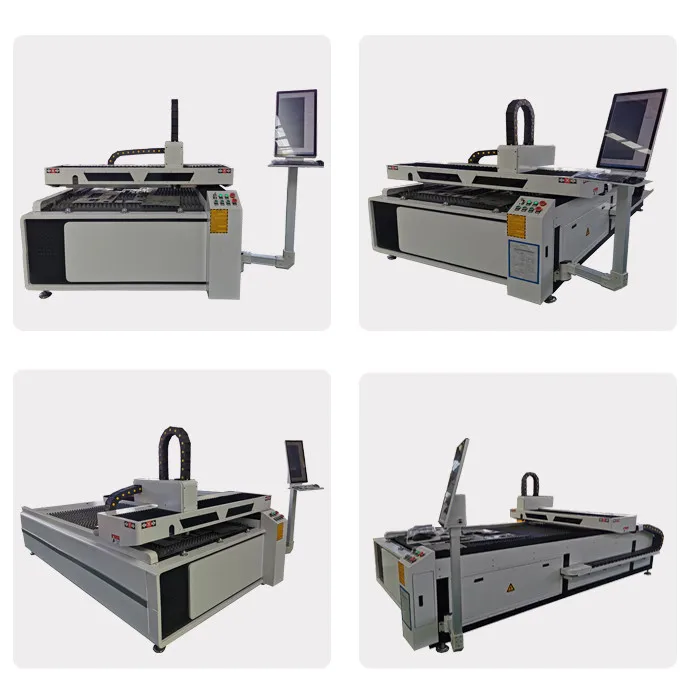

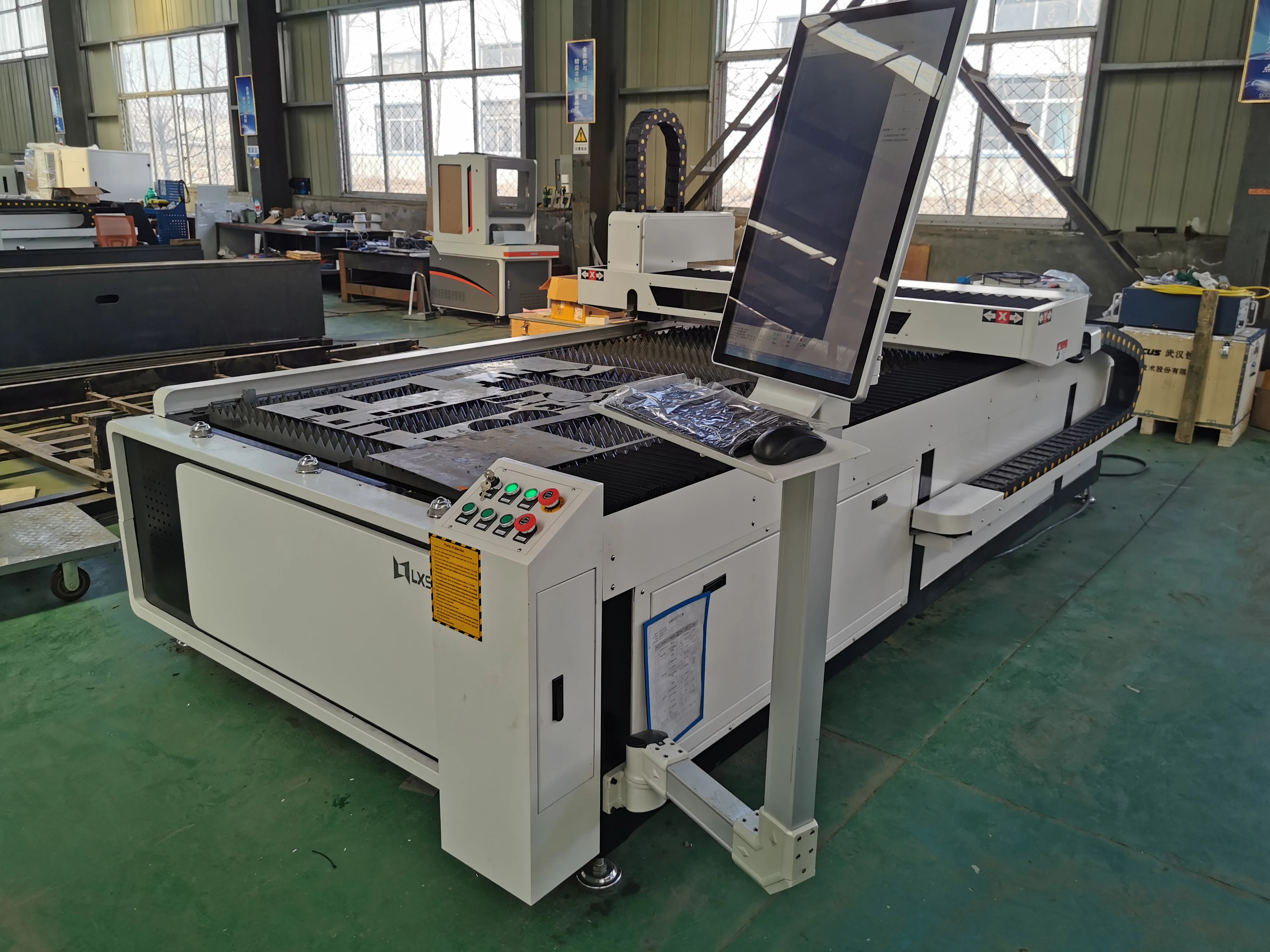

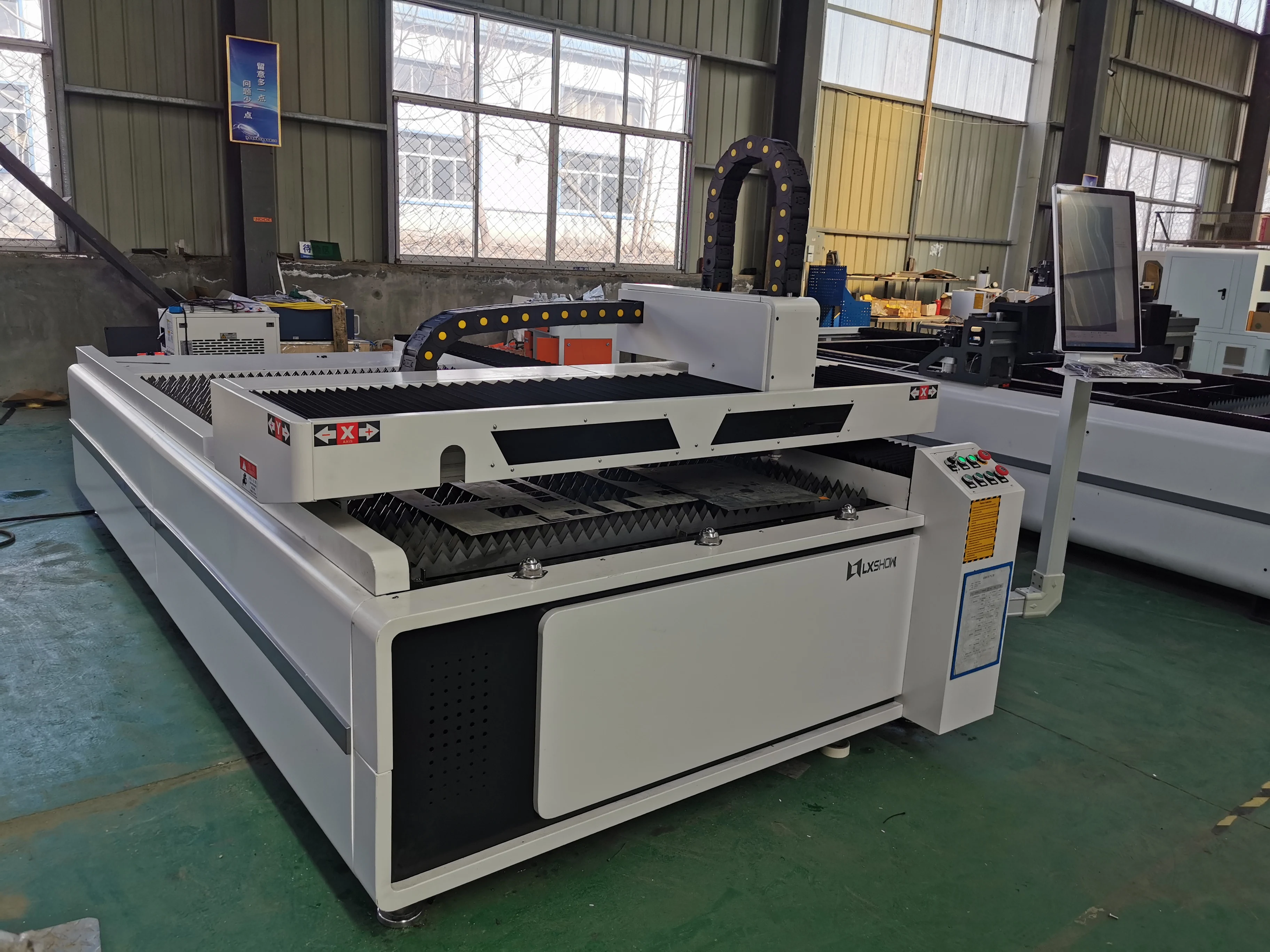

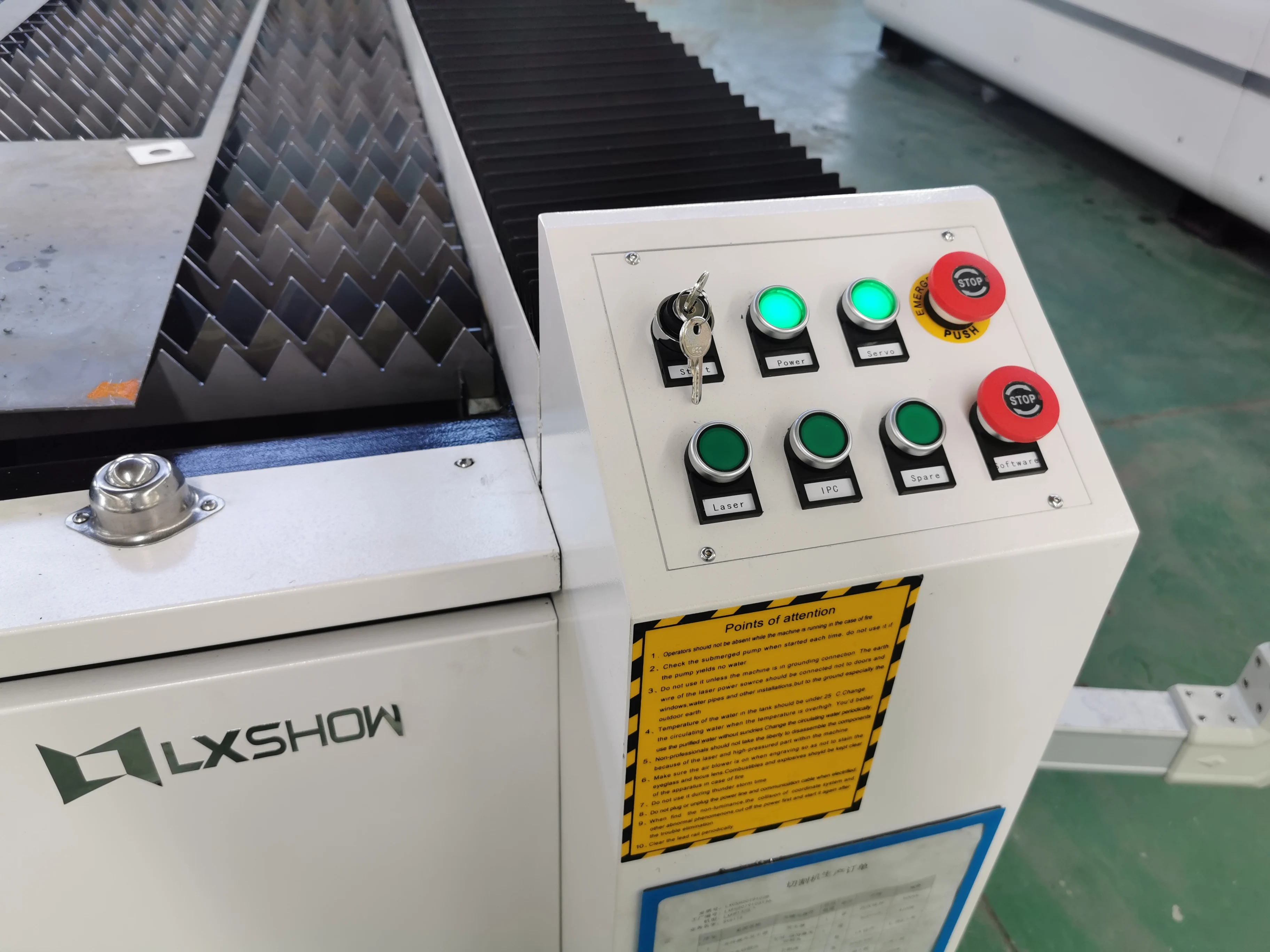

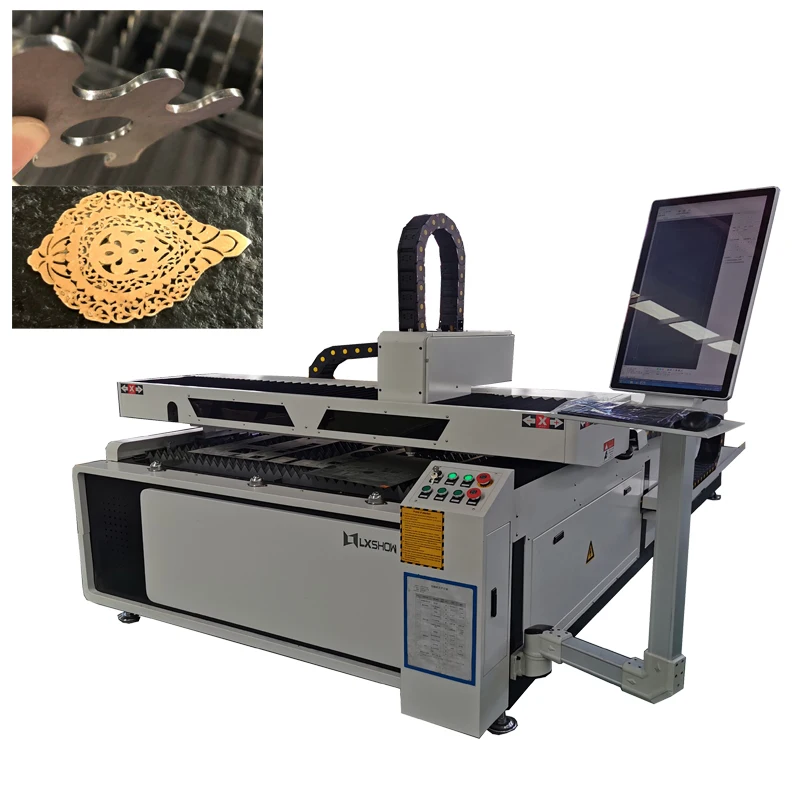

> Machine pictures:

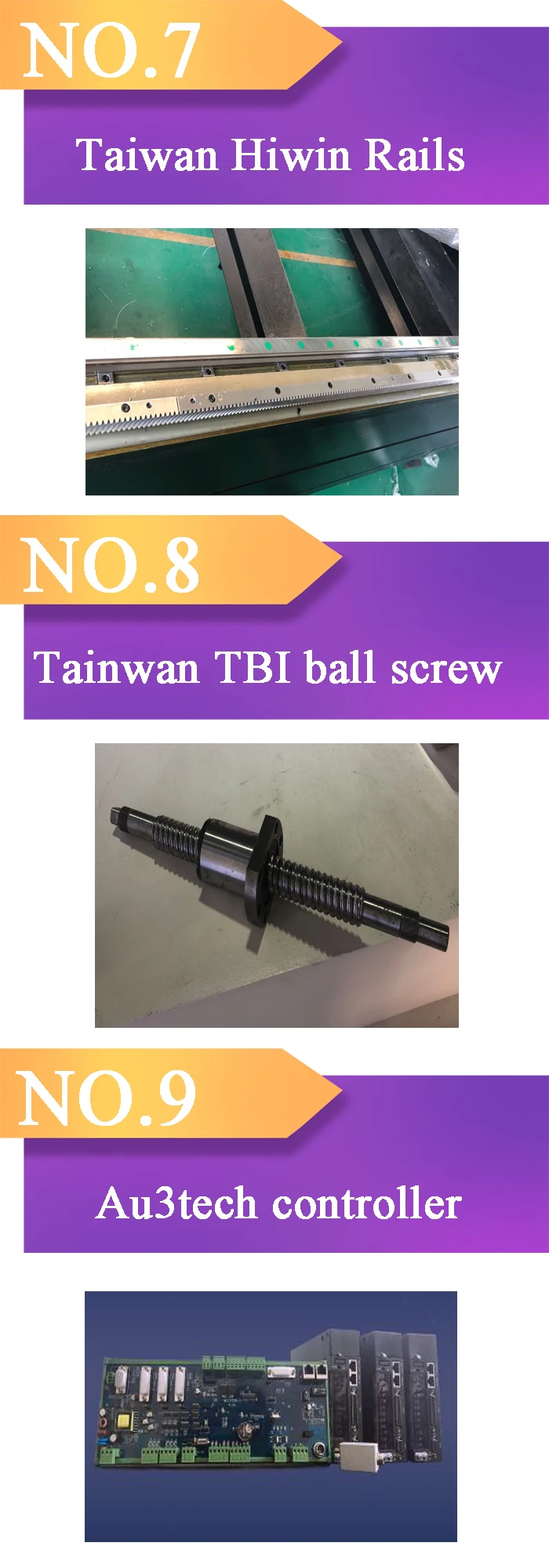

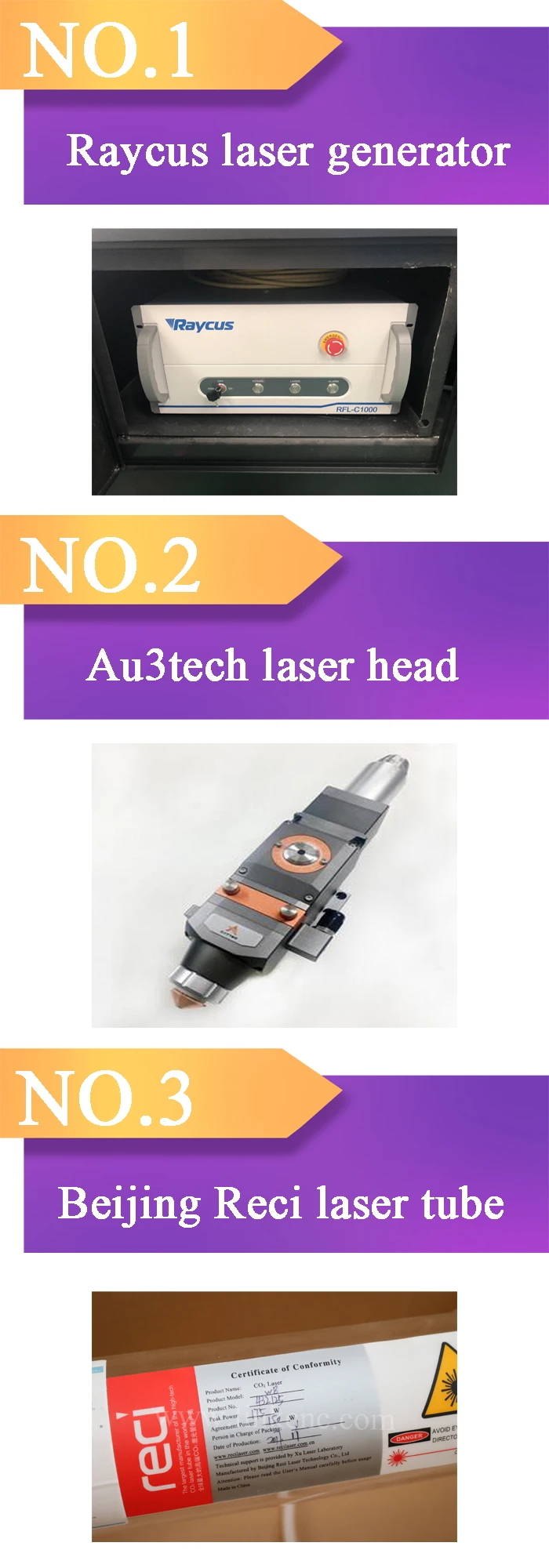

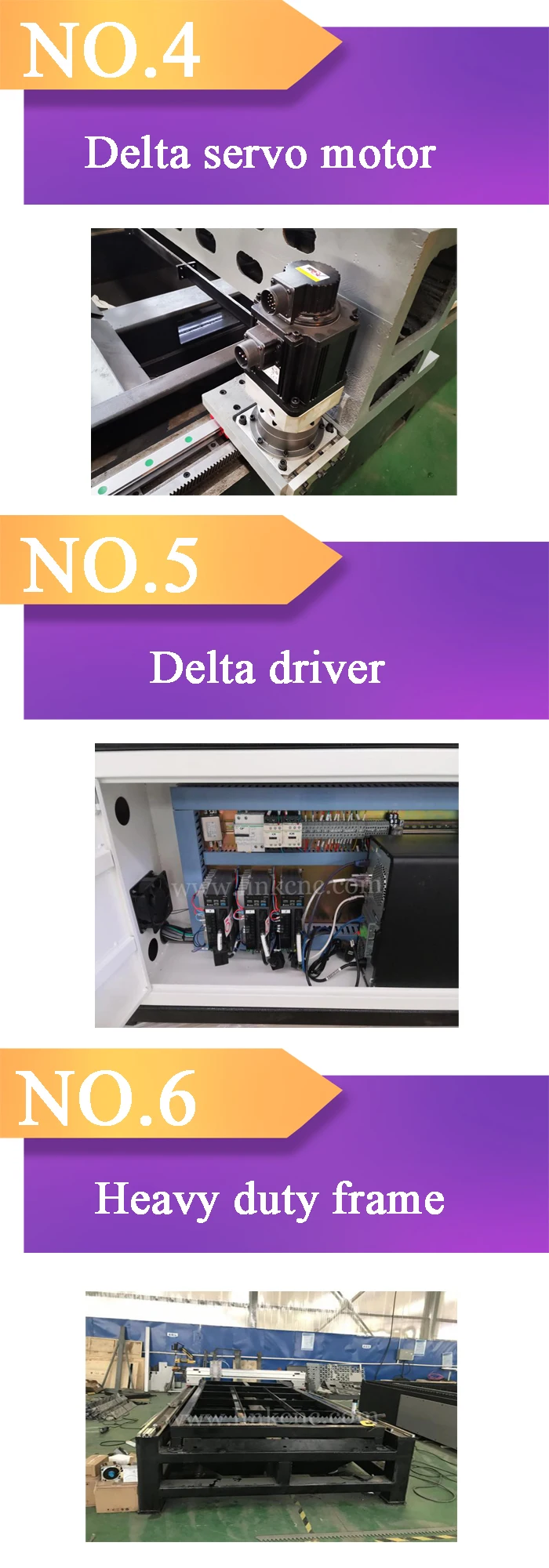

 > Machine configurations:

 > Machine parameter:

1

Machine Name

CO2 and Fiber laser cutting machine

2

Model

LXF1325LC

3

Laser machine cutting area

2500x1300mm

4

Fiber Laser Power

CO2 Laser Power

500w/750w/1000W

60/80/100/130/150/280/300W

5

Laser wave length

1080nm

6

Transmission system

Imported ball screw

7

X.Y axis location accuracy

±0.01mm

8

X.Y axis repeat location accuracy

±0.01mm

9

X.Y axis max moving speed

30m/min

10

Max cutting speed

1--16m/min

11

Cutting thickness

Max Metal thickness:

Stainless steel:0.2-3mm

Carbon steel:0.2-12mm

Nonmetal thickness:

Acrylic:40mm

Plywood:15mm

MDF:18mm

(According to detailed Power,attached cutting list following)

12

Application Material

Fiber:Metal sheet

CO2:Nonmetal:Wood/MDF/Acrylic/Stone and so on.

13

Advantages

Fiber add CO2 style

14

Gross weight

2200KG

(According to detailed configuration)

15

Net weight

1800KG

(According to detailed configuration)

16

Machine size

4160*2190*1980mm

(According to detailed configuration)

> Co2 laser engraving and cutting head:

CO2 cutting head (Nonmetal Material): Wood, bamboo, jade articale, stone(only can engraving),

organic glass, crystal(only can engraving), rubber, plastic, cloth, leather, etc.

CO2 cutting head (Nonmetal Industries):

1.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,seal,etc
2.Woodworking: MDF,wooden mould, wood planks,bamboo, density board
3.Decoration: acrylic, organic glass, double color board, coconut shell, ox horn, ABS board,lamp shade,crafts,

crystal,glass,ceramic,stone,metal coating,etc.
4.Clothing: leather,cloth,texitle,shoes,fabric,etc

> Fiber laser cutting head:

Fiber cutting head (Metal Material): Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Fiber cutting head (Metal Industries): Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

1). 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
2). Lifetime maintenance free of charge.
3). Free training course at our plant.
4). 18 hours on line service and email each day, free technical support.We will reply you in 24 hours after receive your problem of the machine.
5). Machine has been tested and adjusted before delivery.We will take machine photos and make
machine working image for you ,after getting your agreement ,then we will book a ship.
6). Provide technical services to the door(We have professional engineers to offer machine installation commissioning and maintenance) if customers pay the charges of ticket.
7). If you have any problem during your use.you need our technician to judge where the problem is and help you to solve it. We can provide team viewer and skype with cam till all of your problems solved.

Welcome to our factory:

We have received many customers from all over the world, visited factories, trained machines, and accepted machines, which have been well received by customers. If you want to visit our factory, just tell us your travel plan, we can pick you up, train station, high-speed rail station, airport, bus station, all ok.

From customers feedback:

Before delivery, we would do the test about 24 working hours for machine, and use standard packing to each configuration. If you need us to help you delivery the machine, we will choose famous export company and transport company, making shipment more convenient and safer. when you get thr machine, any questions about the machine, just contact us as soon as possible, we have professional after sale group, they could help you operate the machine well, no matter before sale or after sale, we will always here.
