Introduction of the motor

1. Name of the motor: DC 12v 24v Micro Permanent Magnet High Speed Motor

2. Rated voltage have : DC 12V or DC 24V

3. You can choose the no load speed have : 12v 1800rpm ; 12v 3000rpm ; 24v 1800rpm ; 24v 3000rpm

Note 1 : The speed plus and minus 10% fluctuation

Note 2 : 50Hz or 60Hz, the output speed will be slightly different

4. Power : 120W

5. Direction of rotation of the motor: CW Or CCW, Support Reversed; The direction of rotation of the motor can be controlled by a speed controller

6. The speed of the motor can be adjusted using the speed controller.

7. Low noise

8. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.

For example, For example, Automatic machinery ; small assembly line ; food machinery ; automatic mixer ; automatic dinner table ; packaging machinery ; channel gate ; toy car ; vending machine etc.

The following is the parameter table of the motor

Friendly reminder

Your project load should not exceed rated torque of the motor, otherwise the life of the motor will be reduced

The following is a description of the quality materials and structures of this motor.

1. Imported high-quality double ball bearing increases the load force of the motor and reduces friction. The seal of this bearing is strong and the lubricating oil is prevented from flowing out.

2. The inner part of the motor is made of pure copper coil. It is more conductive, resistant to temperature and prolongs the life of the motor.

3. Use high quality magnet, complete and does not change the magnetic field, so that the performance of the motor is better, and the rotor does not get stuck

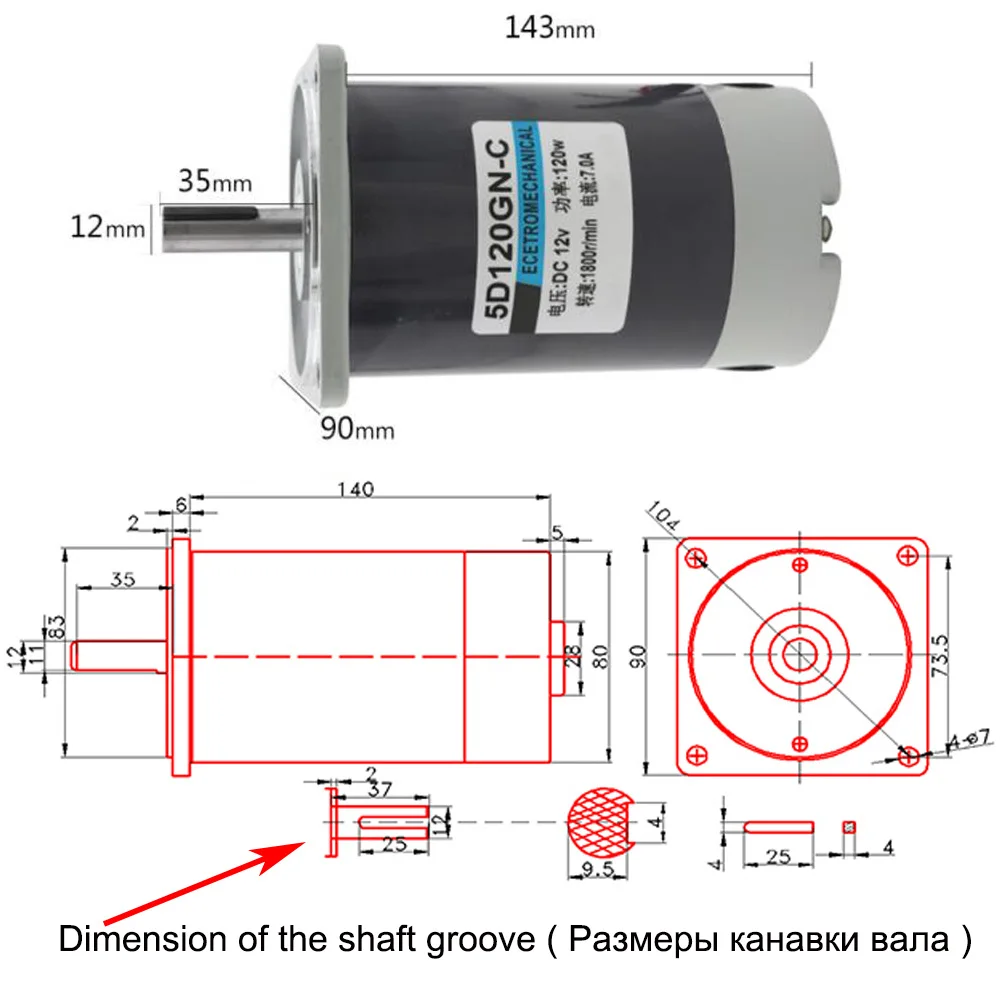

The following are the dimensions of the motor

The measuring instruments we use are different, so the data for measuring the size of the motor will be slightly different. If your device has restrictions on the installation of the motor, you need to check it before buying.

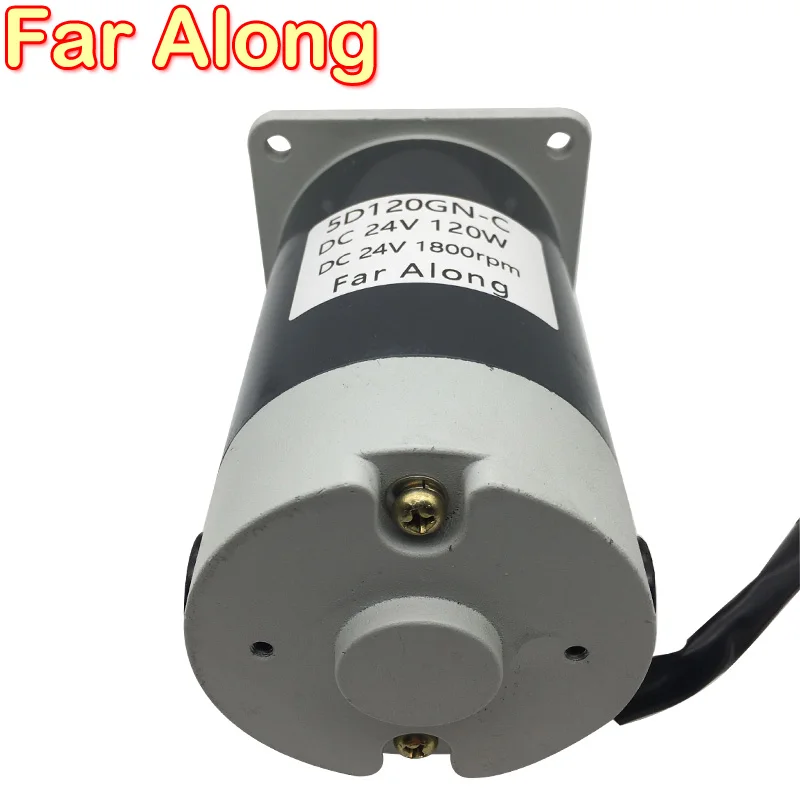

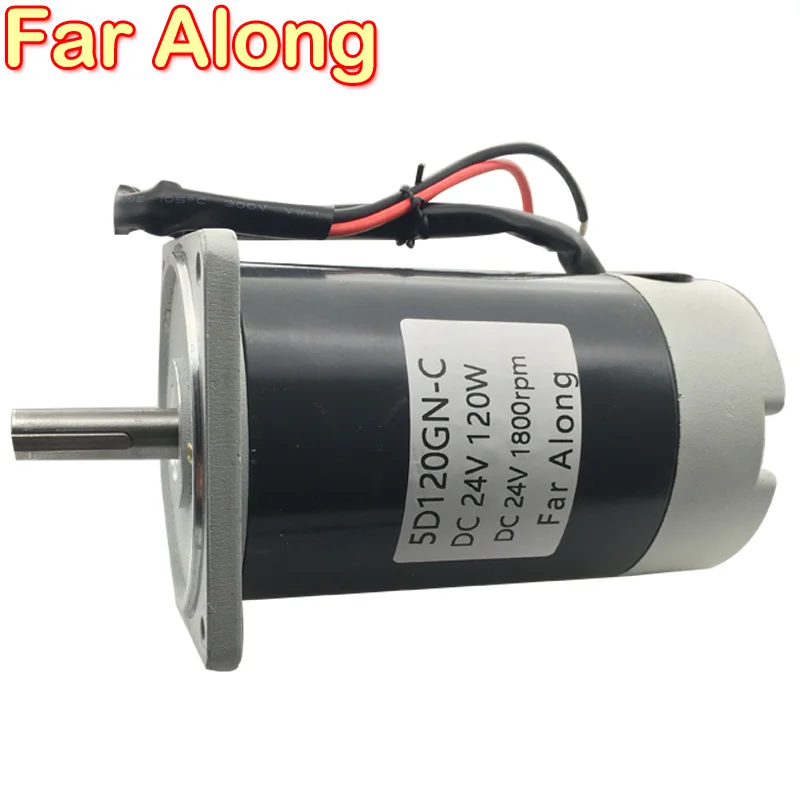

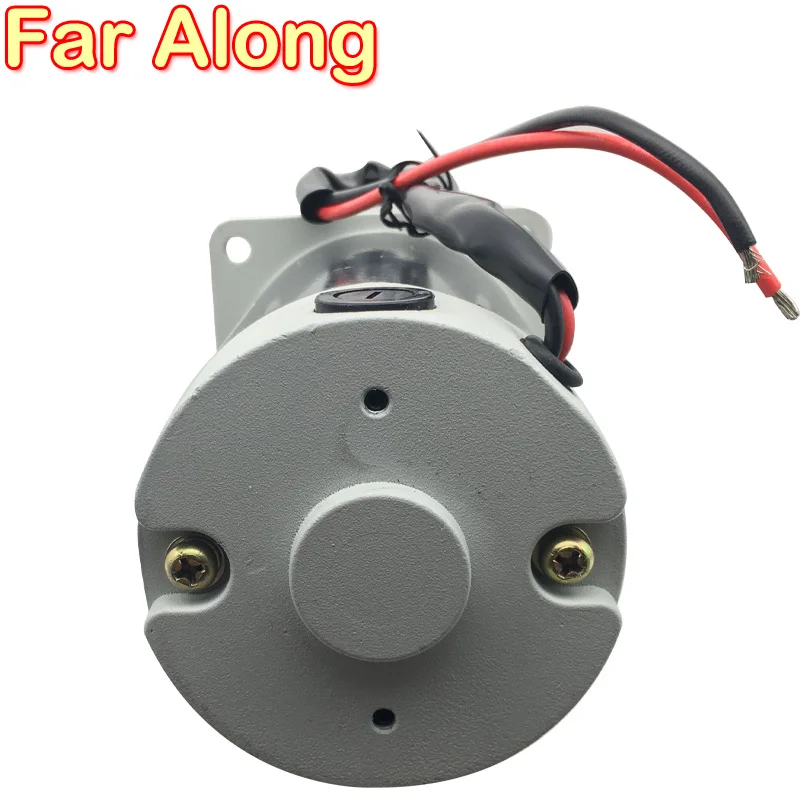

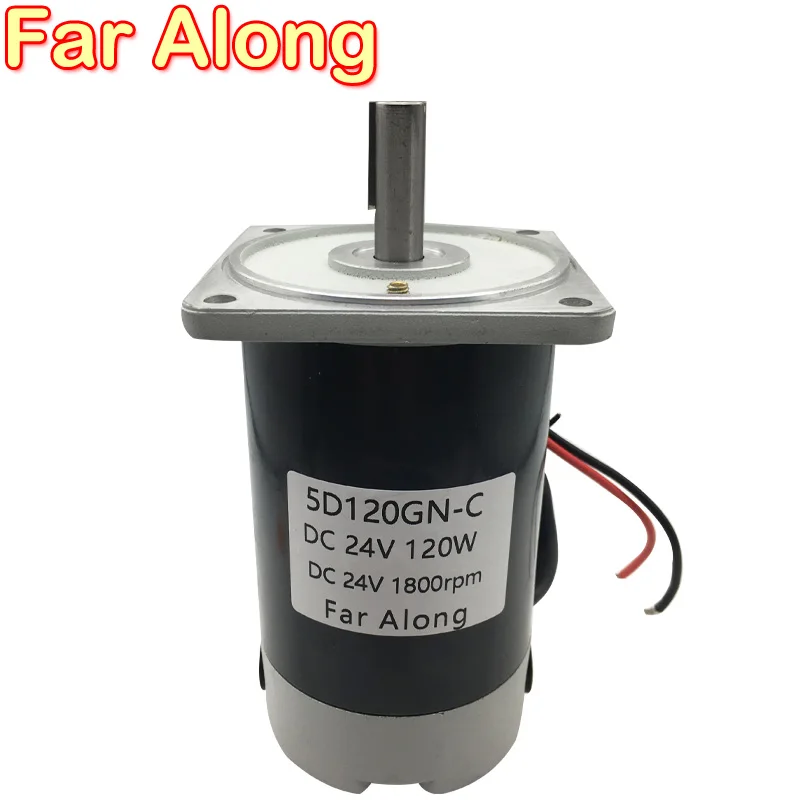

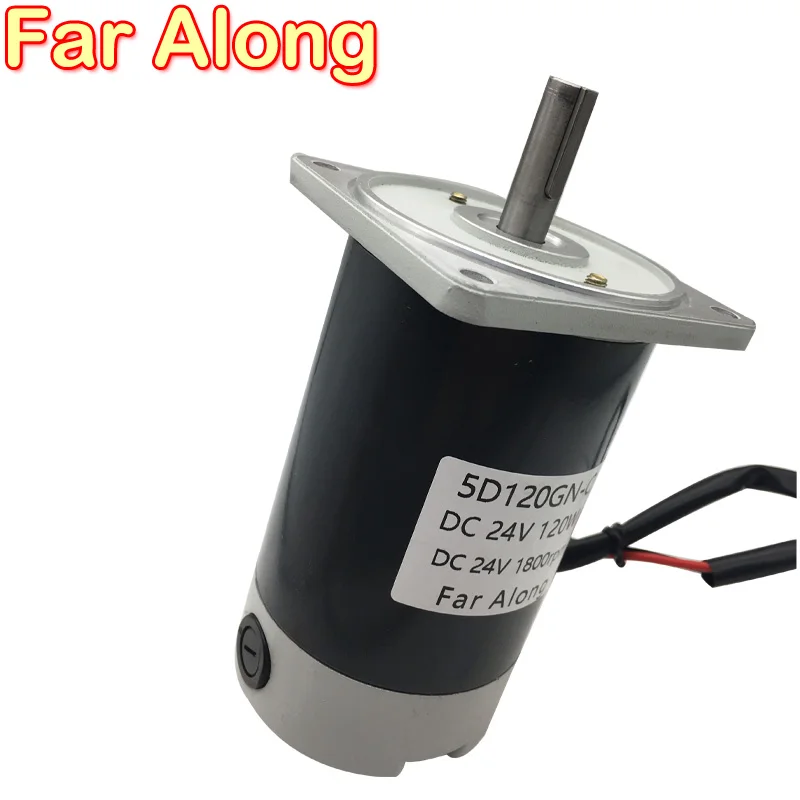

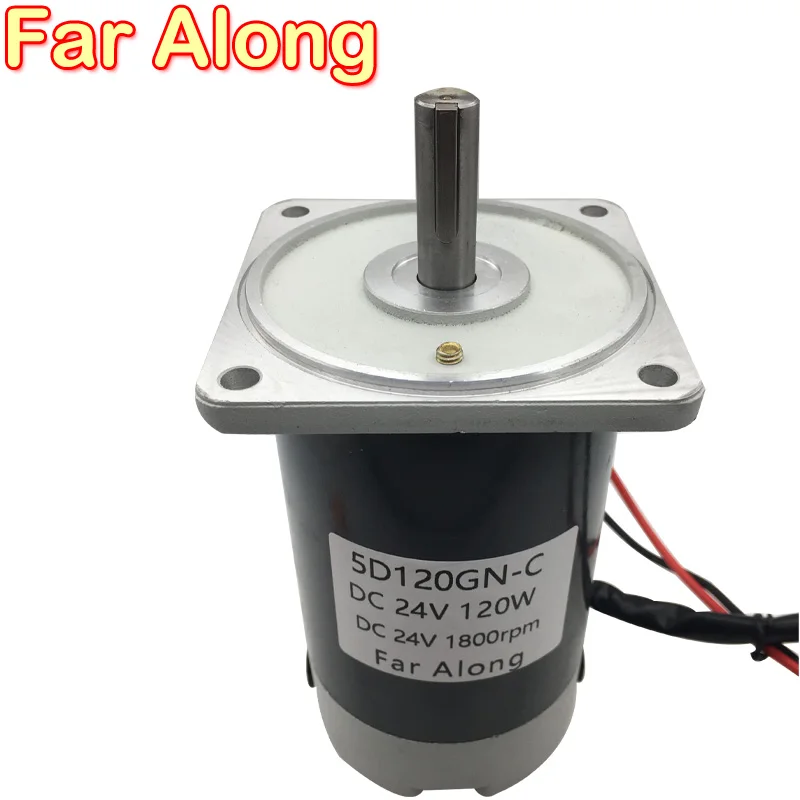

The following is the picture of the motor

Friendly reminder

Recently, this motor is in the upgrade stage. There are some changes in the shape and color of the motor after the upgrade. However, the size and performance of the motor are unchanged.

Our warehouse will randomly send the motor, you may receive the motor before the upgrade, you may also receive the upgraded motor, please know before buying, thank you.

Application
