Jetson Nano Developer Kit Acce C(UK Version) powerful computer for AI development with Display Camera TF Card | Компьютеры и офис

Comes with US plug power adapter. More options for the power plug: US, EU

NVIDIA Jetson Nano Developer Kit + 7inch Touch Display + Camera + TF Card Overview

Besides NVIDIA Jetson Nano Developer Kit official content, the Jetson Nano Developer Kit Package C also includes: 7inch IPS capacitive touch display, IMX219-77 camera board,  64GB class 10 TF card, and the power adapter. This pack is almost a robot in embryo, you can even "see" via its "eye", now it's your show time to bring the superior AI robot to life.

Jetson Nano Developer Kit Description

NVIDIA Jetson Nano Developer Kit is a small, powerful computer that lets you run multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing. All in an easy-to-use platform that runs in as little as 5 watts.

Jetson Nano delivers 472 GFLOPS for running modern AI algorithms fast, with a quad-core 64-bit ARM CPU, a 128-core integrated NVIDIA GPU, as well as 4GB LPDDR4 memory. It runs multiple neural networks in parallel and processes several high-resolution sensors simultaneously.

Jetson Nano is also supported by NVIDIA JetPack, which includes a board support package (BSP), CUDA, cuDNN, and TensorRT software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. The SDK also includes the ability to natively install popular open source Machine Learning (ML) frameworks such as TensorFlow, PyTorch, Caffe / Caffe2, Keras, and MXNet, enables the developers to integrate their favorite AI model / AI framework into products fast and easily.

Jetson Nano Developer Kit Specifications GPU: 128-core Maxwell™ GPU CPU: quad-core ARM® Cortex®-A57 CPU Memory: 4GB 64-bit LPDDR4 Storage: Micro SD card slot (requires an external minimum 16G TF card) Video: Encode: 4K @ 30 (H.264/H.265) Decode: 4K @ 60 (H.264/H.265) Interfaces: Ethernet: 10/100/1000BASE-T self-negotiation Camera: 12-ch (3x4 OR 4x2) MIPI CSI-2 DPHY 1.1 (1.5Gbps) Display: HDMI 2.0, DP (DisplayPort) USB: 4x USB 3.0, USB 2.0 (Micro USB) Others: GPIO, I2C, I2S, SPI, UART Power: Micro USB (5V 2A) DC jack (5V 4A) Dimensions: Core module: 69.6 mm × 45 mm Whole kit: 100mm × 80mm × 29mm 7inch HDMI LCD (H) Features IPS screen, 1024x600 hardware resolution, configurable by software (up to 1920x1080) Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, Banana Pi, as well as general desktop computers When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch, etc. Multi languages OSD menu, for power management, brightness/contrast adjustment, etc. 3.5mm audio jack, speaker connector, supports HDMI audio output Also supports VGA input (specific cable is required and should be purchased separately) IMX219-77 Camera Features Supports NVIDIA Jetson Nano Developer Kit 8 Megapixels Sensor: Sony IMX219 Resolution: 3280 × 2464 Lens specifications: CMOS size: 1/4inch Aperture (F): 2.0 Focal Length: 2.96mm Angle of View (diagonal): 77 degree Distortion: < 1% Lens dimensions: 6.5mm × 6.5mm 4 screw holes Used for attachment Provides 3.3V power output Dimension: 25mm × 24mm What's on Jetson Nano Developer Kit

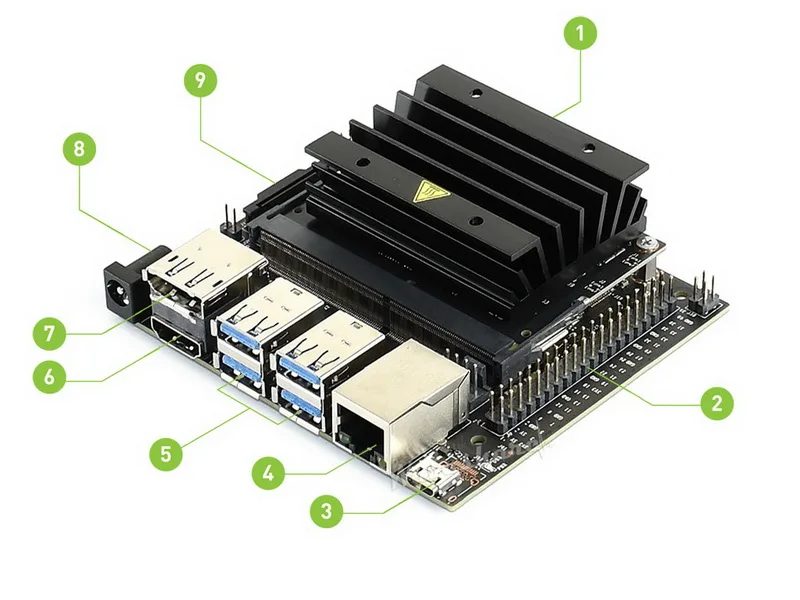

1.Micro SD card slot: insert a 16GB or larger TF card for main storage and writing system image

2.40-pin expansion header

3.Micro USB port: for 5V power input or for USB data transmission

4.Gigabit Ethernet port: 10/100/1000Base-T self-negotiation

5.4x USB 3.0 port

6.HDMI output port

7.DisplayPort connector

8.DC jack: for 5V power input

9.MIPI CSI camera connector:

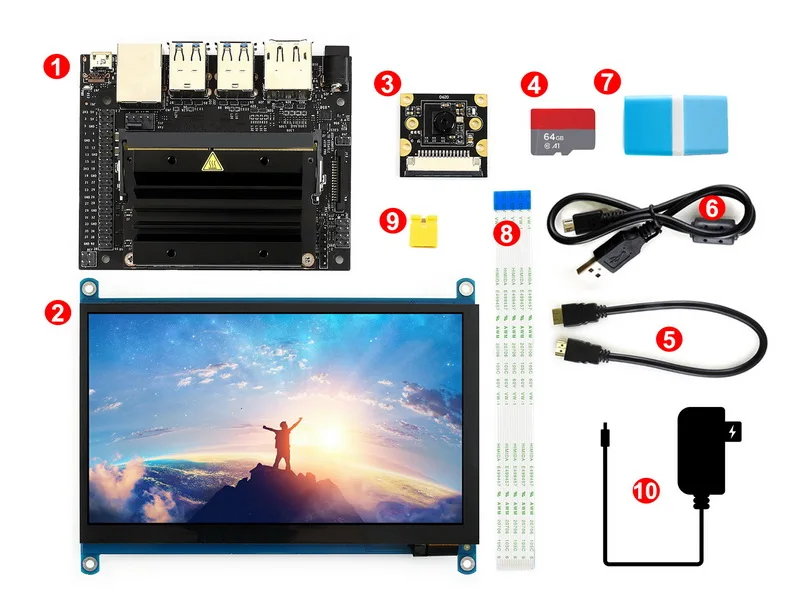

PACKAGE CONTENT

Weight: 0.639 kg

Note: please properly keep the Jetson products' original packing box and accessories (if any) for warranty service, and the serial numbers on the product and packing box MUST be matched, otherwise, the original manufacturer will reject returning / repairing.

Jetson Nano Developer Kit x1 7inch HDMI LCD (H) x1 IMX219-77 Camera x1 Micro SD Card 64GB x1 Power adapter US standard 5V/3A micro x1 HDMI cable x1 USB type A plug to micro B plug cable x1 SD card reader x1 15-pin FFC (opposite sides contact) x1 OPTIONS Power adapter x1
