Светодиодные модули 5V Chip SK6812 WS2812B Addressable RGB RGBW RGBWW WWA Pre-soldered Pixel Light для световых коробов и рекламных щитов, 50шт/лот.

Светодиодные модули 5V Chip SK6812 WS2812B Addressable RGB RGBW RGBWW WWA Pre-soldered Pixel Light для световых коробов и рекламных щитов 50шт/лот.

dianxiaobao_1

Package included:

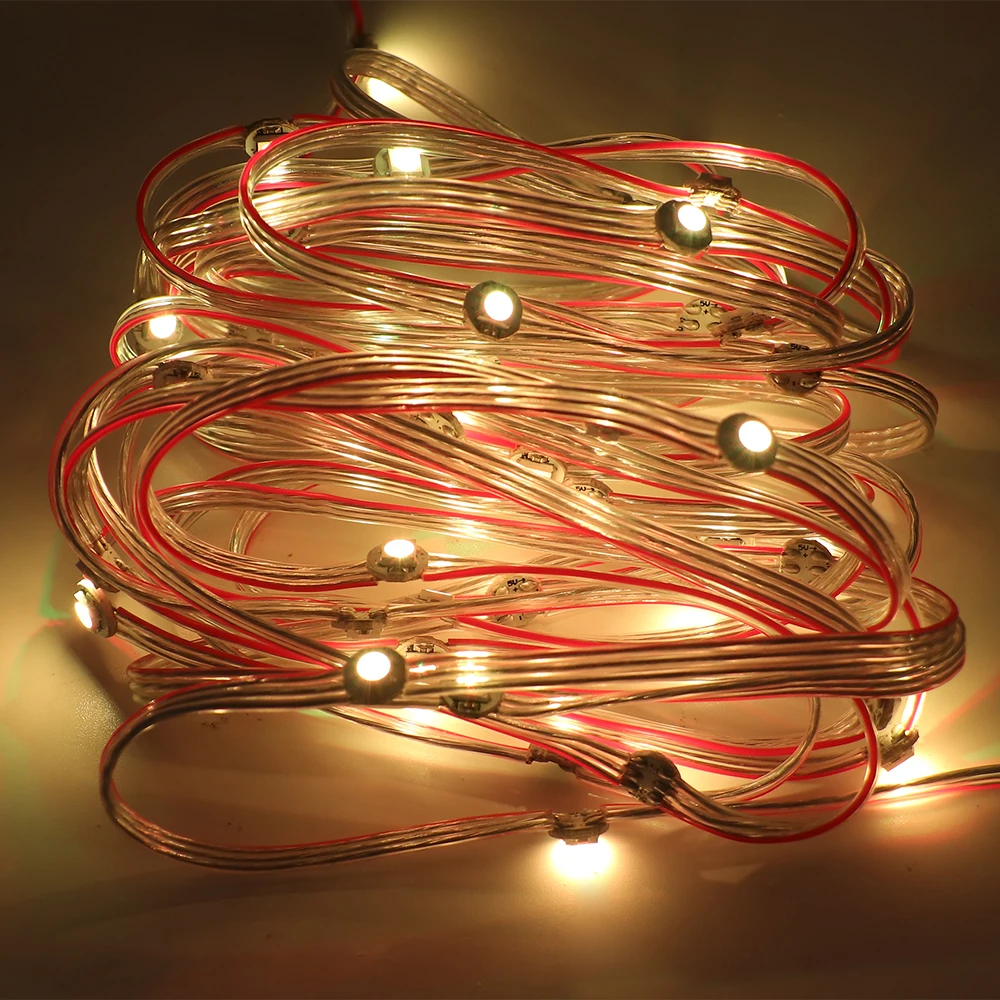

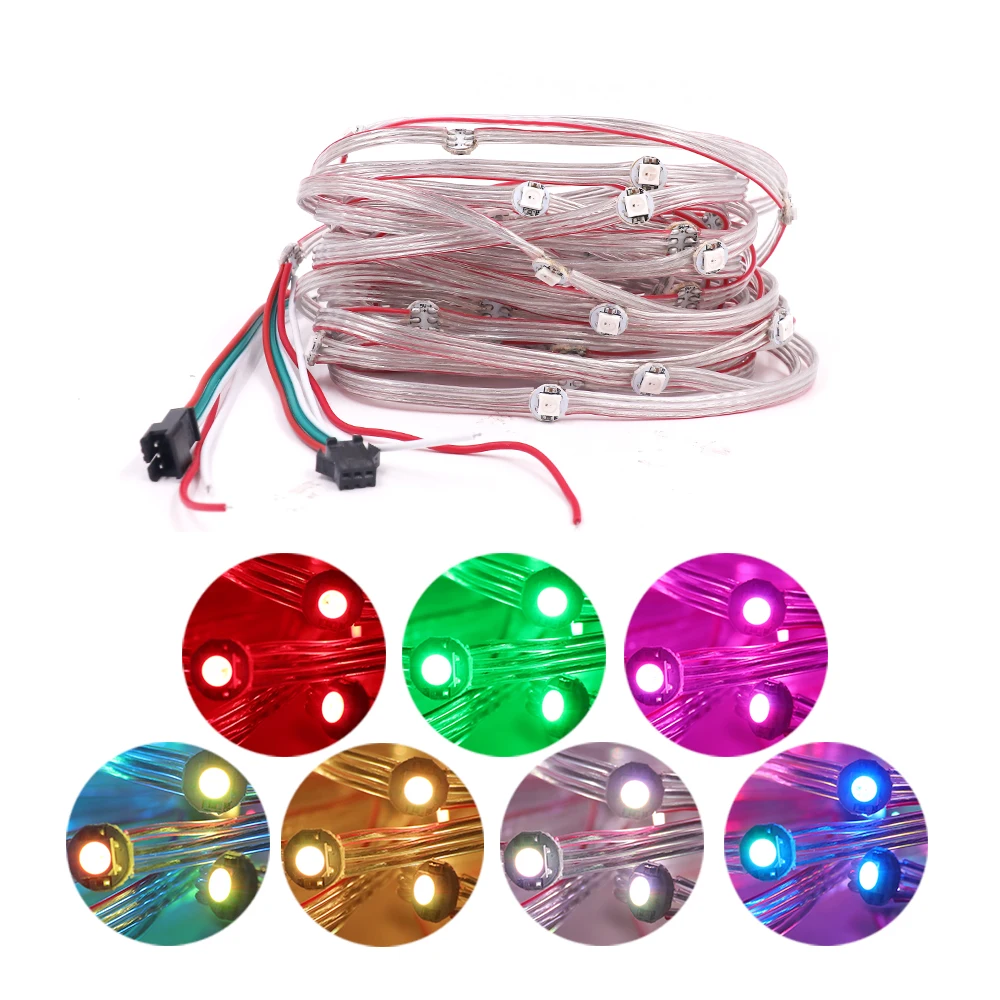

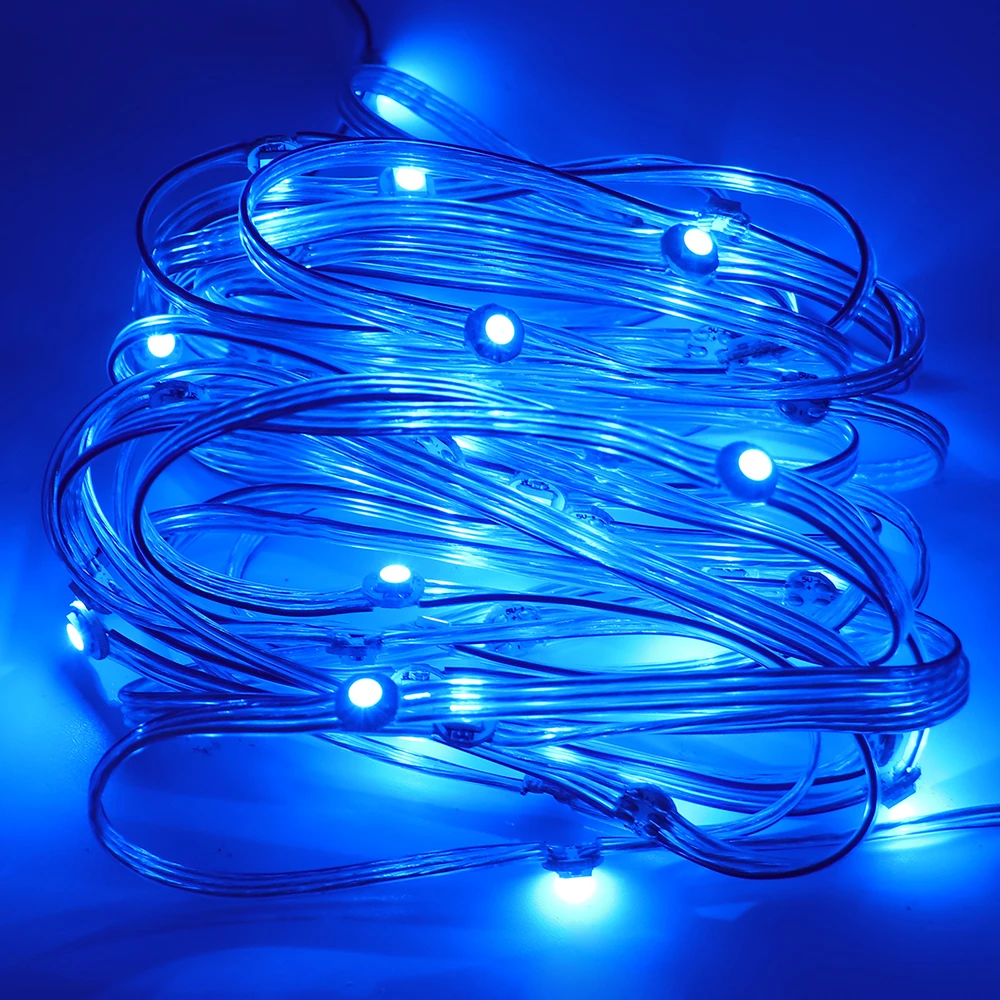

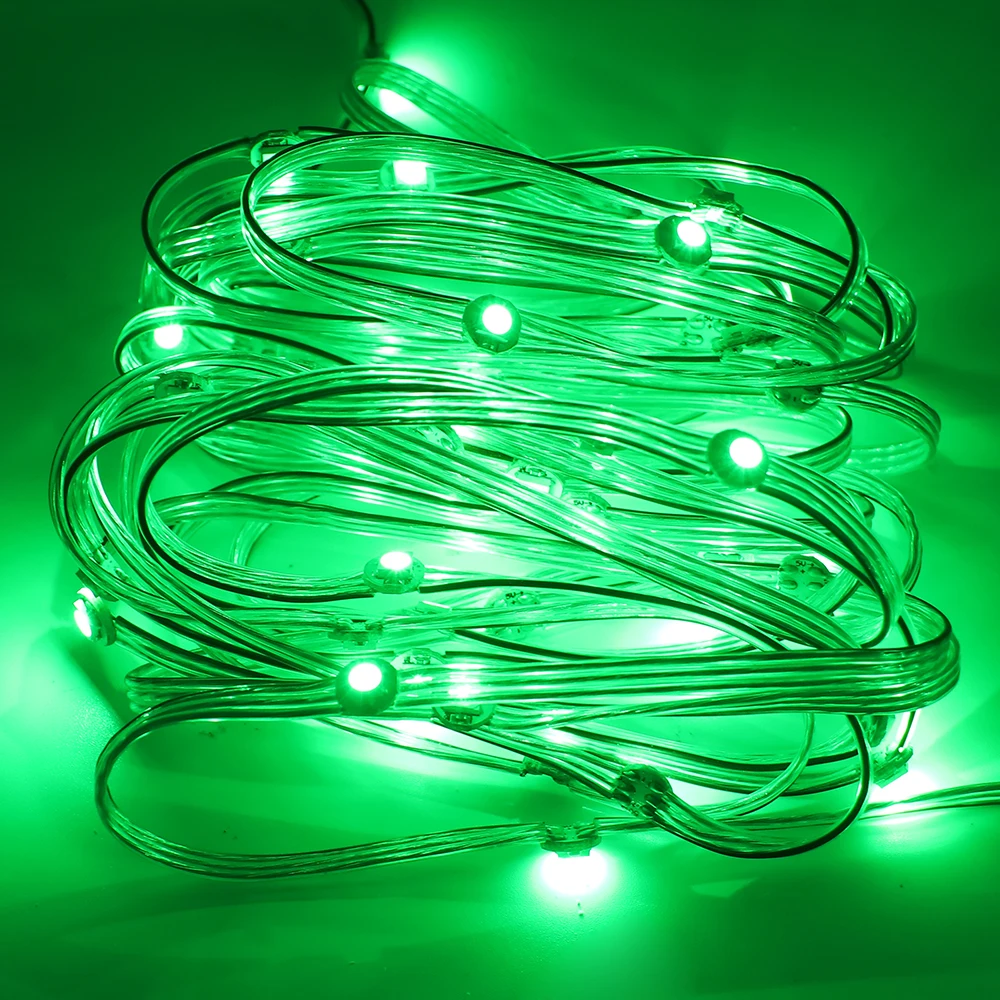

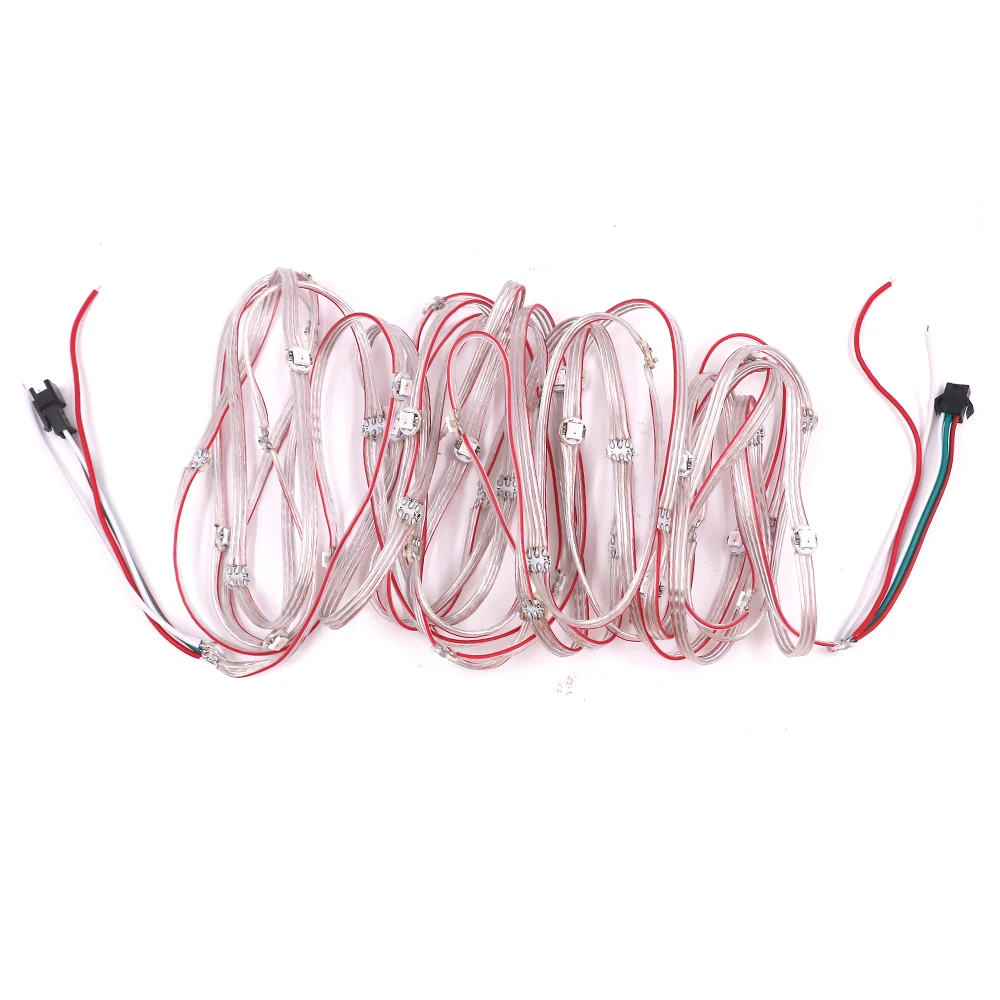

1 * 50Leds/string SK6812 led pixel string

Specification for LED String:

Strip Voltage: DC 5V

Emitting Color: RGBW/RGBWW/RGBNW/WWA

Viewing Angle: 120

Number Of LEDs: 50Leds/string

Number of ICs: 50ICs/string

Number of Pixels: 50pixels/string

power : 0.3W/led

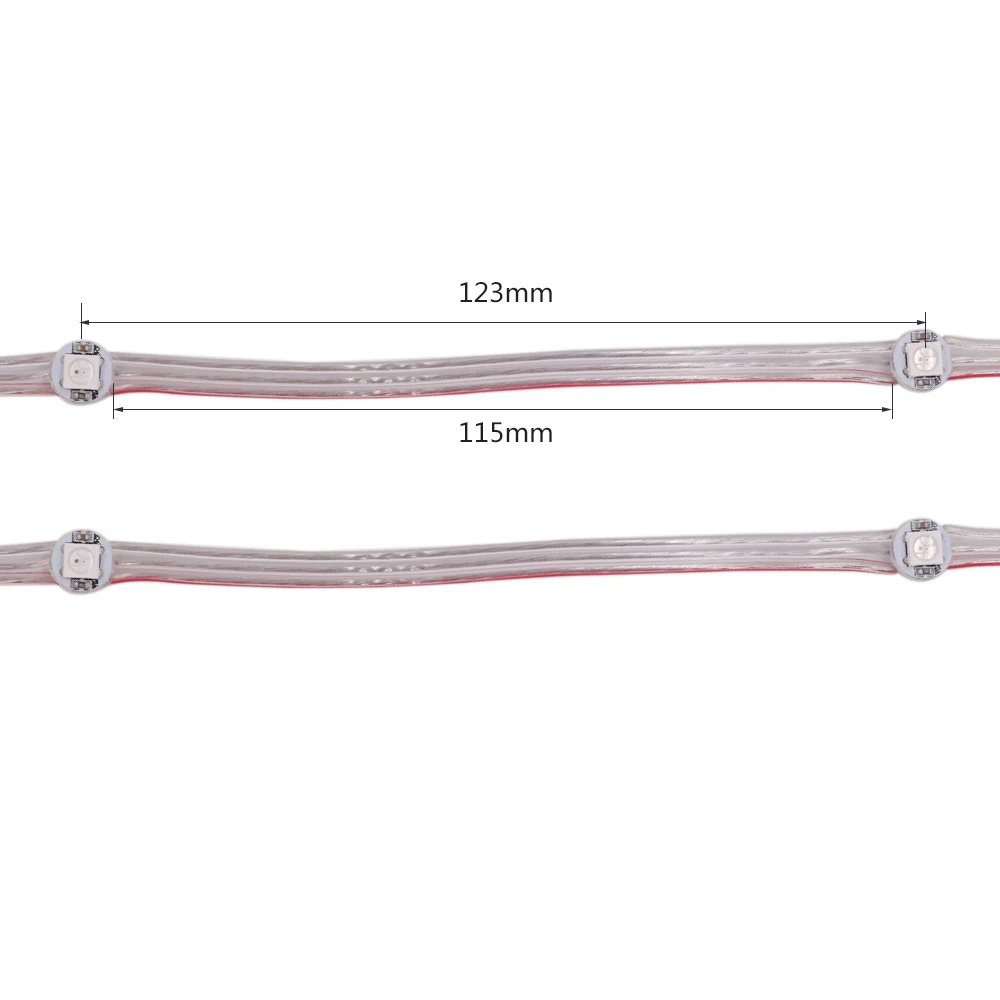

Wire Length: 12cm

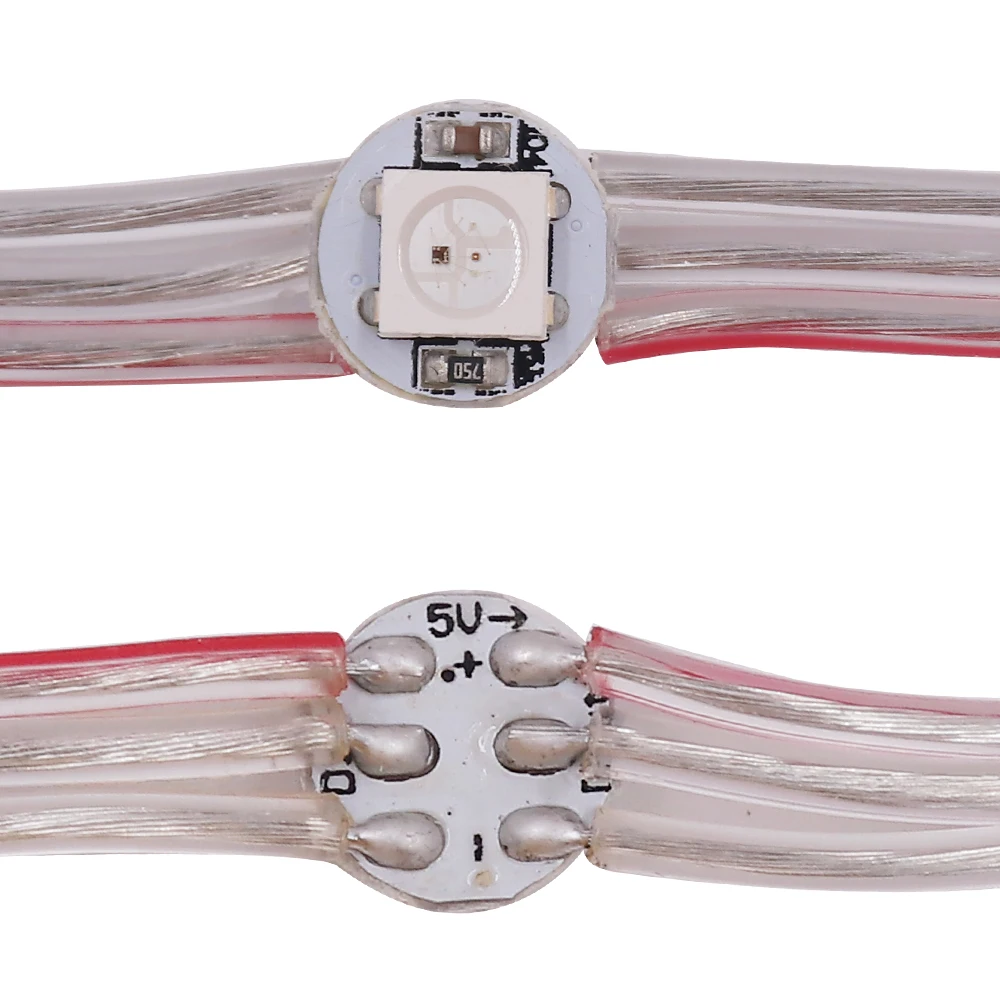

PCB colour : White PCB

LED Type: 5050 SMD

Length: about 6m/string

Waterproof Rating:IP21(Non-Waterproof)

Every LED cuttable without damaging the rest leds, according to your requirement

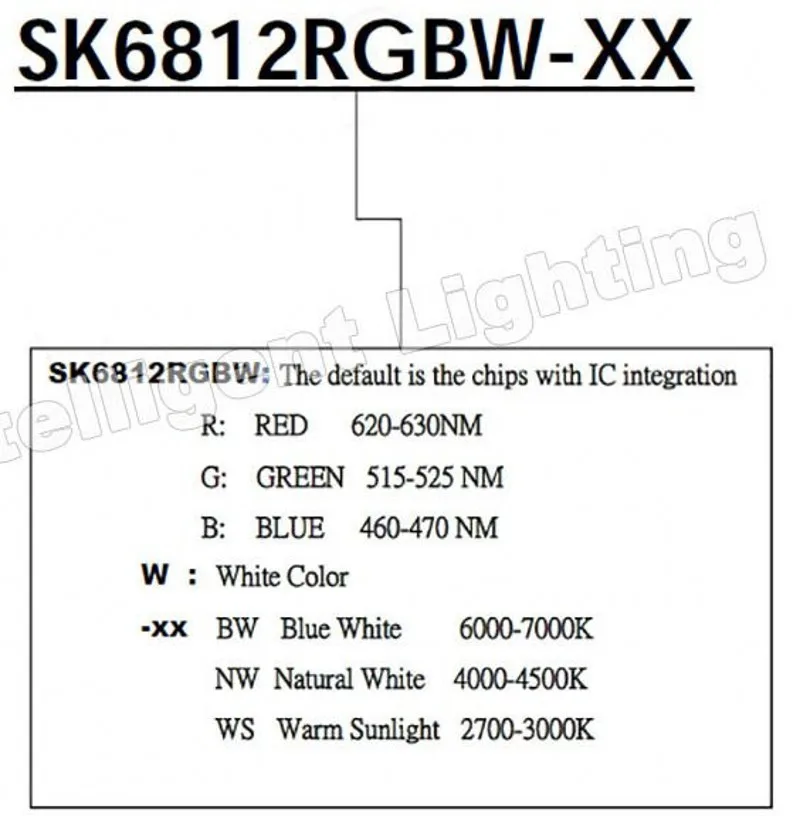

SK6812RGBW/RGBWW/RGBNW is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of thepixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator. The data protocol being used is unipolar NRZ communication mode. The 32-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed. The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.

SK6812 WWA(White+Warm white+Amber) is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The controlcircuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator. The data protocol being used is unipolar NRZ communication mode. The 24-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixelis reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limitedby signal transmission speed.The LED has a low driving voltage (which allows for environmental protection and energy saving),high brightness, scattering angle, good consistency, low power,and long life. The control circuit is integrated in the LED above.
