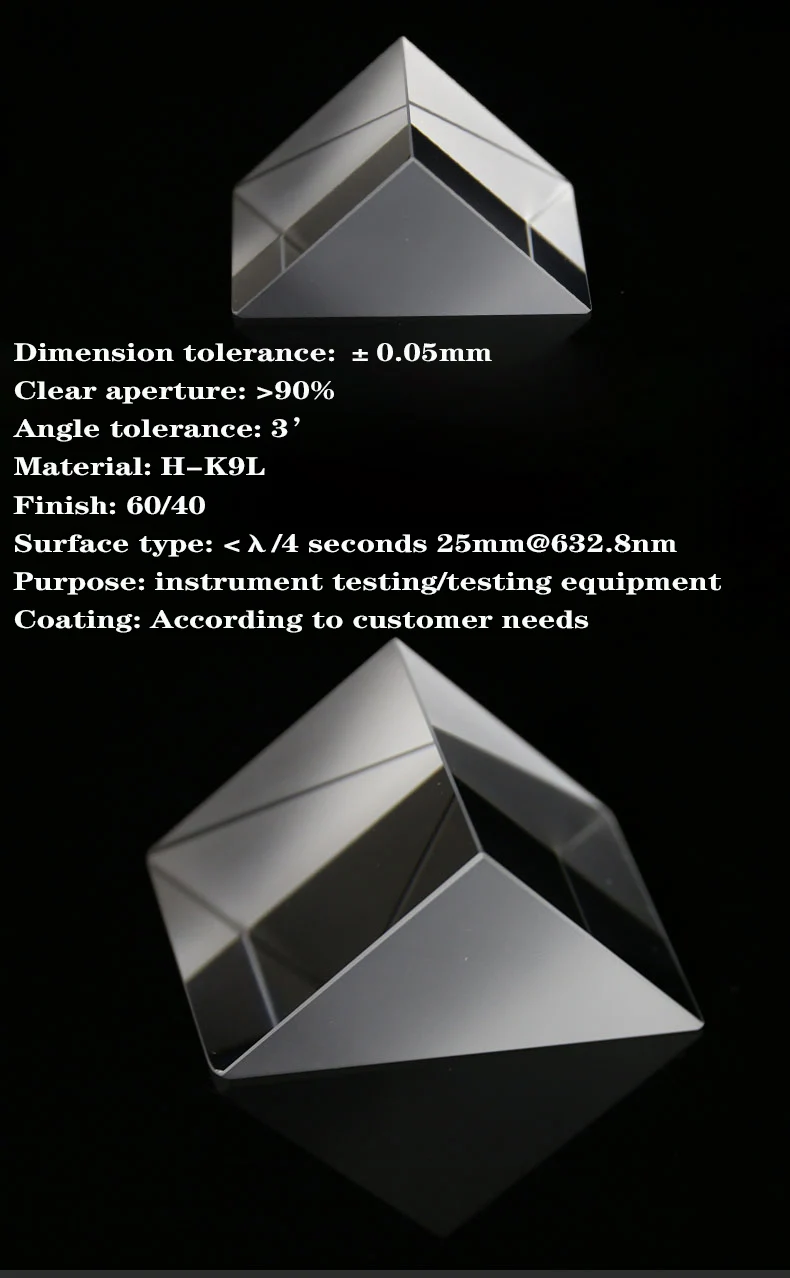

Information:

Material: H-K9 optical glass material
Size: about90*90*90mm/3.54*3.54*3.54in
Angle: 45 degrees, 90 degrees, ± 3 '
Dimensional tolerance: ±0.1MM
Face type: λ/4 seconds 25mm@632.8nm
Degree of finish: 40-20
Effective aperture: >90%
Beam distortion: +/- 2arc min
Coating: Bevel: Partially reflective film
Incident surface, exit surface: antireflection film
Uses: it is widely used in instrumentation, image tester, projector, vision system, mold word detection, automation equipment, etc.

Features:

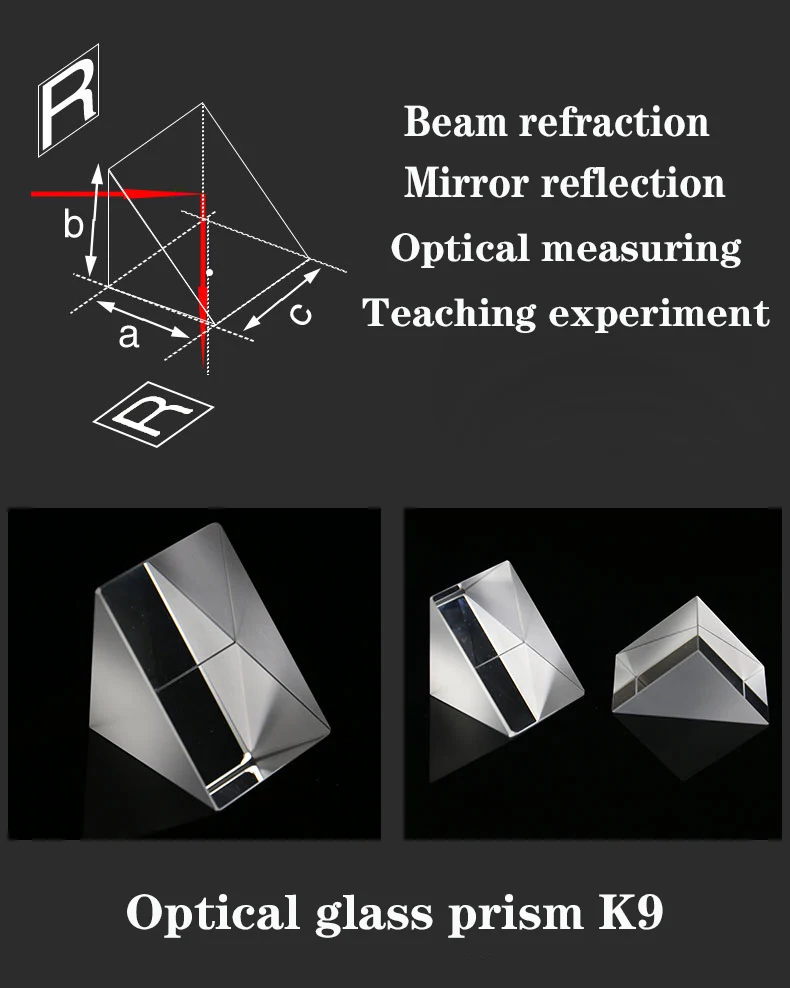

One of the basic functions of right-angle prisms is that it can efficiently total reflect internal incident light through critical angle characteristic.
When used right-angle prism, some optical films are usually plated.
Featuring a large contact area and a typical angle of 45° and 90°, it is easier to install than a normal mirror, and enjoys better stability and strength for mechanical stress. It is the best optics element for all types of devices and instruments.

Packing List:

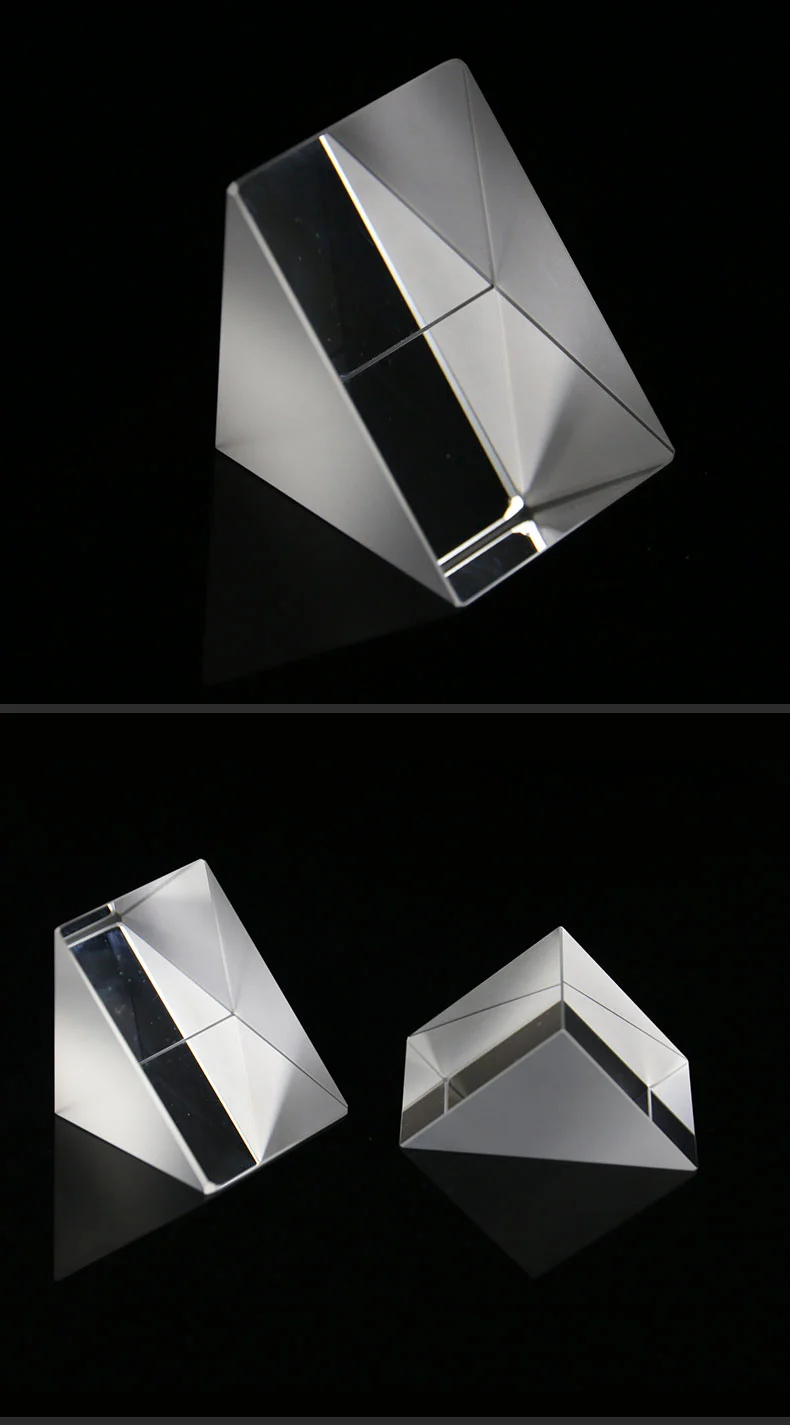

1 * Isosceles Right Angle Prism
