body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } MKS ROBIN PRO is a multi-axis printing 3D control board. It is equipped with STM32F103 main chip and 72MHZ main frequency. The motherboard supports 6-axis motor output and can support three-head printing. The hardware supports dual Z and can be used directly.
It also supports the motherboard firmware and Marlin 2.0 firmware developed by MKS. A variety of screen solutions, compatible with LCD12864, MIN12864, while also supporting multiple sizes of robin TFT Press screen. Can support external and in-line methods, in-line drivers are compatible with various special modes of the driver (uart, spi, etc.)
It adopts 32-bit STM32F103 main control chip, 72MHZ main frequency, strong computing ability and greatly improved performance.The motherboard hardware supports 6-axis output and can support 3-head printing
Compatible with multiple drivers and special modes (uart mode of TMC2208, SPI mode of TMC2130, etc.) There are special ports reserved, and the wiring settings are simpler and more convenient.
Support MKS LCD12864, MKS MIN12864 and other control boards developed by Maker Base for display control.
It has both in-line drive socket and external drive port, which is more expandable and more selective.
Support Marlin2.0 firmware and MKS ROBIN PRO independently developed firmware
Using high-quality circuit boards, and the corresponding pins of each interface are marked with silk screens, making it easier to identify and modify.
Adopt special power chip, support 12V-24V power input.
Can be used with MKS ROBIN TFT multi-size Press screen solution.
Can be matched with ROBIN WIFI module for wireless printing.
Colour:Black
Material:Electronic component

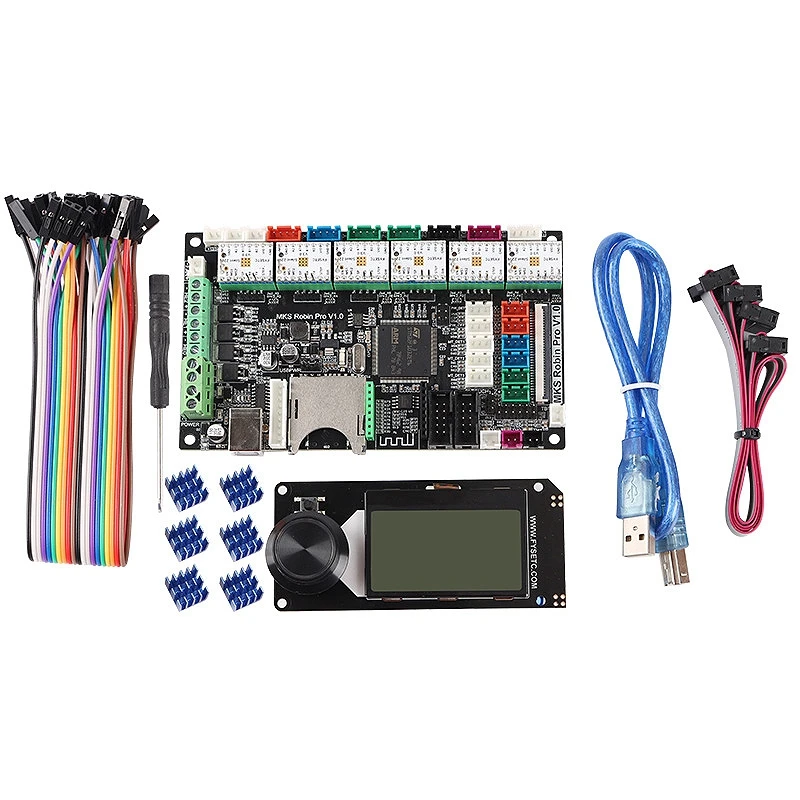

Package Contents:
1 * MKS Robin Pro motherboard

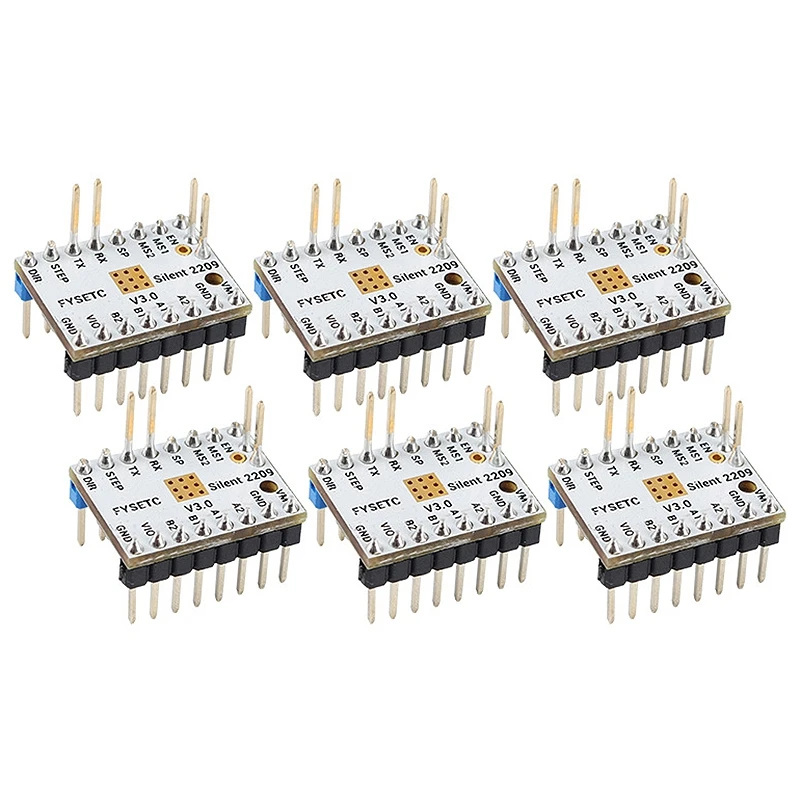

6 * TMC2209 stepper motor driver
6 * TMC2209 heat sink
1 * mini12864 screen
1 * Screwdriver
2 * Gray line
1 * USB data cable
24 * 1PIN line
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
