Product introduction

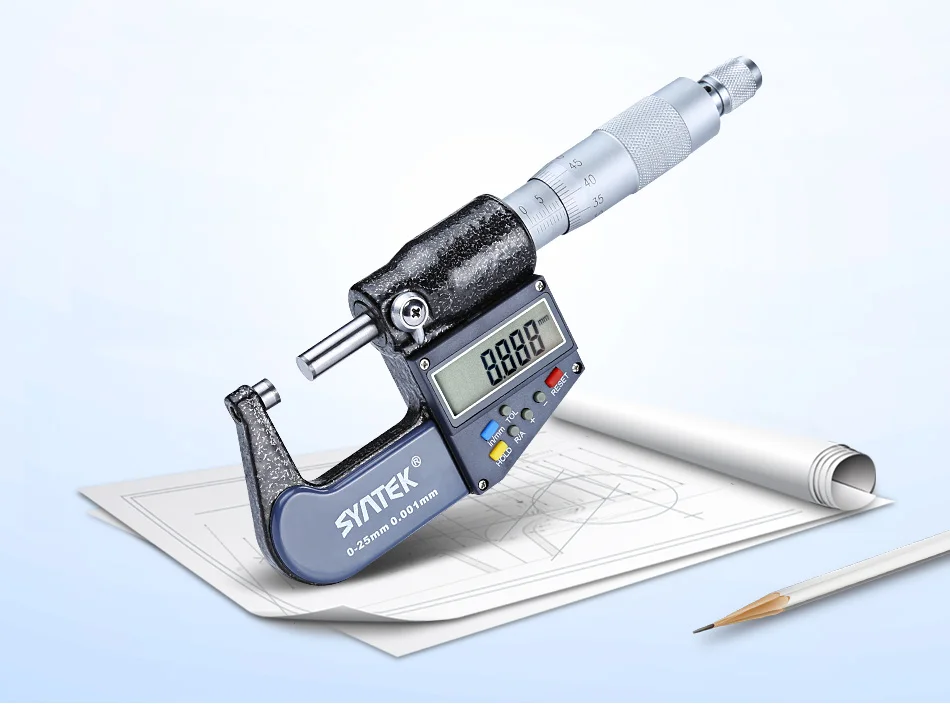

Syntek 0.001mm Outside Diameter 0-25-50-75-100mm Electronic Digital Micrometers 0-1-2-3-4inch Caliper Gauge Meter Carbide Screw ( 7-Buttons Multifunction )

Features & Function

Lcd display Smooth paint frameCarbide-tipped measuring faces With locking clampRelative / Absolute measuringTolerance "TOL" measuringOrigin resettingDate holdPositive settingNegative settingMetric/Inch conversion

Technical Parameters

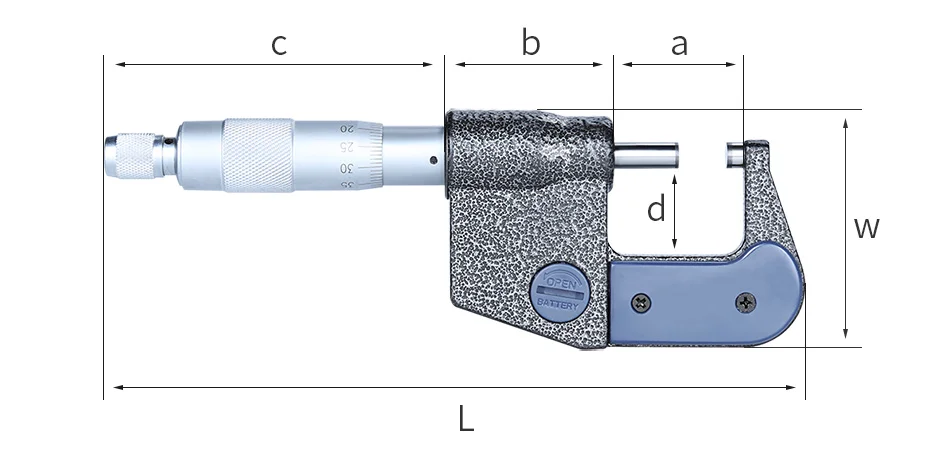

 Measuring range 0-25mm Resolution 0.001 mmAccuracy ±0.002mm Battery type 1.5V LR44/SR44 battery (Not included) Operating temperature 0 - 40 Deg.C Storage Temperature -20 - 70 Deg.C Influence of humidity Not important with 0 to 80% of relative humidity Product Size (L x W x H) 156x58x24mmAbout Package  Package weight 0.42 kg; Package Contents

 1 x Digital outside Electronic micrometer

 1 x Wrench

 1x plastic case

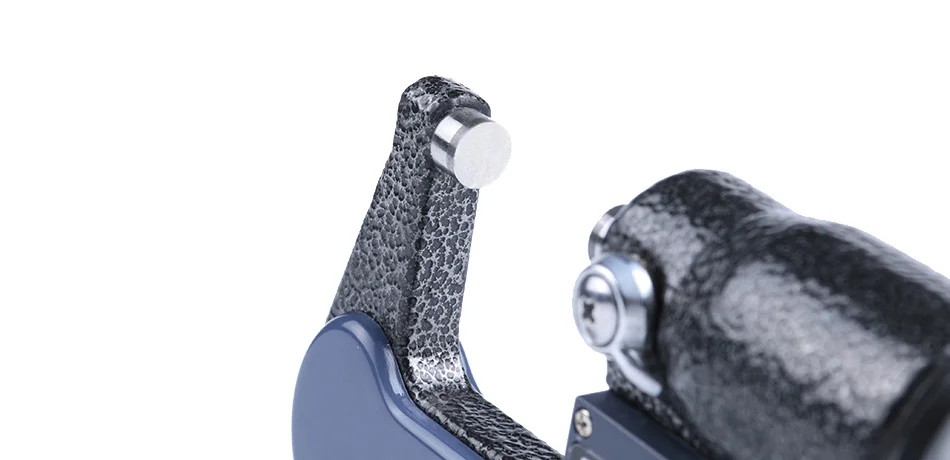

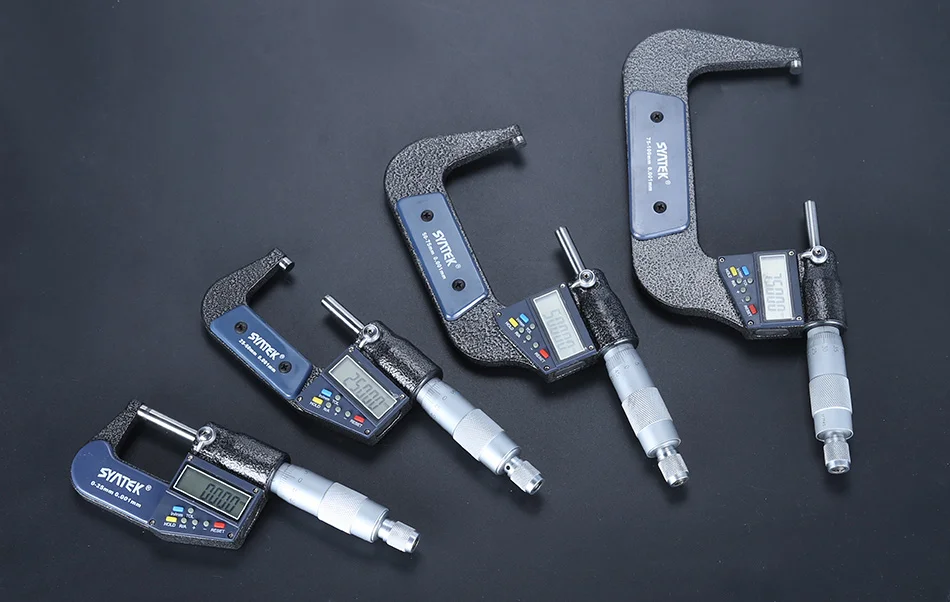

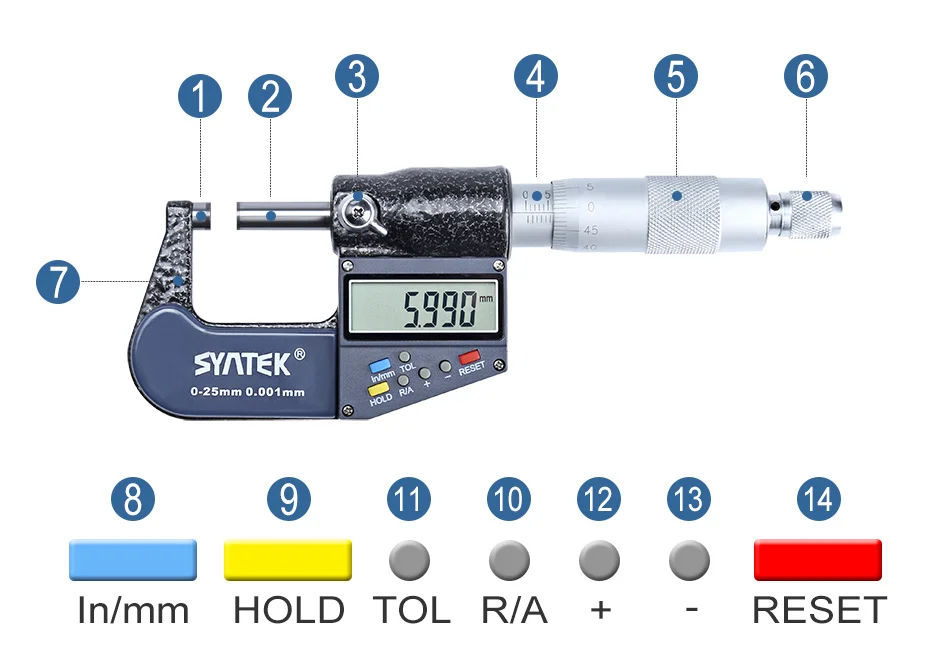

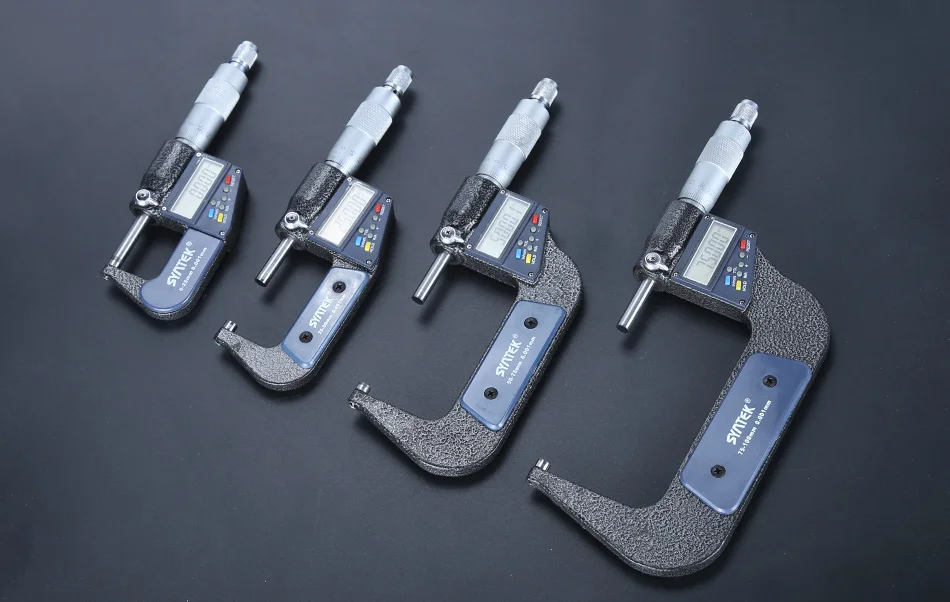

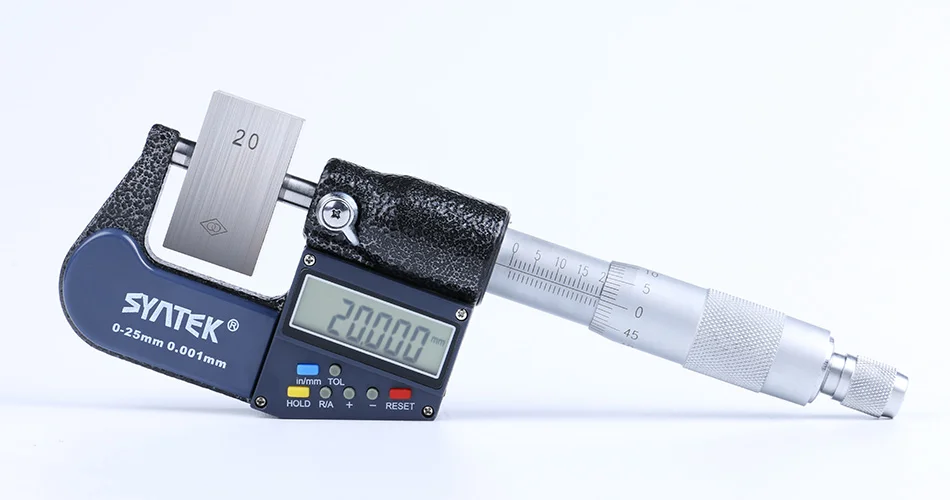

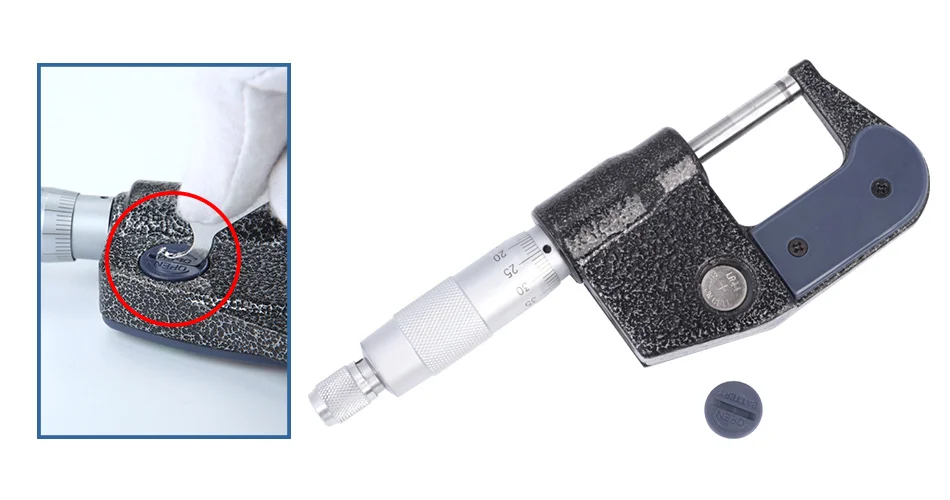

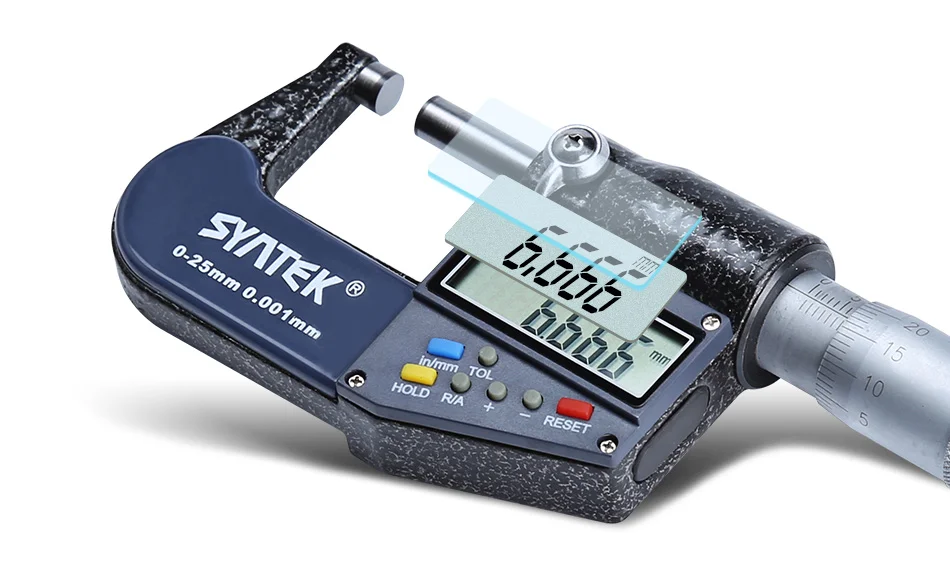

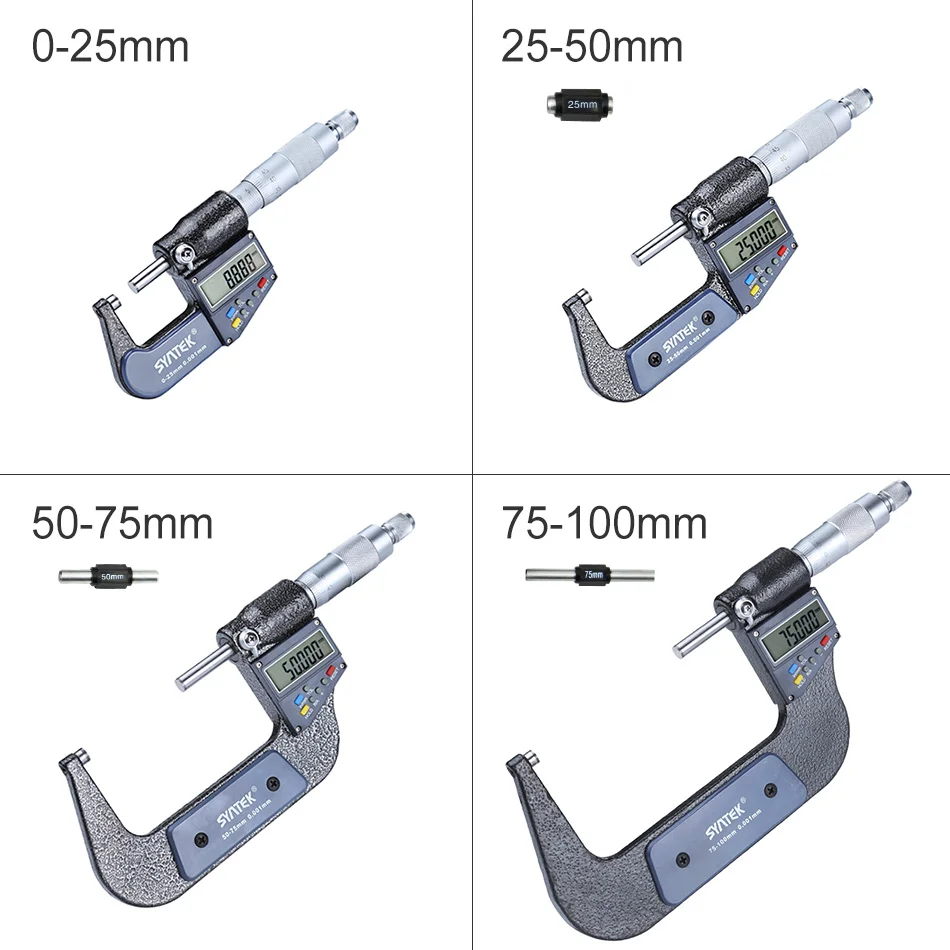

      7-Buttons Multifunction         Four kinds of range:0-25mm/25-50mm/50-75mm/75-100mm      Product Details  Lcd display  Digital display direct reading, accurate and fast.      Friction drive  Laser scale, clear wear resistance.      Measuring surface with a hard alloy head      Battery type: 1.5V LR44/SR44 battery  (Not included)  You can use a small wrench to open the cover and install the battery.       Functions  1. Anvil    2.Spindle    3.Locking device    4.Sleeve    5.Thimble    6.Ratchet stop    7. Frame    8.Metric/Inch conversion    9.Data hold    10.Relative / Absolute measuring    11.Tolerance setting    12.Positive setting    13.Negative setting    14.Origin resetting



Function



OperationRemarkOrigin resettingFirst keep measuring faces contact to reset(use reference test rod above the limitation of 25mm), then press(RESET)key to display origin.Use after origin settingOrigin settingPress(RESET) till"SET"flashing,Press (+) or (—) key to preset the origin value (0,25,50,75),then press (RESET)key,all is done.The origin setting must be in absolute measuring condition.Mctric/Inch conversionPress(in/mm)key to be in metric or Inch system condition. Data hold and wipe outPress (HOLD) key, the character "H" appeared,Which means going into data hold condition,press(HOLD)key again to wipe it out. Relative/Absolute measuringPress (R/A) key, the character "REL" appeared for relative measuring condition ,Press (R/A) key again, it will go in absolute measuring condition. Tolerance setting and wipe outPress(TOL)key, when the character "TOL up" appeared,turning the micrometer to change the display data as up-tolerance,then press(TOL)key,when the character "TOL down" appeared,Turning the micrometer to change the display data as down-tolerance.press(TOL)key again,the character "OK" appeared means tolerance setting finished.Press(TOL)key three times continuously to make the tolerance mark disappeard,then the tolerance setting is wiped out.When one character among "TOL down""TOL up""OK" appeared,it means be in tolerance condition to wipe it out .You may press"TOL" key till character disappeared Product Size(Unite:mm)     Order no range Resolution Accuracy L A B C d W Q7ZF00250-25mm0.001mm±0.002mm156Thirty-oneForty-oneSeventyTwenty point fiveFifty-eightQ7ZF255025-50mm0.001mm±0.002mm180Fifty-sevenForty-oneSeventyTwenty-three point fiveSixtyQ7ZF507550-75mm0.001mm±0.003mm210Eighty-threeForty-oneSeventyThirty-eight point fiveEightyQ7ZF7510075-100mm0.001mm±0.003mm239One hundred and eightForty-oneSeventyFifty point fiveNinety-nineNote:  manual measurement may have 1-2mm error



Measurement precision

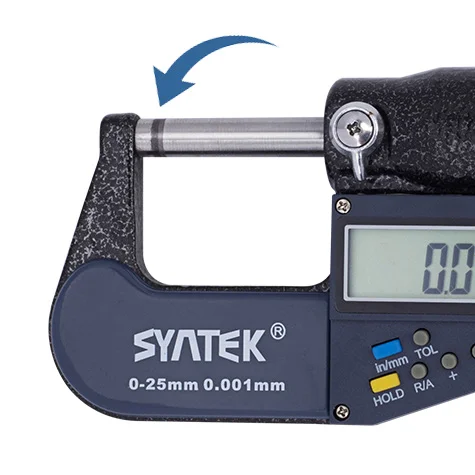

Step1.Clean the measuring surface.

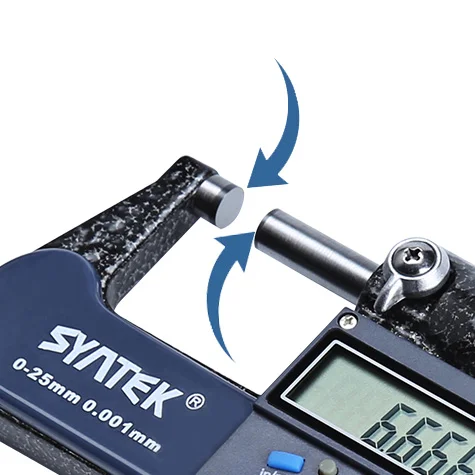

Step2.Closed measuring surface.

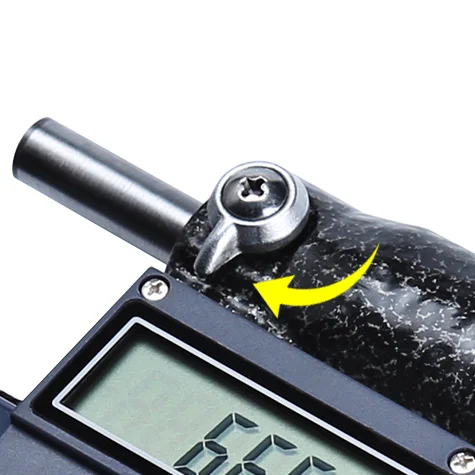

Step3.Lock the device to the left, lock the spindle.

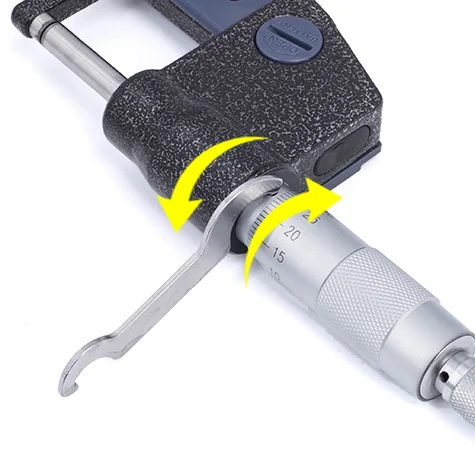

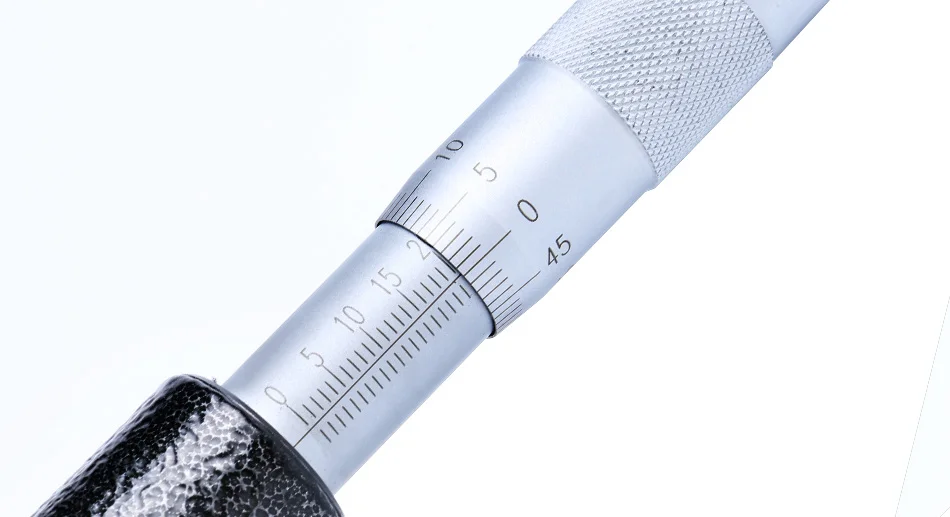

Step4.Adjust the sleeve with a wrench until the zero position is aligned.

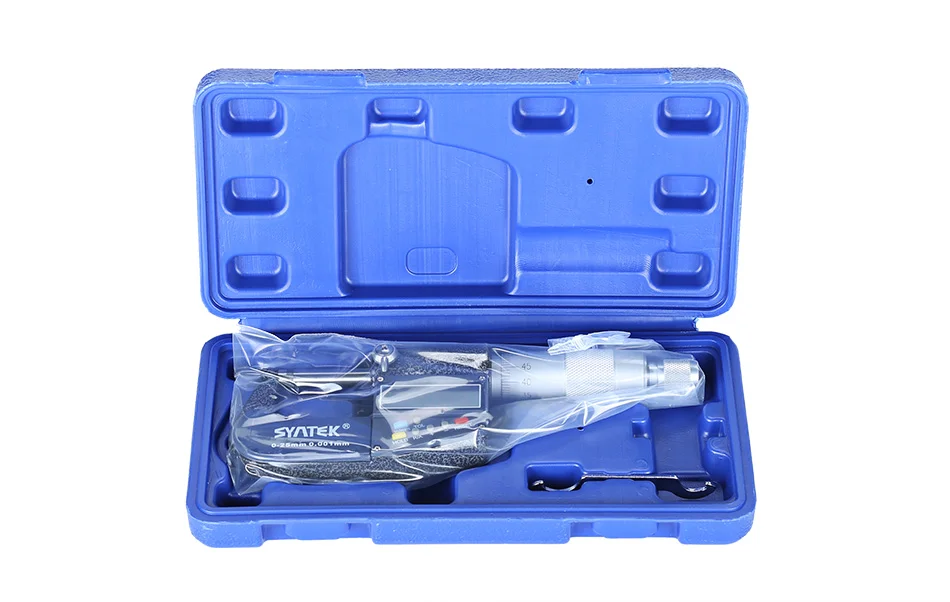

Package:Plastic case

More Real Picture
