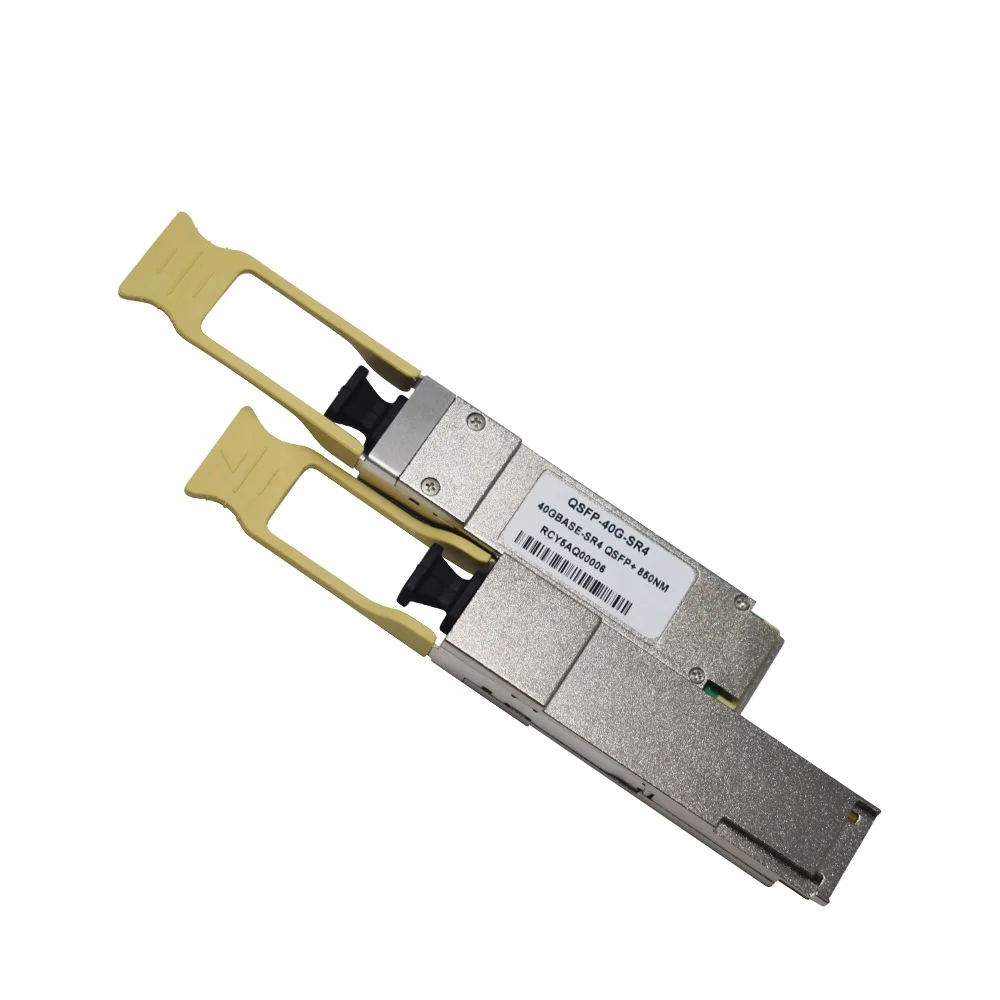

QSFP-40G-SR4 Compatible Extreme ARISTA Mellanox Generic 40GBASE-SR4 QSFP 850nm 150m MTP/MPO DOM Transceiver Module | Мобильные

QSFP-40G-SR4 Compatible Extreme ARISTA Mellanox Generic 40GBASE-SR4 QSFP 850nm 150m MTP/MPO DOM Transceiver Module | Мобильные

Product Features

Supports 1.06 to 10.5Gb/s bit rates per Channel

Four-Channel ,1x12 MPO receptacle

Hot pluggable QSFP+ form factor

VCSEL 850nm array Technology

Applicable for 100m&300m on OM3 MMF,150m&400m on OM4 MMF.

Built-in digital diagnostic functions

Low power consumption, < 1.5W

Unretimed XLPPI electrical interface

Operating case temperature: -5°C to 80 °C

Applications

40GBASE-SR4 40G Ethernet

Datacom/Telecom switch & router connections

Data Aggregation and Backplane Applications

Proprietary Protocol and Density Applications

Infiniband transmission at 4CH SDR, DDR and QDR

Other optical links

Standards

Compliant with IEEE 802.3ba

Compliant with QSFP28 MSA hardware specifications

Compliant with RoHS

Functional Description

40G QSFP+ 850nm is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps bandwidth.one version is Each lane can operate at 10.5Gbps up to100m using OM3 or 150m using OM4 Multimode fiber,another version is Each lane can operate at 10.5Gbps up to300m using OM3 or 400m using OM4 Multimode fiber These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
