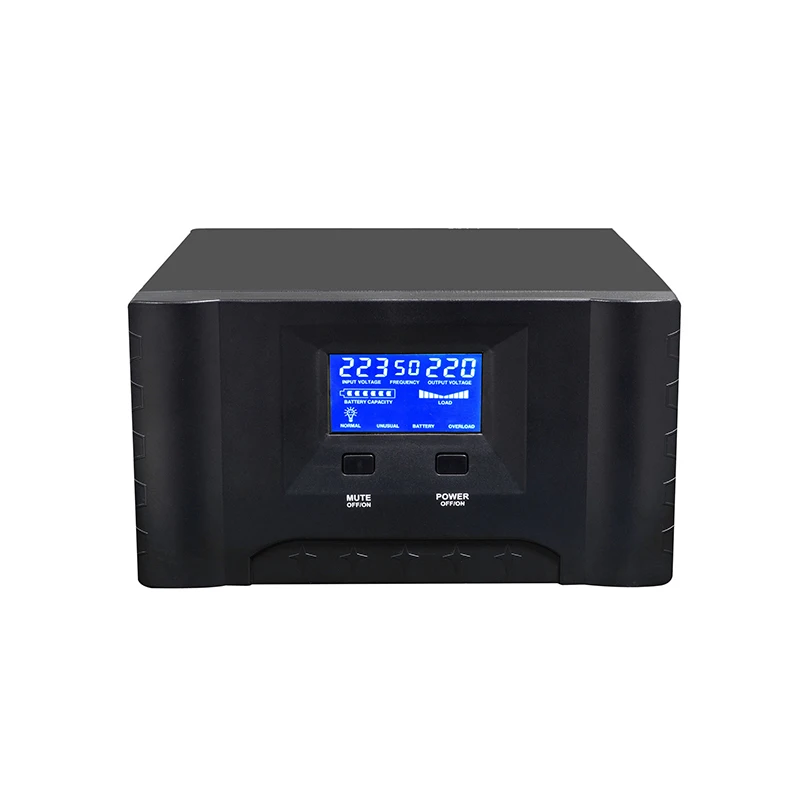

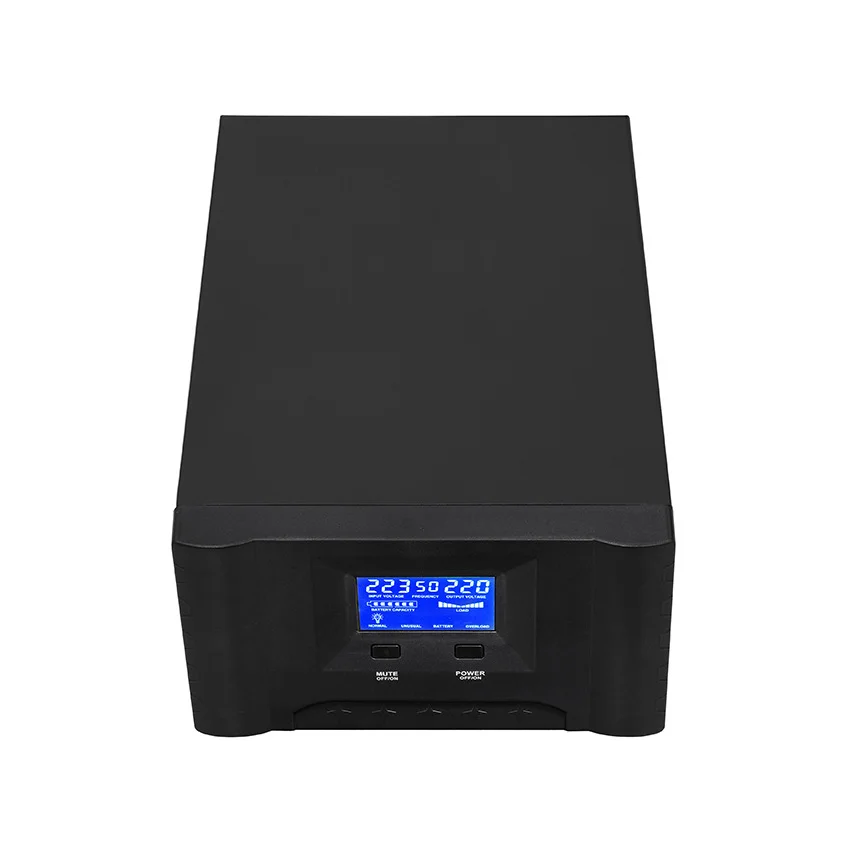

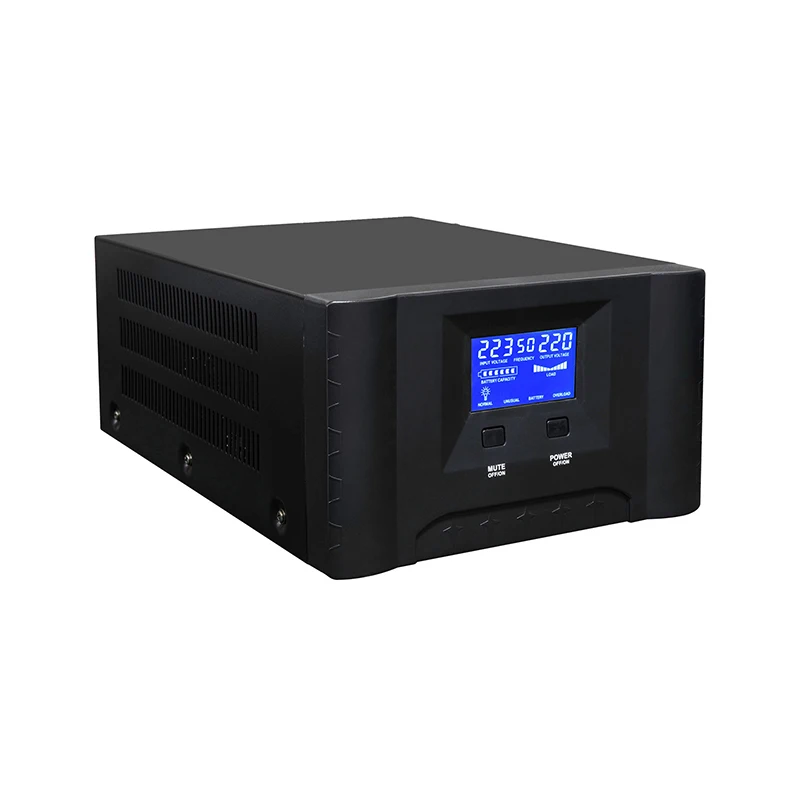

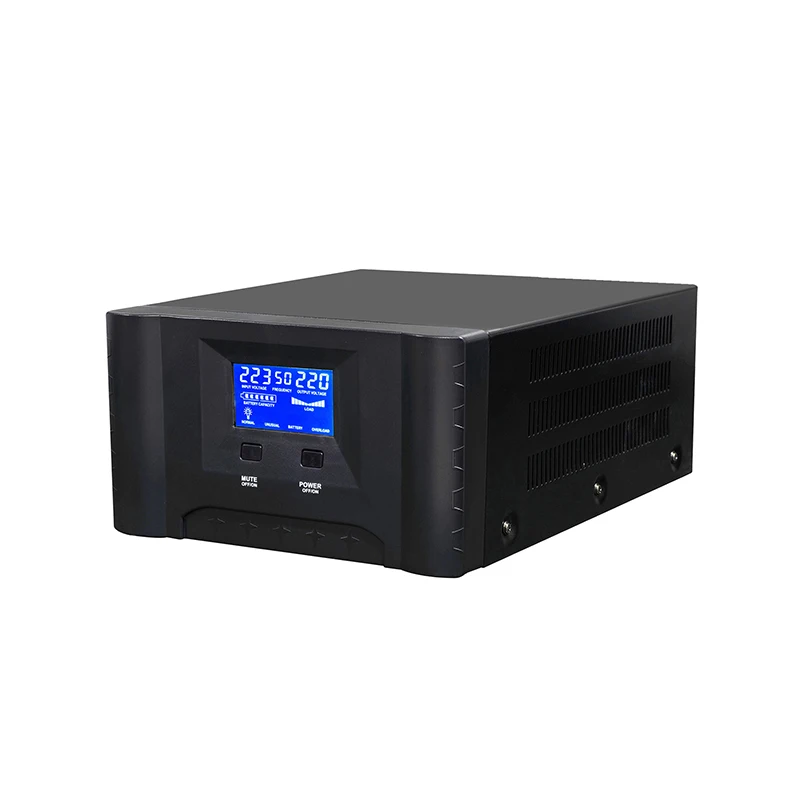

500W 12V/24VDC to 230V/110VAC 50/60HZ UPS Single phase Pure sine Wave Inverter Solar DC AC Converter Low Frequency | Обустройство

500W 12V/24VDC to 230V/110VAC 50/60HZ UPS Single phase Pure sine Wave Inverter Solar DC AC Converter Low Frequency | Обустройство

Two working way for your choice:Before you order,need confirm us for which working way you want.(Please leave a message after you need the function)

1,City power priority, when it has no city power, inverter will automatically switch to battery power to supply the load (UPS function);

2,Battery power priority:Whenbattery power is lower, inverter will automatically use bypass function to take the load, NO NEED charge to battery.

Please Note:
If you order this type inverter, please leave me message(about input voltage, output voltage, output frequency)

1.Working way:City power priorityorBattery power poriority(onlyone waycan be choose)
2. Input voltage:DC 12V(12V*1pcs)/DC 24V(12V*2pcs),
3. Output voltage:AC220V / 230V / 240VorAC100V/110V/120V(onlyone voltagecan be choose),
4. Output frequency:50Hzor60Hz(optional)(onlyone frequencycan be choose).

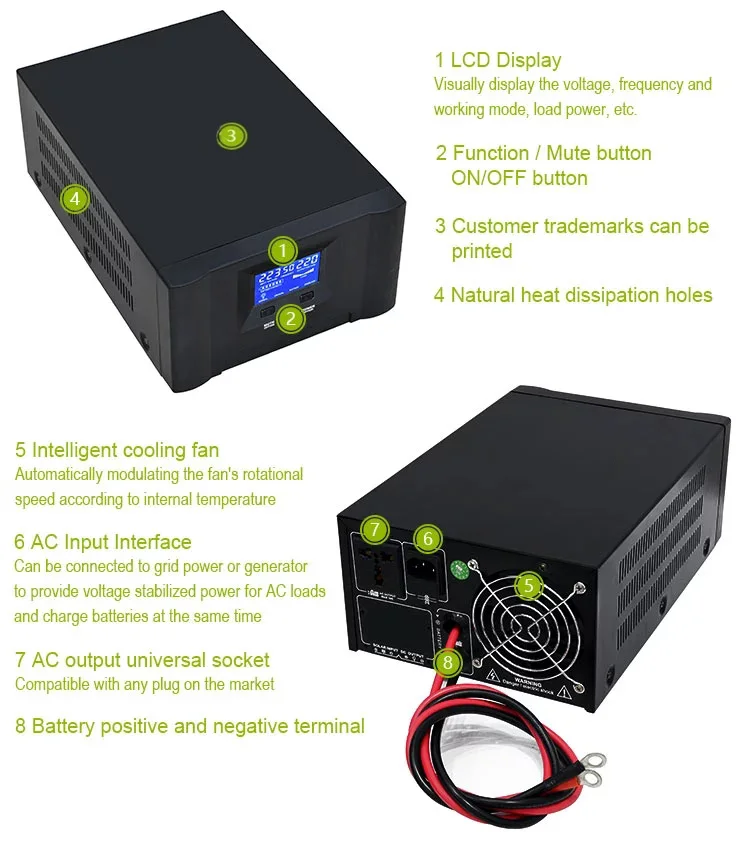

Features:

1.Pure sine wave output.

2.Low frequency toroidal transformer lower loss.

3.LCD/LED&LCD real-time display working status.

4.Auto select working modes: AC first, battery first and energy-saving mode.

5.RS232 communication port optional.

6.AC charging function, maximum charge currentup to 15A, AVR AC output.

Details:

Product parameter

Specification

Model NB

35112/24

50112/24

70124

Rated Power

350W

500W

700W

Peak Power(20ms)

1050W

1500W

2100W

Start Motor

0.3HP

0.5HP

0.5HP

Battery Voltage

12/24VDC

24VDC

Size(L*W*Hmm)

335*210*122

Packing Size(L*W*Hmm)

385*270*185

N.W.(kg)

6.5

8

10

G.W.(kg)(Carton Packing)

7.5

9

11

Installation Method

Desktop

Parameter

Input

DC Input Voltage Range

10.5-15VDC(Single battery voltage)

AC Input Voltage Range

73VAC~138VAC /  145VAC~275VAC

AC Input Frequency Range

45Hz~64Hz

Max AC charging current

6A~15A (Depending on the model)

AC charging voltage

LEAD battery:Charge Voltage :14V; Float Voltage:13.8V(Single battery voltage)

AC charging method

Three-stage (constant current, constant voltage, floating charge)

Output

Efficiency(Battery Mode)

≥85%

Output Voltage(Battery Mode)

110VAC±2%  / 220VAC±2%(Battery Mode)

Output Frequency(Battery Mode)

50Hz±0.5 or 60Hz±0.5

Output Wave(Battery Mode)

Pure Sine Wave

Efficiency(AC Mode)

>99%

Output Voltage(AC Mode)

110VAC±10%  / 220VAC±10%

Output Frequency(AC Mode)

Tracking Automatically

Output waveform distortion(Battery Mode)

≤3%(Linear load)

No load loss(Battery Mode)

≤2.5%  rated power

No load loss(AC Mode)

≤2% rated power( charger does not work in AC mode)

No load loss(Energy saving Mode)

≤10W

Battery Type

Customize battery

Charge and discharge parameters of different types of batteries (such as lithium batteries, etc.)
can be customized according to user requirements

Protection

Battery undervoltage alarm

11V(Single battery voltage)

Battery undervoltage protection

10.5V(Single battery voltage)

Battery overvoltage alarm

15V(Single battery voltage)

Battery overvoltage protection

17V(Single battery voltage)

Battery overvoltage recovery voltage

14.5V(Single battery voltage)

Overload power protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Output short circuit protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Temperature protection

>90°C(Shut down output)

Alarm

A

Normal working condition, buzzer has no alarm sound

B

Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection

C

When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal

Inside Solar controller
(Optional)

Charging Mode

PWM

Charging current

10A/20A/30A

PV Input Voltage Range

15V-44V(12V system); 30V-44V(24V system)

Max PV Input Voltage(At 25℃)

50V

PV Array Maximum Power

12V System:140W/280W/420W; 24V System:280W/560W/840W

Standby loss

≤3W

Maximum conversion efficiency

>95%

Working Mode

Battery First/AC First/Saving Energy Mode

Transfer Time

≤4ms

Display

LCD

Thermal method

Cooling fan in intelligent control

Communication

RS232(Optional)

Environment

Operating temperature

-10℃~40℃

Storage temperature

-15℃~60℃

Noise

≤55dB

Elevation

2000m(More than derating)

Humidity

0%~95% ,No condensation

Warranty

1 year

Note: All specifications are subject to change without prior notice

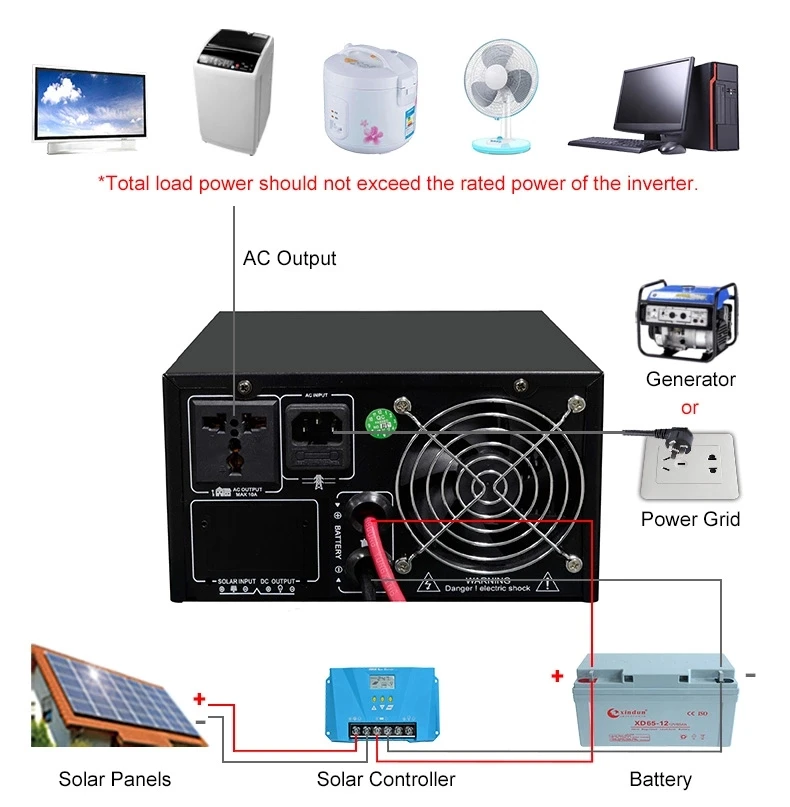

How to use mini inverter?

1. Battery number and capacity should be configured according to the rated voltage of the solar power system or invertor;

2. We offer 3 optional working modes (transfer time≤4ms):

01 Grid priority mode:When the grid and battery are connected to the invertor, grid will supply power to the loads directly after voltage being stabilized and charge batteries via invertor. When the grid is cut off, the battery will automatically continue to supply power via invertor.
02 Energy saving mode:If the power of the connected AC loads is lower than 5% of the invertor’s rated power, there will be no output from the invertor. Only the chip of invertor is working. The power consumption of the invertor is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the invertor will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode:When the grid and battery are connected to the invertor, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
