New DC 5V Ethernet Control Module LAN WAN Network Web Server IP TCP RJ45 Port + 8 Channel Relay Expansion Board for Arduino iOS |

New DC 5V Ethernet Control Module LAN WAN Network Web Server IP TCP RJ45 Port + 8 Channel Relay Expansion Board for Arduino iOS |

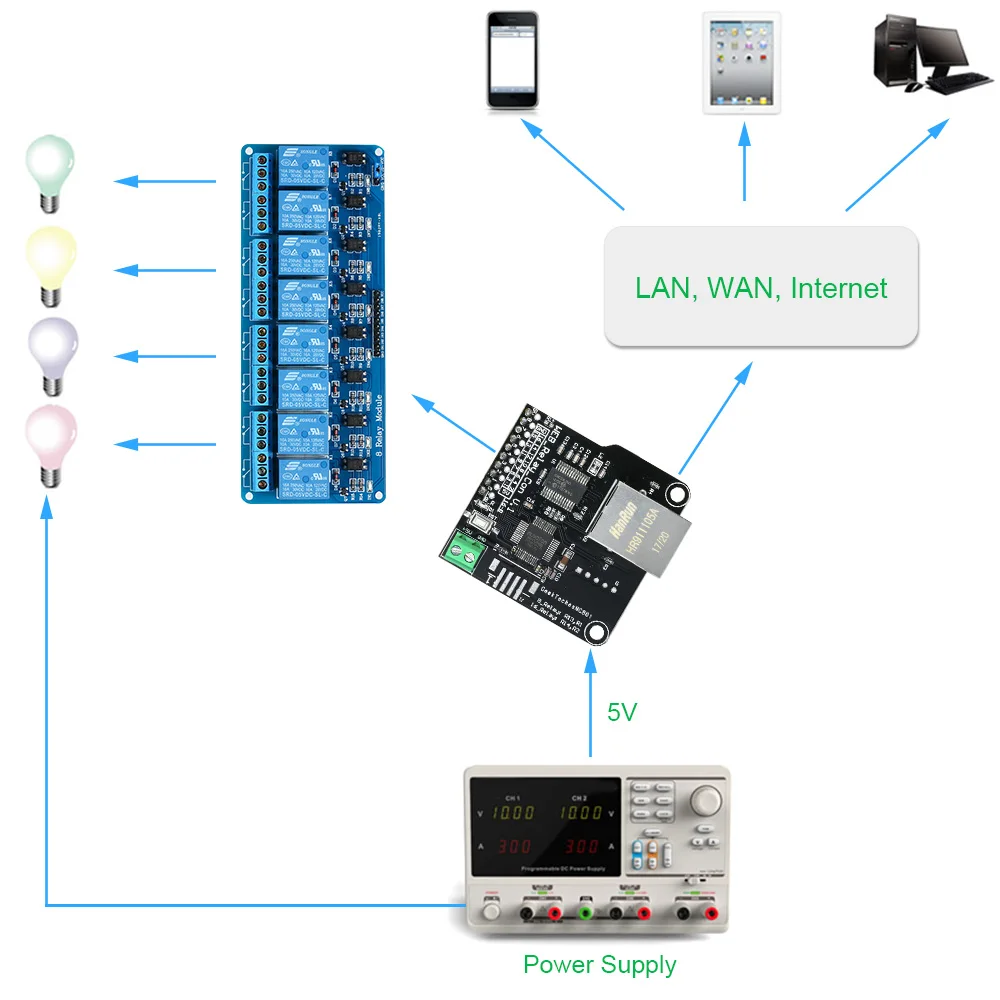

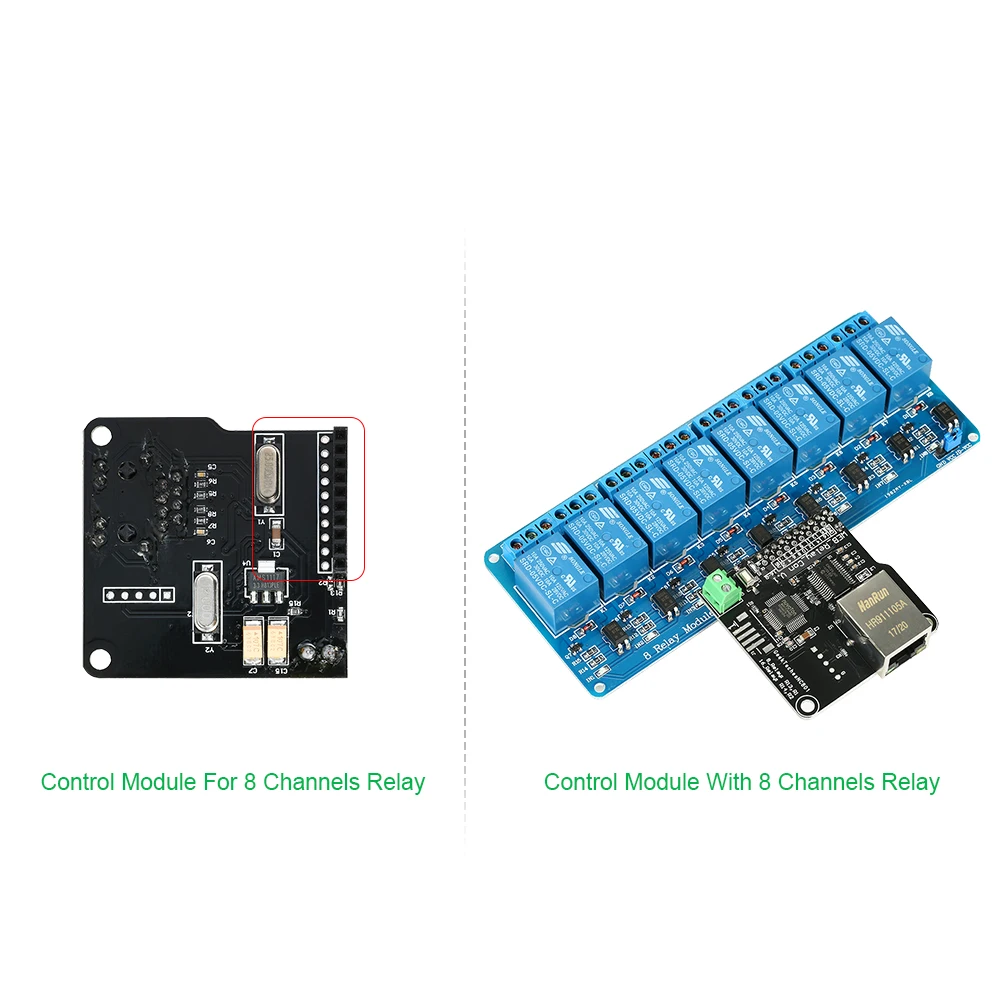

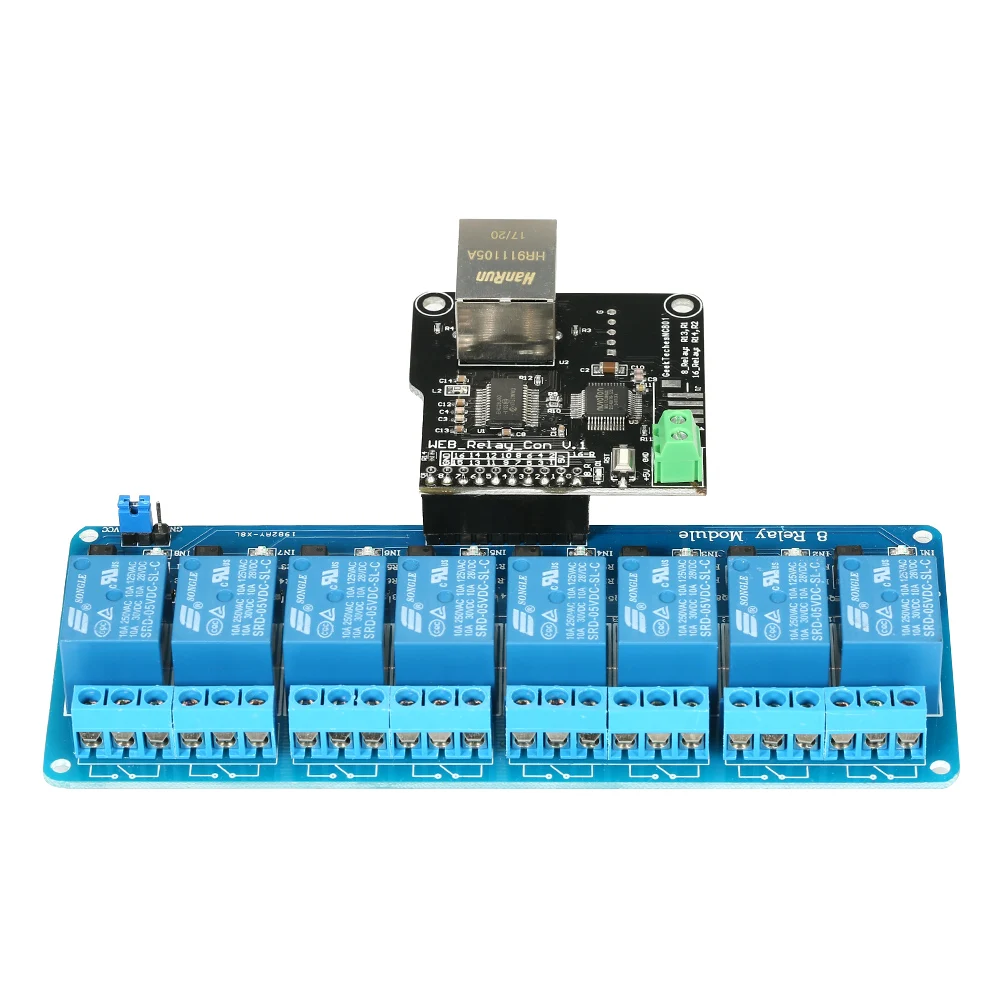

This is an Ethernet controller board based on Imatic system which is compatible with the 8 channels relay. Using the controller module and the 8 channels relay, you can control up to 8 devices remotely on LAN or WAN. The Ethernet controller board has integrated the web server, When you are on your office, you just need to open the page on your computer, pad or smartphone, and then control your devices like lights, air-conditioning or refrigerator on your home. Just look the picture below. You can feel free to enjoy the remote controlling of your other devices with the Ethernet Controller board. The 8 channel relay is included.

Features:
Control switches remotely together with 8 channel relay.
RJ45 interface, via RJ45 telecommunications connection for network control.
Support 8 channels relay which means you can control up to 8 different devices at the same time.
Unique dual TCP connect control, corresponding with above trait, local as TCP server.
Accept client control, when connect to remote server as TCP client.
Supply core module detailed information.
Default IP: 192.168.1.4 prot: 30000
http://192.168.1.4/30000 (You can change the default IP address)

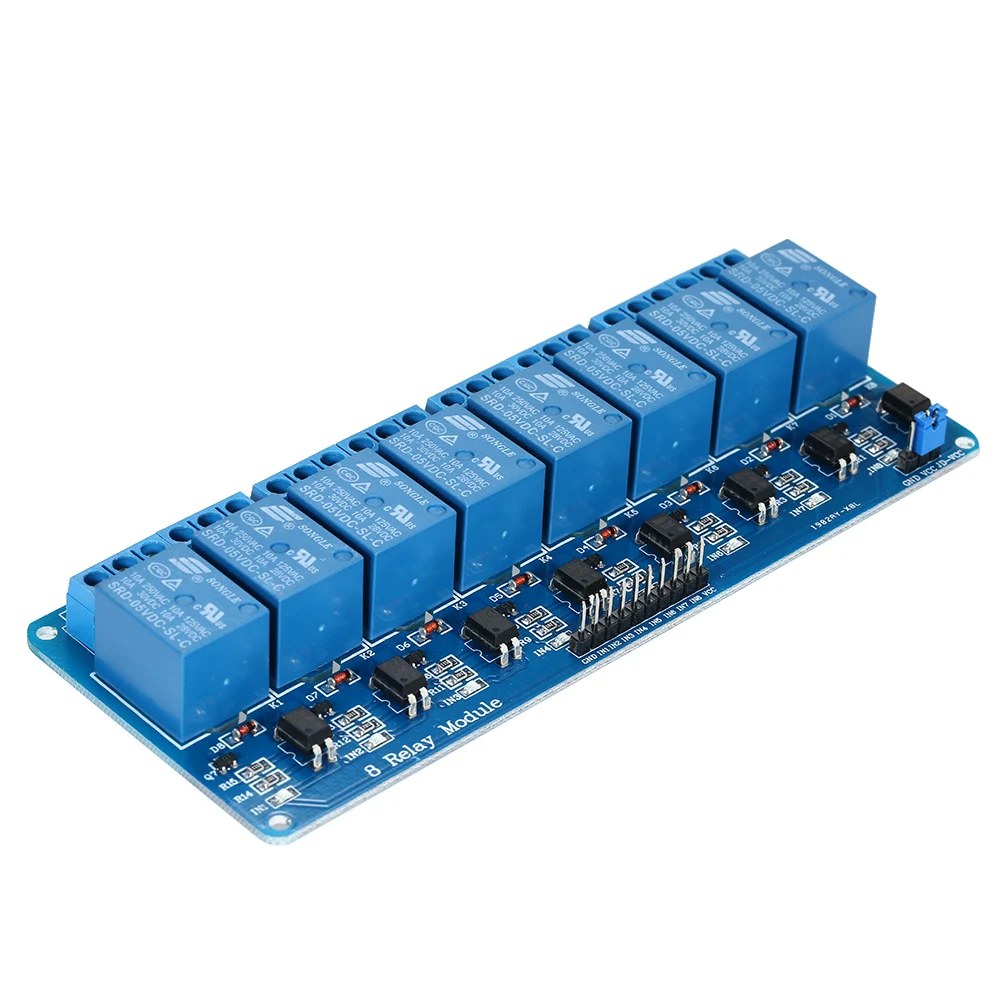

8-Channel 5V relay module for Arduino UNO Mega2560 Due R3 Raspberry Pi.

HTTP Comment:
http://192.168.1.4/30000/00 : Relay-01 OFF
http://192.168.1.4/30000/01 : Relay-01 ON
http://192.168.1.4/30000/02 : Relay-02 OFF
http://192.168.1.4/30000/03 : Relay-02 ON
http://192.168.1.4/30000/04 : Relay-03 OFF
http://192.168.1.4/30000/05 : Relay-03 ON
…
http://192.168.1.4/30000/14 : Relay-8 OFF
http://192.168.1.4/30000/15 : Relay-8 ON
http://192.168.1.4/30000/41 : Enter
http://192.168.1.4/30000/40 : Exit
http://192.168.1.4/30000/42 : Next Page
http://192.168.1.4/30000/43 : Next Page

Specifications:
Working Voltage: DC 5V
Channel: 8 Channels
Ethernet Control Module Size: 50 * 47 * 25mm / 2.0 * 1.9 * 1.0in
8 Channel Relay Module Size: 138 * 56 * 19mm / 5.4 * 2.2 * 0.7in
Assembled Product Size: 138 * 101 * 27mm / 5.4 * 4.0 * 1.1in
Item Weight: approx 129g / 4.6oz
Package Size: 14 * 6 * 4cm / 5.5 * 2.4 * 1.6in
Package Weight: approx 134 / 4.7oz

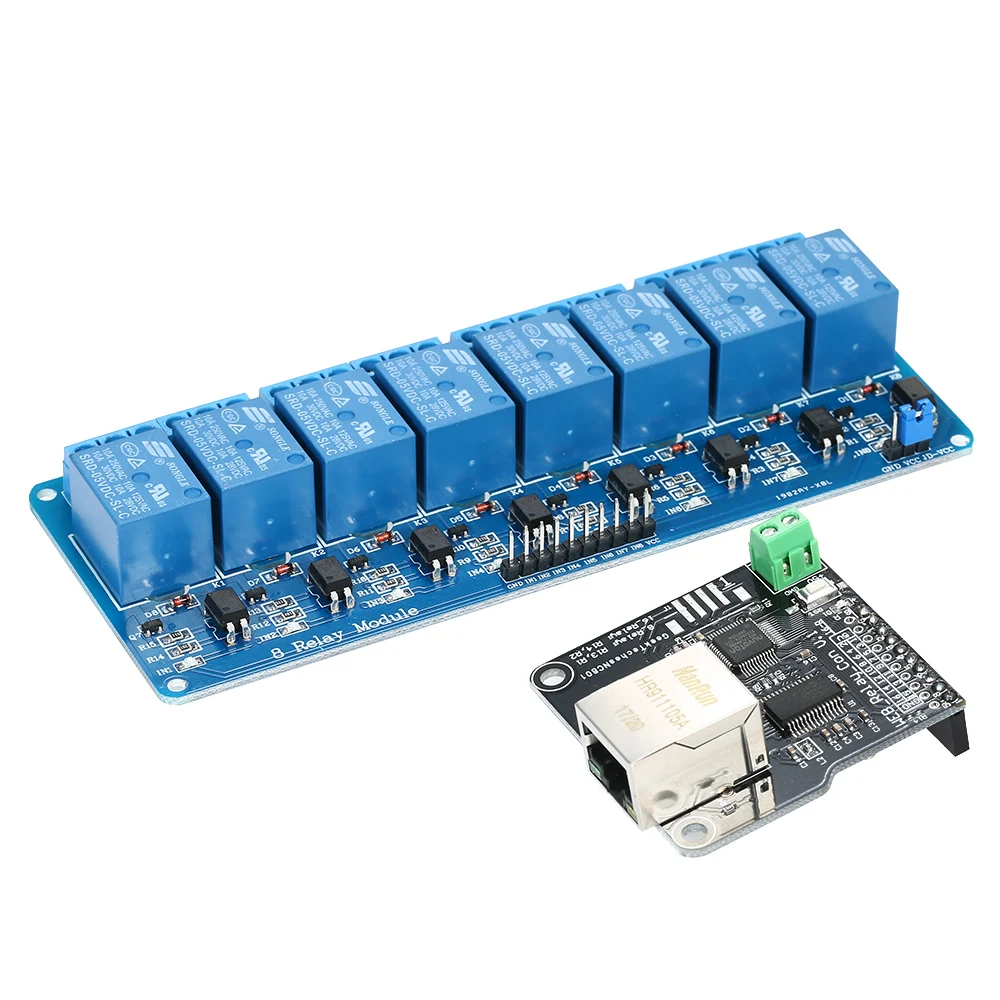

Package List:
1 * Ethernet Control Module
1 * 8 Channel 5V Relay Module
