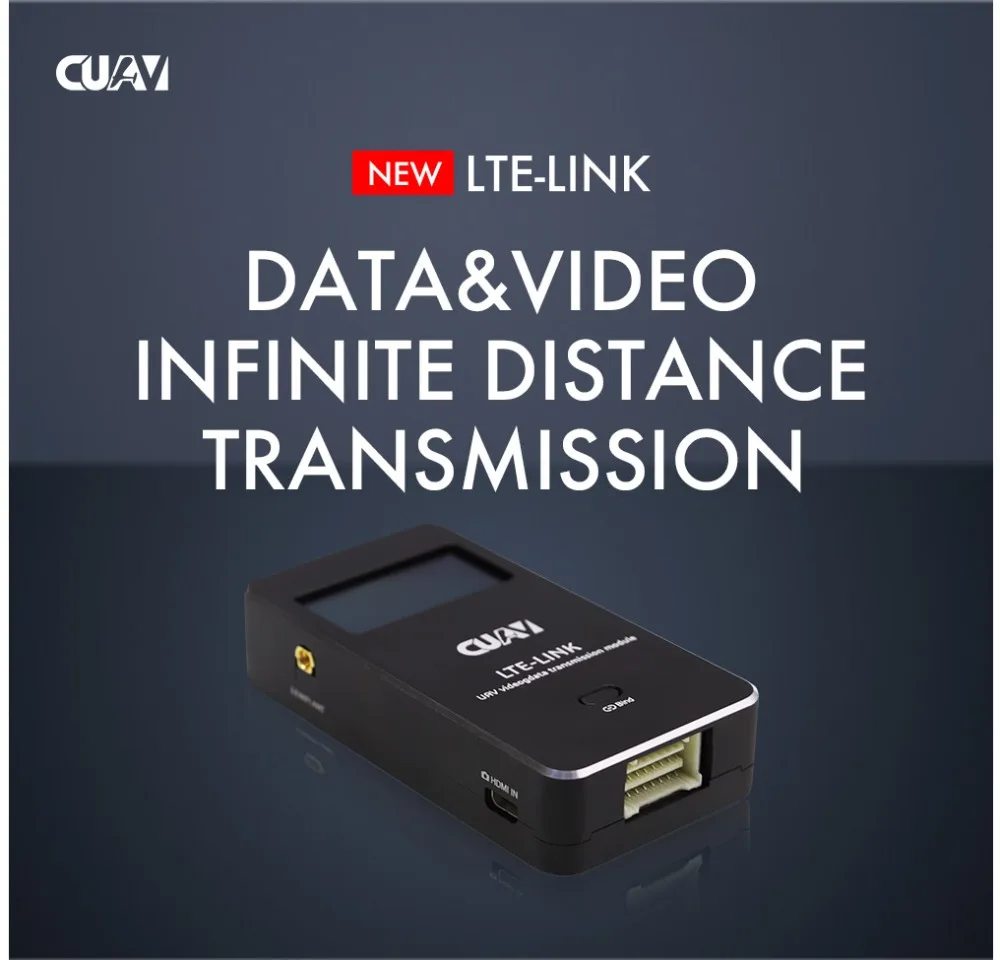

CUAV Wireless 4G LTE-LINK Data Transmission and Digital Video Link for RC FPV Drone Parts Industrial Communication System

Features:
LTE-LINK LTE 4G integrated telemetry
Support non-attack ground station, CUAV GS mobile phone ground station, can also use Ardupilot, QGC ground station through non-attack transmission. 1080P high-definition image transmission, ideal environment can be as low as 250ms, digital transmission delay 60ms.
HD 1080P image transmission, 250ms low latency
LTE LINK products support 1080P real-time high-definition image transmission with low latency, ideally as low as 250ms

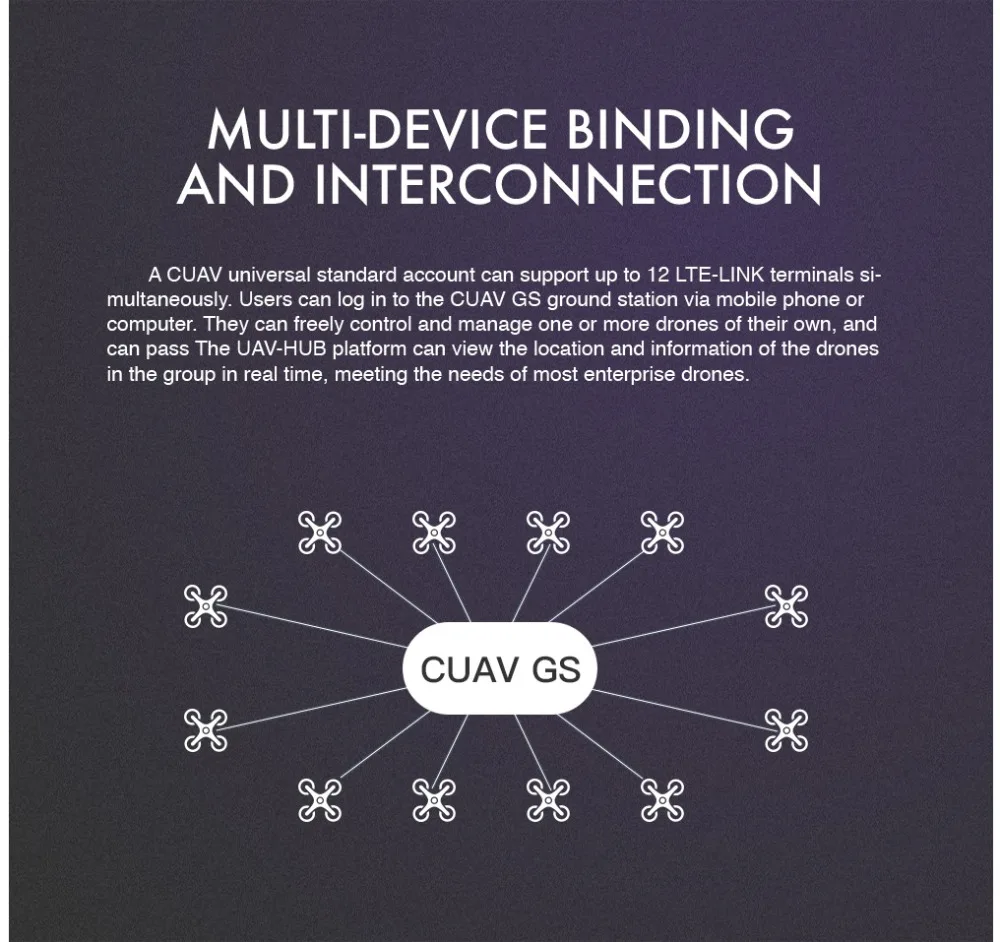

Multi-client support
It not only supports CUAV self-developed client, but also supports two open source ground stations of QGroundControl and MissonPlanner, and allows users to customize the client supporting Mavlink protocol.

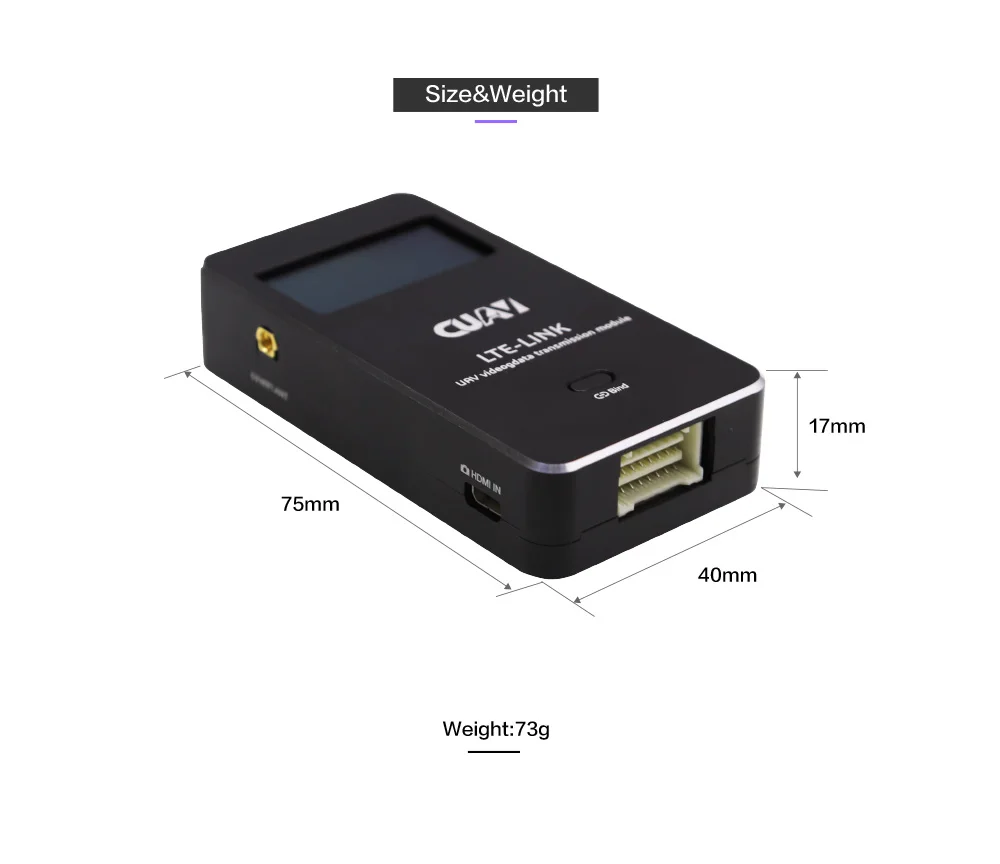

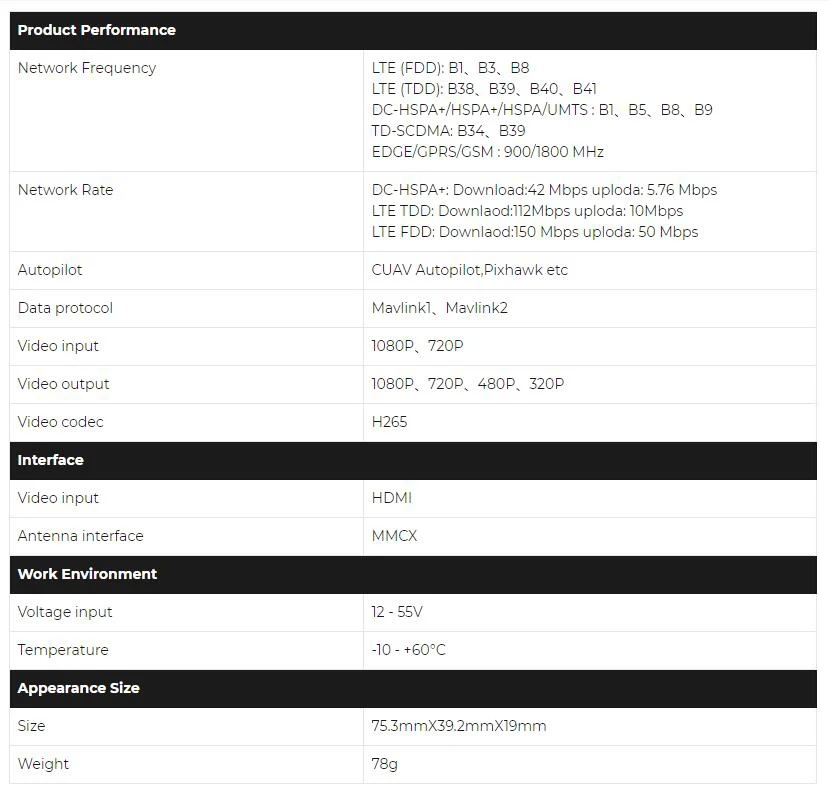

Specifications /LTE-LINK video&data telemetry

FAQ /LTE-LINK video&data telemetry

Support flight control type
Currently only supports standard MAVLINK1 and MAVLINK2 protocol flight control, such as PIX series flight control, supports Ardupilot and PX4 firmware.

Support network type
The default built-in module can support mobile phone base station networks of three operators in China (China Mobile, China Unicom, China Telecom)
Farthest control distance

1. There is no limit in theory, depending on the operator's network coverage, the control distance is determined
2. The farthest control height: under the condition of good signal coverage, below 800 meters (the safe flight altitude cannot exceed 100 meters)
3. Because the server is currently installed in China Regional, foreign visits may be affected by geographical delays may be affected

How to solve network coverage problems
Because the operator network has coverage blind spots, the special application scenario can be solved by expanding the private network module and the private network base station to form redundant communication where the public network and the private network coexist. CUAV currently offers a private network solution, with a dedicated network base station covering a range of 50 kilometers and supporting more than 100 devices. If necessary, please contact our business staff.
