☆Features:
1 Support SD card, high-speed USB2.0 interface is compatible with a variety of U disk, removable hard drive, hot-swappable.
2. Card-type full-function remote control.
3. Loudness switch, Loud bass reverberation aggravated extraordinary!
4. Hardware electronic sounds (EQ) processing, multiple EQ modes, treble and bass can be adjusted;
5. Full digital electronic control search radio stations, high-performance digital tuning FM radio automatically scans, 18 stations memory
6. Song memory xubo! Lets you play MP3 no longer re-start the first song;
7. Support shuffle, repeat all, repeat single, repeat directory.
8. Support GPS navigation(OPTIONAL);
9. AUX audio input interface can add MP3, mobile phones, music players and other audio input.
10. USB support large current output, can charge for mobile phone (Note: Some phones may not charge, please know);

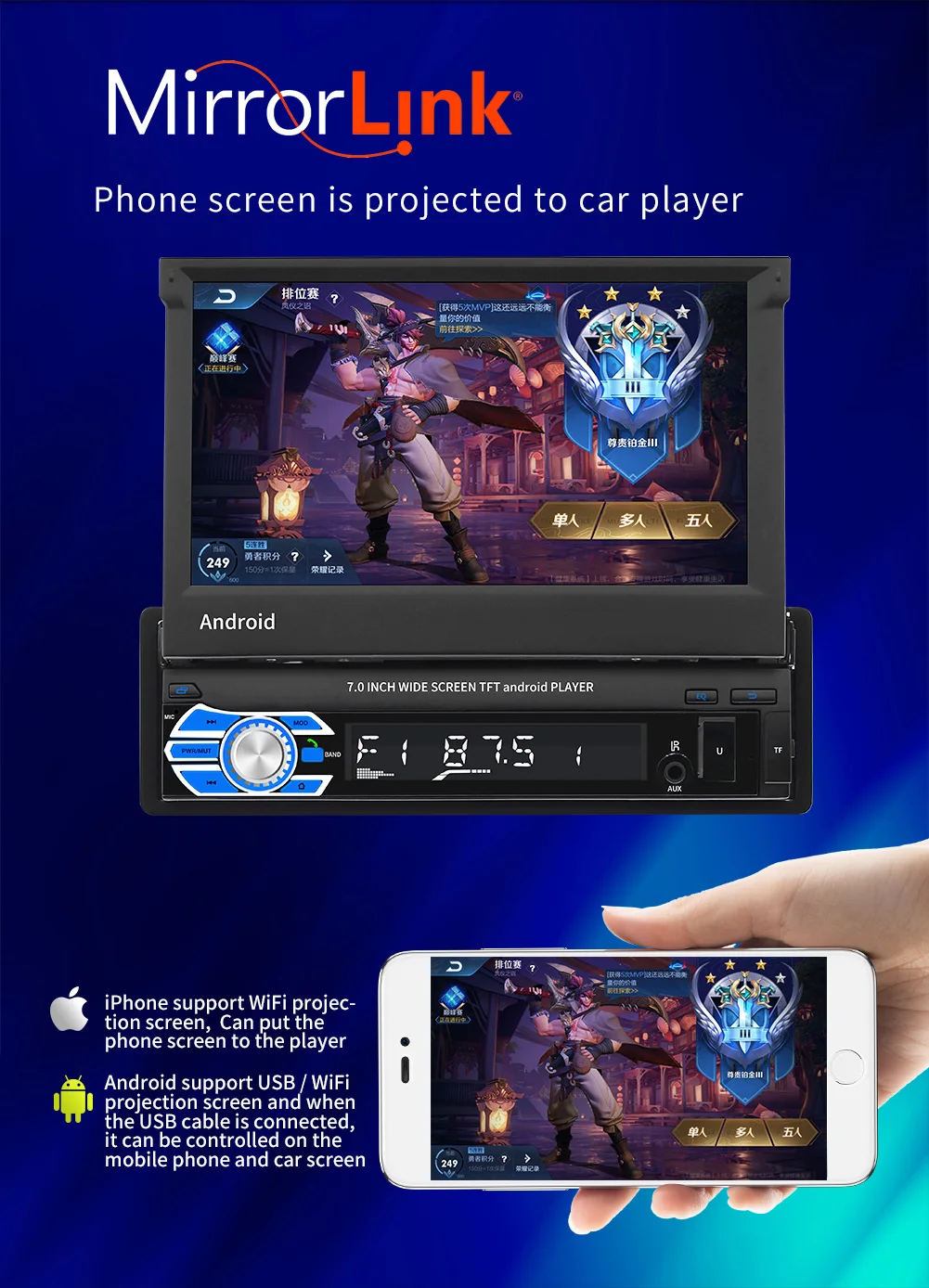

11.Support Android Phone Mirror Link(Connected by data cable).
12.OSD langage : Russian, English, ,Spanish, French, Dutch, Italian, Portuguese, Turkish, Czech, Polish,Chinese and ect.
MP3 Player,Car Audio,PlayerCar Radio,Car Stereo audio Radio GPS Navigation Bluetooth 1 din Retractable Touch Screen Monitor DVD MP5 SD FM USB Player   Digital  Car Radio PlayerCar Stereo Audio In-dash FM Receiver Aux Input Receiver USB MP3 MMC WMA RadioIn Dash Slot AUX Input MMC WMA Car Radio

Specifications:
Model: 9706
Voltage: 12V
Type: Android Navigation
System: Android
Configuration: 1G+16G
Software Solution: Palm News

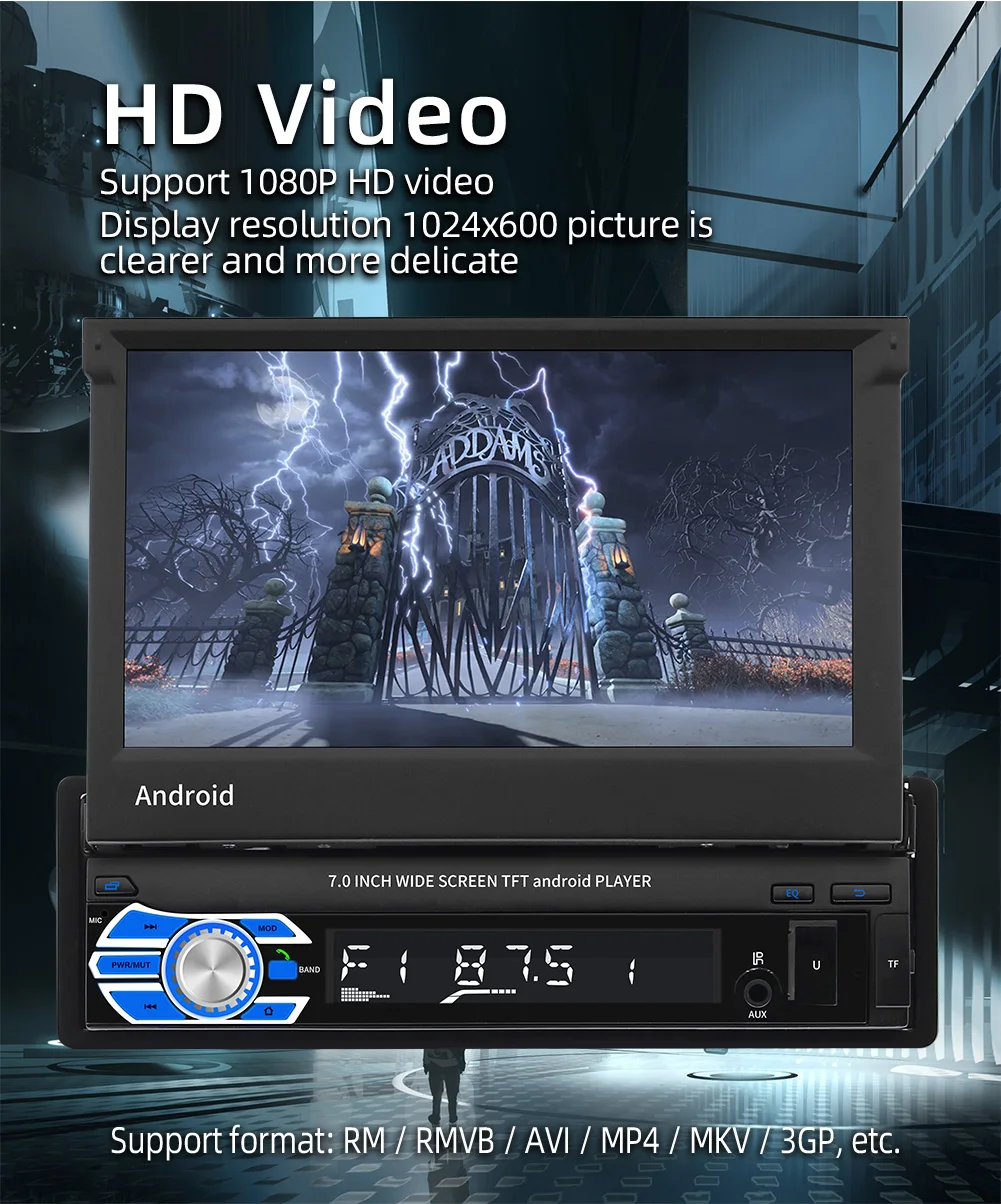

Screen model: 7 inch HD
Screen size: 7 inches
Screen resolution: 1024*600

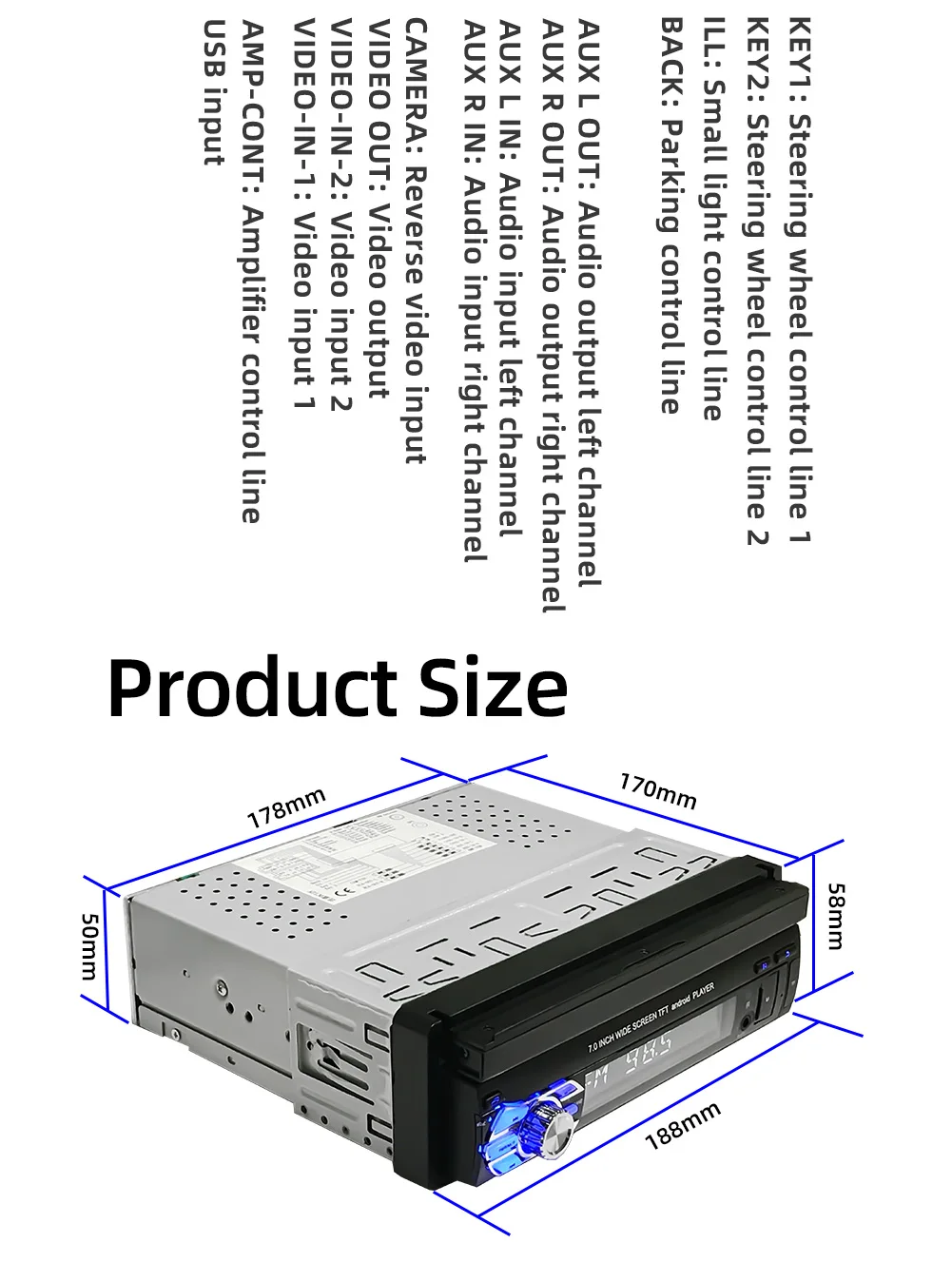

Panel size: 188*58mm
Product size: 188*165*58mm
Panel light: blue
Color box size: 210*95*260mm (cowhide box)
Host depth: 165mm
Single machine: 1.85KG
Mobile Internet: Support (Apple/Android)

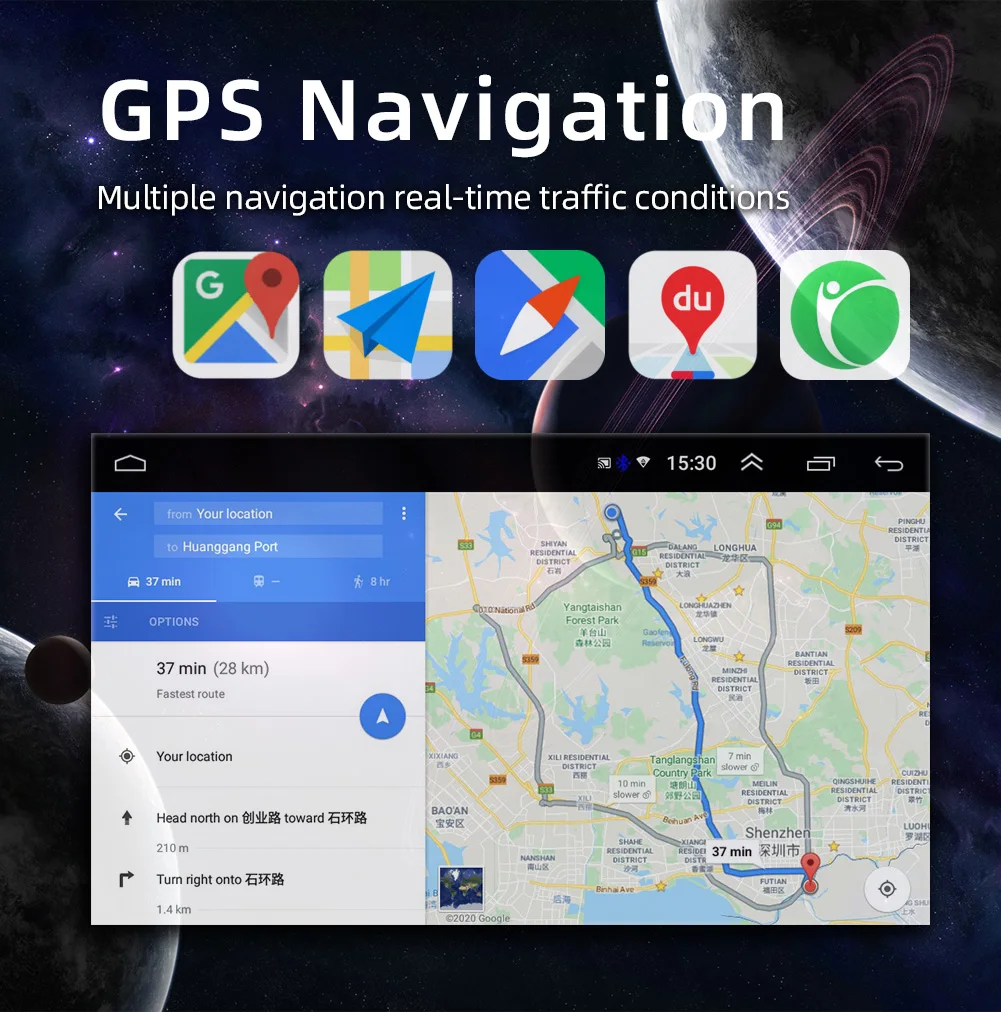

GPS navigation: support
Radio band: FM
Radio chip: QN8035
Languages: Indonesian/Malay/Czech/Danish/German/English/Spanish/Filipino/French/Croatian/Italian
Latvian/Lithuanian/Hungarian/Dutch/Norwegian Bokmal/Polish/Portuguese/Romanian
Slovak/Finnish/Swedish/Vietnamese/Turkish/Greek/Bulgarian/Russian/Ukrainian/Hebrew
Urdu/Arabic/Farsi/Hindi/Bengali/Thai/Khmer/Korean/Chinese/Chinese Traditional/Japanese
Power: 60W
Working temperature -10~60 degrees

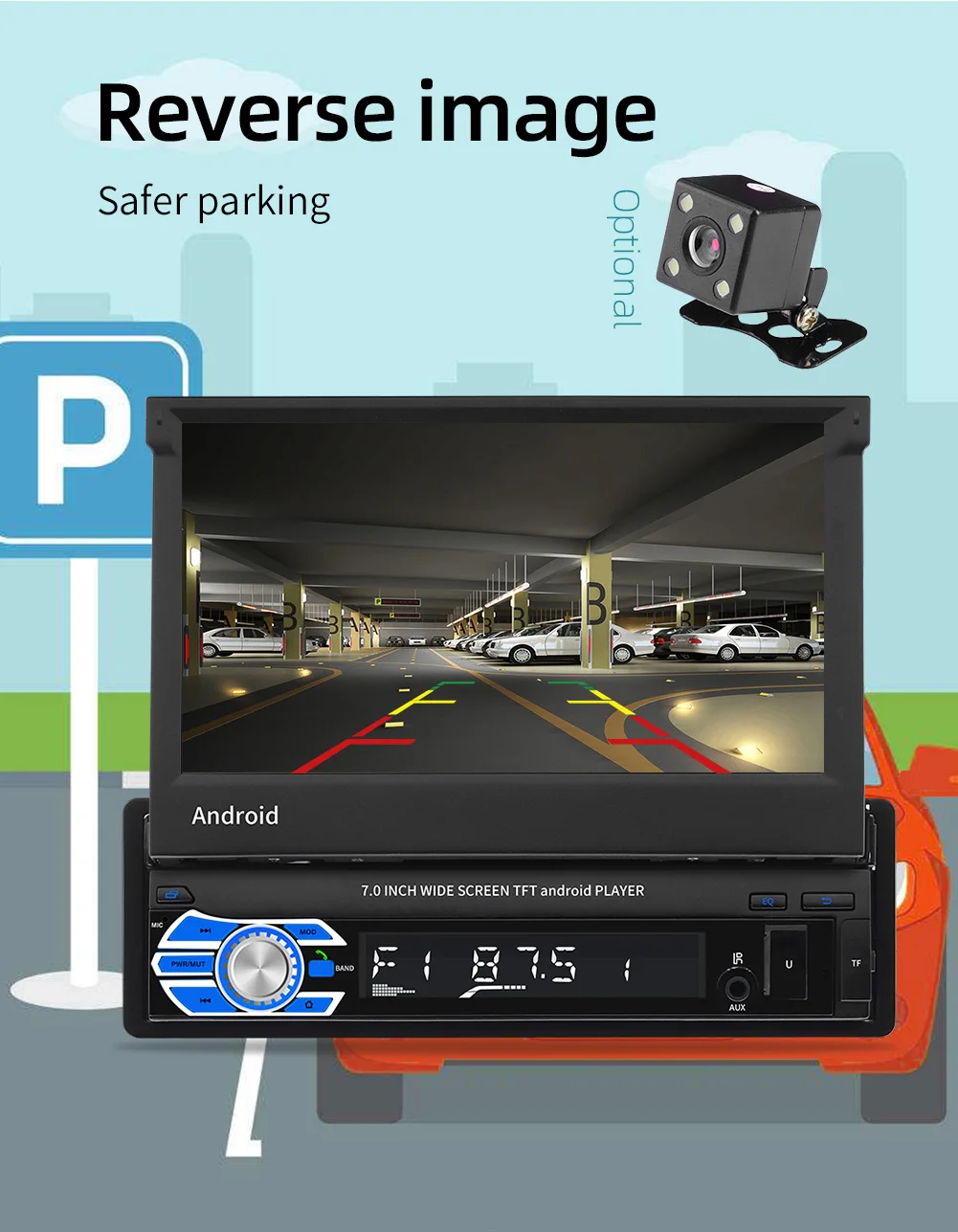

Reversing image: support (optional camera)
Brake prompt function: support

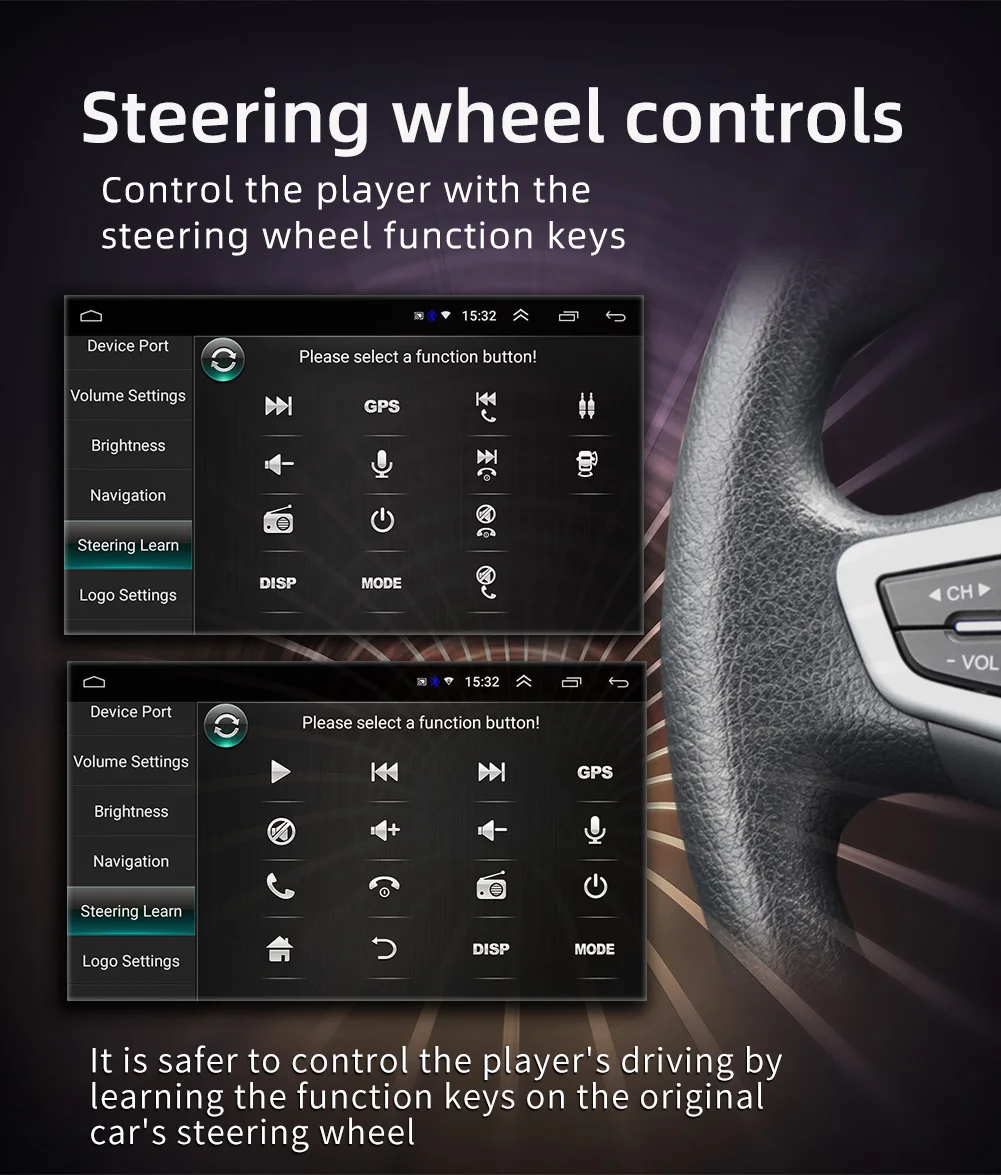

Steering wheel control function: support

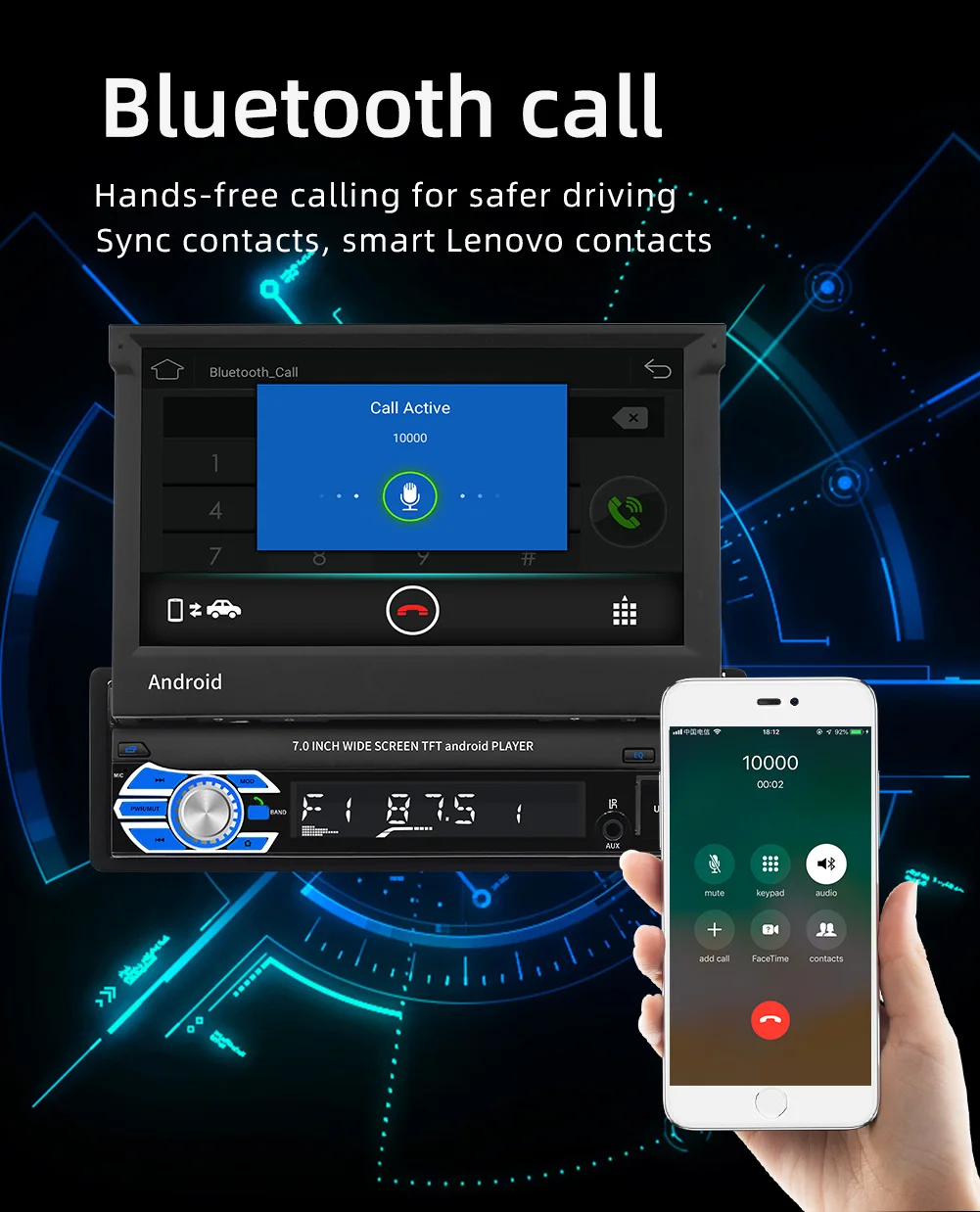

Bluetooth model: version 4.0
Amplifier chip: TDA7388

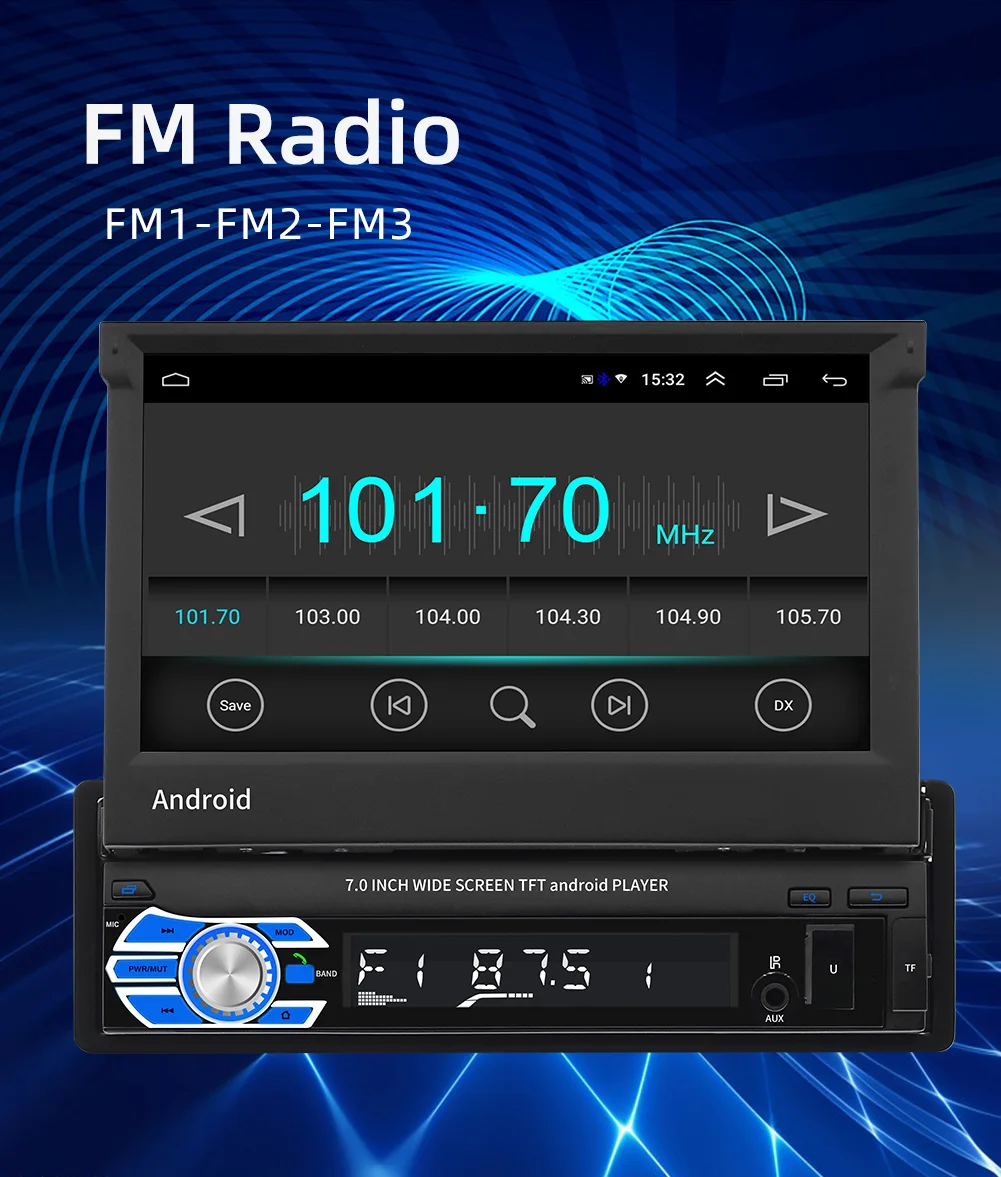

Radio frequency: FM 87.5~108MHz
Video output: Yes
Dual-screen simultaneous display: support
Built-in offline map: Europe(optional)

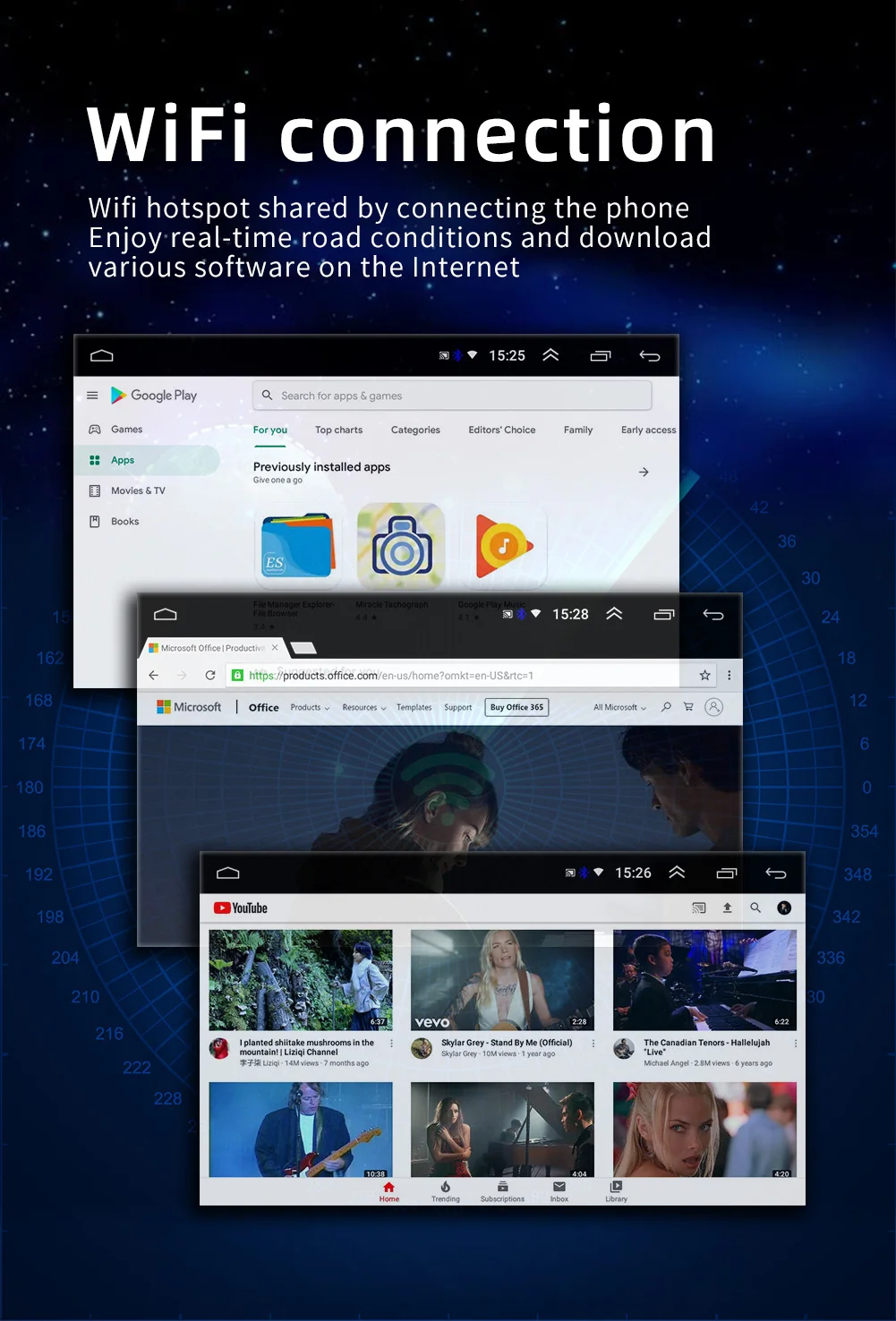

Wireless WIFI: support
TF card slot: none
GPS card slot: None
Remote control: Yes
Party control line: Yes
USB interface and version: 2, rear USB cable and front USB
Reset button: Yes
Buttons: physical buttons

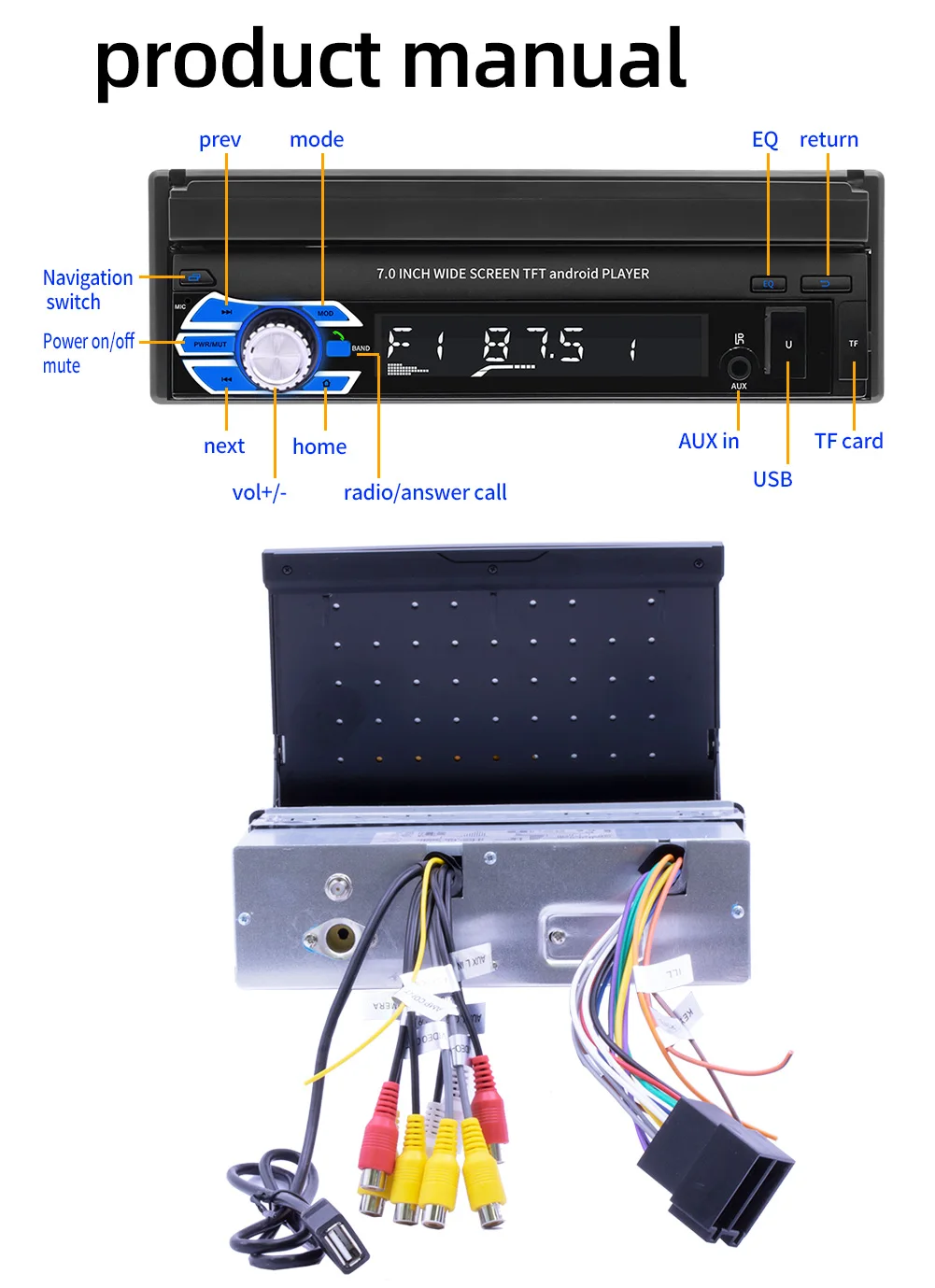

RCA terminal introduction: 2 audio outputs, 2 audio inputs, 2 video inputs, 1 reversing input, 1 video output, 1 subwoofer output
Front MIC: Yes

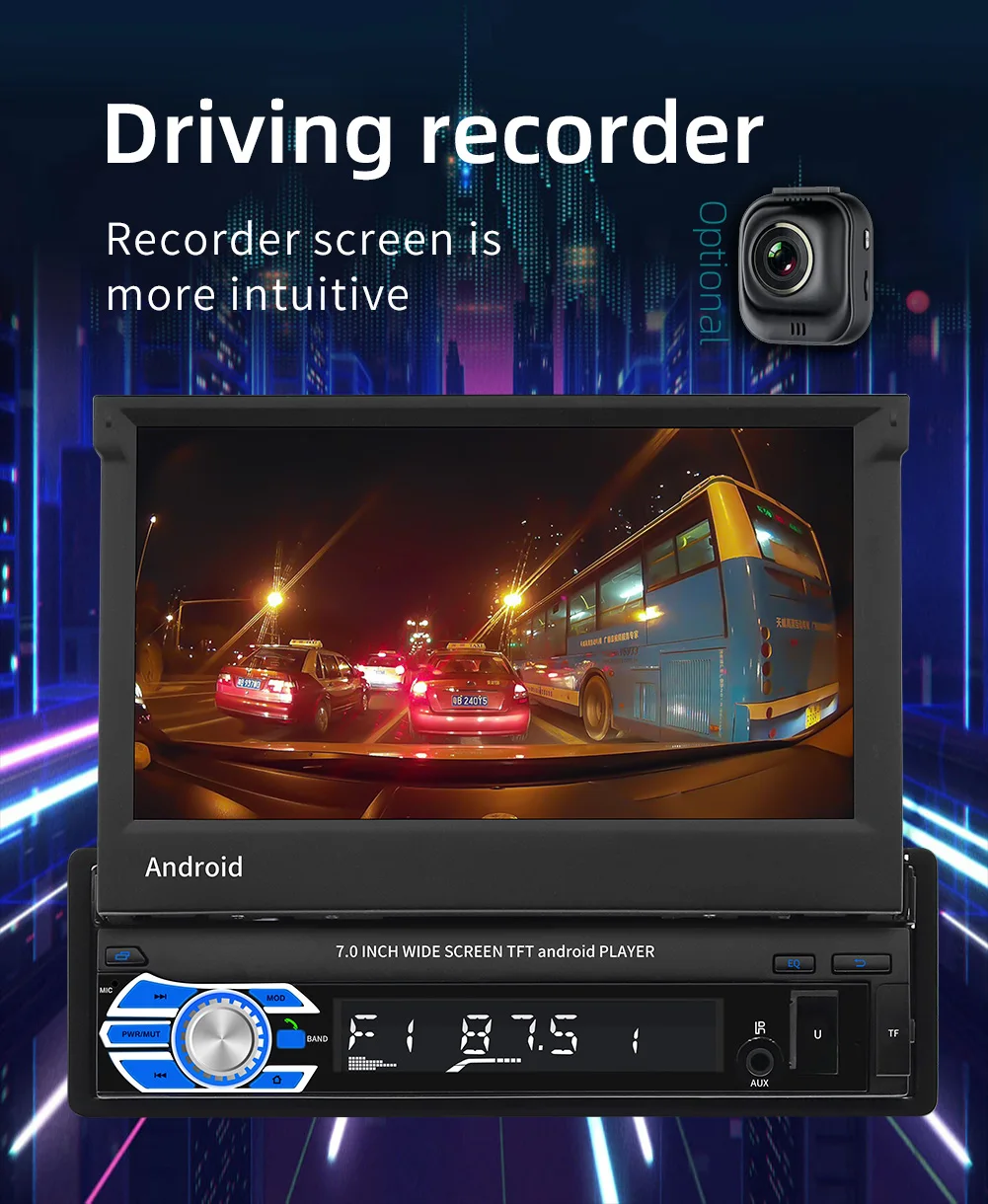

DVR function: support
DAB function: None
OBD function: None
TV function: None
DVD movement model: None
4G/3G: None
Car logo replacement: support

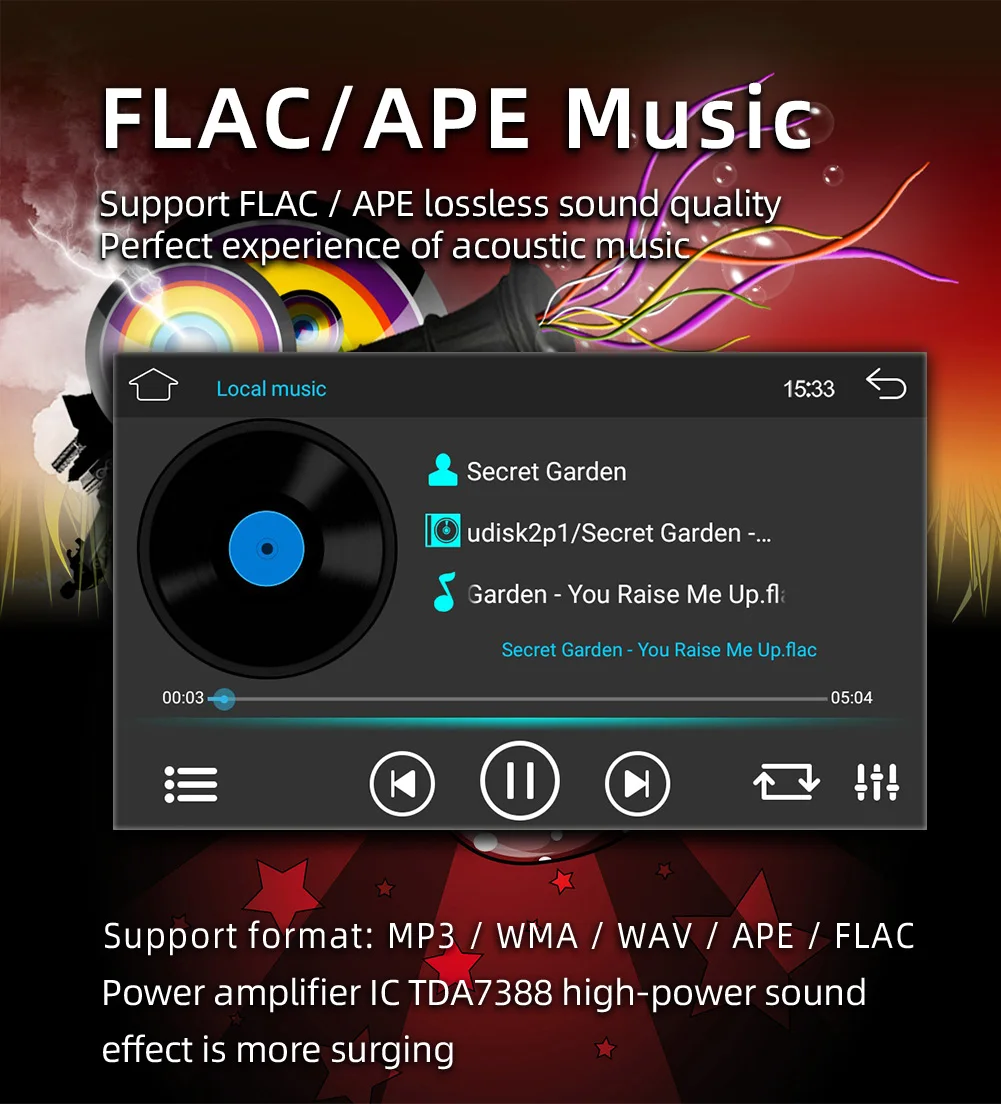

Supported audio formats: MP3/WMA/WAV/APE/FLAC
Supported video formats: RM/RMVB/AVI/MP4/MKV/3GP
Supported picture format: JPG
Factory setting password: 1983

Tips: The remote control of the machine does not include a battery, becuase for export and shipping .

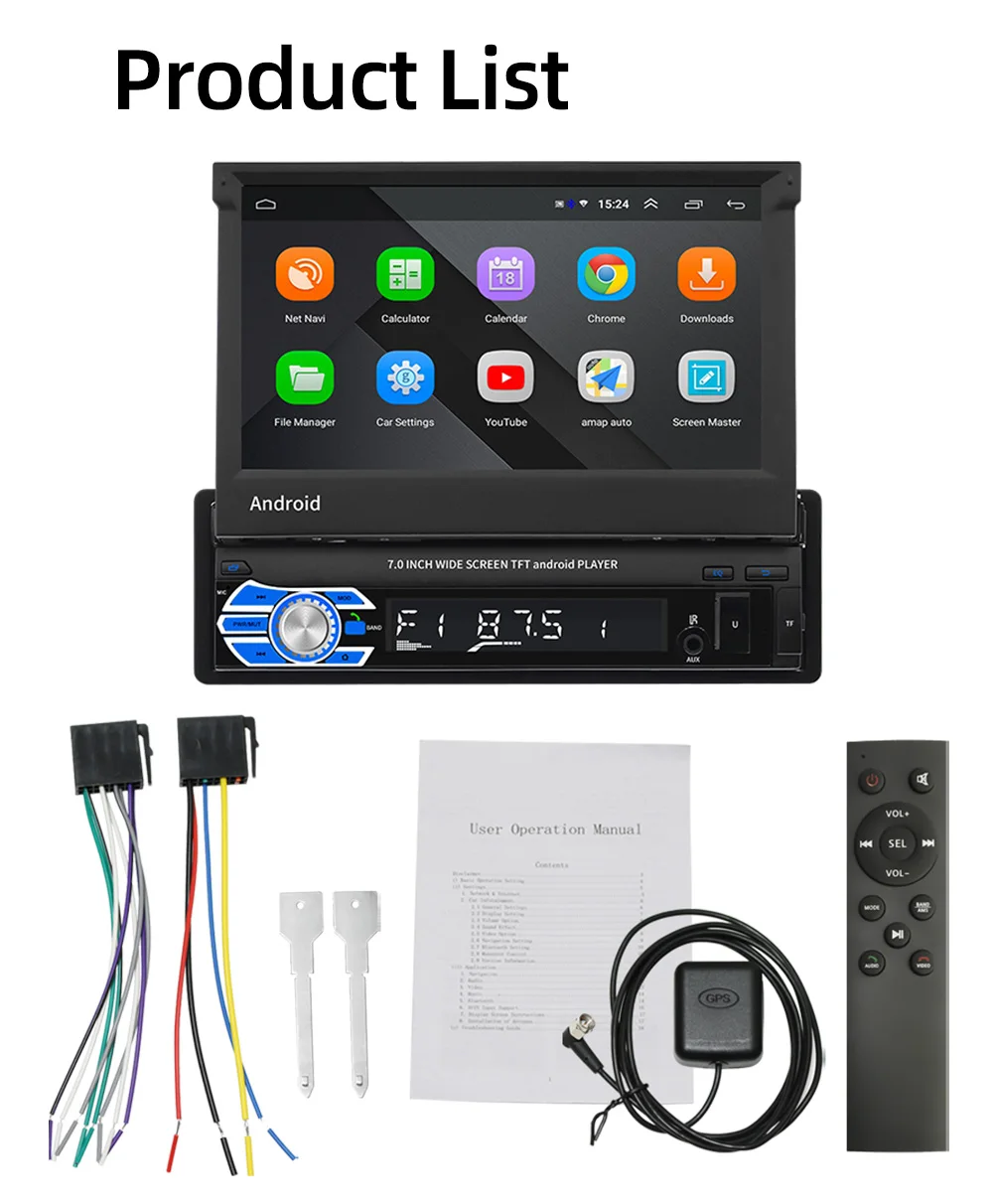

Packing List:
1 x Car Bluetooth MP5
1 x Remote control
1 x English User Manual
1 x Connector Wire
2 x Bracket

FAQ:
1.Why can't turn on the car radio ?

1.1Please check the Voltage of car radio : 12V
1.2When you test this car radio,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply.
1.3Replace the same type of insurance to test the car radio.
Note: Please must use our power cables to connect our car radio,it is not possible to insert the original car plug directly into our machine.

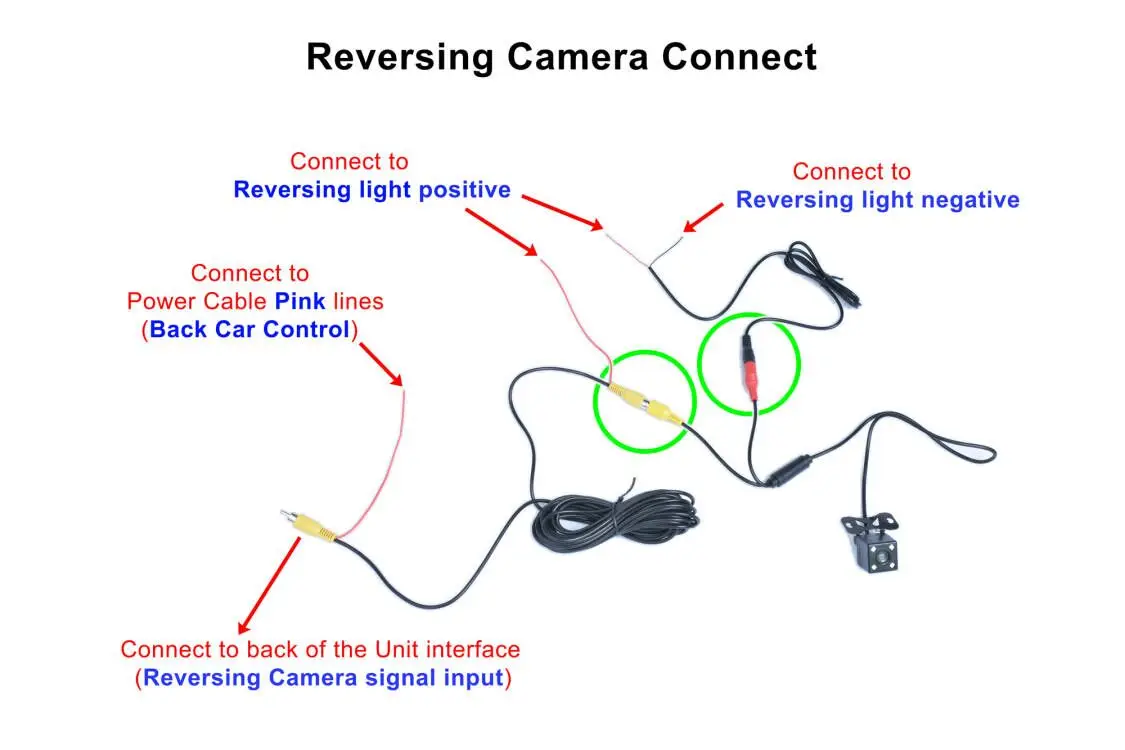

2.Why the car radio will show "No Signal" when we reversing?

Please check if the camera's line is properly connected to the car radio.
Note:The video port of rear camera must insert the "CAMIN" port of car radio.

3.Why does the camera display "!" and "Can't watch video while driving" when I use USB to watch videos?

Please turn off the "Video Warning" function in the settings,then will be OK.

4.Why can't search FM?

4.1: No radio antenna inserted;
4.2: Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted;
4.3: The signal of your location is not good. Please go to a better place to test again
4.4: The radio antenna on the car is broken/no effect; please replace the radio antenna and test again.

5.Why can't connect the Bluetooth of car radio?

5.1.Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, find the player's Bluetooth model to be paired; if you need a pairing code, enter 0000; if not, try 1234 or 123456.
5.2.Please try to use another mobile phone to test this function.
All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minutes.
