We offer discount for large quantity. Welcome to contact with us!

Open the door input: all the way to open the button input.Doorbell output: one way wired doorbell output.Wiegand 26: One way Wiegand output, one way Wiegand input.Can be connected to automatic door or gate.Working power supply: Less than 100mA.Working temperature: 0 Celsius ~ 60 Celsius

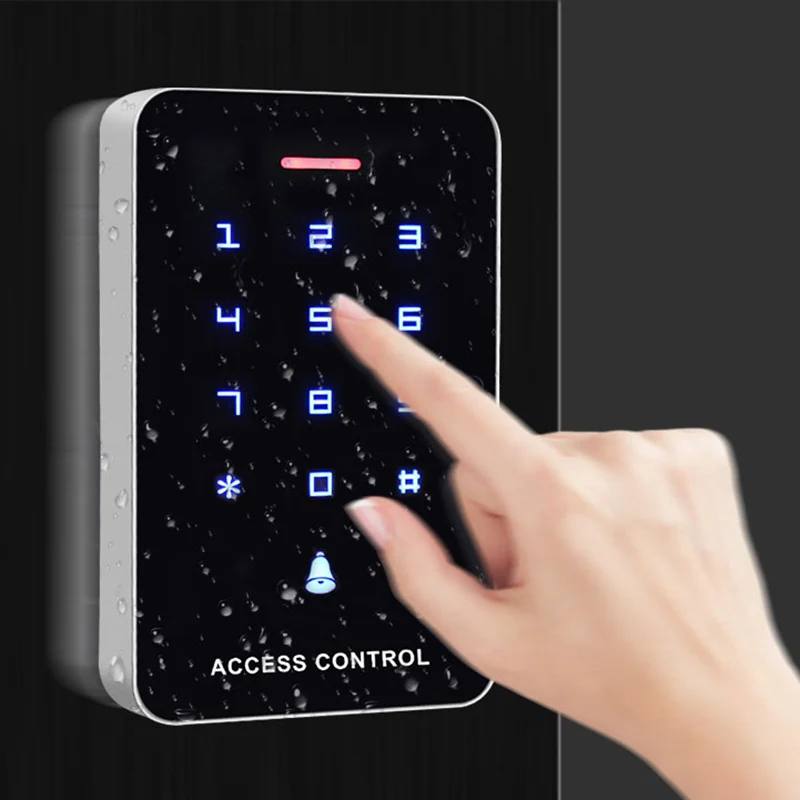

Press Surface Waterproof Panel
The flame-retardant casing is integrally formed, and the acrylic Press panel should be sensitive to Press!After the installation is completed, a layer of glass glue can be applied to the back cover to achieve a comprehensive waterproof effect. (Not IP65 waterproof, can't be used under the rain directly)

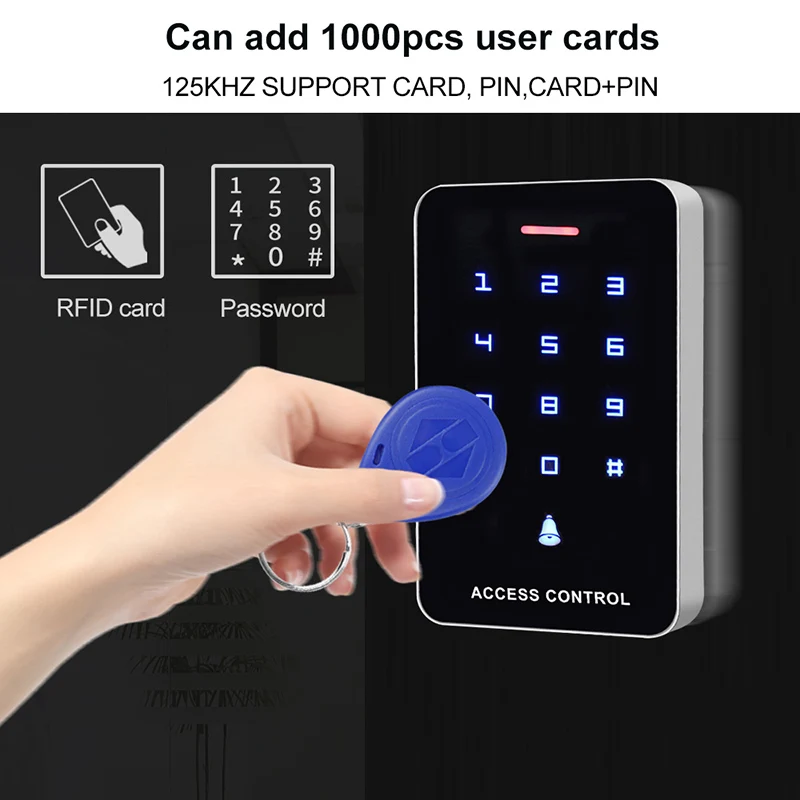

Support RFID Card, password, RFID Card + password to open the door.Support 1000 card and password user capacity, can set card + password to open the door, the safety factor is higher.Smart chip
Accurate recognition, full-featured, stable operation and easy operation
User capacity: 1000 users
Card reading type: EM card
Card reading distance: 1-5CM
Identification method: card, password, card + password
Unlocking time: 5 seconds
Working voltage: DC 12V +/- 10%
Door bell function: Support
Waterproof function: Surface waterproof
WG Interface: WG26
Panel: Press Keypad panel
Working frequency: 125KHz
Card type: EM card
Keypad type: Press keypad button
Backlight: blue backlight keypad
Programming password: 123456
RFID Keyfobs Tags
Working Frequency:125Khz
Support: read only, not support write
Reading distance: 0-10cm
Each one has a unique ID number printing on it

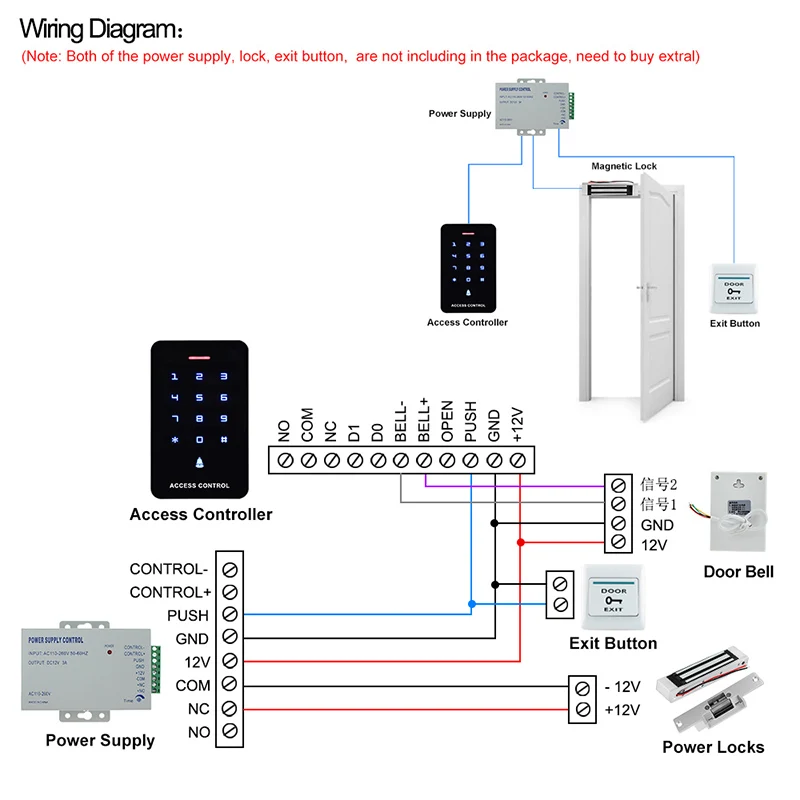

Wiring Diagram:
(Note: Both of the power supply, lock, exit button, are not including in the package, need to buy extral)
colour:black
Material:plastic
size:113*71*20mm

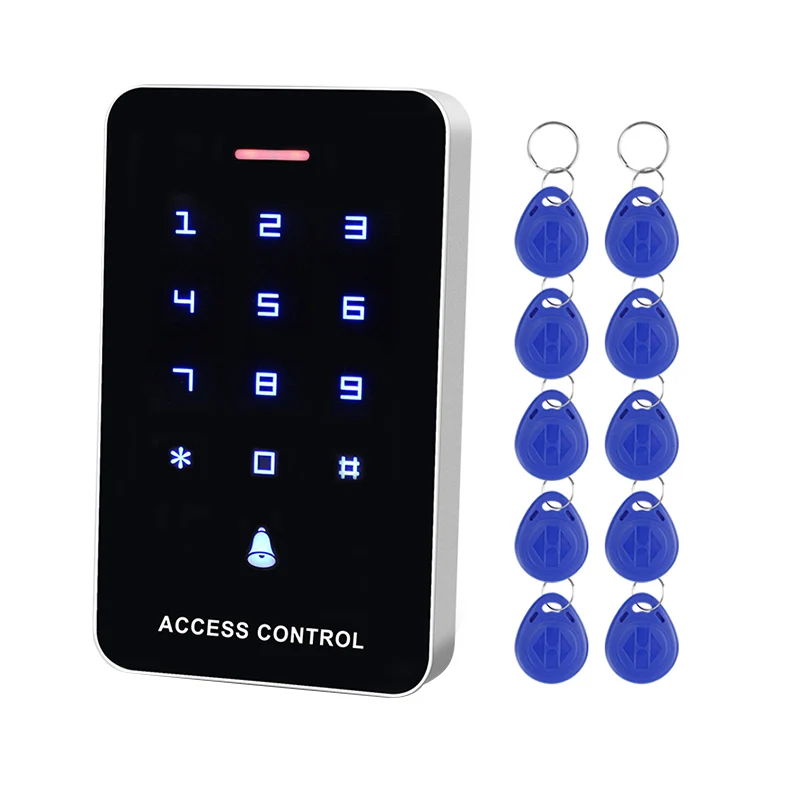

Package Contents:
1* access controller
10* keychains
Only the above package content, other products are not included.
