Features： 32-bit processor, high-precision 6-axis MEMS sensor, perfect hardware design and stable new firmware to provide more reliable performance; Provide six modes of flight: off mode, normal stabilization mode, attitude lock mode, coaching mode, auto balance mode and automatic crane mode; The latest support 6-stage flight mode switch; Compatible with most traditional receivers, supporting standard PPM single wire receivers and Futaba S.Bus and S.Bus2 single line receivers; 7 kinds of airfoil selection, full support double aileron, double lift, delta wing (flying wing) and V tail mixing; External highlight LED module, integrated tuning data interface, support for a variety of horizontal or vertical flexible installation; (Trun), trip limit (Travel Limit), each flight mode independent of the rocker ratio (Rate) and curve set (EXP); [A2] and [E2] channels support input signal through function (Pass-through); Open the main hardware and software filter settings, allowing you to more arbitrary to customize your own A3S3! Support the Chinese and English settings card quick transfer, the firmware can be upgraded.

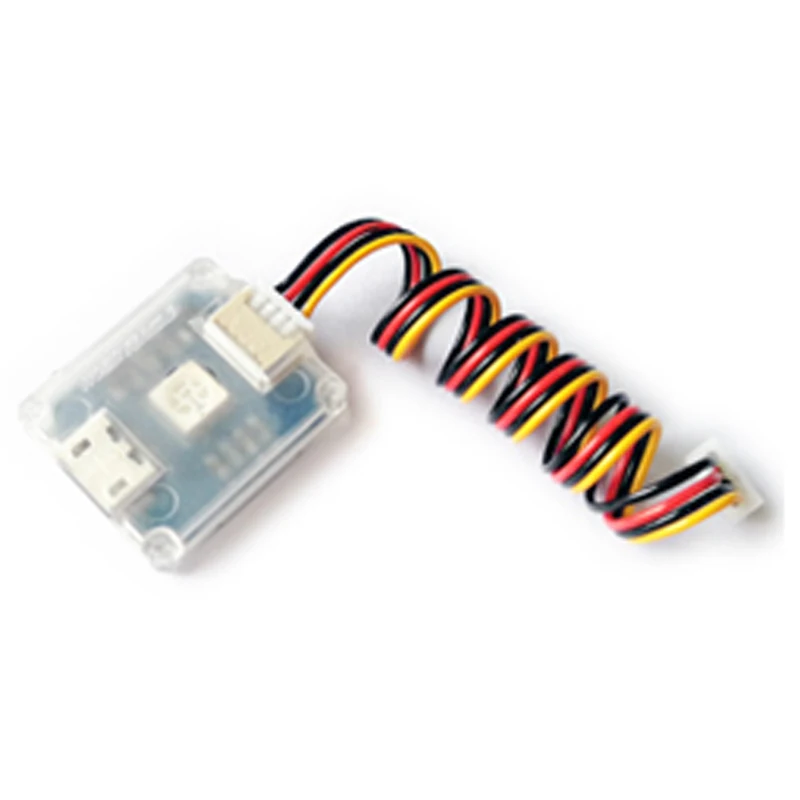

External LED module： The use of external highlight LED module, integrated tuning data interface, allowing you to very limited space within the aircraft more convenient to install and use.

Coach mode (Trainer Mode)： The new train mode (Trainer Mode), can make the aircraft attitude is always in a safe and controllable range; in this mode flight, the aircraft has the ability to automatically balance, as long as the release of the rocker, the aircraft will automatically restore the horizontal posture , The maximum tilt angle of the aircraft in the roll and pitch directions will be limited when operating the joystick, especially for beginners for flight practice and FPV use. 6-segment mode switch： New six-stage flight mode switching function, through the use of remote control on the 2-stage and 3-stage switch programming mix and control combination, allowing you to switch in the flight at the same time A3S3 provided by the six modes of flight! Direct access channel： Added [A2] and [E2] channel direct-pass function (Pass-through), when the second aileron or second lift is not used, the signal input in [A2] or [E2] can bypass the gyroscope directly [OUT4] or [OUT5] output. If you have no independent output channels when using the S.Bus or PPM single-wire connection, the direct-connect function allows you to obtain controls such as throttle, landing gear or flaps directly on the [OUT4] or [OUT5] ports of the gyroscope signal; Connection reference (electric version)：

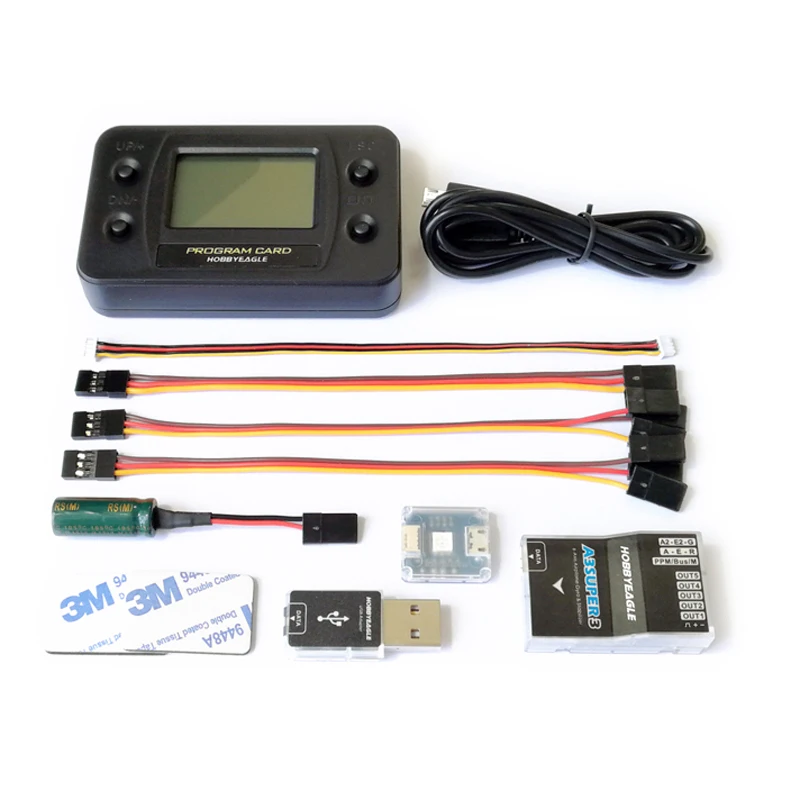

specifications： Main controller: 32-bit microprocessor Built-in sensors: high-precision three-axis gyroscope and three-axis accelerometer Gyro range: ± 2000 dps Acceleration range: ± 4g PWM output: 920uS ~ 2120uS, the median 1520uS / 50 ~ 333Hz Working voltage: 4.8V ~ 8.4V Working temperature: -10 ℃ ~ 50 ℃ Dimensions: 43 × 27 × 14mm Weight: 10g (without connecting cable) Package Included: 1 x A3 Super 3 Main Controller 1× Program Card 1×LED module 3 x Receiver Cable(15cm) 1 x Data Cable(40cm) 1 x Adapter 2 x Double-sided Tapes
