There are a lot of counterfeit Replica, knock off in the market, please pay attention to distinguish them when buying, do not buy fake products.

The current batch shipping version V606/V607, V7xx version supports universal learning function, you can connect to any BLE slave device without dynamic password on the market, if you need V7xx firmware version, please specify the professional device when placing the order. Please consult the customer service before ordering whether it can be used or not. Please take the order by yourself for does not make shipment.
V607 supports custom broadcast packages, supports multi-IO port control for one instruction, supports FreeStyle, supports learning functions of 1UUID and 2UUID, and does not distinguish between 16Bit and 128Bit, the local serial port supports a variety of command formats. In the AT + RELI1 mode, it supports a rapid flash of 500ms and has many functions. Welcome new and old customers to experience it.

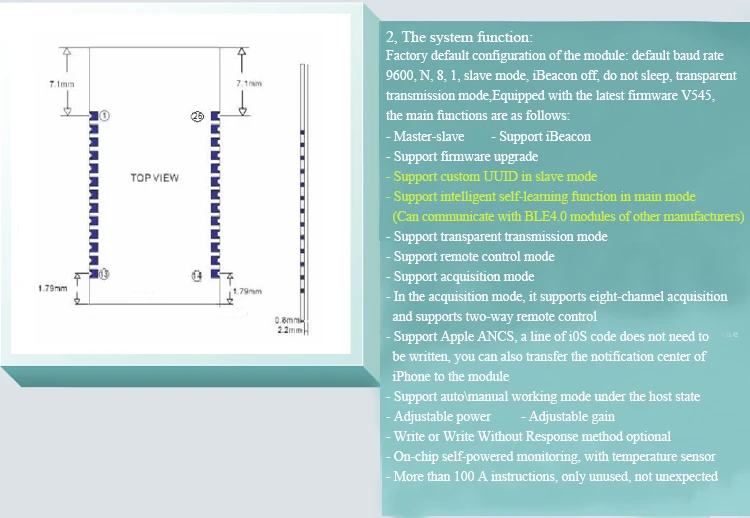

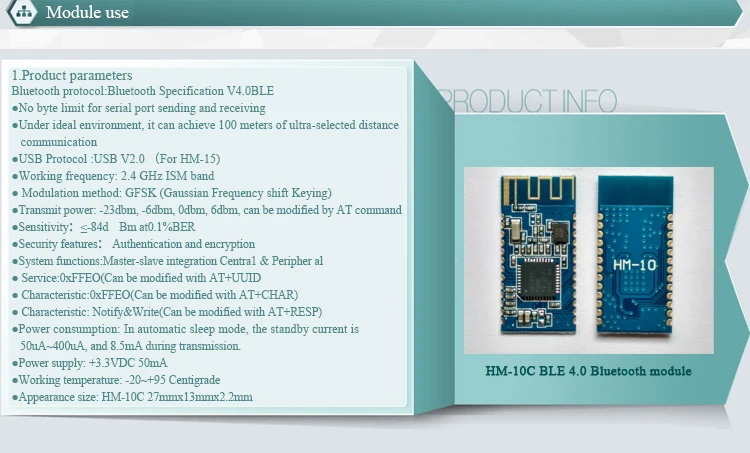

-Supports more than 100 AT commands, which can be flexibly configured according to requirements (some commands are reused).
-Long-distance communication, the ideal communication distance can reach 100 m
-Low power consumption, under the state that can be searched, the power consumption can be as low as 50 ~ 400uA,
-Master-slave integration, AT command switching
-Support iBeacon
-Support firmware upgrade
-Supports custom UUID customization in slave mode
-Supports single UUID or double UUID in slave mode
-Intelligent self-learning function is supported in the main mode, which can realize BLE communication of different brands
-Supports passthrough mode
-Support for remote control mode
-Collect mode
-Support eight-way collection and two-way remote control in collection mode
-Support for Apple ancs
-Automatic manual operation mode is supported in the host state
-Adjustable power
-Adjustable gain
-Write or Write Without Response method is optional
-On-chip power monitoring
-The chip has its own temperature sensor

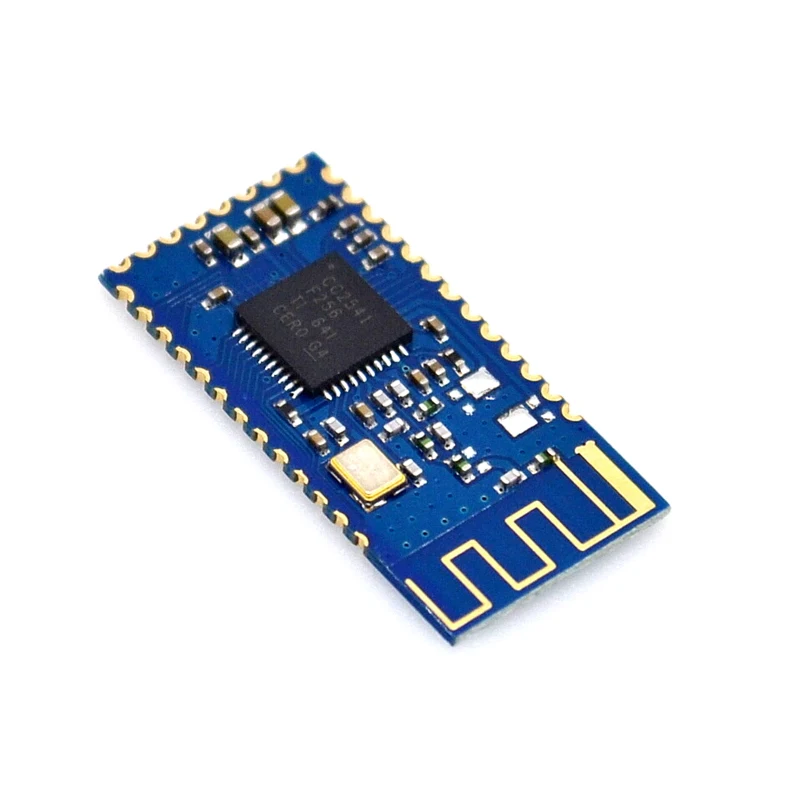

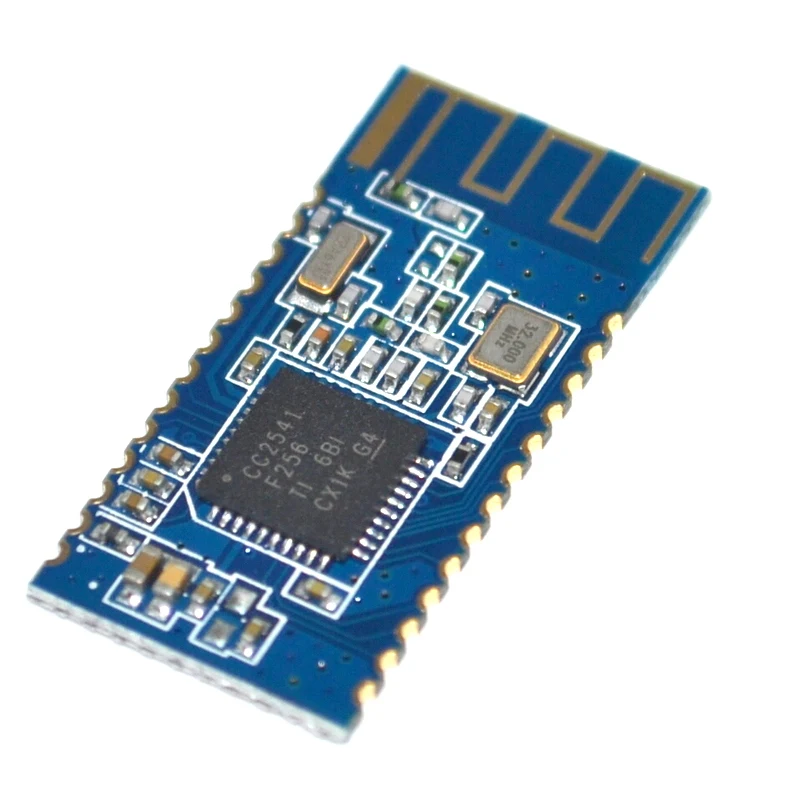

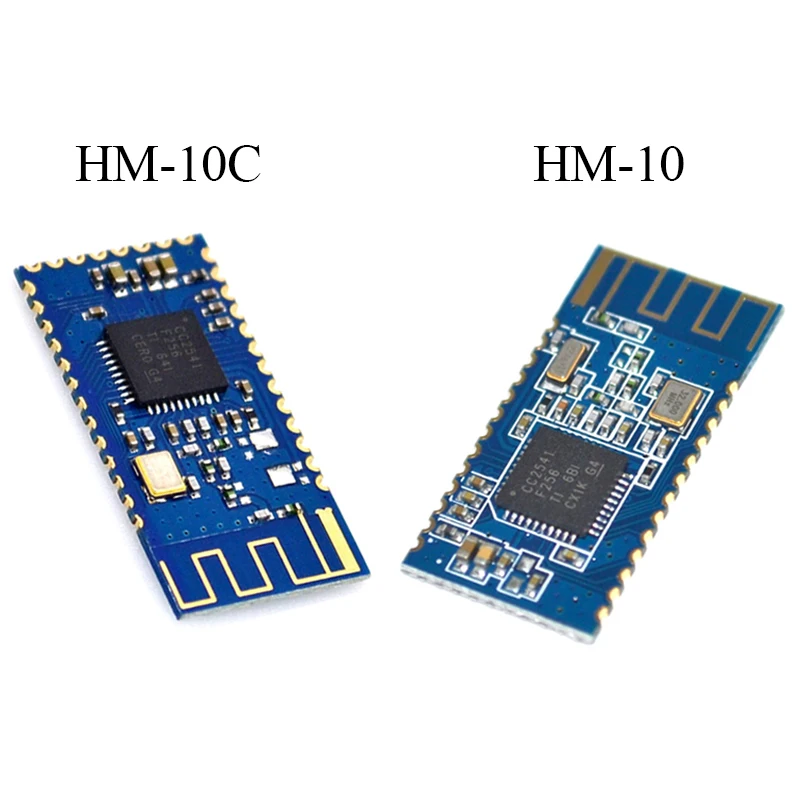

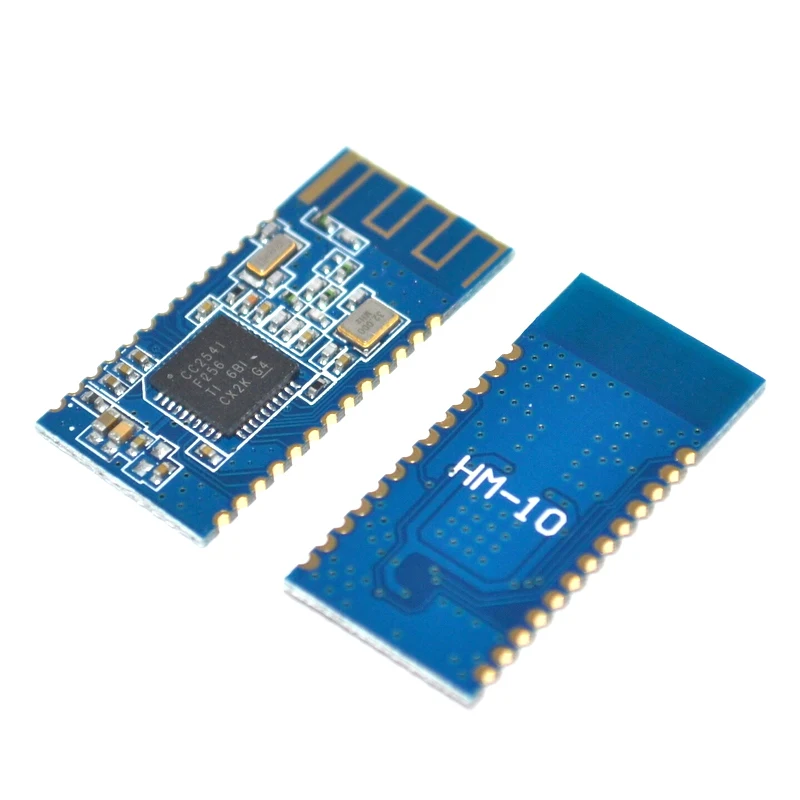

HM-10 has two sub-models, HM-10S and HM-10C

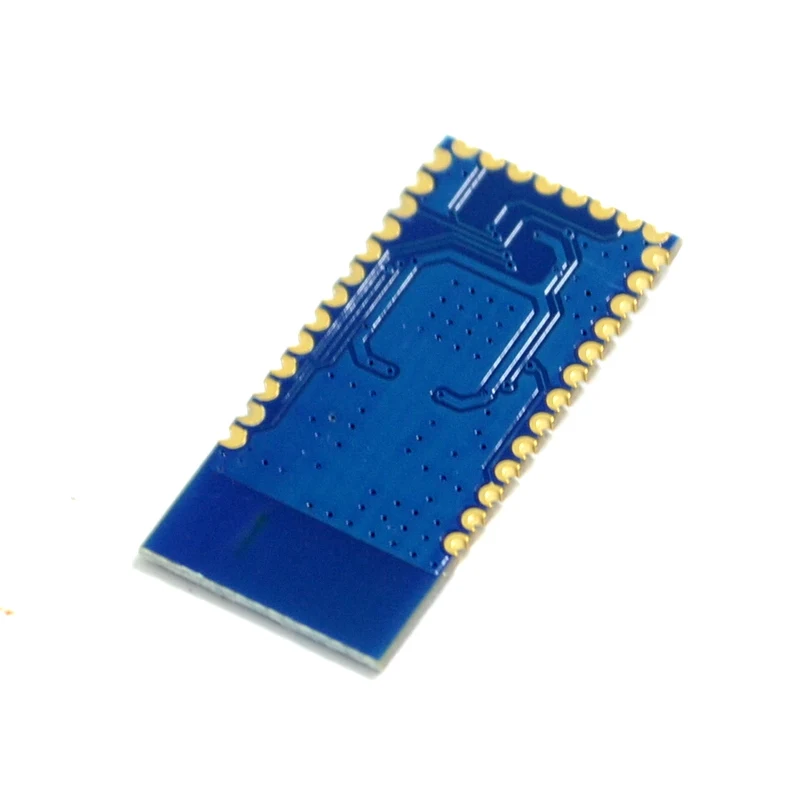

the difference between HM-10C and HM-10S is that HM-10C removes the pad that is not used at the bottom, and the function is consistent with the HM-10S.

HM-10C is more cost-effective, please choose according to your needs.

HM-10C has two sub-models, which are HM-10C single crystal oscillator and HM-10C double crystal oscillator respectively. The differences between them are as follows

HM-10C single crystal oscillator version 32 m crystal oscillator uses external crystal oscillator, 32.768 crystal oscillator uses internal RC crystal oscillator

HM-10C double crystal oscillator version 32 m and 32.768 crystal oscillator use external crystal oscillator.
