Product Application Area

Factory \ Farm\ Office\ Instrument\ Ventilation \ Pump \ Motor \ Remote control garage door \ Remote control house door \ Remote control Lamp \ Remote control curtains \ Remote control Gate and other remote control device

2000W High-power, Wider Range of Application

Technical Data:

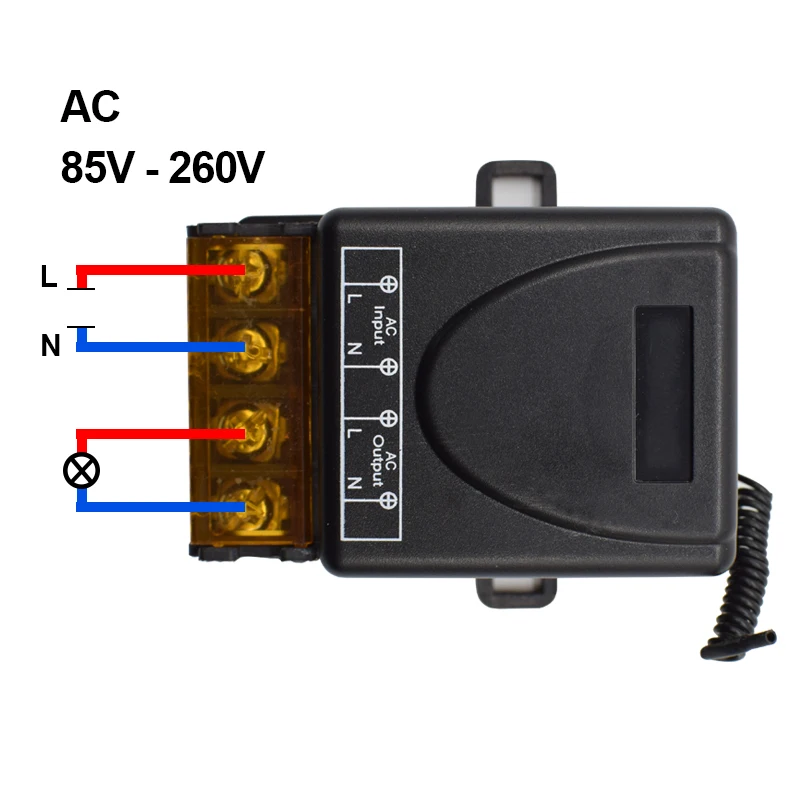

Operating voltage: AC 85V - 260V Output voltage = Operating voltage Operating frequency: 433MHz(Same with Remote control) Rated contact current of relay: 15A/240VAC, 15A/110VAC (Please notice that : Although the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should less than 15A) Box size: approx 65 x 45 x 28mm

Specifications Of The Remote Control:

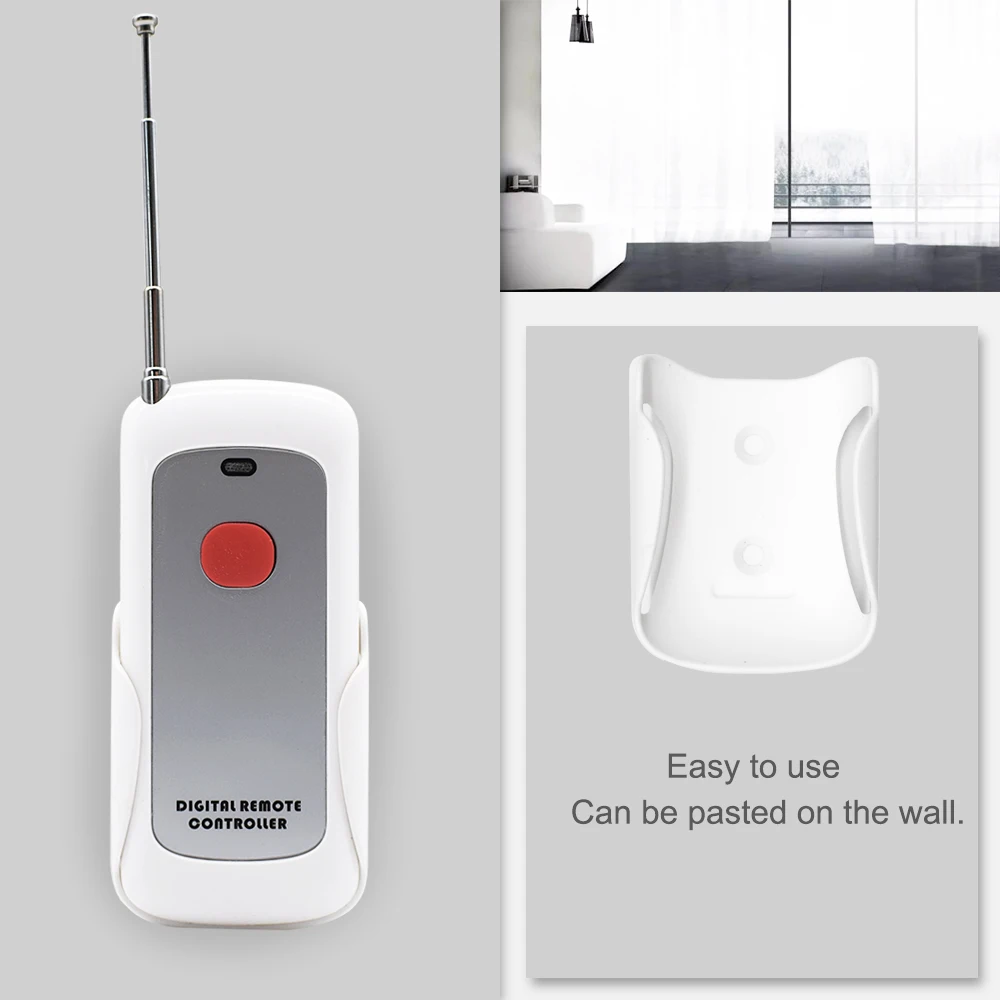

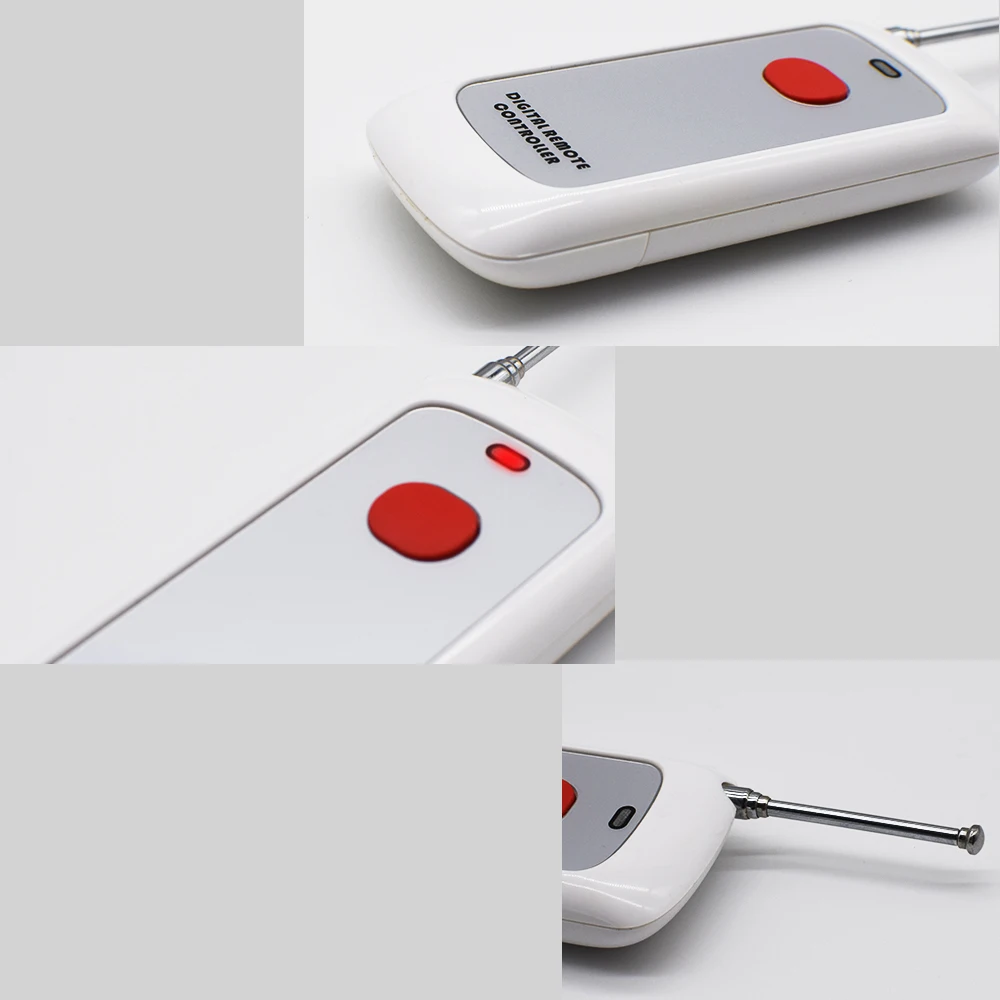

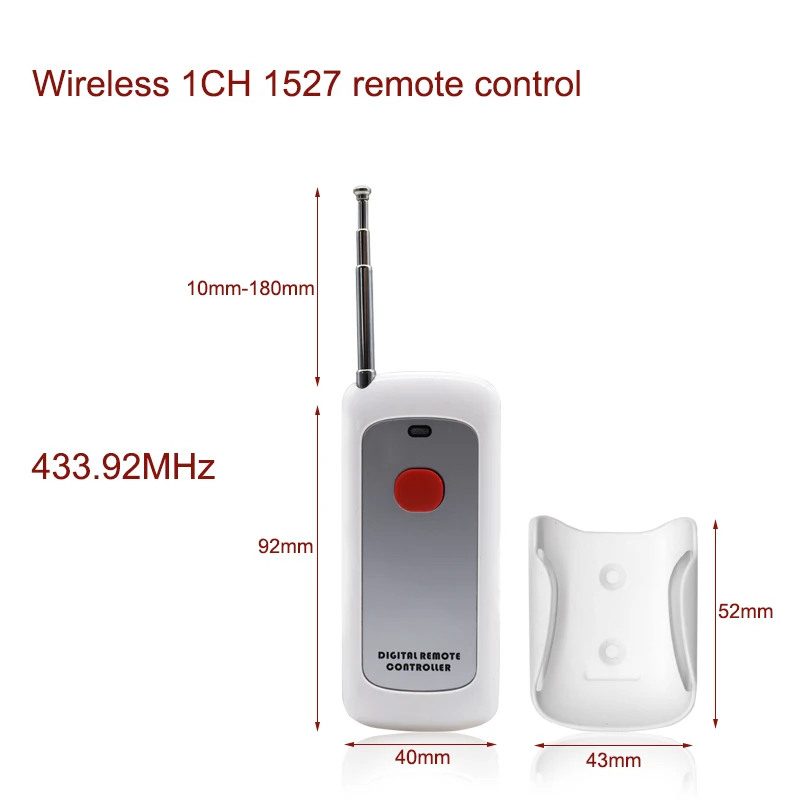

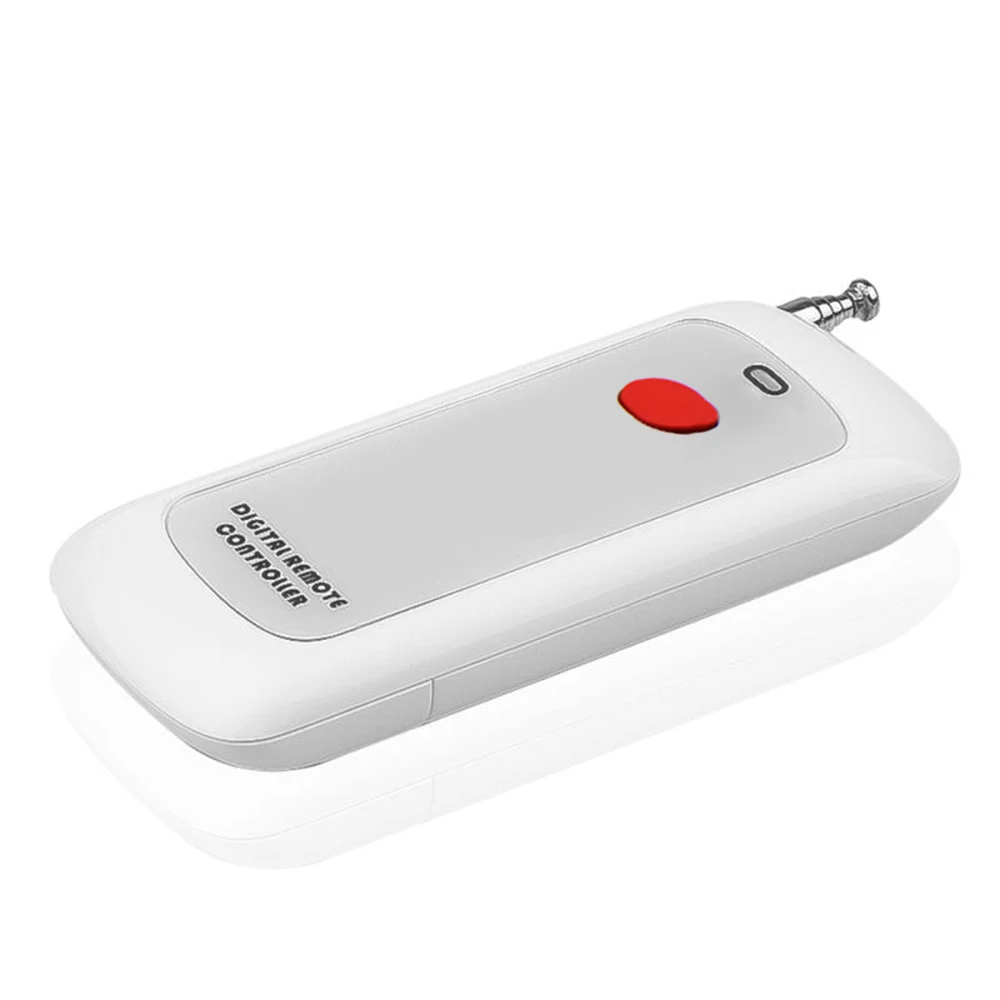

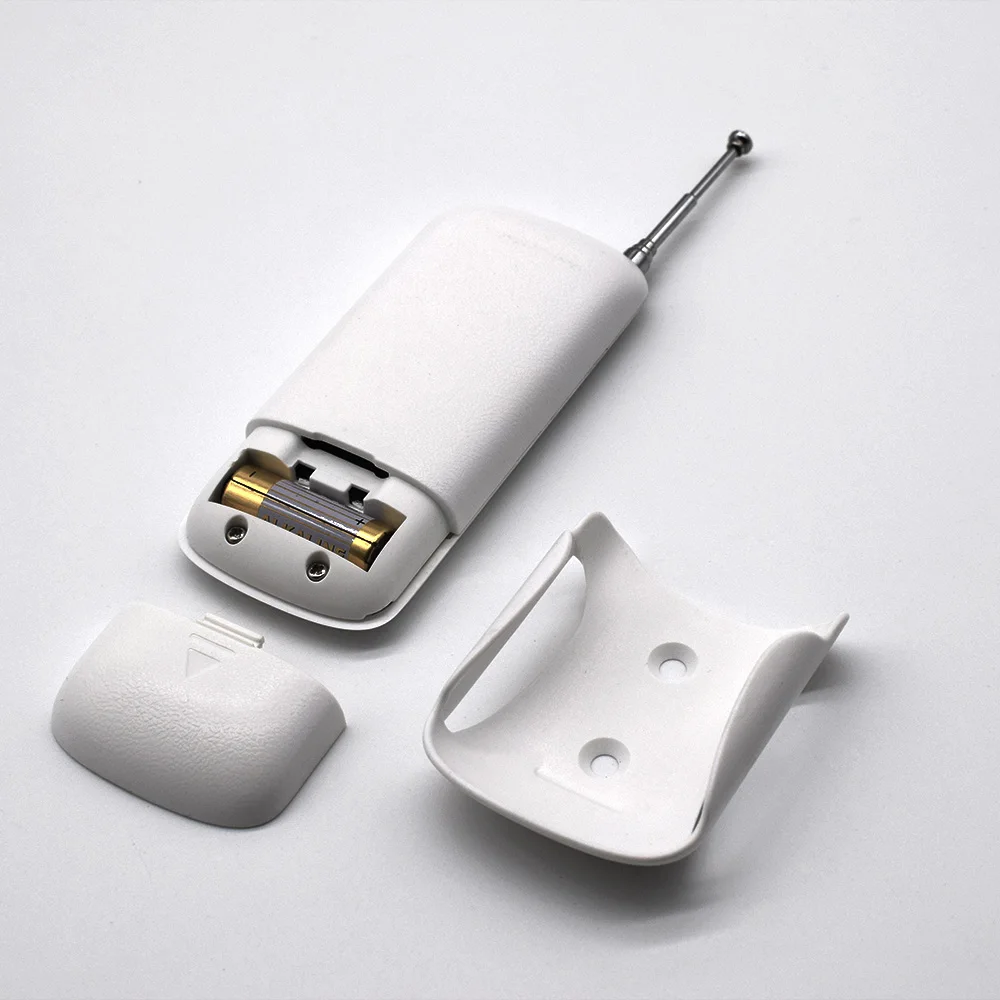

Operating voltage: DC12V (23A/12V battery x1) Transmitting frequency: 433MHz Encoding Type: Fixed code Receiver sensitivity: > -105dB Transmission distance : 10-100M (Open field) Size: approx 92*40*10mm Battery and bracket included

Package Included:

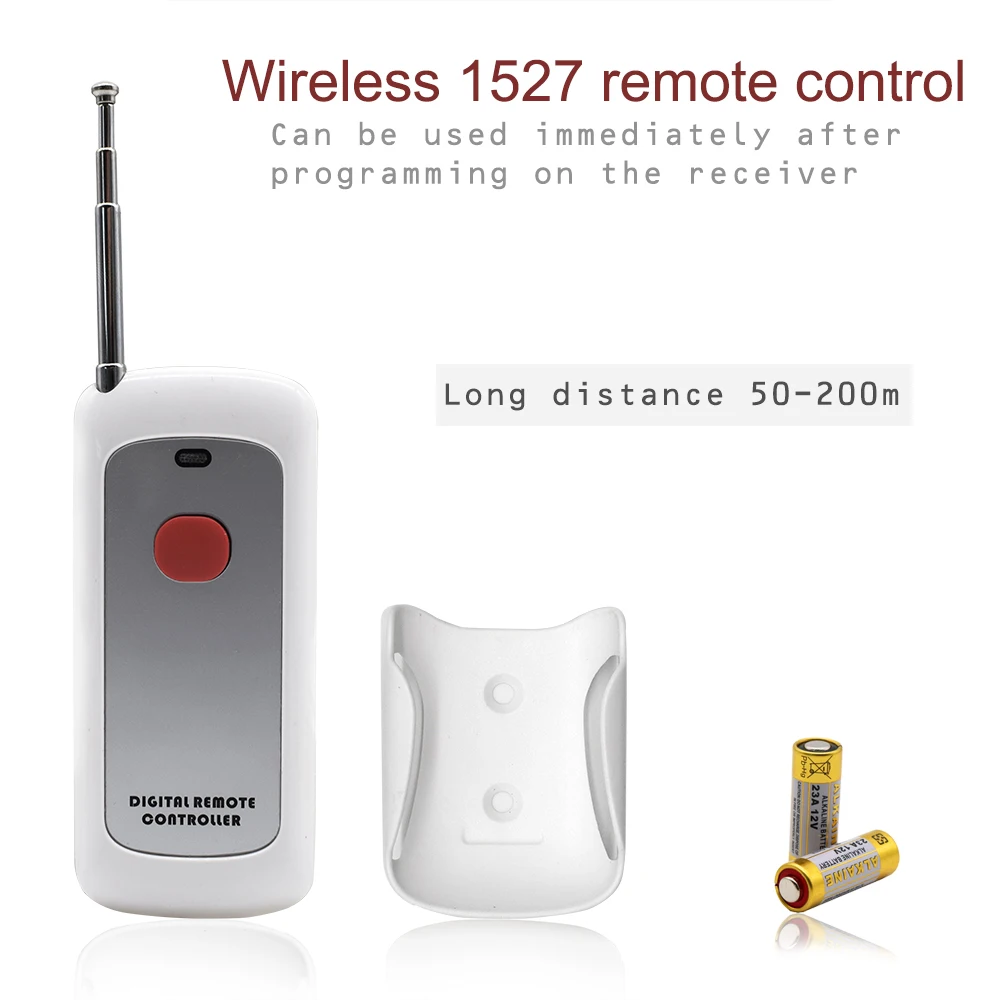

1pcs EV1527 Learning code Remote Control(Battery and bracket included) ; 1pcs Receiver ;

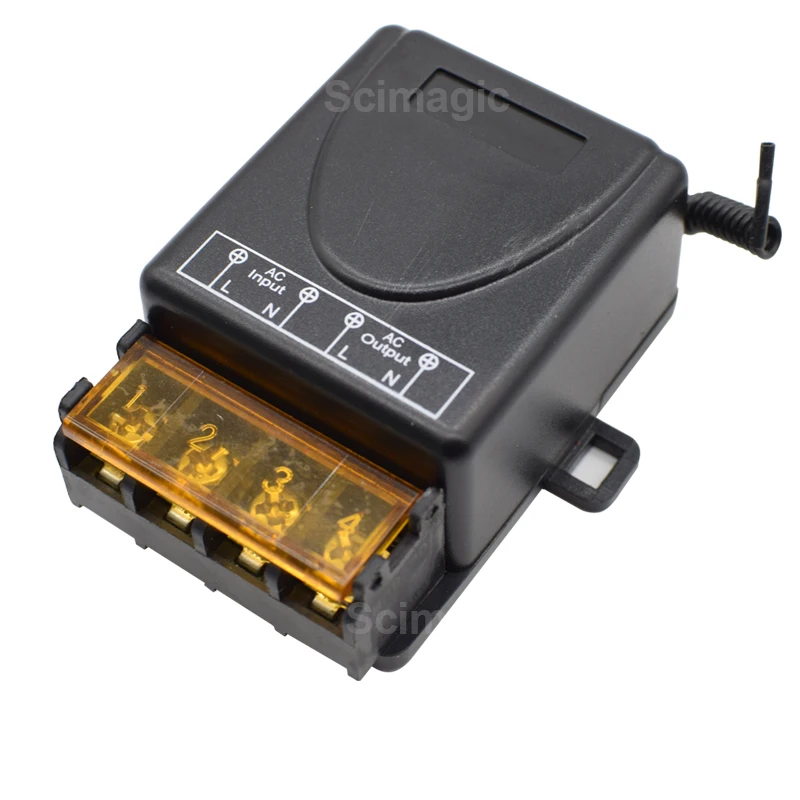

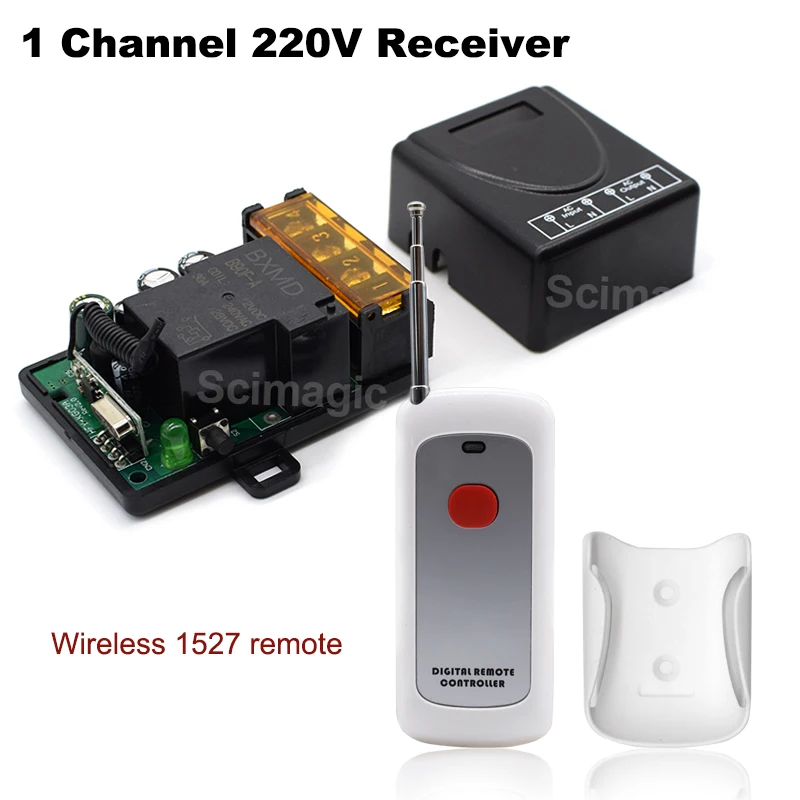

433MHz Receiver Product Pictures:

About Working mode:

Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects. Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects . Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.

Clearing the code :

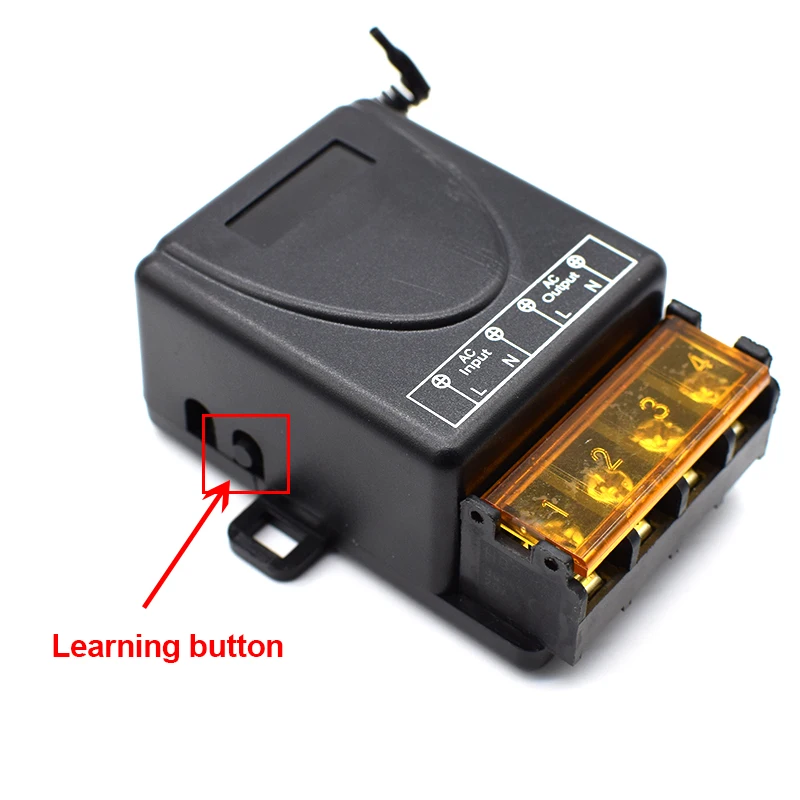

Method 1： Push the learning button on the receivers for 8 times , the codes will be cleaned; Method 2： Keeping press the Learning Button on the receiver until the LED indicator ON and then flash,until it flash for 8 times. it mean the code have been cleared successfully; After clearing the code, all the remote control cannot work any more.

Learning the code :(Momentary)

Push the learning key on the receiver 1 time , it comes into momentary setting mode . Wait for a moment , the LED will be off , it comes into learning state . Push the remote button , LED indicator on the receiver board will flash then come off . After 3 seconds, the LED indicator will be on again , learning successfully .

Learning the code : ( Toggle )

Push the learning key on the receiver 2 times , it comes into toggle setting mode Wait for a moment , the LED will be off , it comes into learning state . Push the remote button,LED indicator on the receiver board will flash then come off. After 3 seconds , the LED indicator will be on again , learning successfully .

Learning the code :( Latching )

Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for “ON”, the second time learnt for “OFF”. For example : button A = ON , button B = OFF Push the learning key on the receiver 3 times , it comes into latching mode . Wait for a moment , the LED indicator on the receiver board will flash then come off. Push the remote button A . LED flash for 5 times . Push the remote button B . Led flash for 5 times . After 3 seconds , the LED indicator will be on again , learning successfully. A = ON , B = OFF .

NOTE: The system can store for 20 pcs of remotes , if the remote get more than 20 pcs , the initial remote control will be lost .
