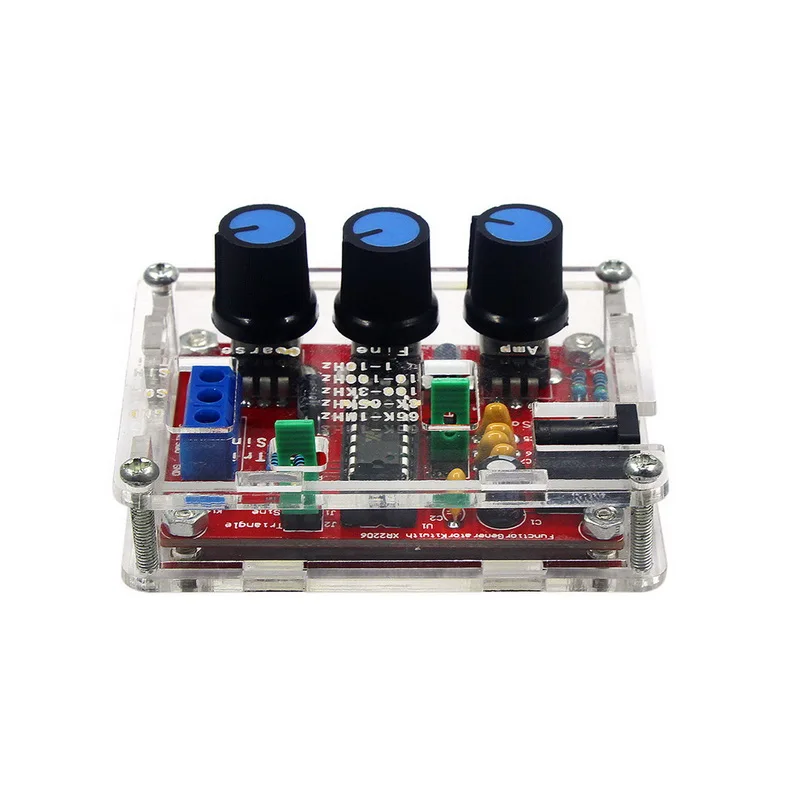

Function Signal Generator DIY Kit Sine/Triangle/Square Output 1Hz-1MHz Adjustable Frequency Amplitude XR2206 | Инструменты

Function Signal Generator DIY Kit Sine/Triangle/Square Output 1Hz-1MHz Adjustable Frequency Amplitude XR2206 | Инструменты

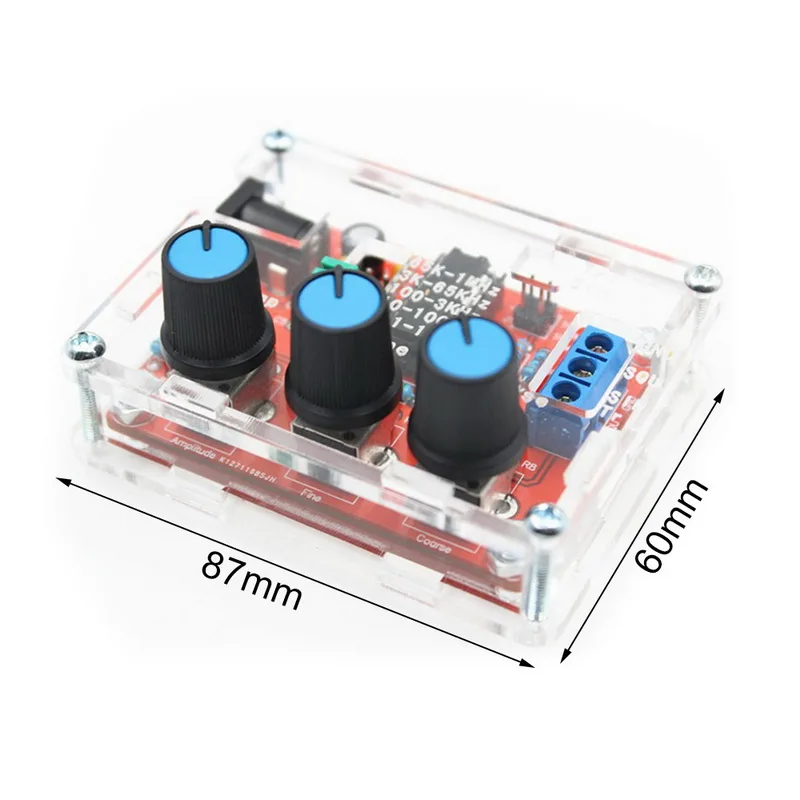

 Size: 78*50mm/approx. 87*60mm
Color: multicolor
Material: ABS, metal
Power supply voltage: 9-12V DC input
Waveform：square, sine  and triangle
Impedance：600Ohm+ 10%
Frequency：1hz - 1mhz
Sine wave
Amplitude: 0 - 3V at 9V DC input
Distortion：<1%（1kHz）
Flatness:  + 0.05db 1hz extension
Square wave
Amplitude: 8v（no load）at 9V DC input
Rise time：< 50ns（1kHz）
Fall time：<30ns（1kHz）
Symmetry: < 5%（1kHz）
Triangle wave
Amplitude：0 - 3V at 9V DC input
Linearity: <1%（up to 100kHz）10ma

Package list:

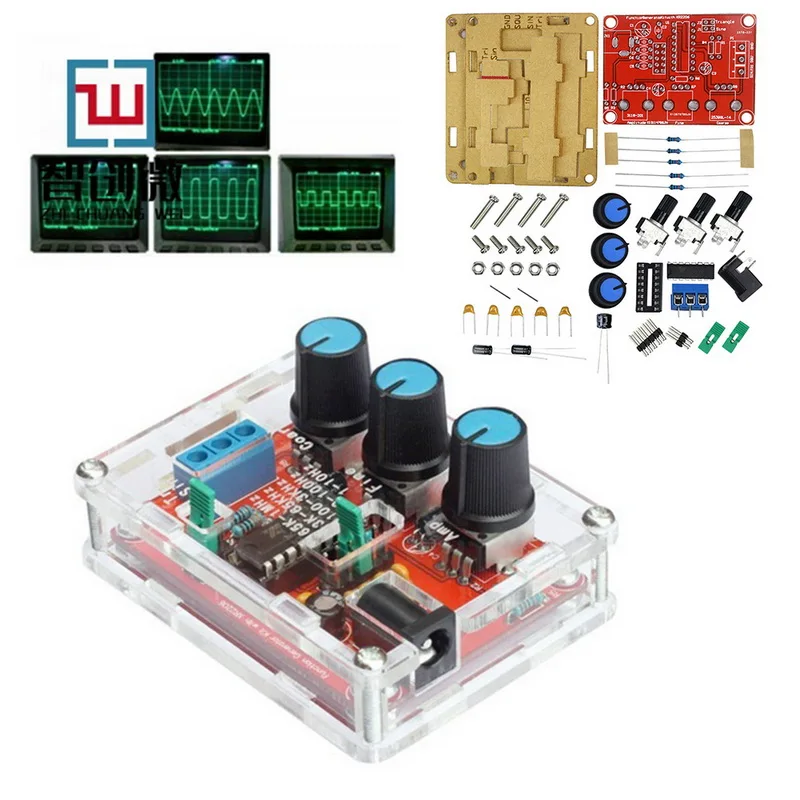

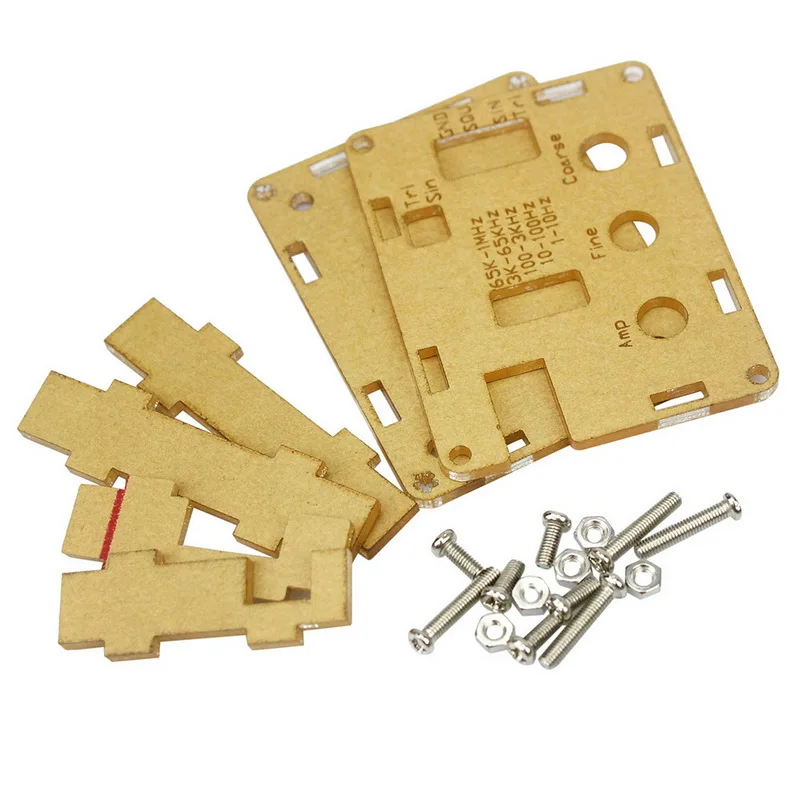

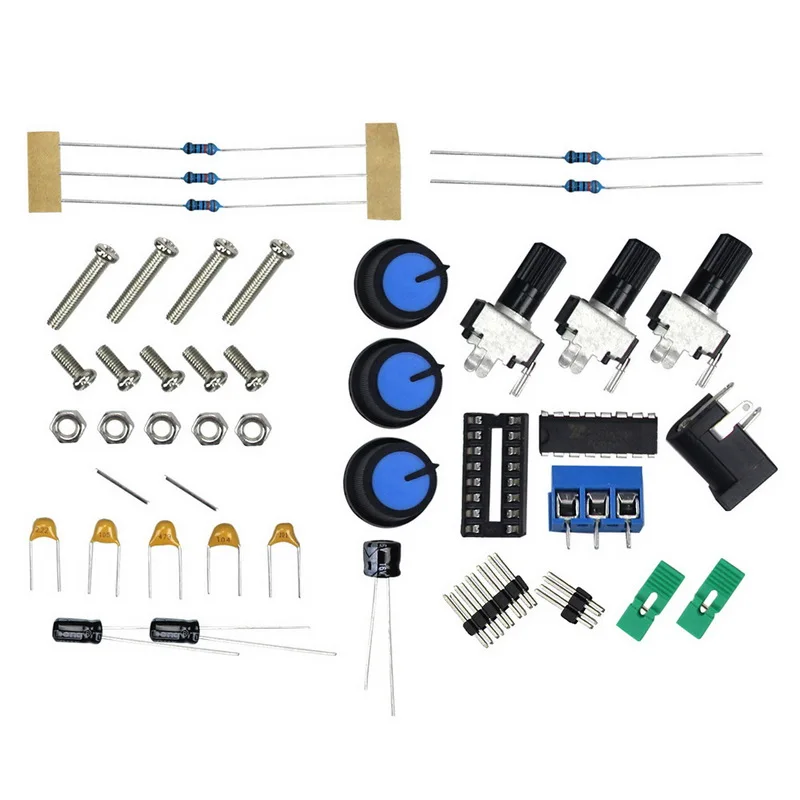

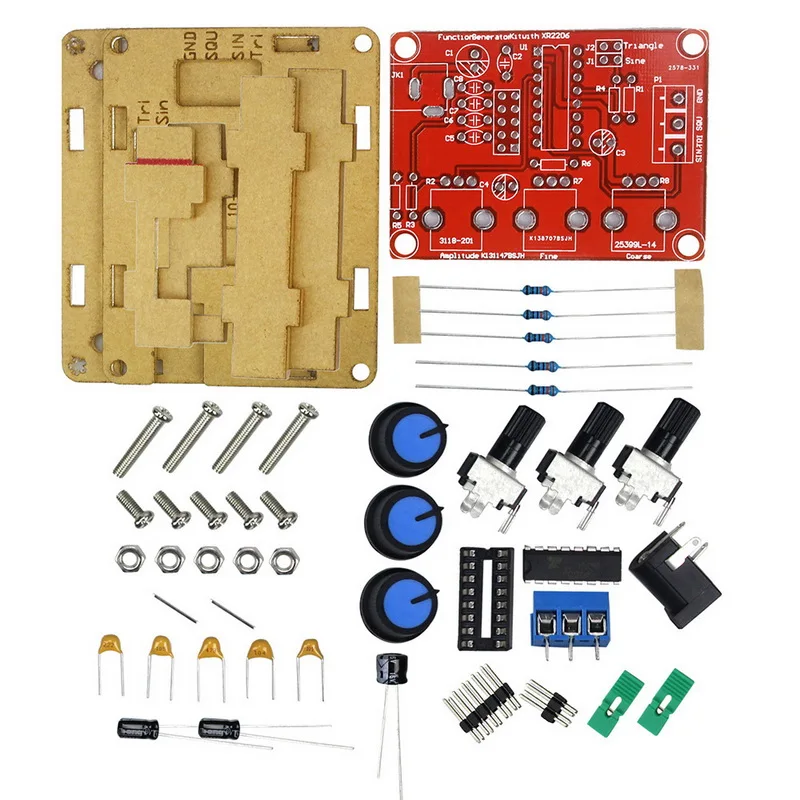

set 1: 1 x signal generator DIY kit, 1 x protective cover
set 2: 1 x signal generator, 1 x protective cover

Features:

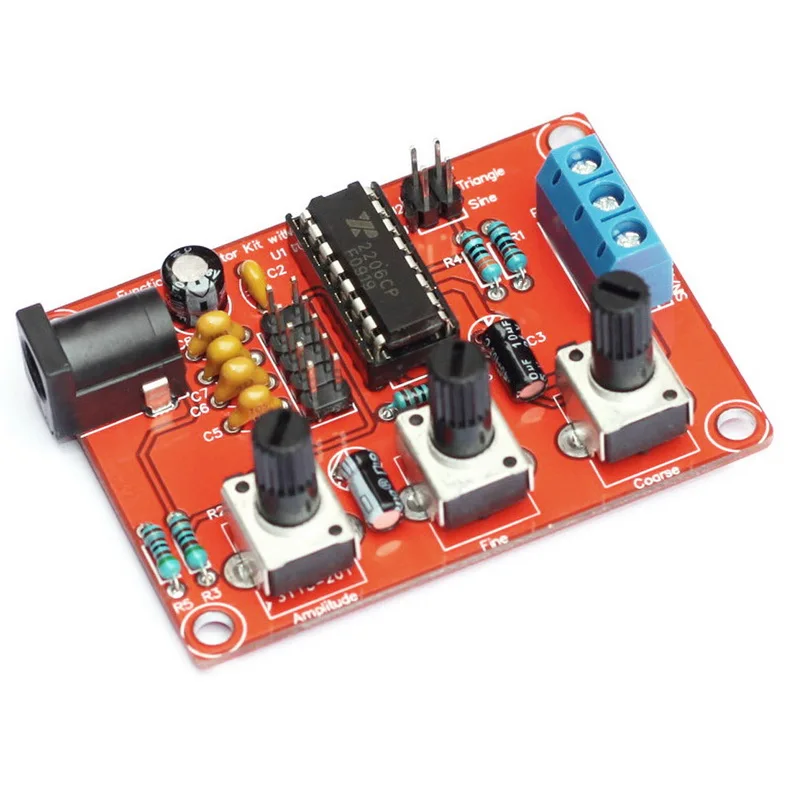

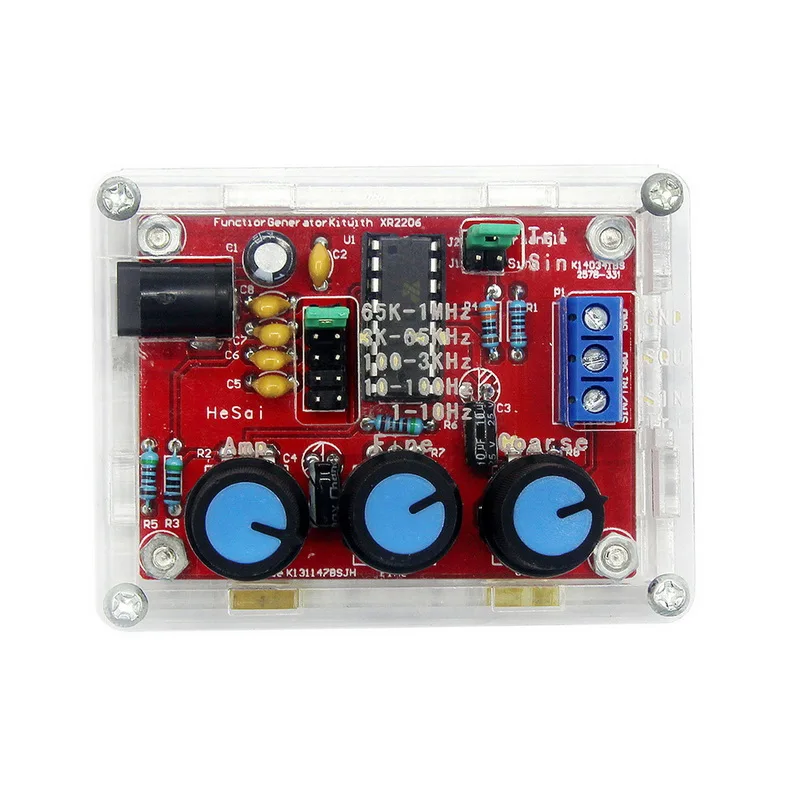

**  Good quality:  Can produce sine , triangular and square wave, five precision resolution
** Adjustable frequency and amplitude: Frequency range: 1Hz-1MHz,  adjustable frequency and amplitude
** Coarse tuning and fine tuning: Frequency adjustment features coarse tuning and fine tuning.

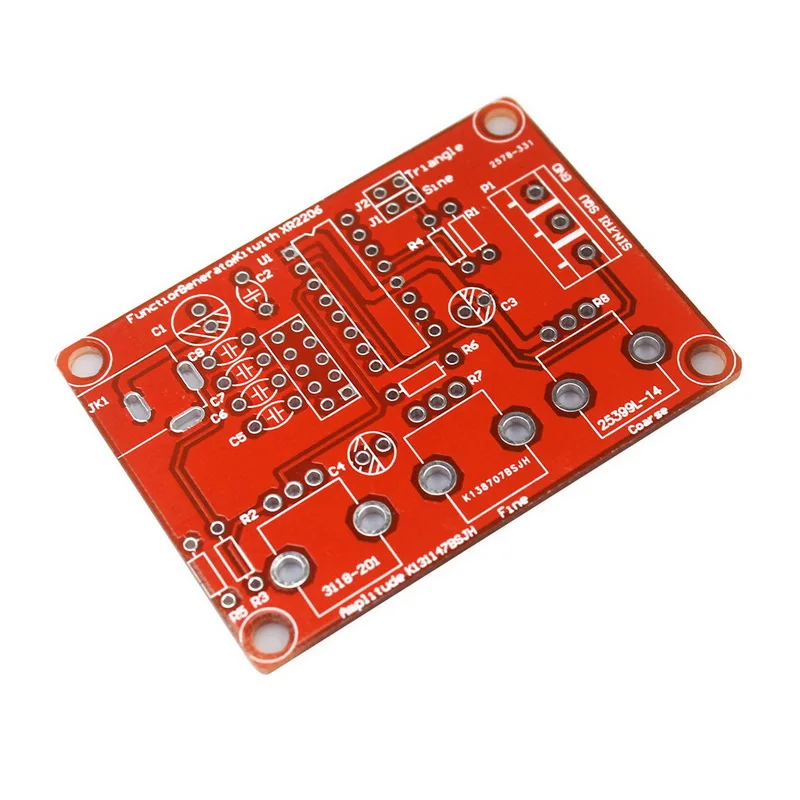

** Easy installation: All are through hole components, easy  to install.
** Power supply: Wide power supply range, use 9-12V external power or 9V battery (NOT included)

Notes:
1. Please allowed 1-3mm differences due to manual measurement, thank you for your understanding!
2. Due to the difference between different monitors, please understand that the picture may not reflect the actual color of the item.
