MFS500 FBI certified multi-finger & four fingerprint scanner Supports single rolled and flat capture capabilities For Customs |

MFS500 FBI certified multi-finger & four fingerprint scanner Supports single rolled and flat capture capabilities For Customs |

MFS500 fingerprint livescan:

1.Support wholesale and retail;

2.Provide free SDK;

*This product is only suitable for professionals, please buy carefully!

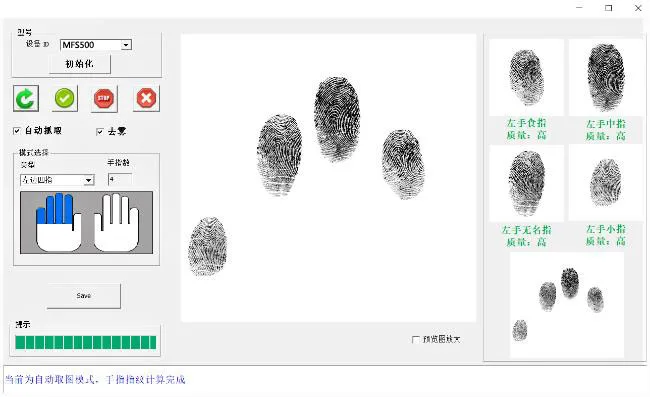

The MFS500 fingerprint livescan is a lightweight,compact, optical fingerprint device. Its 91mm height should be the ultrathin in optical four fingerprint scanner. USB 2.0 interface eliminates excessive cables. All these allow it to be easily integrated into new or existing applications.There are finger indications to guide operators to capture rolled and flat fingerprints on the panel of MFS500 scanner. The software guides the operator through the capture process with onscreen prompts and graphical displays. Realtime image quality check, sequence verification， auto-positioning, auto-rotating, and autocutting functions ensure the capture of highquality prints which is convenient to operators.

Provide free English version of SDK

Features:

➢ Supports single, rolled and flat capture capabilities ➢ Automatic calibration ➢ Automatic positioning fingerprints ➢ Automatic segmentation ➢ Automatic elimination of latent prints. ➢ Fingerprint quality feedback ➢ Prompting of error finger placing ➢ Optional automatic or manual capture ➢ Mist elimination ➢ Fully compliant with ANSI/NIST ITL-1-2007 standards ➢ Certified for FBI IAFIS Appendix F ➢ Fully compliant with ISO/IEC 19794-4; IP 54 compliant

Technical Specifications：

➢ Resolution： 500 dpi ±1% ➢ Active Platen Area： 3.2 X 3.0 in.（81.3 X 76.2 mm） ➢ Platen Size： 3.62 X 3.11 in. (92 X 79mm) ➢ Rolled Area： 1.6X 1.5 in. (40.64x 38.1 mm) ➢ Image Pixel Size： 1600 X 1500 pixel（Flat Image）；800 X 750 pixel（Rolled Image) ➢ Image Distortion： ≤1% ➢ Image gray Range： ≥200 grayscales Grayscale: 8-bit, 256 levels ➢ Collection Rate： Single finger rolling frame rate: 20 Rate/sec.Flat four fingers frame rate: 5 Rate/sec. ➢ Operating Temperature： 0 ℃～50℃ ➢ Storage Temperature： -20℃～60℃ ➢ Relative Humidity： 10～90% ➢ Interface： USB 2.0 ➢ Capture Mechanism： Automatic ➢ Weight： 2.76 lbs. (1.25 kg) ➢ Dimensions： 5.35 X 6.34 X 3.6 in. (136 X 161 X 91 mm) ➢ LED Indicators： Power, status, and fingerprint indications ➢ Capture Format： Single fingerprint rolls, single fingerprint flats, four fingers, two thumbs ➢ Standard Software： FBI standard processing software；Capture 14 NIST fingerprint images; FBI standard WSQ compression module；SMTP, FTP, XML and NIST interface module；Quality check and sequence check module；Segmentation of flats into single fingerprint images. ➢ Available SDKs: DTFScanner ➢ Minimum Computer Specifications: Intel® Core™ i3 or higher; 2 GB RAM or higher; 80 GB hard drive or higher; USB 2.0; Windows® 7 or higher ➢Certifications: FBI Standard CJIS-RS-0010 (V7) IAFIS Image Quality ;Specifications (IQS) for Scanners Appendix F ;ANSI/NIST ITL-1-2007 ;FCC/CE
